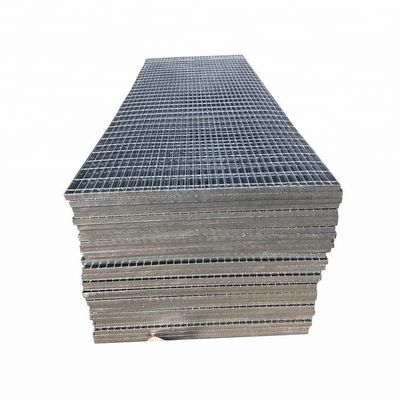

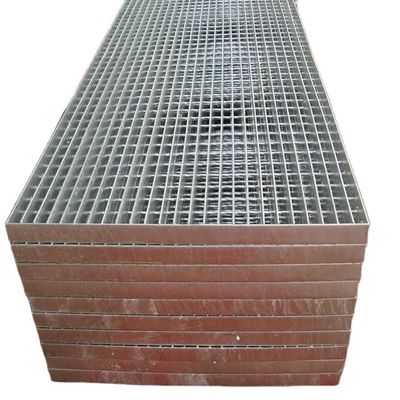

Metal grating Hot Dipped Galvanized 30*5mm Steel Grating For Flooring Or Catwalks
| Place of Origin | HeBei,China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001,CE |
| Model Number | 01 |
| Minimum Order Quantity | 100piece/pieces |
| Price | Negotiable |
| Packaging Details | Wooden Pallet/Steel Pallet Or As The Customar require |
| Delivery Time | 5-8days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 25000piece per month |
Product Details
| Application | Floor,Walkway,platform,stair Tread,bridge | Width | According To Your Size |
|---|---|---|---|
| Usage | Public Drain Area,bathroom,garge,Concrete Construction Support,balcony Ect. | Length | According To Your Size |
| Highlight | hot dipped galvanized steel grating,30x5mm metal grating for flooring,industrial steel grating for catwalks |
||
Product Description
Metal grating Hot Dipped Galvanized 30*5mm Steel Grating For Flooring Or Catwalks
Product Description
Welded Steel Bar Grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. Universally used in most general industrial plants as well as commercial buildings, it has wide applications as walkways, platforms, safety barriers, drainage covers and ventilation grates.
Product Specification&Model
Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.
| NO | ||
| 1 | Item | Description |
| 2 | Bearing bar | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. |
| 3 | Bearing bar pitch | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. |
| 4 | cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’requirement. |
| 5 | surface treatment | Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement. |
| 6 | flat bar type | Plain, Serrated (tooth-like), I bar (I section) |
| 7 | Material | Low carbon steel |
| 8 | crossbar | 5x5, 6x6, 8x8mm |
Product Details
The products are widely used in areas such as the oil and petrochemical industry, power and steel plant, port, shipyard, water and sewage treatment, municipal construction, ceiling, etc.
| Type | Platform Floor Galvanized Stainless Steel Grating |
| Color | sliver |
| Material | Stainless Steel |
| Surface treatment | Hot Dipped Galvanized |
| Size | Customized |
| Bearing bar thickness | 3mm-10mm |
| Bearing bar width | 30mm-100mm |
| Feature | Easily assembled, durable |
Product Type
Application
Galvanizing steel grating /grate is widely used in the platform, corridor, bridge, well covers, stairs, fencing for petroleum, chemical, power plant, waste treatment plant, civil engineering projects, and environmental projects.
Steel grating Feature
1) High strength and light structure
2) Powerful anti-corrosion, durable, and long working life
3) Beautiful appearance, bright surface
4) No dirt-rain-snow deposit, automatic cleaning, easy maintenance.
5) Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion
6) Easy installation
FAQ
1.How much about your annual production capacity?
More than 3000tons.
2.Can you provide a free sample?
Yes, we can provide the sample of 20cm*20cm.
3. What are your terms of payment?
30% TT in advance and the balance paid before shipment, L/C at sight, you also can pay by West Union
4. What is the delivery time?
Usually, within 10days, customized orders may need a longer time.
5. Is there quality control on all production lines?
Yes, all production lines have adequate quality control.
6. How do you make our business long-term and good relationship?
(1)We keep good quality and competitive price to ensure our customers benefit;
(2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
