YB/T4001.1-2007 Standard Steel Bar Grating Platform Galvanized Steel Walkway Grating
| Place of Origin | Hebei, CN |
|---|---|
| Brand Name | ZHUOTE |
| Model Number | ZT355/30/50 |
| Minimum Order Quantity | 1ton |
| Price | 1000$/ton |
| Packaging Details | steel belt |
| Delivery Time | 25-30days |
| Payment Terms | T/T |
| Supply Ability | 1000tons/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | SGS&ISO 9001 | Material | Steel,Q235 |
|---|---|---|---|
| Surface Treatment | Hot Dipped Galvanized,painting,painted | Application | Floor,platform,steel Structure,bridge |
| Product Name | Serrated Flat Bar Steel Grating On Sales | Standard | ISO9001 |
| Thickness | 3mm | Width | 610mm |
| Length | 914mm | Feature | Simple Installation |
| High Light | 3mm thick walkway bar grating,YB/T4001.1-2007 galvanized steel walkway grating,walkway serrated steel grating |
||
Product Description

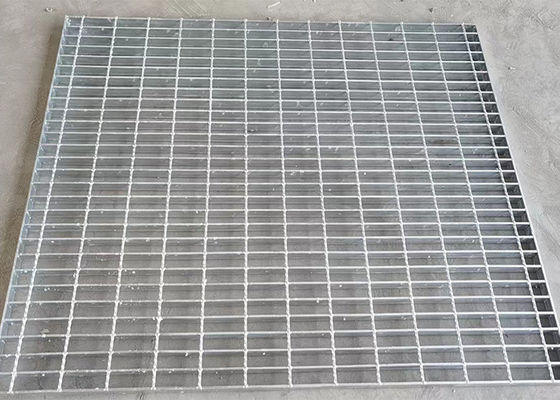

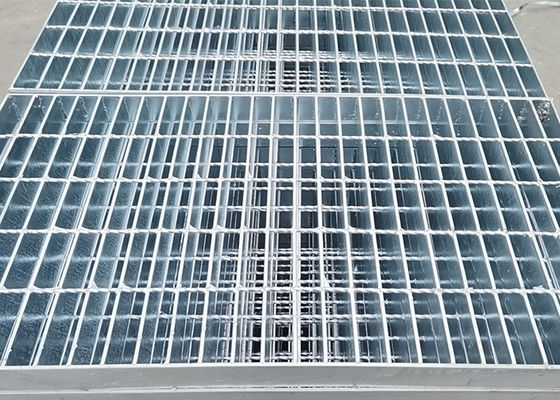

standard steel bar grating platform galvanized steel walkway grating
Description:
The most economical choice of steel grating product.
This grating is manufactured by an electro-forging process, welding rectangular bearing bars and cross rods. This welding method provides a positive fusion of cross rods and bearing bars.
The most popular is the 19-4 spacing; with approximately 80% open area the 19-4 spacing allows for passage of dirt, snow, liquids, air and debris.
Welded bar grating is also available in close mesh ADA conforming spacing for use in public areas.
Different bearing bar thickness can be specified, the most common 3/16" is stocked in multiple depths. 1/8", 1/4" are stocked in limited quantities.
Bearing bar thickness is offered from 1/8" to 1/2" to accommodate any load rating requirements. Universally used in most general industrial plants as well as commercial buildings;
it has a wide range of uses such as walkways, platforms, safety barriers, ventilation grates, and drainage covers.
Specifications:
|
Bearing bar thickness
|
1 3/16'' |
|
Bearing bar depth
|
1/8'' |
|
Bearing bar shaped
|
serrated |
|
Bearing bar pitch
|
1 3/16'' |
|
Cross bar pitch
|
2'' |
|
Steel Grating Standard
|
China YB/T4001-2007 |
Company Profile:
We as a manufacturer specializing in the production and export of a full range of steel gratings products. Our steel grating products have a wide range of different materials.The main products are highmedium and low carbon steelstainless steel,and aluminum steel grating.
And there are many styles, such as platform steel grating,special steel grating,sawtooth steel grating,high-strength steel grating, pressure-locking steel grating,etc.
With the development of the steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities.
