Steel Expanded Metal Sheet Flattened (3mm thickness) . 1.2x2.4m panel sheet

Place of Origin Anping,china
Brand Name TT
Certification ISO 9001-2015
Model Number TT-9
Minimum Order Quantity 100 pcs
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 3-10work days
Payment Terms L/C T/T
Supply Ability 200pcs/day
Product Details
Product Name Expanded Metal Sheet Place Of Origin Hebei China
Raw Material Carbon Steel , Aluminum, Stainless Steel Packing Wooden Or Steel Pallet
Port Tianjin Process Punched
Wire Diameter Customized Width 0.5m-2m
Length 1-30m Supplier Type Manufacturer
Leave a Message
Product Description

Steel Expanded Metal Sheet Flattened (3mm thickness) . 1.2x2.4m panel sheet



Expanded Metal Mesh Description:



Material: Aluminium plate, thin low carbon steel plate(black plate,electric galvanized plate, hot-dipped galvanized plate), stainless steel plate, Al-Mg alloy plate, copper plate and nickel plate,etc.
Processing: Made by expanding. In the shapes of diamond, square, round, triangle and scale-like opening.
Features: Economic, enduring, graceful.
Uses: Be broadly used in the areas such as highway, railway, residence, irrigation works and the
Protection partition of machines, electrical appliances, windows and aquiculture.
Size: Long way of mesh: 12.5-200mm,
Short way of mesh: 5-80mm,
Thickness: 0.5-8mm
Expanded metal mesh at length from 600-4000mm and width from 600-2000mm.



Standard, or raised, expanded metal is an extremely versatile material. It’s easy to control the percentage of open area to suit the application by altering the pattern size and/or strand width, thus increasing the flow of air or light in the finished product. Expanded metal offers a tremendous amount of formability — it’s able to withstand a 90-degree bend within a 1/4” inside radius without breaking.



Manufacturers that are concerned about minimizing operating expenses will appreciate raised expanded metal’s cost-effectiveness. The slitting and stretching process produces no scrap or waste material.




Expanded Metal Mesh Material And Specifications

Expanded metal mesh can be made from a wide range ofmaterials, chiefly expanded steel mesh,
aluminum expanded metal mesh, expanded stainless steel, expanded nickel and other metal.

Specification of Expanded Metal Mesh
Sheet Thickness     Stem
Opening in Width Opening in Length Roll Width Roll Length Weight
mm mm mm mm kg/m2
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26

Expanded Metal Mesh Usage

Expanded Steel/Aluminium Sheet can be used as steel reinforcement materials in petroleum, chemical industry and building decorations, fencing for road, railway, civil building, water conservancy's construction; protecting of all kinds of machines, electrical equipment, window and aquatic product's breeding etc.

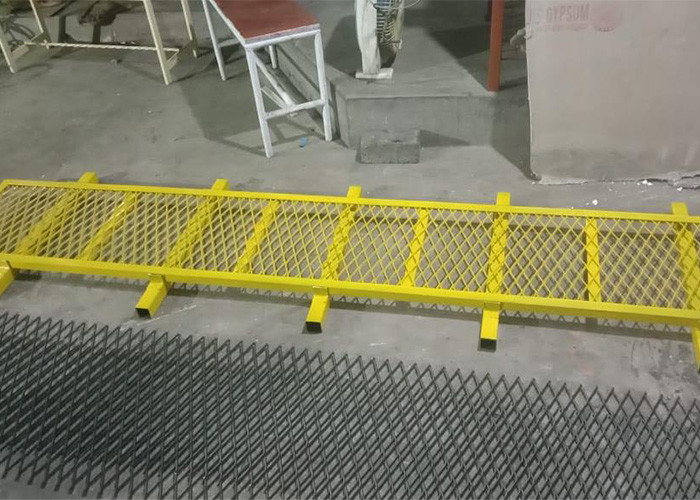

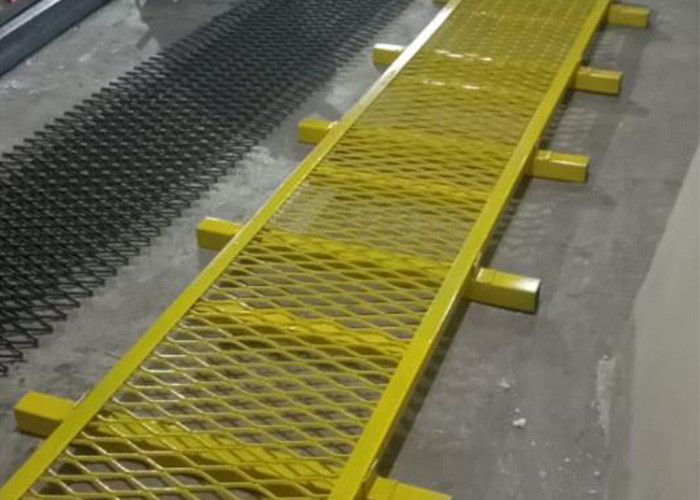

Expanded Metal Mesh Sheet Picture:



Steel Expanded Metal Sheet Flattened (3mm thickness) . 1.2x2.4m panel sheet 0
