Smooth Or Serrated Surface Galvanised Steel Grating For Industrial Projects

  • Smooth Or Serrated Surface Galvanised Steel Grating For Industrial Projects
  • Smooth Or Serrated Surface Galvanised Steel Grating For Industrial Projects
Place of Origin Anping,china
Brand Name TT
Certification ISO 9000-2015
Model Number TT-1
Minimum Order Quantity 3 tons
Price Negotiable
Packaging Details Wooden Pallet/Steel Pallet Or As The Customar require
Delivery Time 3-10 work days
Payment Terms L/C T/T
Supply Ability 100 TONS/DAY

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel,Q235,q235 Carbon Steel Surface Treatment Hot Dipped Galvanized
Product Name Industrial Floor Steel Grating With Long Time Type Plain Bar Grating
Application Platform Standard ISO9001,YB/T 4001.1-2007
Highlight

serrated surface galvanised steel grating

,

smooth surface galvanised steel grating

,

ISO9001 galvanised steel platform grating
Leave a Message
Product Description

hot-dip galvanized steel grating steel structure platform grating used in industry project



We as  a manufacturer specializing in the production and export of a full range of steel gratings products. Our steel grating products have a wide range of different materials.



The main products are highmedium and low carbon steelstainless steel,and aluminum steel grating. And there are many styles, such as platform steel grating,special steel grating,sawtooth steel grating,high-strength steel grating, pressure-locking steel grating,etc.



With the development of the steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities.



Welded Steel Bar Grating Specification:



No. Item Detailed Description
1 Bearing Bar 25x3, 25x4.5, 25x5, 30x3, 30x4, 30x5, 30x5.5, 32x5, 40x5, 50x5,60x5,70x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Pitch 12.5, 15, 20, 25, 30, 30.3, 32.5, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 16-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Cross Bar Pitch 38, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self coloures, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS



Advantages:



1. High bearing capacity combined with a low specific quantity of steel.


2. Large and open operating places.


3. Easy to install

.

4. Easy fabrications.



5. Toe plates and cutout service can be supplied.


Applications:



1. Offshore grating


2. Water treatment platform grating


3. Power plant


4. Parking lot

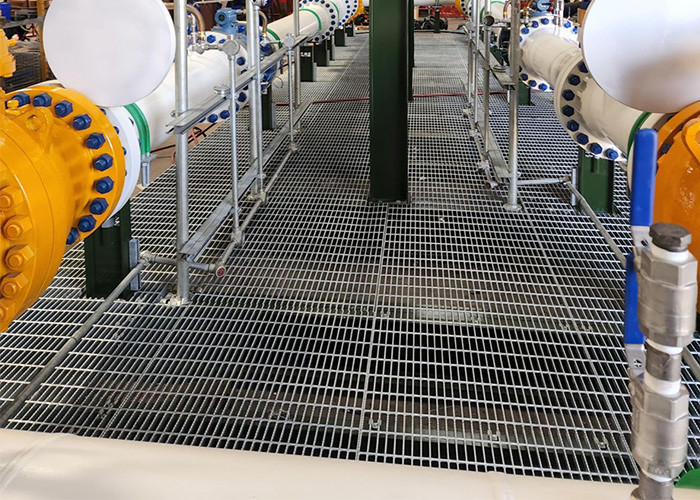

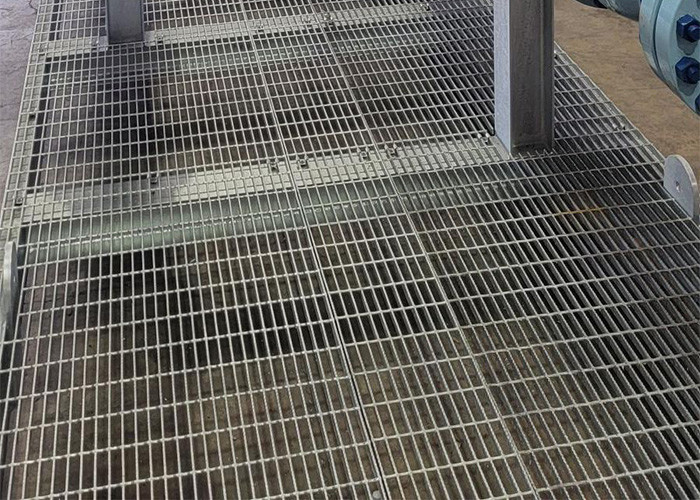

Metal Grate Picture:

Smooth Or Serrated Surface Galvanised Steel Grating For Industrial Projects 0

Smooth Or Serrated Surface Galvanised Steel Grating For Industrial Projects 1
