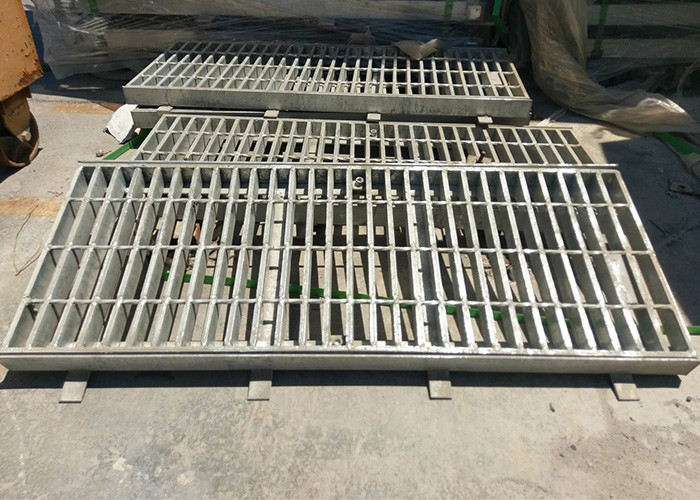

Welded Grating Trench Cover Metal Building Materials Galvanized Heavy Duty
| Place of Origin | CN |
|---|---|
| Brand Name | Zhuote Meetal |
| Certification | ISO9001 |
| Model Number | ZT5055/30/50 |
| Minimum Order Quantity | 1tons |
| Price | 700$/tons |
| Packaging Details | Steel Belt |
| Delivery Time | 5-10days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 300tons/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Line | Bar Grating | Construction Type | Standard-Duty Welded |
|---|---|---|---|
| Bearing Bar Shape | Rectangular Bar | Series Type & Name | ZT-100 (19-W-4) |
| Product Spacing | 30/50 | Primary Material | Middle Carbon Steel |
| Bearing Bar Size & Shape | 50mm Height 5mm Thick Rectangular Bar | Bearing Bar Height | 50mm |
| Bearing Bar Thickness | 5mm | Bearing Bar Spacing | 30mm On Center To Center |
| Product Surface | Smooth | Cross Bar Spacing | 50mm On Center |
| Sizes (Width X Length) | 36" X 240" (Cut Sizes Available) | ||
| Highlight | galvanized heavy duty grating trench cover,welded steel grating trench cover,welded grating trench cover |
||
Product Description

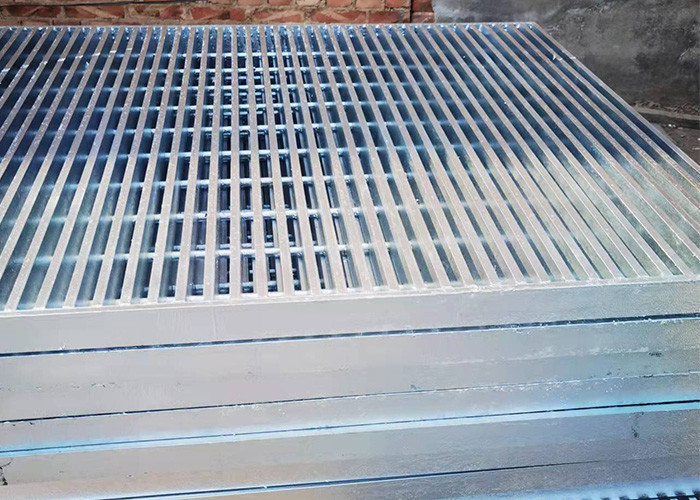

Galvanized heavy duty steel floor grating 50x5mm thickness bar grating cover
Description:
1)Steel grating raw material :Low carbon steel, stainless steel, aluminum alloy
2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.
3)Cross bars shape: square bars, twisted square bars,round bars
4) Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,painting or as per customers' requirement.
Reference:
| Material | 1.Carbon Steel Q235 2.Stainless Steel 304 / 316 |
| Type | Press lokced / Flat bar / Serrated bar / I Bar |
| Bearing Bar Size | the specification of "I-section" is 50X5mm up to 100x10mm , |
| Bearing Bar Pitch | 60mm are recommended, America standard is available |
| Cross Bar Pitch | from18.5 to 101.6mm etc, 50, 100mm are recommended, America standard is available |
| Surface Treatment | Untreated / Painting / Hot Dip Galvanizing |
| Steel Standard | China GB700-88 / America ASTM (A36) / Britain ASTM (A36) |
| HDG Standard | China GB/T13912-92 / America ASTM (A123) / Britain BS729 |
| Quality Standard | China YB/T4001-1998 America ANSI/NAAMM (MBG531-88) Britain BS4592-1987 Australia AS1657-1992 |
Details
Heavy Duty: Heavy Duty Carbon Riveted Grating includes bar sizes of 2-1/2” x 3/16” up to 5” x 3/8”. It is primarily used where heavy vehicular traffic is utilized including industrial plants utilizing fork lift trucks, highways, and bridges.
Application
Grating is widely used in steel structure walkway, foot pedal, drain cover, commercial and industrial flooring.
It can take mirror to your floor. This sort of floor appears timeless and classy for you.
