Storm Road Drainage Grating Trench Cover Hot Dip Galvanized Drain Steel
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 303/30/100 |
| Minimum Order Quantity | 10 piece |
| Price | 3-8usd /Square meters |
| Packaging Details | Steel belt packaging |
| Delivery Time | 5-8work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Steel Grating, Steel Floor Decking, Metal Building Materials Hot Dipped Galvanized Steel Grating | Cross Bar Pitch | 50, As Customers' Requirement Or 40, 50mm 100mm, 101.6, 100mm Etc. |
|---|---|---|---|
| Standard | ISO9001, ASTM, USA, High Quality, ANSI/NAAMM-MBG531 | Surface Treatment | Hot Dipped Galvanized, Painted, Galvanized, Black, Untreated |
| Application | Floor, Walkway, Industrial Platform, Bridge, Trench Drains | Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm |
| High Light | storm road drainage grating trench cover,grating trench cover hot dip galvanized,stainless steel floor grating trench cover |
||
Product Description
Storm road drainage grate cover Hot dip galvanized trench drain steel grating
Grating Trench Cover:
1. Steel grating raw material :Low carbon steel, stainless steel, aluminum alloy
2. Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.
3. Cross bars shape: square bars, twisted square bars,round bars
4. Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,painting or as per customers' requirement.
Common specification of Steel grating
Material Standard:
ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304,Mild steel & Low carbon steel, etc
Bearing Bar (width*thickness)
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10.....100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch:
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment:
untreated(black), hot-dipped galvanized ,powder coated,electroplate, painting or as per customers' requirement.
Grating Style
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
| Place of Origin | China,Hebei |
| Brand Name | XIANYAO |
| Application | Industry platform |
| Shape | customized |
| Material | Q235, hot dip galvanized |
| Product name | steel grating |
| Material | stainless steel, Q235 |
| Surface | Galvanized |
| Usage | Widely |
| Place of Origin | China,Hebei |
| Brand Name | ZHUOTE |
Packing:
1. LCL(less than one container load): packed with plastic film then on the pallets
2. FCL(full container load): nude packing
3. Other special package :according to customers' requirements.
Payment Term:
T/T,L/C, Paypal, Western Union, MoneyGram, Credit Card ,D/A,D/P,Trade assurance
Remarks: Other sizes also can be customized according to customers' requirement.
Application:
Steel grating can be widely used in petrochemical, water plants, sewage treatment plants,
municipal engineering, environmental engineering and other fields of platforms, walkways, trestlebridge, ditch cover, covers, ladders, fences and railings etc.

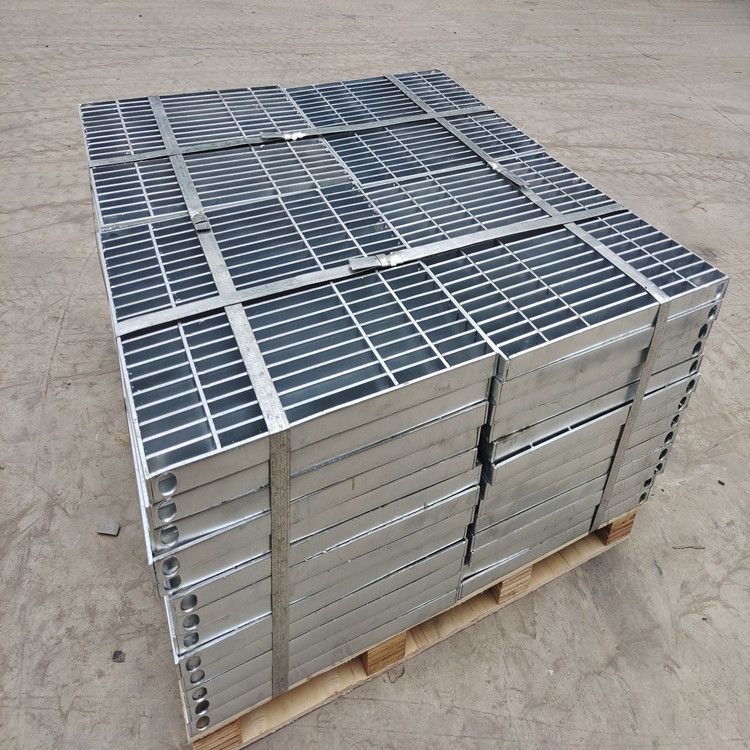

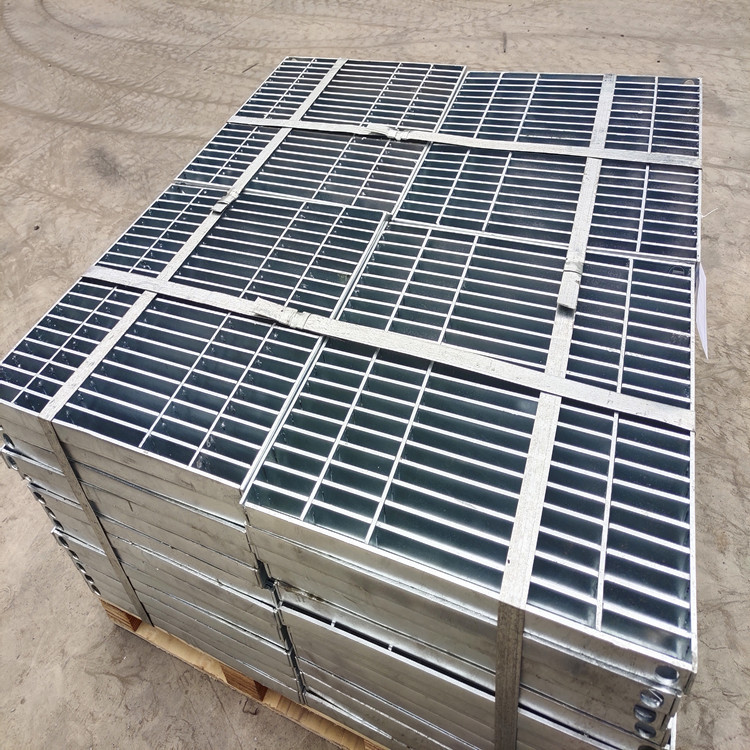

Grating Trench Cover picture:
FAQ:
Q1. When I don't know the specifications of the products I need, how to order them?
You can tell us the application scenario, the maximum bearing weight of the steel grid you need And QTY or total weight. We can recommend products to you.
Q2.How to visit our factory?You can fly to Shanghai first and then take high-speed rail to Wuxi. We welcome your arrival.
Q3.The quantity of our purchase is very large, may I have a discount?
The price we quote is base on factory price, which is very competitive; But if your quantity is very large, We will apply for the very lowest price for you.
Q4.What 's your delivery time?
For one container products, normally 12-15days after your payment, we can finish the production. For large amount, we will discuss the time.
