Metal Grid Plate Stainless Steel Grid Mesh Floor Steel Grating 6000x1000mm

Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 325/30/100
Minimum Order Quantity 10 piece
Price 3-8usd /Square meters
Packaging Details Steel belt packaging
Delivery Time 5-8work days
Payment Terms L/C, T/T
Supply Ability 1000Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Surface Treatment Hot Dipped Galvanized, Painted, Galvanized, Black, Untreated Feature Heavy, Bright On Surface, Modern, High Strength, Light Weight
Width 1000mm, According To Your Size, 50-500MM, 600-1250mm Length 100-3000mm, According To Your Size, 6000mm, 1-12m, Customer's Demand
Standard ISO9001, BS4592-1987, YB/T 4001.1-2007, USA, AS1657-1985;BS4592-1987;ANSI/NAAMM(MBG531-88) Application Floor, Walkway, Platform, Stair Tread, Bridge
Highlight

6000x1000mm industrial grate flooring

,

grid mesh flooring hot dip galvanised

,

OEM steel grid mesh flooring

Leave a Message
Product Description

Industrial 6000*1000mm metal grid plate stainless steel grid mesh floor steel grating



            Steel Grating is made by the world first-class Italian ORSOGRIL equipment,which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance. Cross bar is pressed into the bearing bar by high tension resistance welding which is controlled by computer. So we can produce high quality grating with firm welding,smooth surface and high strength.



HOT GALVANIZING

Normally,Hot galvanizing will be carried out after end welding process,For the thickness of bearing bars is not less than 5mm,the weight of average Zinc Layer will not be less than 610g/m2.When the thickness of bearing bars is less than 5mm,the weight of average Zinc Layer Will not be less than 460g/m2. The quality and requirements after hot galvanizing are subject to the standards of GB/T 13912.



LACQUERING

To again protection layer through the ways of spraying,brushing and soaking.



SERVICE LIFE OF HOT GALVANIZING

Coated zinc thickness of 100um,the anticipated life of products in various circumstances.



ANTI-ACID AND ALKALI CORROSSION CAPACITY

The range of PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good

anti-corrosive property.



Material Standard

ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304,

Mild steel & Low carbon steel, etc

Bearing Bar

(width*thickness)

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment

untreated(black), hot-dipped galvanized ,powder coated,

electroplate, painting or as per customers’ requirement.

Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Packing

1) LCL(less than one container load): packed with plastic film then on the pallets

2) FCL(full container load): nude packing

3) Other special package :according to customers' requirements.

Payment Term

T/T,L/C, Paypal, Western Union, MoneyGram, Credit Card ,D/A,D/P,

Trade assurance





Our Services:

Before sales
1. Guarantee over 98% pass rate.
2. Commonly loading the goods in 25 working days.
3. OEM and ODM orders acceptable
4. Free samples for your reference
5. Free drawing and deigns according to clients’ requires
6. Free quality checking for the goods before loading
7. 24 hours on-line service, response within 1 hours
After-sales
1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2. Feedback of production schedule and photos in the production
3. Installation test for semi-finished and finished products, confirm all the goods can installation smoothly.
4. 3-20 years warranty depends on different products and using environment.
5. pay attention to the tracking of shipping, inform you the ETA for early arrange Custom clearance



Industrial Steel Grating picture:

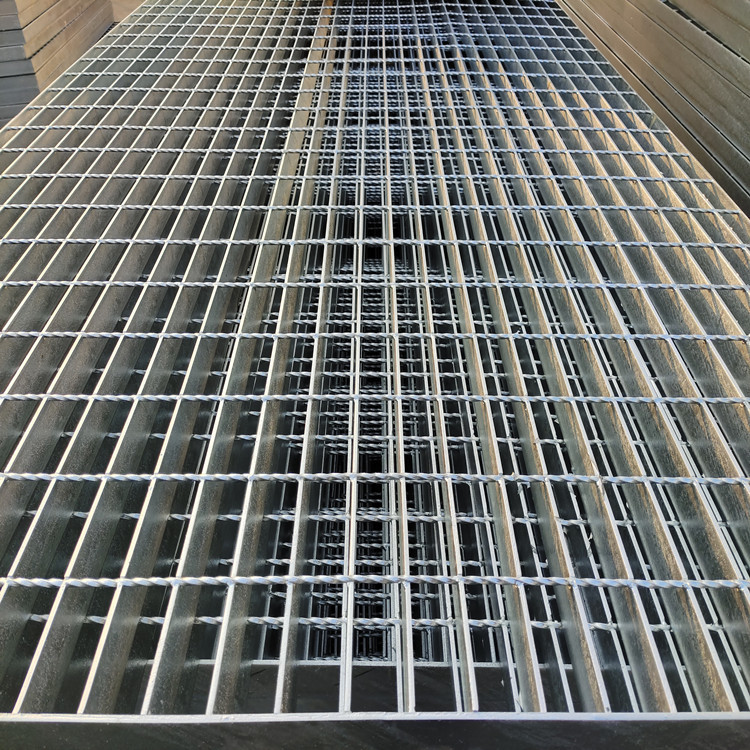

Metal Grid Plate Stainless Steel Grid Mesh Floor Steel Grating 6000x1000mm 0

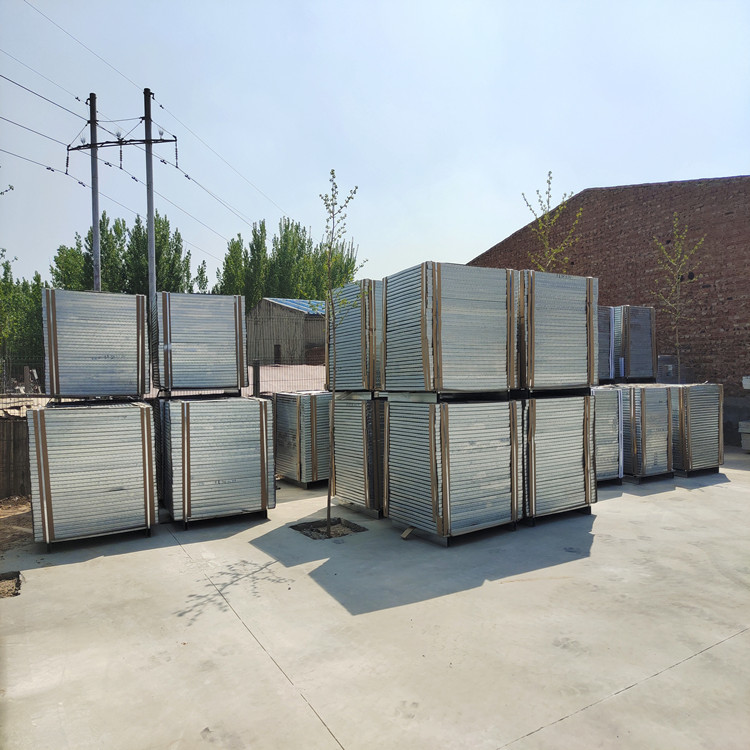

Metal Grid Plate Stainless Steel Grid Mesh Floor Steel Grating 6000x1000mm 1

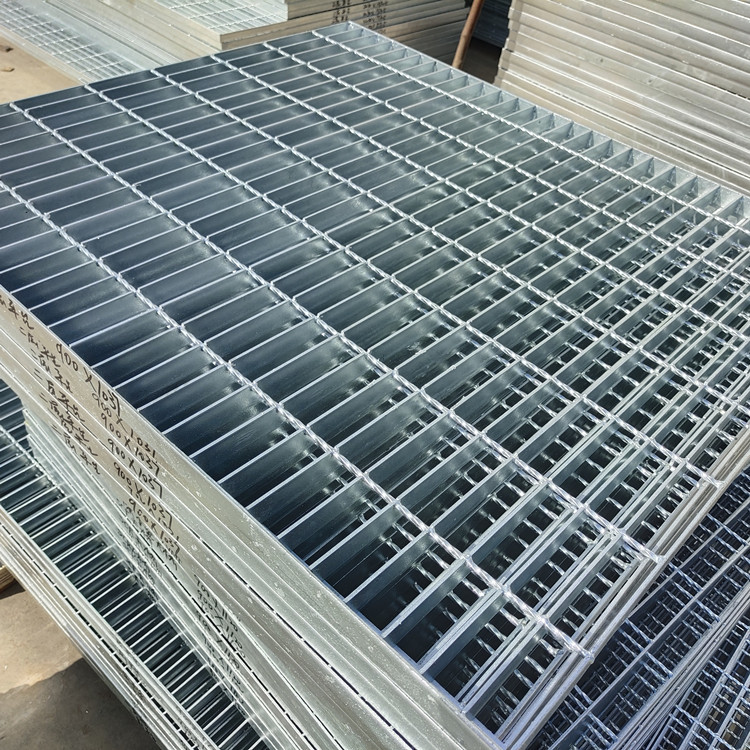

Metal Grid Plate Stainless Steel Grid Mesh Floor Steel Grating 6000x1000mm 2



FAQ

Q1: Are you manufacturer?
A: Yes, our factory is located in hebei.
Q2: How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly Customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q3:Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q4: Payment term and Delivery time
a) TT
b) LC AT SIGHT
c) cash
d) 30% contact value as deposit ,the blance 70% be paid after received the copy of B/L
e) 15-20 days after received your depsit
Q5:What is MOQ ?
1000 piece as MOQ , we can also produce sample for you.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new goods with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
