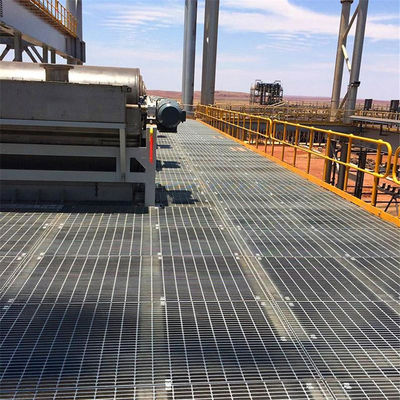

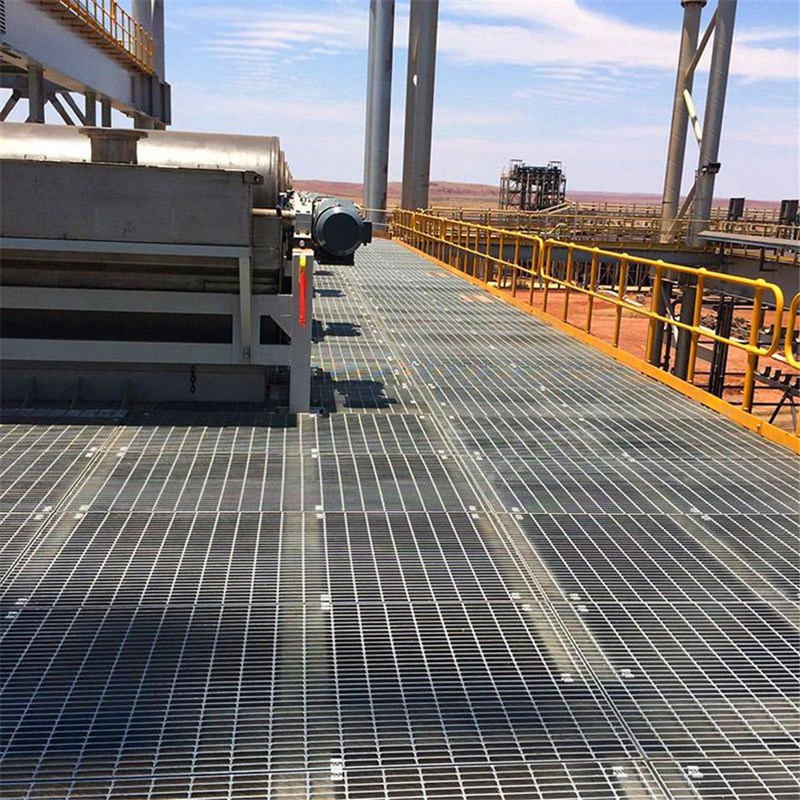

Hot Dip Galvanized Industrial Steel Grating 1x6M Grill Steel Floor Grating
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 325/30/100 |
| Minimum Order Quantity | 5 piece |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 5 - 8work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel, Q235, Q235 Carbon Steel | Surface Treatment | Hot Dipped Galvanized |
|---|---|---|---|
| Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated | Feature | Heavy, Bright On Surface, Modern, High Strength, Light Weight |
| Name | Industrial Steel Grating | Factory | Yes, Since 1990 |
| High Light | 1x6m industrial steel grating,steel floor grating hot dipped galvanized,ISO9001 steel floor grating |
||
Product Description
Hot dip galvanized Industrial Steel Grating 1*6M grill steel floor grating
High quality hot dipped galvanized metal floor grating is made from steel sheets with thickness from 2.5mm to 12mm, height from 20mm to 150mm, welded together in the form of comb teeth or braced by twisted steel and framed by L-shaped steel.
- High quality hot dipped galvanized metal floor grating based on the structure, arrange the steel bars in the direction to bear the highest load, in the form of a square or rectangular grid to increase the load capacity, create a ventilation box or drain water.
- On the steel floor, the warp and crossbars are connected at all intersections by welds with a strength of 500 MPA (5000 Kg/cm2). After processing, it is hot-dip galvanized to avoid oxidation in natural conditions.
Bearing bar
- A flat bar withstanding the main load is in consistent with the span direction .
bearing bar pitch
- the distance center to center of the two bearing bars.
Cross bar
- the connecting bars , made from twisted bar ,round bar or flat bar, which extend across the bearing bars
Cross bar pitch
- the distance center to center of the two adjacent cross bars.
Length
(span)- the maximum dimension of a grating panel ,measured parallel to the bearing bar ,and in the same direction as the bearing bars .
Width
- the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.
Width
- the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.
|
Item
|
Description
|
|
Bearing Bar
|
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
|
Bearing Bar Pitch
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
|
Twisted Cross Bar Pitch
|
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
|
|
Material Grade
|
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,
Mild steel & Low carbon steel, etc |
|
Surface Treatment
|
Black, self colour, hot dip galvanized, painted, spray coating
|
|
Grating Style
|
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
|

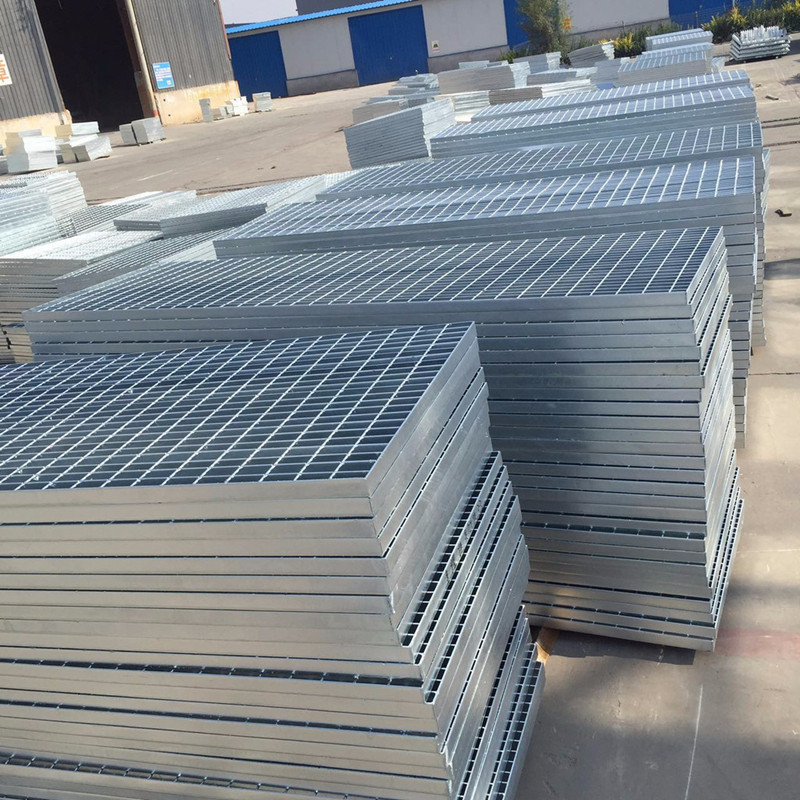

Industrial Steel Grating picture
FAQ
1.Q: Are you a manufacturer?
A: Yes,we have been in providing the professional products in wire mesh field for about 25 years.
2.Q What is the delivery time? A: Usually 10-20 days after received advanced payment.
3.Q: How can I get some samples? A: We are honored to offer you samples, most items are free.
4.Q: What information should I provide, if I want a lowest quotation? A:The specification of wire mesh,such as material,mesh number, wire diameter, hole size.
5.Q: Can I customize the products? A:Yes, Please provide specifications, drawings ect.
