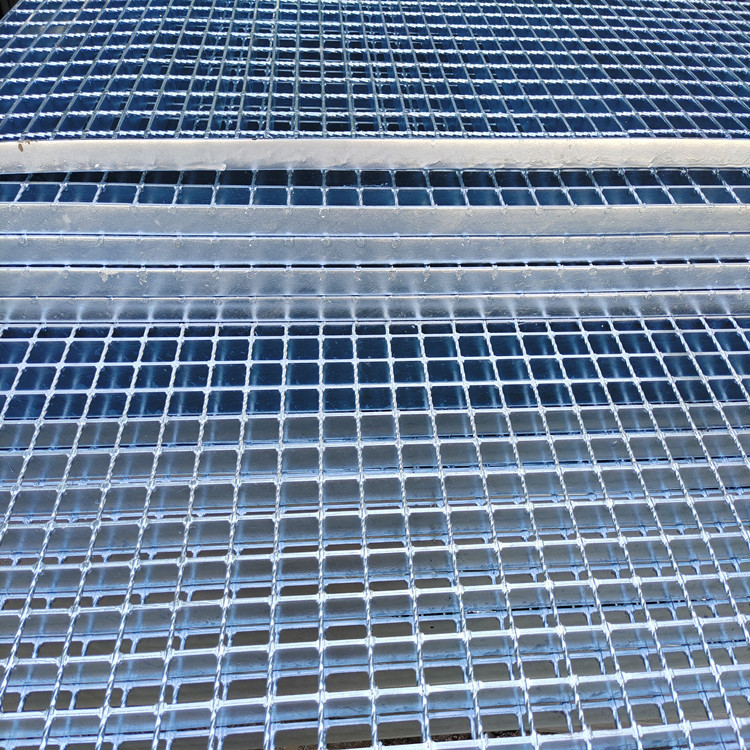

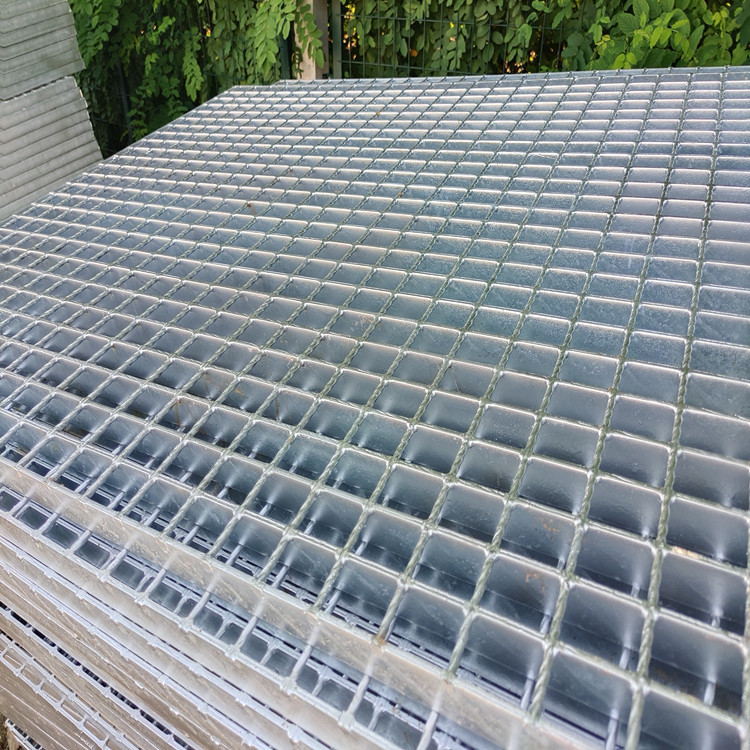

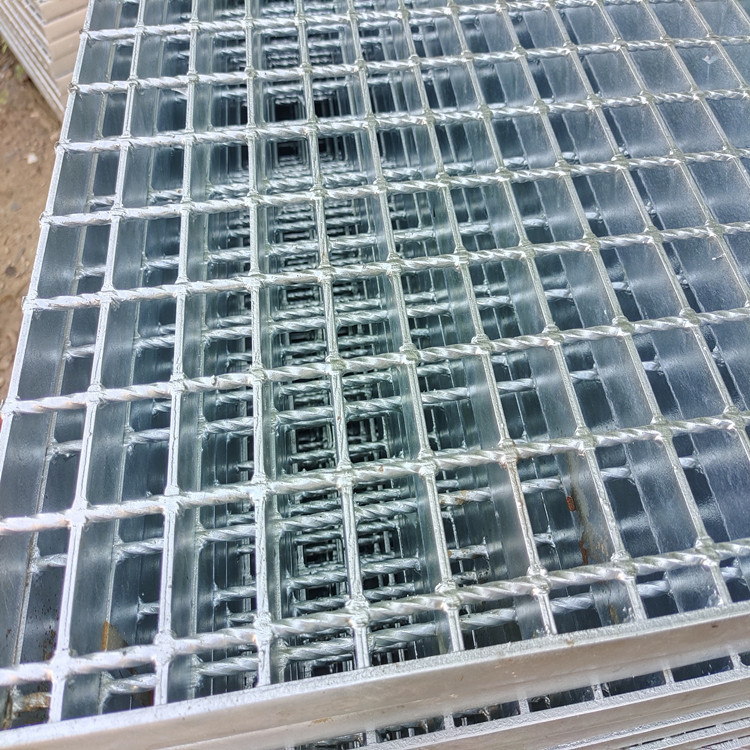

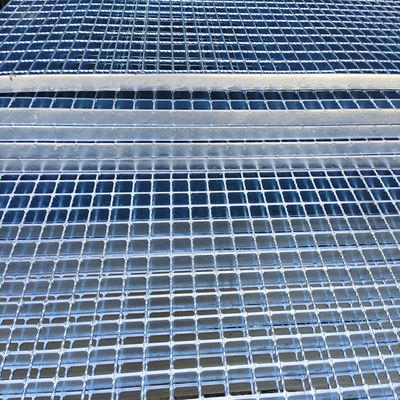

Galvanized Serrated Industrial Steel Grating Safety Grid 5mm Thickness
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 325/30/100 |
| Minimum Order Quantity | 10 piece |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 5 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 800 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Surface Treatment | Hot Dipped Galvanized, Painted, Galvanized | Application | Floor, Walkway, Platform, Stair Tread, Bridge |
|---|---|---|---|
| Color | Any Color | Factory | YES |
| Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm | Material | Steel, Q235, Q235 Carbon Steel, Low Carbon Steel |
| High Light | 5mm thickness industrial steel grating,industrial steel grating serrated,serrated stainless steel grating |
||
Product Description
Industrial Enjineering Building Materials Galvanized Serrated Grating Safety Steel Grid
Flat bar specification:
1> Plain flat bar:
Thickness: 3mm, 5mm.
Height: 25mm, 30mm, 32mm, 40mm, 45mm, 50mm, 60mm, etc.
2> I-shaped flat bar:
Thickness of both ends: 5mm.
Thickness of the center: 3mm.
Height: 25mm, 32mm, 38mm, 44mm, 50mm, etc.
1> Plain flat bar:
Thickness: 3mm, 5mm.
Height: 25mm, 30mm, 32mm, 40mm, 45mm, 50mm, 60mm, etc.
2> I-shaped flat bar:
Thickness of both ends: 5mm.
Thickness of the center: 3mm.
Height: 25mm, 32mm, 38mm, 44mm, 50mm, etc.
Flat bar spacing: 30mm, 40mm, 60mm,etc.
Cross bar sizes: 5x5mm, 6x6mm, 8x8mm, etc.
Cross bar spacing: 50mm, 100mm.
Length of steel grating plate: common length ≥800mm, some platform cover plate length is 3000-10000mm.
Surface treatment: Electro galvanized, hot dip galvanized, spray paint, soak into anti-rust oil.
Cross bar sizes: 5x5mm, 6x6mm, 8x8mm, etc.
Cross bar spacing: 50mm, 100mm.
Length of steel grating plate: common length ≥800mm, some platform cover plate length is 3000-10000mm.
Surface treatment: Electro galvanized, hot dip galvanized, spray paint, soak into anti-rust oil.
|
Material Standard
|
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,
Mild steel & Low carbon steel, etc |
|
Bearing Bar
(Width x Thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
|
Bearing Bar Pitch
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
|
Twisted Cross Bar Pitch
|
38.1, 50, 60, 76, 80, 100, 101.6, 120mm
|
|
Surface Treatment
|
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
|
|
Grating Style
|
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
|
|
Packing
|
(1) Bandage and Paperboard: Generally applies to neat steel plate;
(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
Steel grating is widely used in many areas:
1. It can be used as stair tread grating.
2. It can be used in the municipal engineering as drainage trench covers to drain water and keep ground dry.
3. It can be used in the port, parking lot, farmland and other places as platform walkway grating for pedestrian and vehicles access & passing.
FAQ
Q:Why choose us?
A: Save Time, Save Cost, and Safety ! Each of our customers proved this!
Q: How about the payment terms?
A:We usually use the T/T,L/C,D/P, Western Union. Trade assurance service optional for over $100 order. (100% guaranteed transaction by Alibaba ). L/C optional if over $50k. Paypal optional if below $500.
Q: How about the delivery time?
A:Usually within 15- 20 days, customized order may need longer time.
Q:Can you offer free sample?
A:Yes, but usually the customer need to pay the freight, We'll send back the courier charge if you make an order.
Q: Can I have your products with my own logo on it?
A: Yes! Accept any custom logos, just send us your design in pdf. ai, or high res jpg. We would send you layout art with your logo on our products to check. The setup cost would be quoted per artwork.
Q: Are you a manufacturer?
A:Yes, we have been in providing the professional products in wire mesh field for 10 years.
