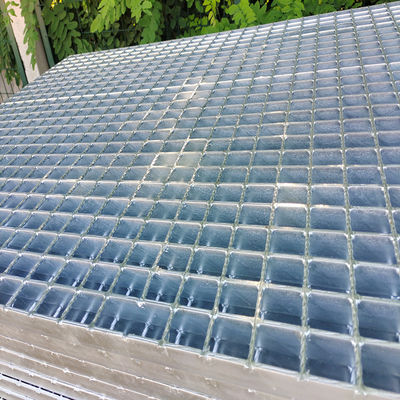

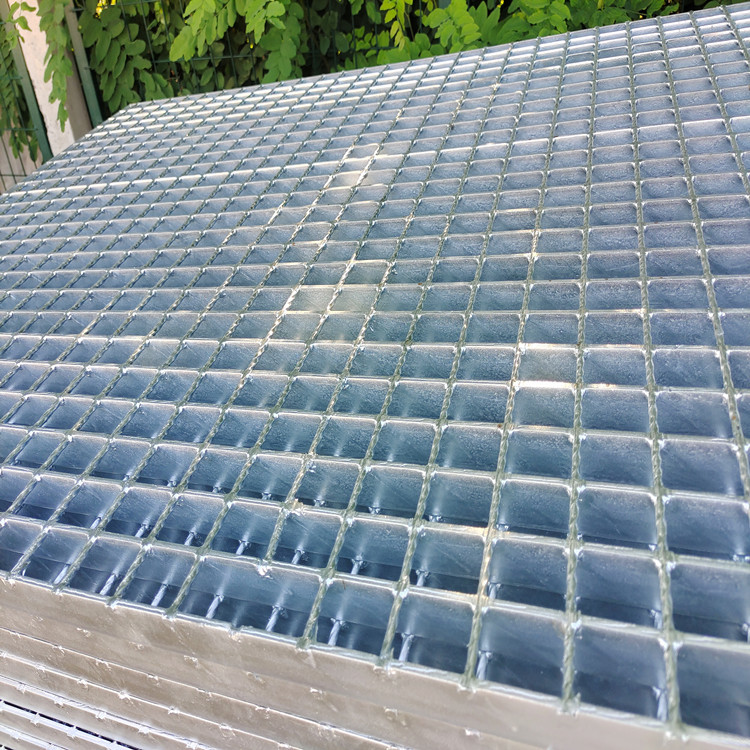

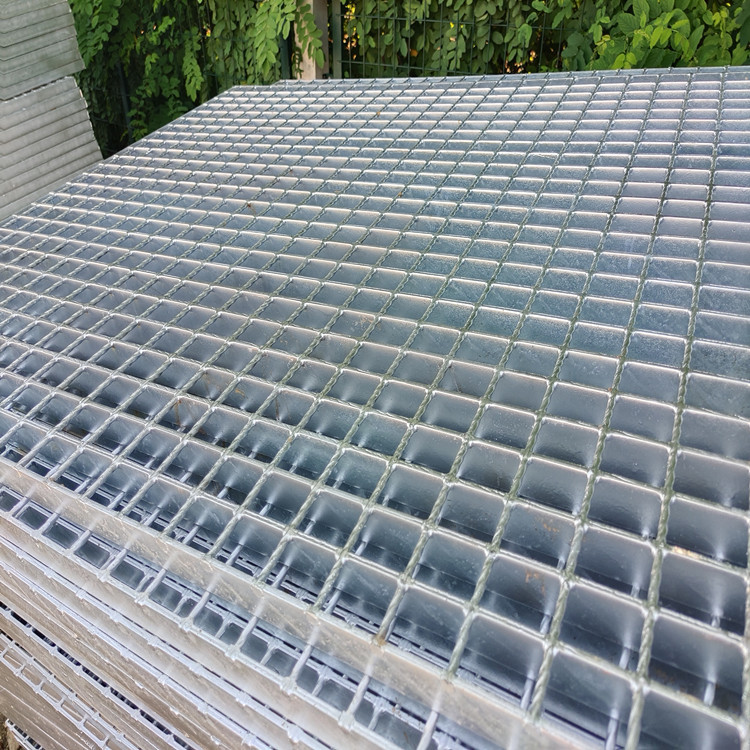

Industrial Engineering Serrated Steel Grating Building Material Safety
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 325/30/100 |
| Minimum Order Quantity | 10 piece |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 5 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 800 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Surface Treatment | Hot Dipped Galvanized, Painted, Galvanized | Application | Floor, Walkway, Platform, Stair Tread, Bridge |
|---|---|---|---|
| Color | Any Color | Factory | YES |
| Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm | Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat |
| Highlight | industrial engineering serrated steel grating,building material serrated steel grating,safety serrated steel bar grating |
||
Product Description
Industrial Engineering Building Material Grating Safety Steel Grid Grille Grates
Flat bar specification:
1> Plain flat bar:
Thickness: 3mm, 5mm.
Height: 25mm, 30mm, 32mm, 40mm, 45mm, 50mm, 60mm, etc.
2> I-shaped flat bar:
Thickness of both ends: 5mm.
Thickness of the center: 3mm.
Height: 25mm, 32mm, 38mm, 44mm, 50mm, etc.
1> Plain flat bar:
Thickness: 3mm, 5mm.
Height: 25mm, 30mm, 32mm, 40mm, 45mm, 50mm, 60mm, etc.
2> I-shaped flat bar:
Thickness of both ends: 5mm.
Thickness of the center: 3mm.
Height: 25mm, 32mm, 38mm, 44mm, 50mm, etc.
Flat bar spacing: 30mm, 40mm, 60mm,etc.
Cross bar sizes: 5x5mm, 6x6mm, 8x8mm, etc.
Cross bar spacing: 50mm, 100mm.
Length of steel grating plate: common length ≥800mm, some platform cover plate length is 3000-10000mm.
Surface treatment: Electro galvanized, hot dip galvanized, spray paint, soak into anti-rust oil.
Cross bar sizes: 5x5mm, 6x6mm, 8x8mm, etc.
Cross bar spacing: 50mm, 100mm.
Length of steel grating plate: common length ≥800mm, some platform cover plate length is 3000-10000mm.
Surface treatment: Electro galvanized, hot dip galvanized, spray paint, soak into anti-rust oil.
|
Material Standard
|
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,
Mild steel & Low carbon steel, etc |
|
Bearing Bar
(Width x Thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
|
Bearing Bar Pitch
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
|
Twisted Cross Bar Pitch
|
38.1, 50, 60, 76, 80, 100, 101.6, 120mm
|
|
Surface Treatment
|
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
|
|
Grating Style
|
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
|
|
Packing
|
(1) Bandage and Paperboard: Generally applies to neat steel plate;
(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
Steel grating is widely used in many areas:
1. It can be used as stair tread grating.
2. It can be used in the municipal engineering as drainage trench covers to drain water and keep ground dry.
3. It can be used in the port, parking lot, farmland and other places as platform walkway grating for pedestrian and vehicles access & passing.
FAQ
1. Q: Are you a manufacturer or just a trading company?
A: We are a direct factory with 20 years of R & D and production experience.
2. Q: Where is your factory?
A: We have 2 factories, one factory is located in Anping County, Hengshui City, Hebei Province, other factory in Changsha City, Hunan Province.
3. Q: can you provide sample for us to test the quality? Is there a charge?
A: Yes, sample is available but you may have to pay the freight cost. After placed normal order, the sample fee will be returned to you.
4. Q: How do you make our business long-term and in good relationship?
A: 1. We make products with good quality and competitive price to ensure our customers benefit;
2. We respect every customer and sincerely do business and make friends with them, no matter where they come from.
