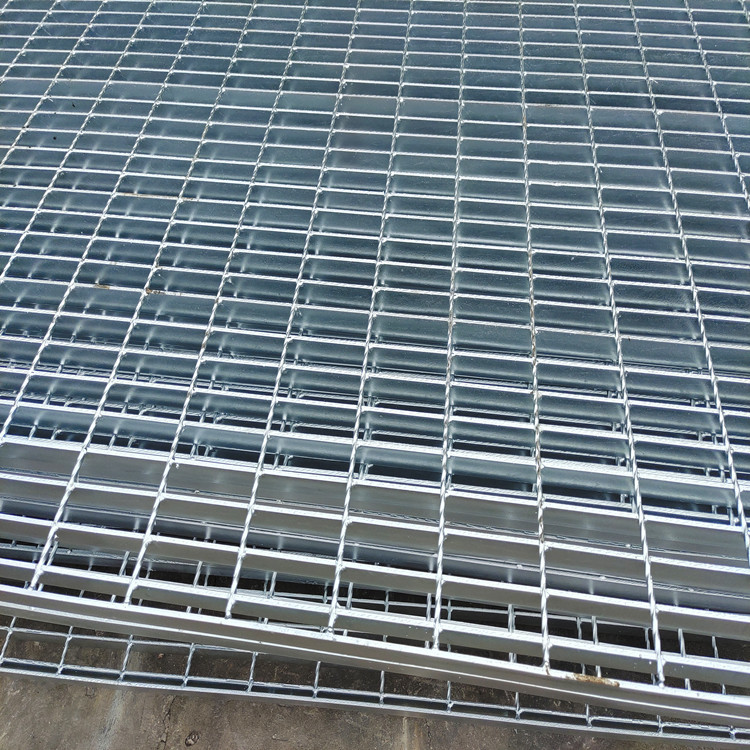

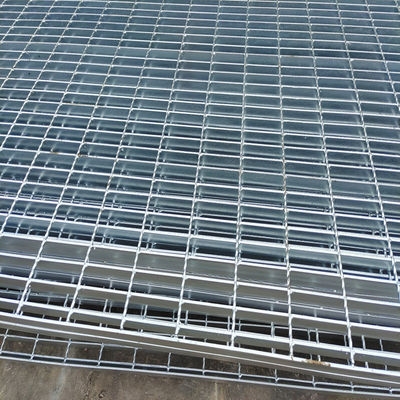

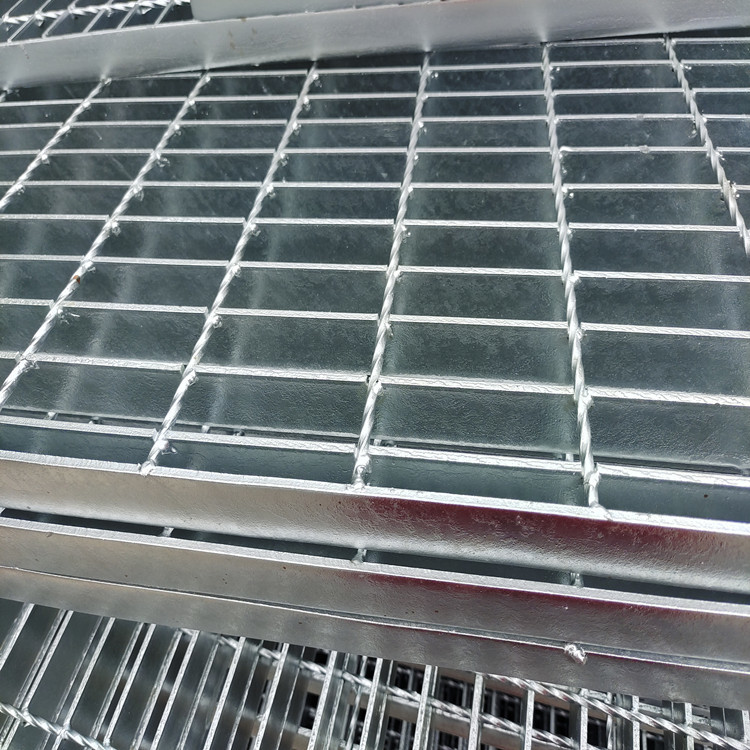

Building Galvanized Industrial Steel Grating Stainless 2mm Thickness
Product Details
| Surface Treatment | Hot Dipped Galvanized, Painted, Galvanized | Application | Floor, Walkway, Platform, Stair Tread, Bridge |
|---|---|---|---|
| Color | Any Color | Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm |
| Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat | Standard | ISO9001, BS4592-1987, YB/T 4001.1-2007 |
| Length | 100-3000mm, According To Your Size, 6000mm, 1-12m | Width | 1000mm, According To Your Size, 50-500MM, 600-1250mm |
| Highlight | 2mm thickness industrial steel grating,galvanized stainless industrial steel grating,building stainless steel bar grating |
||
Product Description
steel grating building galvanized steel grating industrial
Flat bar specification:
1> Plain flat bar:
Thickness: 3mm, 5mm.
Height: 25mm, 30mm, 32mm, 40mm, 45mm, 50mm, 60mm, etc.
2> I-shaped flat bar:
Thickness of both ends: 5mm.
Thickness of the center: 3mm.
Height: 25mm, 32mm, 38mm, 44mm, 50mm, etc.
1> Plain flat bar:
Thickness: 3mm, 5mm.
Height: 25mm, 30mm, 32mm, 40mm, 45mm, 50mm, 60mm, etc.
2> I-shaped flat bar:
Thickness of both ends: 5mm.
Thickness of the center: 3mm.
Height: 25mm, 32mm, 38mm, 44mm, 50mm, etc.
Flat bar spacing: 30mm, 40mm, 60mm,etc.
Cross bar sizes: 5x5mm, 6x6mm, 8x8mm, etc.
Cross bar spacing: 50mm, 100mm.
Length of steel grating plate: common length ≥800mm, some platform cover plate length is 3000-10000mm.
Surface treatment: Electro galvanized, hot dip galvanized, spray paint, soak into anti-rust oil.
Cross bar sizes: 5x5mm, 6x6mm, 8x8mm, etc.
Cross bar spacing: 50mm, 100mm.
Length of steel grating plate: common length ≥800mm, some platform cover plate length is 3000-10000mm.
Surface treatment: Electro galvanized, hot dip galvanized, spray paint, soak into anti-rust oil.
|
Name
|
steel grating | |||
| Type | flat bar, I-bar, serrated bar, serrated I bar | |||
| Bearing bar size | 20*3, 20*5, 25*3, 25*5, 32*3, 32*5, 35*3, 35*5, 40*3, 40*5, 45*5, 50*3, 50*5, 55*5, 60*5, 65*5mm etc | |||
| Bearing bar spacing | 15, 20, 25, 30, 33, 35, 38, 40, 50, 60, 80, 90mm | |||
| Cross bar spacing | 24-200mm | |||
| surface | Black, Hot dip galvanized, painted | |||
| standard | YB/T4001.1-2007, ANSI/NAAMM(MBG531-88),BS4592-1987, AS1657-1985 | |||
Our Advantages
A. Steel Grating, including plain and serrated steel grating, size and specification can be produced according to customer's requirements.
B. Stair Tread: There are 8 types of treads distinguished by different nosing & way of installation.
C. Drainage Pit/Trench Cover
D. Railing & Stanchion
Total Staff: About 300, including 50 managers, 10 technical engineers.
Total Area: 25, 000 square meters and with workshop area of 18, 000 square meters.
Main Equipment: 8 press-welding machines
Management System: ISO9001: 2008
Advantage: High quality, Professional engineer, and Large production Capability
FAQ
1.Are you factory or trade company?
We have both factory and trading company,own branch factory and warehouse in Hebei,Shandong Province and Tianjin.
2.How to guarantee the quality of products?
Galvanized construction steel grating 4x6 we can accept inspection from any third party (such as SGS, CCIC, BV...). If the test fails, we will pay the inspection charge and reproduce the qualified products for you.
3.Which countries have you exported to?
Galvanized construction steel grating 4x6 Korea, Japan, southeast Asia, north Africa, Australia, Middle East, America and Europe etc.
4.Can you supply samples?
Galvanized construction steel grating 4x6 Yes, we can supply the free samples for you to test the products quality.
5.What products do you main supply?
Galvanized construction steel grating 4x6 steel plate, steel coil, corrugated sheet, steel flat bar, steel grating, Profile steel, steel pipe, scaffolding.
