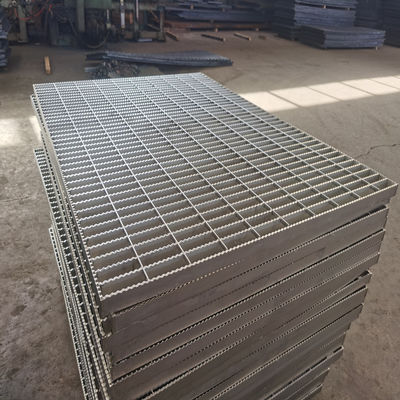

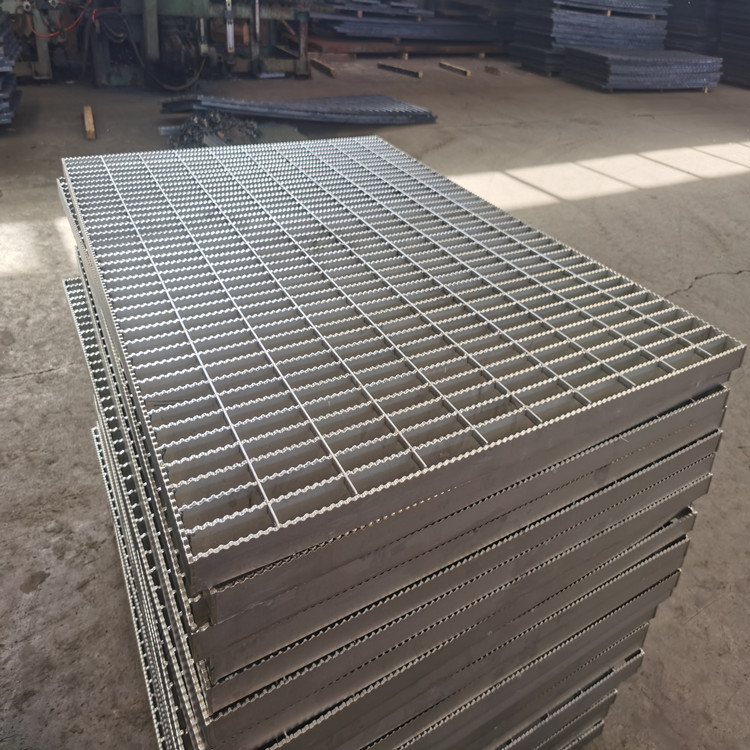

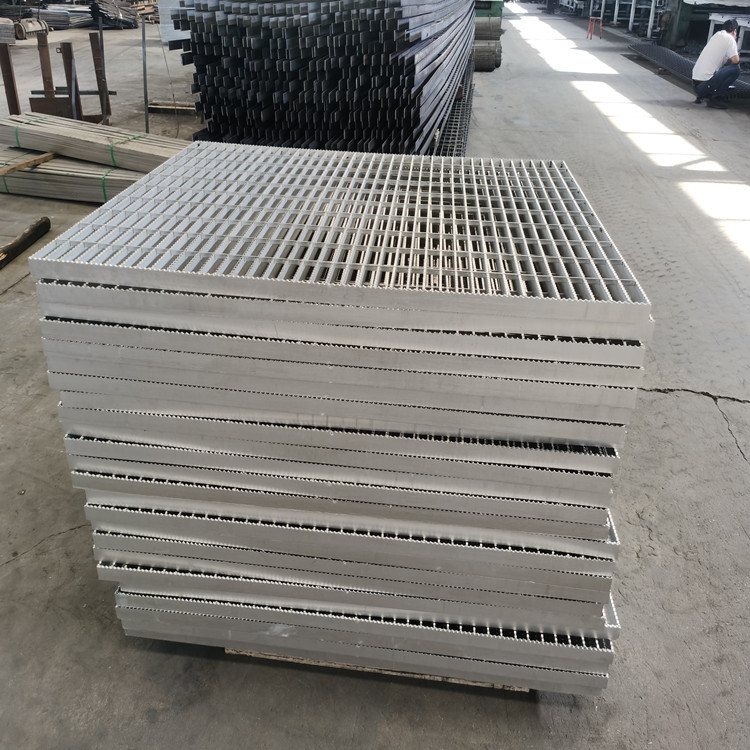

Galvanized Welded Serrated Steel Grating Floor Walkway Marine Bridge Platform
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 405/30/100 |
| Minimum Order Quantity | 5prices |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 12 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1500 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel, Q235, SS316, Aluminum | Product Name | Steel Grating, Galvanized, Hot Dip Galvanized Anti Slip Bar Steel Grating Weight, Hot Sale Galvanized Aluminium Steel Plain Serrated Walkway Grating, Serrated Flat Bar Steel Grating On Sales |
|---|---|---|---|
| Grating Specification | 40/50, 30/100, 19-w-4 | Feature | Anti-corrosive, Anti-sand, Simple Installation |
| Color | Any Color | Application | Floor, Platform, Stair Tread, Steel Structure, Bridge |
| High Light | galvanized serrated steel grating,welded serrated steel grating,marine bridge platform serrated grating |
||
Product Description
Galvanized Welded floor walkway Marine Bridge Platform Steel Grating
Product Description
Serrated Steel Grating is a steel grating product with serrated bearing bar. Due to its scientific and reasonable structure design, it is usually used in parts that require high product bearing capacity or appearance. It is a steel grating product manufactured from a certain size of serrated steel through slotting (hole), inserting, welding, finishing and other processes. It is a steel grating product with a large bearing capacity and used for heavy bearing capacity. The industrial platform has a large safety factor. Surface treatment can be divided into galvanizing, painting and dipping.
Classification
1.According to the welding method, it can be divided into:
pressure welding type, phase embedding type, through-lock type and through-welding type;
2.According to the shape of the side surface of the loaded flat steel, it can be divided into:
flat type, tooth type and "工" type, etc.;
3.According to its use, it can be divided into:
general-purpose steel grating and special-purpose steel grating such as: trench cover, tread plate, etc.;
4.Steel grating is according to the material is divided into:
stainless steel and carbon steel grating.
| Place of Origin | Hebei China (Mainland) |
| Brand Name | ZT |
| Model Number | FDPT140609 |
| Bearing bar | 30mm(height)x3mm(thickness) |
| Bearing bar pitch | 30 |
| Cross bar | 6x6 |
| Cross bar pitch | 50mm,100mm |
| Surface treatment | Hot dip galvanized |
| Flat bar type | Plain |
| Material standard | Low carbon steel |
| Galvanizing standard | US: ASTM (A123) |
| Steel grating standards | USA: ANSI/NAAMM (MBG 531-88) |
| Certification | CE,SGS,ISO90001. |
| Usage & Performance | Industrial platform, flooring and walkway, traffic, steel structure |
| Main market | USA,Australia, Japan, etc. |
| Packing | 1.Pallet in containers. 2.According to your packing requirements. |
| MOQ | 2/Tons |
| Supply Ability | 500 Tons/month |
| Payment Terms | T/T,L/C |
| Delivery Time | within 15 days after your deposit or L/C at sight |
| Port of delivery | FOB Tianjin |
| Sample time | 7 days |
INSTALLATION OF STEEL GRATING
1. There are two ways of installation for grating. One way is by welding and other is by using installation fastener. The welding method is suitable for those parts which will be fixed forever,such as platforms for equipments,while the method by using installation fastener has the properties of easy to assemble and disassemble and of preventing destroying the zinc layer.
2. Installation fastener is suitable for all types of gratings. It is made of up-fastener,down-fastener and inside cylinder bolt M10.
3. Welding method is angle welding at the first bearing bar of every corners on the grating.Welding seam of which is not less than 20mm length and not less than 3mm height.
4. It at least needs four sets of installation fasteners on every grating to fix.You had better install more fasteners on the supportable construction when the span is larger.
5. We can supply stainless steel installation fastener to satisfy our customer’s requirements.
6. Please indicate clearly the type,quantity and material when you purchase installation fastener.
FAQ
Q1. Can you provide free sample?
Yes, we can provide 1 free sample.
Q2. Lead time?
7-10 days per container, Challenge the industry's fastest time!
Q3. I need special material, can you help?
Yes, high standards material and high zinc thick can be chosen.
Q4: How can I get a quote?
Contact us with specification, size, quantity and your port, then fast quote with be sent.
Q5: How can you guarantee your quality?
And your trade is protected by Alibaba.
Q6: Various Payment Way:
1. Telegraphic Transfer(T/T); 2.Letter of Credit(LC); 3. Credit Card; 4. Western Union
