Galvanized Press Welded Steel Bar Grate Sheet Stainless

  • Galvanized Press Welded Steel Bar Grate Sheet Stainless
  • Galvanized Press Welded Steel Bar Grate Sheet Stainless
Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 255/20/100
Minimum Order Quantity 10 piece
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 5 - 8work days
Payment Terms L/C, T/T
Supply Ability 800 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Floor, Walkway, Platform, Stair Tread, Bridge Surface Treatment Hot Dipped Galvanized
Product Name Steel Stair Treads Grating Color Any Color
Size Customized Width 600-1250mm, 70-600mm, 995mm
High Light

galvanized welded steel bar grate

,

sheet stainless welded steel bar grate

,

press heavy duty welded steel grating
Leave a Message
Product Description

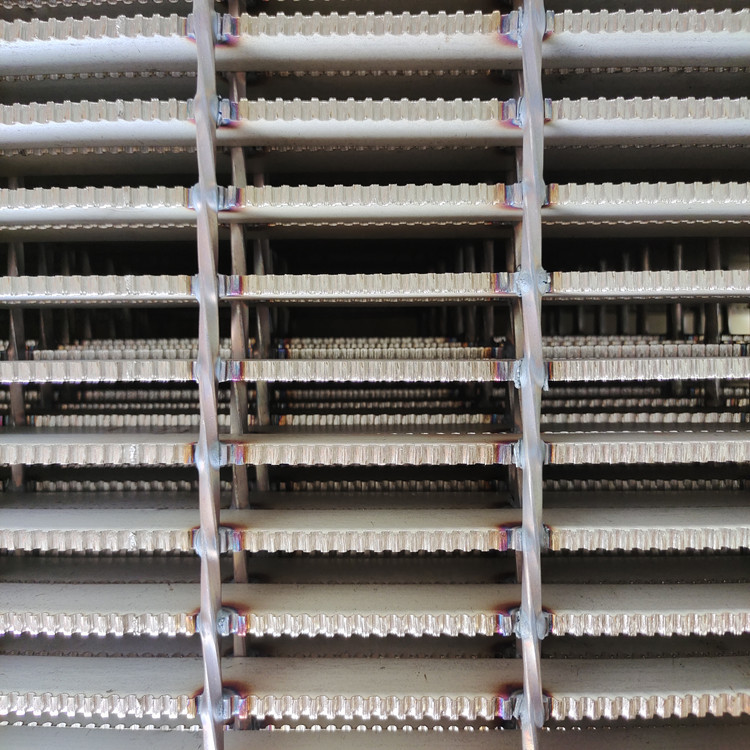

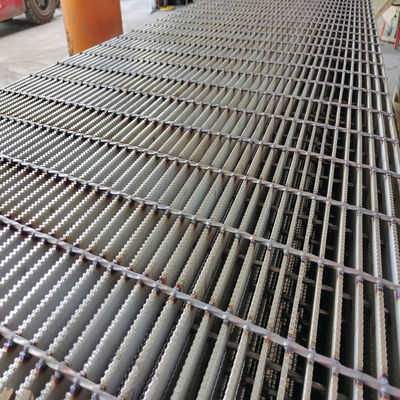

Galvanized press welded steel grating sheet stainless steel tree grating

Description:
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10;the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available
3) Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
4) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
5) Surface Treatment:
Untreated, Painting or Hot dip Galvanizing
6) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.



Drainage steel grating cover Drainage ditch material

Steel,Low carbon steel,stainless steel&Q235,A36,SS304,SS316L,

S235JR
Surface treatment Black, hot dipped galvanized, paint
Bearing bar width*thickness 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
Bearing bar pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm.

US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4",

1 1/4"x 1/4", 1 1/2"x 1/4" etc.
Bearing bar shape

Plain Style Steel Grating, Serrated Style Steel Grating and I

Bar Type Steel Grating.
Drainage steel grating cover drainage ditch standard

China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987, Australia: AS1657-1985, Japan: JJS.
Cross bar shape round,twisted,bar shape
Cross bar pitch 38,50,76,100,101.6mm
Galvanizing standard US: ASTM (A123), CN: GB/T13912, UK: BS729
Market distribution America45%,Europe26%,Middle east38%,Other place27%



Our Services

1.We supply the pictures to customers

2.Any inquiries will be repled within 12 hours

3.Peofessional manufacturer

4.High quality,resonable,competitive price,fast lead time.

5.Risk taking and responsibility is clear

6.we have our own factory

7.18years experience

8.good quality and competitive price

9.perfect team can supply best service

10.quickly reply and accurate quotation

11.Conveniently in transportation



Galvanized Press Welded Steel Bar Grate Sheet Stainless 0Galvanized Press Welded Steel Bar Grate Sheet Stainless 1

Galvanized Press Welded Steel Bar Grate Sheet Stainless 2



FAQ

Q: Are you a manufacture?

A: Yes, we have specialized in this field for more than 15 years.



Q:How do you look at your customers?

A:They are not only our customers, but also our partners, we will work together to develop, win-win cooperation.



Q:Do you sell products only?

A:We not only sell products, we also provide services, we have a comprehensive after-sales service system.



Q: Do you provide sample?

A: The samples are provided free, but the customer need to pay the postage.

After the customer place order, we will deduct the postage from the payment.



Q: How long would it take to produce a sample?

A: 3-5 days after receiving the postage or get the postage collect account.



Q: What information should i provide,if i want a lowest quotation?

A: The specification of products, such as size, color, package and quantity.



Q: What is the MOQ? How many sets can fit in one Container?

A: Minimum order quantity can be discussed. We calculate the number of products that a container can hold based on the data



Q: Do u know the deliver charge to my port or my country?

A: Yes, I have ship agent, will offer u the best vessel and charge.
