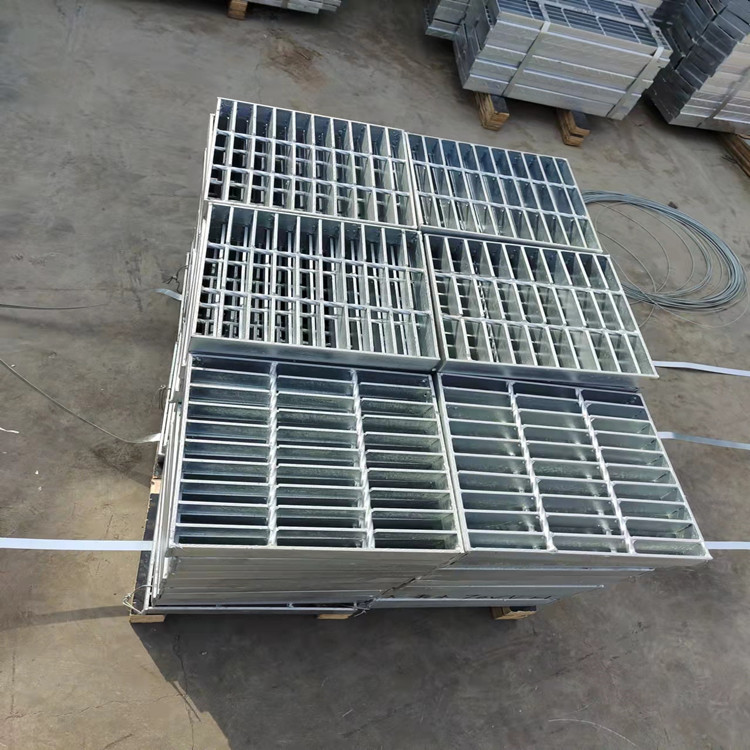

Hot Dip Galvanized Driveway Drain Grate Stainless Steel
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 355/20/100 |
| Minimum Order Quantity | 50 piece |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 7-10 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1200 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Feature | Heavy, Bright On Surface, Modern, High Strength, Light Weight | Product Name | Steel Grating, Galvanized, Hot Dip Galvanized Anti Slip Bar Steel Grating Weight, Hot Sale Galvanized Aluminium Steel Plain Serrated Walkway Grating, Serrated Flat Bar Steel Grating On Sales |
|---|---|---|---|
| Color | Any Color | Name | Steel Grating, Steel Floor Decking, Metal Building Materials Hot Dipped Galvanized Steel Grating |
| Width | According To Your Size, 40mm-400mm, 300-1500mm, 1.5m | Length | 1-6m |
| Key Words | Drain Trench Cover, Stainless Steel Drain Cover, Power Engineering | Size | As Per Requirement, 450*750*40MM, Customized |
| High Light | hot dip galvanized driveway drain grate,driveway drain grate stainless steel,stainless steel grating trench cover |
||
Product Description

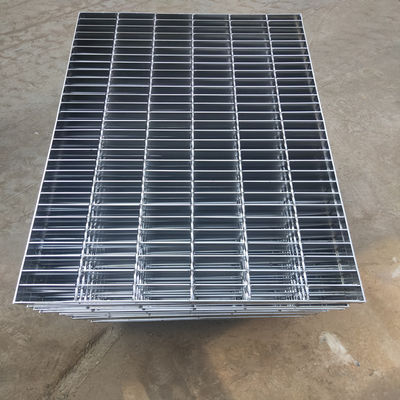

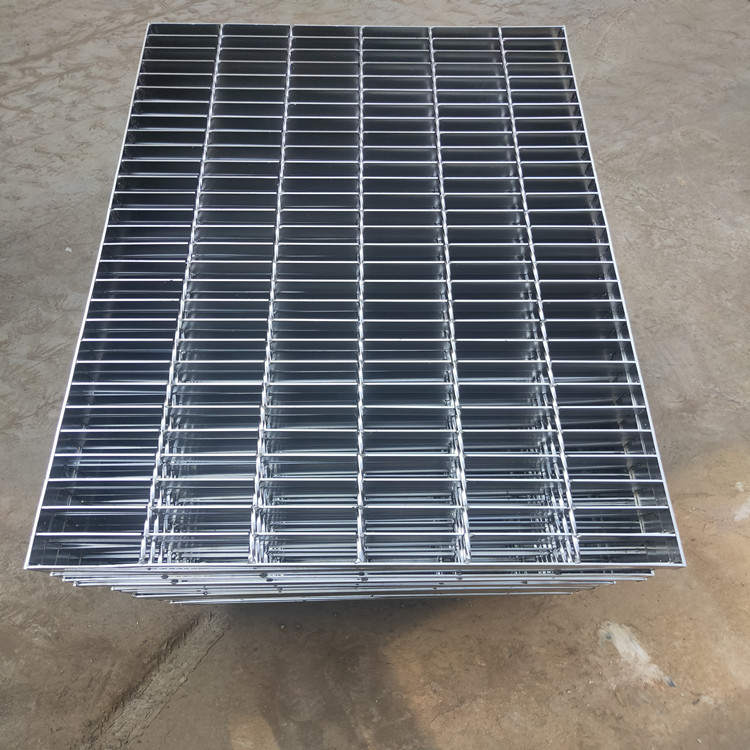

Hot dip galvanized stainless steel grates trench drain cover
Steel grid surface treatment:
Hot dip galvanized, cold galvanized, paint, dip anti-rust oil, do not deal with (general stainless steel do not deal with). Method of making steel lattice plate: Pressed-welded steel grid is made up of load flat steel and horizontal bar arranged in warp and weft at a certain distance. It is welded into the original plate by hydraulic resistance welding automation equipment of 200 tons, and processed into the product required by customers through cutting, opening, edge packing and other procedures. Load flat steel spacing:The center distance between two adjacent flat steel receiving loads is usually 30mm and 40mm. Cross bar spacing:The center spacing of two adjacent cross bars is usually 50mm, 100mm, two kinds, can be produced according to customer requirements. Superiority:Material saving:The most economical way of material under the same load condition, correspondingly, can reduce the material of supporting structure. Reduce investment:Save material, save labor, save time limit, avoid cleaning and maintenance. Construction is simple:In the pre-installed support with bolts clamped or welded fixed, one person can complete.
Product Description
Steel grating main kinds: plug-grating, stair stepping board, ditch cover ,steel ladders, working platforms,building ceilings, etc.
Material : hot dipped galvanized steel grating, stainless steel grating .
The steel grating has the characteristics of ventilation, lighting, heat dissipation, non-slip, explosion-proof and so on.
Product Applications
-flooring steel gratings
-stair treads
-sun shades
-drain covers
-security screen
-manhole covers
-mezzanine flooring
-earth mats
-shelving
-Stanchions (hand rails)
-trench covers
Product Features
1. Anti-rust, anti-corrosion.
2. Light weight, easy installation.
3. Good Permeability, linghting.
4. Economical, long service life.
5. High impact resistance.
|
Bearing Bar Size
|
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5,75x6, 75x10---100x10mm etc.
|
|
I Bar Shape
|
25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
|
|
US standard
|
19-w-4, 15-w-4, 11-w-4, 19-w-2,15-w-2 etc.
|
|
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 31, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2,15-w-2 etc.
|
|
Cross Bar Size and Pitch
|
Twisted bars 5x5, 6x6, 8x8mm; Round bars Dia.6, 7, 8, 9, 10, 12mm and so on.
38.1, 40, 50, 60, 76, 80, 100, 101.6, 120, 135mm, 2''& 4'' etc.
|
|
Material Grade
|
ASTM A36, A1011, A569, Q235, S275JR, SS400, Mild steel & Low carbon steel, etc. Stainless steel SS304, SS316.s335jr, Aluminum
|
|
Surface Treatment
|
Black, self color, hot dip galvanized, painted, powder coating, electrolytic polishing.
|
|
Grating Style
|
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
|
|
Panel Size
|
3x20ft,3x24ft,3x30ft,5800x1000, 6000x1000, 6096x1000,6400x1000, as request
|
Packaging and Shipping
Packing details:
1. stick the label on each grating, the panel number will be marked on the label.
2. insert the steel bracket through the gratings from bottom to the top to fix the package. if the grating panel's size is less than 1500mm*1000mm, 4 pcs steel brackets per package. if more than 1500mm*1000mm, the steel brackets will be added accordingly.
3. bundle the gratings with the PVC tape.
4.Attach a thermoplastic tag to each package. Accordingly to th tag, our clients can find each panel easily and swiftly.
5. wrap the gratings with plastic films.
Our Services
1. Our engineers can design the shop drawing according to your projects and create 3D model.
2. Free samples can be provided.
3. The package method can be custimized.
4. We support the third party organization to come our factory for inspection.
5. The after-sale service and installation method can be provided.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are industrial and trade integration.
Q2: How can I send the inquiry?
Q2: How can I send the inquiry?
A2: Whatever product you interested, welcome send your information to us, or chat with us online.
Q3: Do you accept customized?
A3: Yes, we accept customized.
Q4: Can I have a sample order?
A4: Yes, we can offer sample to test quality.
Q5: What makes your products different from other company's?
A5: With advanced equipment in production and laboratory test, the company could timely deliver high quality products and other related services.
Q6: How do your factory do regarding quality control?
A6: Quality is the 1st priority. We always attach great importance to quality controlling from raw material to shipping.
Q7: How do you have a service after sale?
A7: We will try the best to resolve your problem about our products. For any further question, please feel free to contact me.
Q3: Do you accept customized?
A3: Yes, we accept customized.
Q4: Can I have a sample order?
A4: Yes, we can offer sample to test quality.
Q5: What makes your products different from other company's?
A5: With advanced equipment in production and laboratory test, the company could timely deliver high quality products and other related services.
Q6: How do your factory do regarding quality control?
A6: Quality is the 1st priority. We always attach great importance to quality controlling from raw material to shipping.
Q7: How do you have a service after sale?
A7: We will try the best to resolve your problem about our products. For any further question, please feel free to contact me.
