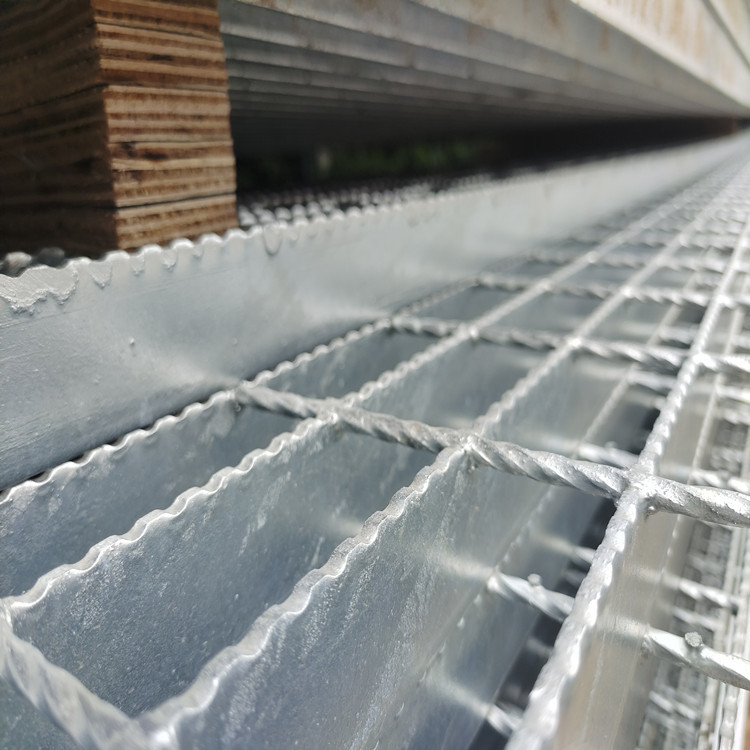

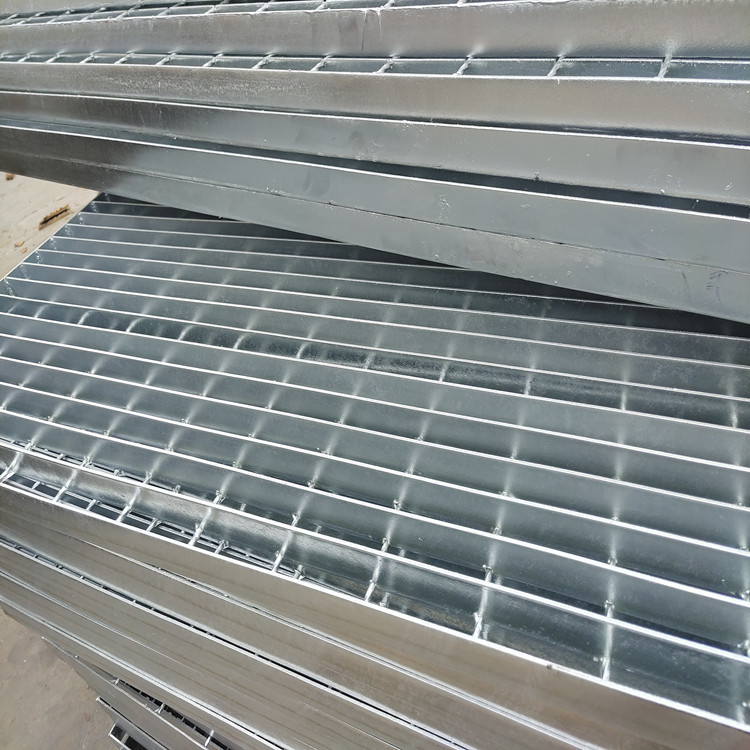

Walkway Drainage Industrial Steel Grating Hot Dipped Galvanized
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 403/40/100 |
| Minimum Order Quantity | 100 piece |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 5 - 8work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel, Q235, Q235 Carbon Steel, Low Carbon Steel | Surface Treatment | Hot Dipped Galvanized, Painted, Galvanized, Black, Untreated |
|---|---|---|---|
| Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm | Cross Bar Pitch | 50mm, 50, As Customers' Requirement Or 40, 38mm |
| Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated | Application | Floor, Walkway, Platform, Stair Tread, Bridge |
| Highlight | walkway drainage industrial steel grating,hot dipped galvanized industrial steel grating,industrial driveway drain grate |
||
Product Description
Hot dipped galvanized metal grate trench steel walkway drainage gratings steel grating
Product Description
1)Raw material :Low carbon steel, stainless steel, aluminum alloy
2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.
3)Cross bars shape: square bars, twisted square bars,round bars
4) Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,painting or as per customers' requirement.
5) Grating standard:TB/T4002,ANSI/NAAMM-MBG531,BS4592,AS1657,JS3101.
2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.
3)Cross bars shape: square bars, twisted square bars,round bars
4) Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,painting or as per customers' requirement.
5) Grating standard:TB/T4002,ANSI/NAAMM-MBG531,BS4592,AS1657,JS3101.
A. Material:
Low Carbon Steel or Stainless Steel
B.Surface Treatment:
Untreated, Painting or Hot Dipped Galvanizing
C.Specifications:
--Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10.
The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
--Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1' x 3/16', 1 1/4' x 3/16', 1-1/2' x 3/16', 1' x 1/4', 1-1/4' x 1/4', 1 1/2' x 1/4'(19-w-4),(19-w-2) and so on.>
--Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
Steel grating standards:
A. China: YB/T4001-1998
B. USA: ANSI/NAAMM (MBG 531-88)
C. UK: BS4592-1987
D. Australia: AS1657-1988
E: Japan: JIS
| No. | Item | Description |
| 1 | Bearing bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| 2 | Bearing bar pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Cross bar | 5*5,6*6,8*8mm(twisted bar or round bar) |
| 4 | Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| 5 | Material Grade |
ASTM A36,A1011,A569,Q235,S275JR,SS304,SS400, Mild steel & Low carbon steel,etc. |
| 6 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 7 | Flat bar type | Plain,Serrated(tooth-like),I bar (I section) |
| 8 | Standard |
China:YB/T 4001.1-2007,USA:ANSI/NAAMM(MBG531-88), UK:BS4592-1987,Australia:AS1657-1985, Germany:DIN24537-1-2006, Japan:JJS. |
Professional Work shop of drainage trench cover steel grating
Steel bar grating is made by welding with Flat steel and Cross bars with certain distance. As we have more than 20 years experience, so we can guarantee the catwalk steel grating with good welding technique and heavy galvanized coating.We can supply our client high quality catwalk steel grating with best steel grating prices in the market.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
We will provide high quality products and services to customers around the world.
Looking forward to cooperation with you. Welcome to have a visit to us at any time.
