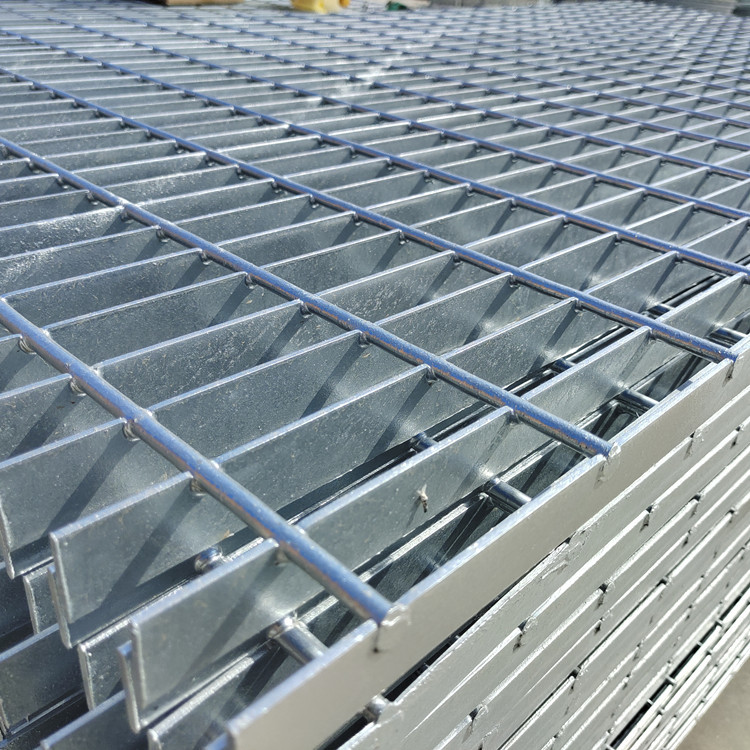

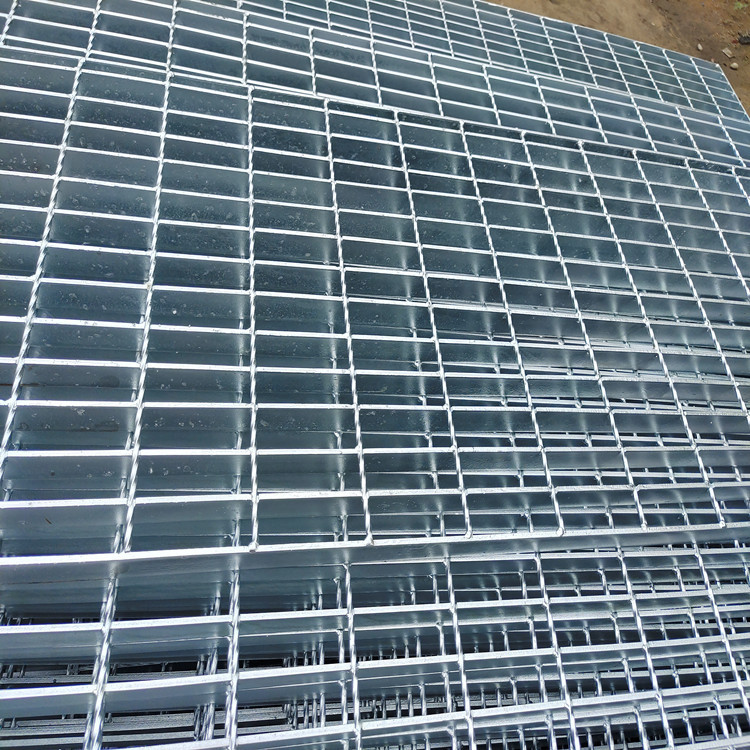

Q325 Steel Bar Grating Galvanized Drainage Iron Cover Drainage Ditch Floor
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 503/20/100 |
| Minimum Order Quantity | 10 piece |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 5 - 8work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel, Q235, Q235 Carbon Steel, Low Carbon Steel | Surface Treatment | Hot Dipped Galvanized, Painted, Galvanized, Black, Untreated |
|---|---|---|---|
| Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm | Cross Bar Pitch | 50mm, 50, As Customers' Requirement Or 40, 38mm |
| Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated | Application | Floor, Walkway, Platform, Stair Tread, Bridge |
| Highlight | q325 steel bar grating,drainage cover steel bar grating,industrial driveway grating |
||
Product Description
Q325 Galvanized drainage iron grating cover drainage ditch steel floor grating
Product Description
1)Raw material :Low carbon steel, stainless steel, aluminum alloy
2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.
3)Cross bars shape: square bars, twisted square bars,round bars
4) Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,painting or as per customers' requirement.
5) Grating standard:TB/T4002,ANSI/NAAMM-MBG531,BS4592,AS1657,JS3101.
2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.
3)Cross bars shape: square bars, twisted square bars,round bars
4) Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,painting or as per customers' requirement.
5) Grating standard:TB/T4002,ANSI/NAAMM-MBG531,BS4592,AS1657,JS3101.
A. Material:
Low Carbon Steel or Stainless Steel
B.Surface Treatment:
Untreated, Painting or Hot Dipped Galvanizing
C.Specifications:
--Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10.
The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
--Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1' x 3/16', 1 1/4' x 3/16', 1-1/2' x 3/16', 1' x 1/4', 1-1/4' x 1/4', 1 1/2' x 1/4'(19-w-4),(19-w-2) and so on.>
--Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
Steel grating standards:
A. China: YB/T4001-1998
B. USA: ANSI/NAAMM (MBG 531-88)
C. UK: BS4592-1987
D. Australia: AS1657-1988
E: Japan: JIS
| No. | Item | Description |
| 1 | Bearing bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| 2 | Bearing bar pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Cross bar | 5*5,6*6,8*8mm(twisted bar or round bar) |
| 4 | Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| 5 | Material Grade |
ASTM A36,A1011,A569,Q235,S275JR,SS304,SS400, Mild steel & Low carbon steel,etc. |
| 6 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 7 | Flat bar type | Plain,Serrated(tooth-like),I bar (I section) |
| 8 | Standard |
China:YB/T 4001.1-2007,USA:ANSI/NAAMM(MBG531-88), UK:BS4592-1987,Australia:AS1657-1985, Germany:DIN24537-1-2006, Japan:JJS. |
Professional Work shop of drainage trench cover steel grating
Steel bar grating is made by welding with Flat steel and Cross bars with certain distance. As we have more than 20 years experience, so we can guarantee the catwalk steel grating with good welding technique and heavy galvanized coating.We can supply our client high quality catwalk steel grating with best steel grating prices in the market.
FAQ
1. who are we?
We are based in Hebei, China, start from 2013,sell to North America(35.00%),Domestic Market(23.00%),Africa(15.00%),Oceania(8.00%),Mid East(6.00%),Eastern Europe(5.00%),Eastern Asia(4.00%),Northern Europe(4.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Welded gabion mesh,chain link fence,stainless steel wire mesh,wedge wire screen,stainless steel conveyor belt
4. why should you buy from us not from other suppliers?
We have fully automatic welding equipment taking the place of the original manual welding machines and leading domestic CAD wire mesh designing system,which can provide users with accurate product drawings and installation drawings.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Hebei, China, start from 2013,sell to North America(35.00%),Domestic Market(23.00%),Africa(15.00%),Oceania(8.00%),Mid East(6.00%),Eastern Europe(5.00%),Eastern Asia(4.00%),Northern Europe(4.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Welded gabion mesh,chain link fence,stainless steel wire mesh,wedge wire screen,stainless steel conveyor belt
4. why should you buy from us not from other suppliers?
We have fully automatic welding equipment taking the place of the original manual welding machines and leading domestic CAD wire mesh designing system,which can provide users with accurate product drawings and installation drawings.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
We will provide high quality products and services to customers around the world.
Looking forward to cooperation with you. Welcome to have a visit to us at any time.
