Driveway Hot Dip Galvanized Industrial Steel Grating Korean Standard
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 325/30/100 |
| Minimum Order Quantity | 10 piece |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 5 - 8work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel, Q235, Q235 Carbon Steel, Low Carbon Steel, Stainless Steel Galvanized Stee | Surface Treatment | Hot Dipped Galvanized, Painted, Galvanized, Black, Untreated |
|---|---|---|---|
| Product Name | Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating | Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, Flat |
| Application | Floor, Walkway, Platform, Stair Tread, Bridge | Standard | ISO9001, BS4592-1987, YB/T 4001.1-2007, USA, AS1657-1985;BS4592-1987;ANSI/NAAMM(MBG531-88) |
| Highlight | industrial steel grating hot dip galvanized,korean standard industrial steel grating,driveway industrial walkway grating |
||
Product Description
Hot dip galvanized steel korean standard platforms carbon steel trench cover industry grating

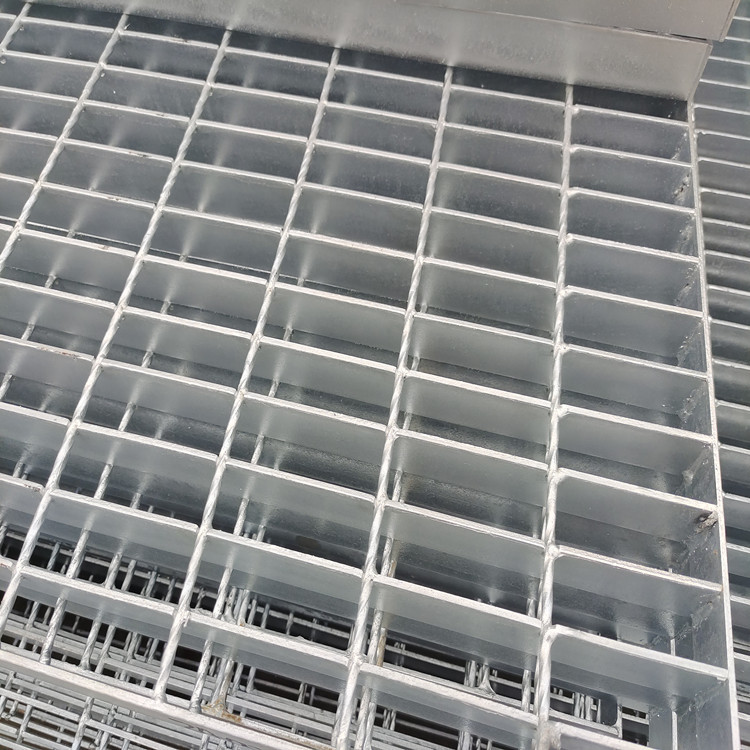

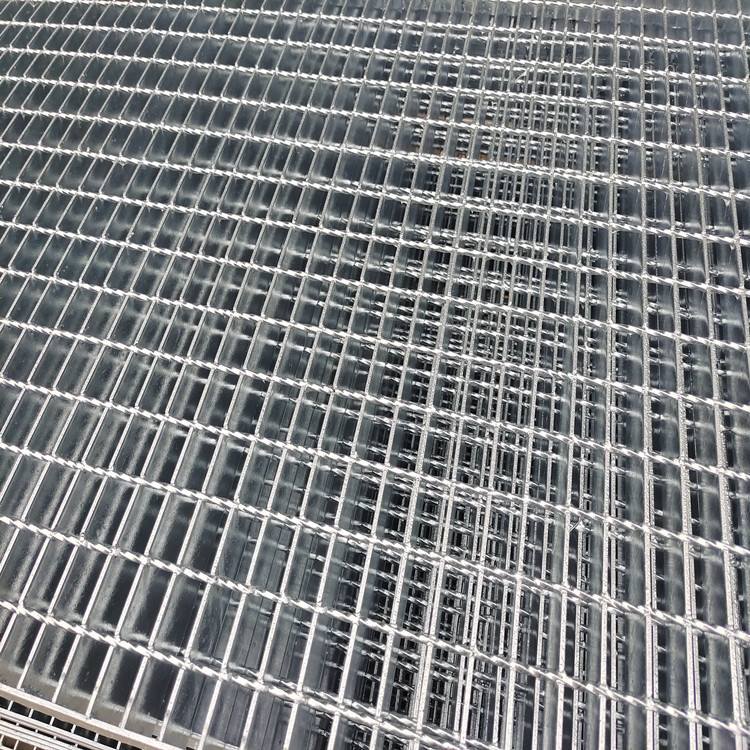

Steel Bar Grating
Steel Grating Mesh is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes.
1. Description
(1) Structure: Welding with flat steel and cross/round bars with certain distances.
(2) Features: High strength, light structure, high bearing.
(3) Surface: The hot dipped zinc coating gives the product excellent anti-corrosion.
Steel Grating Type
1.Plain type:
One of the most wiely used gratings, available for flooring, sidewalk, dranage pit cover, stair tread, etc
2.Serrated type:
Better Non-skid property & safety compared with plain grating
3.I-shape type
Lighter, more economical and practical comparing with plain grating
1.Stainless steel steel grating:The use of treads is very extensive. It is widely used in factories such as power plants and water plants, platform walkways in municipal engineering and sanitation engineering, and large-scale ground platforms such as theaters, visiting platforms and parking lots. The installation of the tread plate is very simple, does not require complicated installation; ventilation, lighting, heat dissipation, explosion-proof, anti-slip performance; high strength of the tread plate, light structure, durable; maintenance is very simple, anti-dirt.
2.Platform steel grating:Many chemical plants have a large number of operating platforms. For reasons, steel gratings are used as paving materials to create an operating platform that is corrosion-resistant, paint-free, and requires no containment and long service life.
| Product name | *Steel grating |
| Material |
*Mild steel (Carbon steel) *stainless steel 304, SS316 |
| Material standard |
*USA:ASTM A36 *UK:BS4360 *Australia:AS3679 *China:Q235 |
| Bearing bar type |
*Smooth/flat bar *serrated/toothed bar *Smooth I bar *Serrated I bar |
| Bearing bar thickness | *2mm to 10mm, 3mm and 5mm recommended |
| Bearing bar pitch | *12.5-30mm/40mm/50mm/60mm/80mm/90up,30and40mm recommended |
| Bearing bar specification |
*flat bar and serrated bar 20*3,20*5,25*3,25*5,30*3,30*4,30*5,32*3,32*5,35*3,35*5,40*3,40*5, 45*5,50*3,50*5,55*5,60*5,65*5,70*6,75*6,75*8,80*8,90*8,100*8, 120*8,130*8,150*8 *I-section bar 25*5*3,32*5*3,38*5*3,44*5*3,50*5*3,50*7*4,55*7*4,60*7*4, 65*7*4,75*7*4 |
| Cross bar | *5*5mm,6*6mm,8*8mm |
| Cross bar pitch | *30mm,38mm,50mm,76mm,100mm,50mm and 100mm recommended |
| Surface treatment |
*Hot dipped galvanized *Untreated(self-color) *Painted |
| HDG standard |
*ASTM A123 *BS729 *AS1650 |
| Grating Standard |
*AS1657-2013 *BS4592-2006 *ANSI/NAAMM(MBG531-88) |
FAQ
Q1. Are you a trading company or factory?
A1: We are direct factory with 10 experienced engineers and more than 50 employees as well approximate 3,000 square meters workshop area.
Q2. Where can I get product&price information?
A2: Send us inquiry e-mail , we will contact you as we receive your mail.
Q3. What's kinds of information you need for quote?
A3: Kindly please provide the product drawing in PDF,and will be better you can provde in STEP or IGS.
Q4. Will my drawings be safe after sending to you?
A4: Yes, we will keep them well and not release to third party without your permission.
Q5. What shall we do if we do not have drawings?
A5: Please send your sample to our factory,then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.
Q6. Why should you buy from us not from other suppliers?
A6: Most professional one station supplier of Manhole Cover in China. Have rich production experience, professional industry knowledge, excellent after-sales service team, professional technical support team, fast supply capability, with competitive price.
