Custom Heavy Duty Grating Hot Dip Galvanized Serrated Stainless Steel
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 355/30/100 |
| Minimum Order Quantity | 55 piece |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 5 - 8work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Grating, Galvanized, Hot Dip Galvanized Anti Slip Bar Steel Grating Weight, Hot Sale Galvanized Aluminium Steel Plain Serrated Walkway Grating | Application | Floor, Platform, Stair Tread, Steel Structure, Bridge |
|---|---|---|---|
| Standard | ISO9001, AS1657, ANSI/NAAMM(MBG531-88), AS1657-1985, BS4592-1987 | Color | Silver, Silver Or As Your Requirement, Green, Black, White |
| Thickness | 6mm, 3mm | Name | Steel Floor Decking, Galvanized Steel Grating, Best Price Hot Dip Welded Serrated Steel Grating |
| Feature | Anti-corrosive, Anti-sand, Simple Installation, Durable, Light Weight | Grade | Q235 Q345, Low Carbon Steel And Stainless Steel |
| High Light | heavy duty grating hot dip galvanized,serrated stainless grating hot dip galvanized,custom serrated galvanized steel grating |
||
Product Description

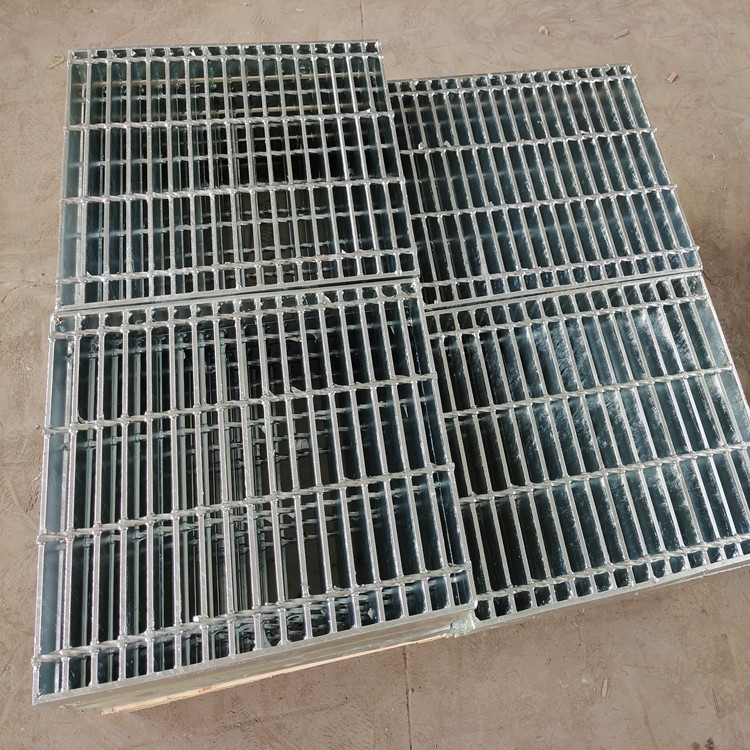

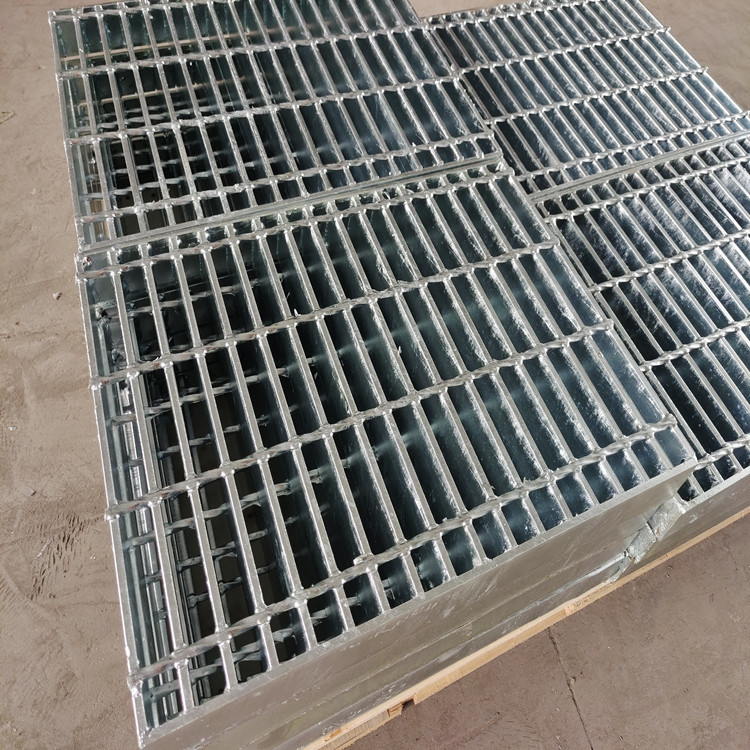

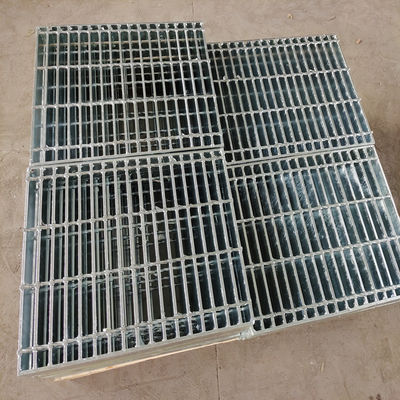

Factory custom heavy duty hot dip galvanized serrated stainless steel grating
Galvanized steel grating productive process:
1.Prepare the raw material:Bearing bar and cross twisted bar
2.Press welded the bearing bar and cross twisted bar into grid.
3.Cut the size according to the cusromers' demand and close the end plate.
4.Steel plate hot dip galvanzied,
5.After galvanized the steel grid will be not rust and has long time service life.
6.Packed the steel grating by steel strip into packages.
7.Delivery the steel grating packages into the container,then send to you.
1. Brief Introduction of press locked steel gratings
With Press-Locked Grating the cross bars and bearing bars are notched and pressed together through a high pressure manufacturing process. The result is a bi-direction flush surface that assures a firm, rigid connection and makes it aesthetically appealing for architectural applications. It is available from stock in twp bearing bars heights, in plain or corrosion-resistant galvanized steel, or aluminum. A variety of other bar heights, bar spacings and materials is available by special order.
2. Common Steel Grating Specification
1) Bearing bar size (mm): 25 x 3; 25 x 5;30 x 3; 30 x 5;32 x 3; 32 x 5; 35 x 3;35 x 5.....
2) Bearing bar pitch(mm): 20;30;34;40;50;60.....
3) Cross bar pitch(mm): 50;100;38.....
3. Surface Treatment
1) HDG(hot dip galvanization); Painted; Untreated
2) Galvanization Standard
4. Grating Standard
1) China: YB/T4001-1998
2) USA: ANSI/NAAMM (MBG531-88)
3) UK: BS4592-1987
4) Australia: AS1657-1985
5) Japan: JJS
Hebei Zhuote Metal Wire Mesh Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products. Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities. As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, India and so on.
|
Item
|
Common specification of steel grating
|
||
|
Bearing bar
|
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
|
||
|
Bearing bar pitch
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc |
||
|
Twisted Cross Bar Pitch
|
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
|
||
|
Material Grade
|
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,
Mild steel & Low carbon steel, etc |
||
|
Surface Treatment
|
Black, self colour, hot dip
galvanized, painted, spray coating
|
||
|
Grating Style
|
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
|
||
|
Standard
|
China: YB/T 4001.1-2007,
USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985,Germany: DIN24537-1-2006, Japan :JIS |
||
Packaging & Shipping
Packing details:
1. stick the label on each grating, the panel number will be marked on the label.
2. insert the steel bracket through the gratings from bottom to the top to fix the package. if the grating panel's size is less than 1500mm*1000mm, 4 pcs steel brackets per package. if more than 1500mm*1000mm, the steel brackets will be added accordingly.
3. bundle the gratings with the PVC tape.
4.Attach a thermoplastic tag to each package. Accordingly to th tag, our clients can find each panel easily and swiftly.
5. wrap the gratings with plastic films.
Our Services
1. Quick response
Timely response within 24 hours.
2. Sample
Free sample is available if our customer are willing to undertake the courier fee.
3. Layout drawing or shop drawing
We can provide the layout drawing or shop drawings for our customers' project solution.
4. Quality control
We have strictly quality control system to ensure the high quality products for our customers.
5. Strong package
We will do our best to offer strong package to keep the goods safe and sound when our customer receive them.
6. Timely delivery
Our strong supply capacity can help us to deliver the goods in time.
7. After-sale service
We will track the goods' use condition. Not only providing the tech support, but the solution of goods' quality.
