Hot Dip Galvanized Ss316 Serrated Steel Grating Construction Frame Foot Pedal

  • Hot Dip Galvanized Ss316 Serrated Steel Grating Construction Frame Foot Pedal
  • Hot Dip Galvanized Ss316 Serrated Steel Grating Construction Frame Foot Pedal
  • Hot Dip Galvanized Ss316 Serrated Steel Grating Construction Frame Foot Pedal
Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 304/30/100
Minimum Order Quantity 100 piece
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 11 work days
Payment Terms L/C, T/T
Supply Ability 1000 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Q235, SS316 Surface Treatment Hot Dipped Galvanized, Galvanized, Painting, Hot Dip Galvanized
Application Floor, Platform, Stair Tread, Steel Structure, Bridge Type Plain Bar Grating, Serrated Bar Grating, Plain, Serrated, I Bar Grating
Standard ISO9001, AS1657, ANSI/NAAMM(MBG531-88), AS1657-1985 Thickness 3-6mm
Highlight

foot pedal serrated steel grating

,

ss316 serrated steel grating

,

hdg serrated bar grate
Leave a Message
Product Description

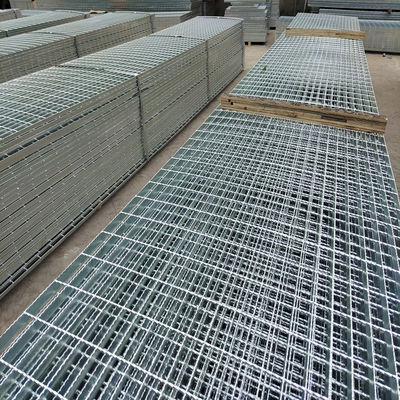

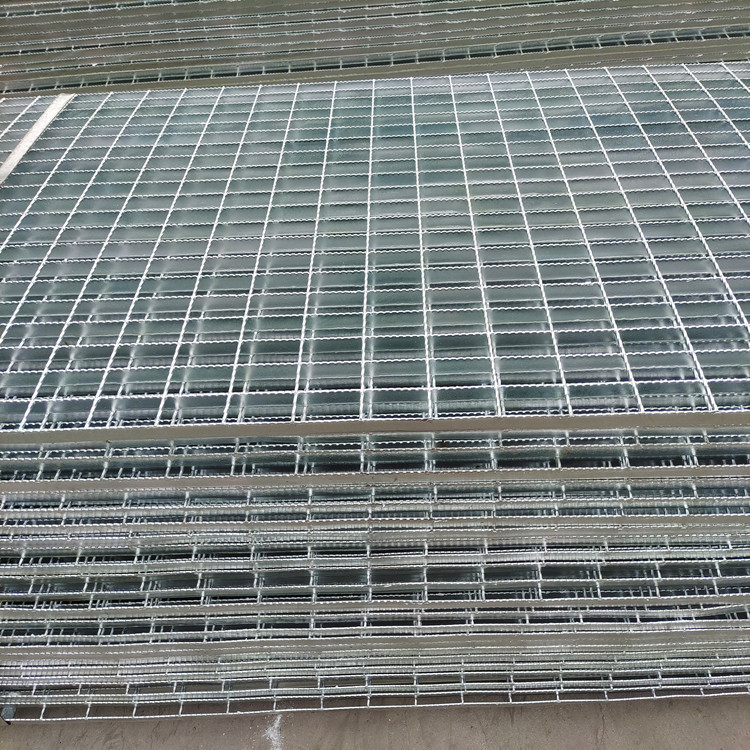

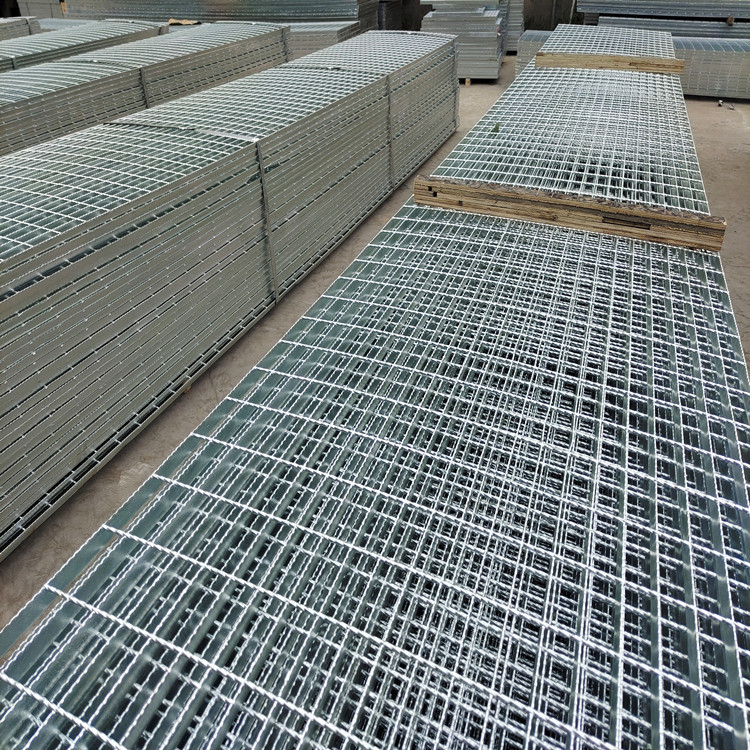

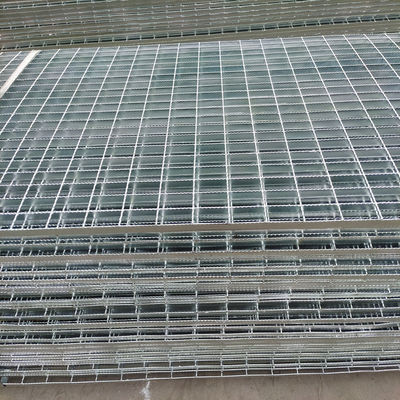

Hot dip galvanized Serrated Steel Grating Construction steel frame foot pedal



Product Description

Steel grating is made of flat steel in a certain spacing and cross bars (twisted square steel, square steel, round steel, flat steel, etc.), and is welded into a square with a square in the middle. A kind of steel product of lattice, steel grating is mainly used for gutter cover, steel structure platform board, steel ladder step board, etc. The crossbar is generally twisted square steel. Steel grating is generally made of carbon steel, and the surface is hot-dip galvanized, which can prevent oxidation. It can also be made of stainless steel. The steel grating has the properties of ventilation, lighting, heat dissipation, non-slip and explosion-proof.



Specification
a. Material: Q235B, A36, SS400, S235JR, SS304, SS316, SS304L, SS316L
b. Dimension: Thickness: 3mm-10mm
c. Flat bar pitch: 30mm,40mm,50mm,60mm
d. Twisted bar pitch: 50mm, 100mm
e. Length: Regular as 3m per piece
f. Material: A36 or equivalent material, SS304, SS316
g. Advantage: light weight, heavy load capacity, easy installation
h. Surface treatment standard: GB/T13192, BS EN ISO 1461-2009
i. Technical standard: YB/T 4001.1-2007 (GB), ANSI/NAAMM(MBG531-88) ( ANSI), BS4592-1987, AS1657-1985, DIN24537-1-2006
j. Surface treatment: Hot DIP galvanized, painting, acid washing and polishing for stainless steel grating.
k. Cross bar type: Round bar, I bar, twisted bar, twisted square bar. Flat bar type: Plain or serrated


Application:

- Grating floor mat

- Working platform

- Grating floor panels

- Grating manhole cover

- Grating ditch cover

- Stairs, stairs Grating

- Traffic works, highways, factories, farms, urban areas

- Oil and gas industries, cement, ships...



Packing & Shipping:

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.



Walkway Grating has great features like water and air ventilation, it’s easy to install and uninstall, suitable for wheel
equipment.

As a steel walkway grating supplier, we carry metal walkway grating products along with common accessories.


Item
Description
1
Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10,100x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16',
1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8',
1 1/2'x1/8' etc.
2
Bearing Bar Pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1,
40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
4
Material Grade
ASTM A36, A1011, A569, Q235, S275JR, SS304,
Mild steel & Low carbon steel, etc
5
Surface Treatment
Black, self colour, hot dip galvanized, painted, spray coating
6
Grating Style
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7
Standard
China: YB/T 4001.1-2007,
USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987,
Australia: AS1657-1985, Japan:JIS
8
Application
China: YB/T 4001.1-2007,
USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987,
Australia: AS1657-1985, Japan:JIS



Hot Dip Galvanized Ss316 Serrated Steel Grating Construction Frame Foot Pedal 0Hot Dip Galvanized Ss316 Serrated Steel Grating Construction Frame Foot Pedal 1



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shippment.
