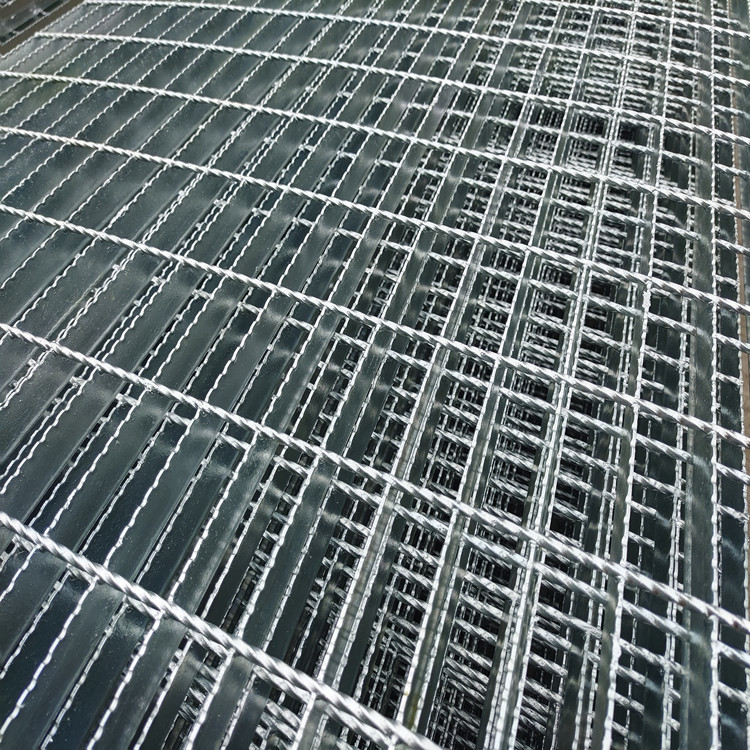

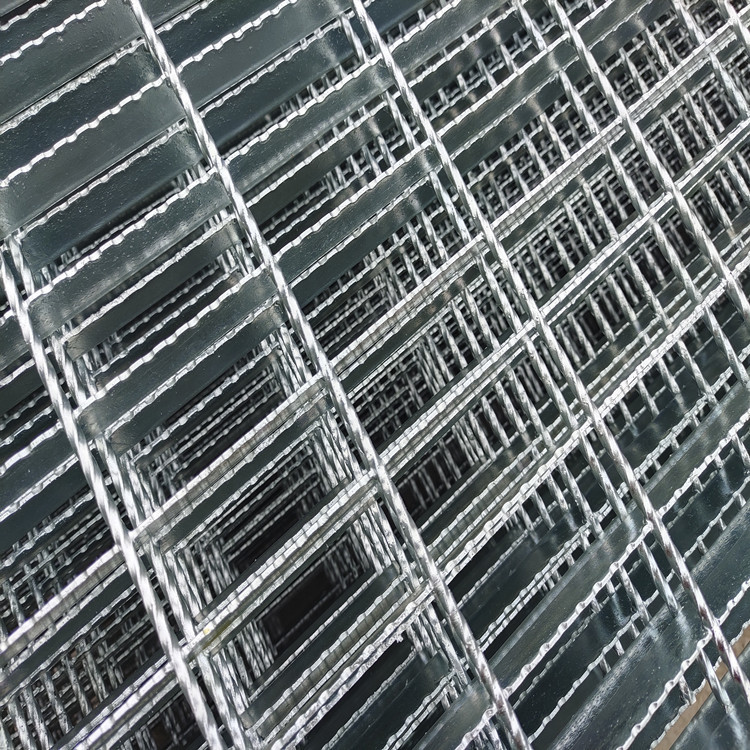

Galvanized Bar Driveway Serrated Steel Grating SS316

a. Material: Q235B, A36, SS400, S235JR, SS304, SS316, SS304L, SS316L
b. Dimension: Thickness: 3mm-10mm
c. Flat bar pitch: 30mm,40mm,50mm,60mm
d. Twisted bar pitch: 50mm, 100mm
e. Length: Regular as 3m per piece
f. Material: A36 or equivalent material, SS304, SS316
g. Advantage: light weight, heavy load capacity, easy installation
h. Surface treatment standard: GB/T13192, BS EN ISO 1461-2009
i. Technical standard: YB/T 4001.1-2007 (GB), ANSI/NAAMM(MBG531-88) ( ANSI), BS4592-1987, AS1657-1985, DIN24537-1-2006
j. Surface treatment: Hot DIP galvanized, painting, acid washing and polishing for stainless steel grating.
k. Cross bar type: Round bar, I bar, twisted bar, twisted square bar. Flat bar type: Plain or serrated



Application

- Grating floor mat

- Working platform

- Grating floor panels

- Grating manhole cover

- Grating ditch cover

- Stairs, stairs Grating

- Traffic works, highways, factories, farms, urban areas

- Oil and gas industries, cement, ships...



Packing & Shipping

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.



Steel bar grating is one of our main grating products,also know as press weld steel bar grating.Due to the extremely strong and durable for all the bearing application,whice become the most popular grating in the markets.The stability makes them have a much higher performance in the application.



Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc.
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan:JIS
8	Application	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan:JIS





Company philosophy
We believes in building and retaining strong client relationships based upon reliability, flexibility and design. Our primary
objectives are to achieve high standards of excellence with the ability to offer a bespoke service to individual clients.

Technical Support
The Technical Department is able to recommend the most appropriate grating or louvre for a particular project before preparing a panel layout which will make the most economical use of the selected material. Our practice is to work closely with the architect from concept to final design, preparing CAD drawings and advising on secondary steelwork, alternative fixing methods and loading specifications.



Our Mission
To provide the top quality products & best services with global expertise;
To build a harmonious environment for employees growing together with the company;
To contribute to the advancement of both industry & society.
We will try our best to satisfy our customers with top quality, good service and most competitive price.
