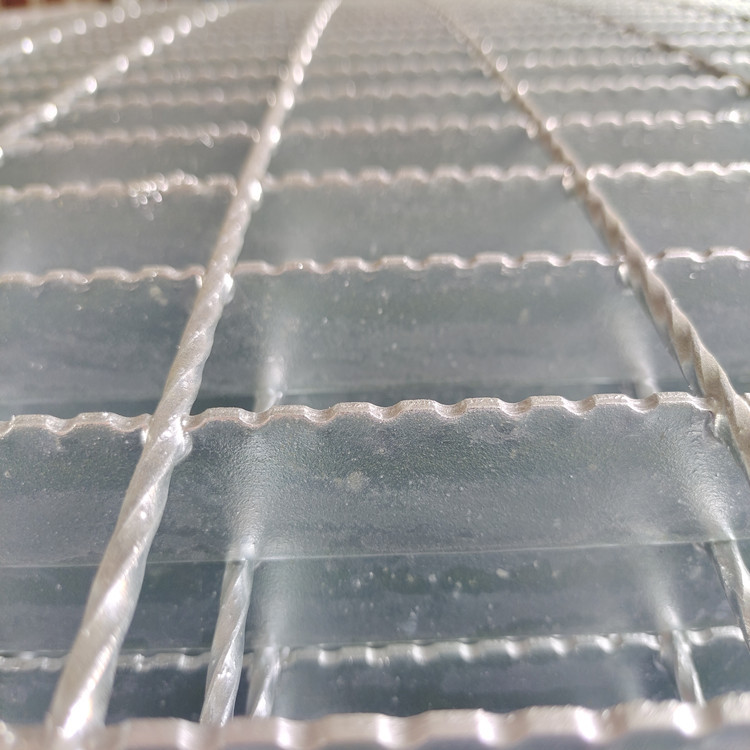

15w2 Stair Treads Serrated Steel Grating Hot Dipped Galvanized Metal
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 253/30/100 |
| Minimum Order Quantity | 60 piece |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 10-12 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel, Q235, Q235 Carbon Steel | Surface Treatment | Hot Dipped Galvanized, Painted, Galvanized, Black, Untreated |
|---|---|---|---|
| Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated | Thickness | 2mm-5mm, 5mm, 6mm |
| Color | Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom | Size | Customized |
| Grade | Q235 Q345, Low Carbon Steel And Stainless Steel | Grating Specification | 40/50, 30/100, 19-w-4, 15-w-2, 60/100 And All |
| High Light | 15w2 serrated steel grating,stair treads serrated steel grating,hdg serrated grating stair treads |
||
Product Description

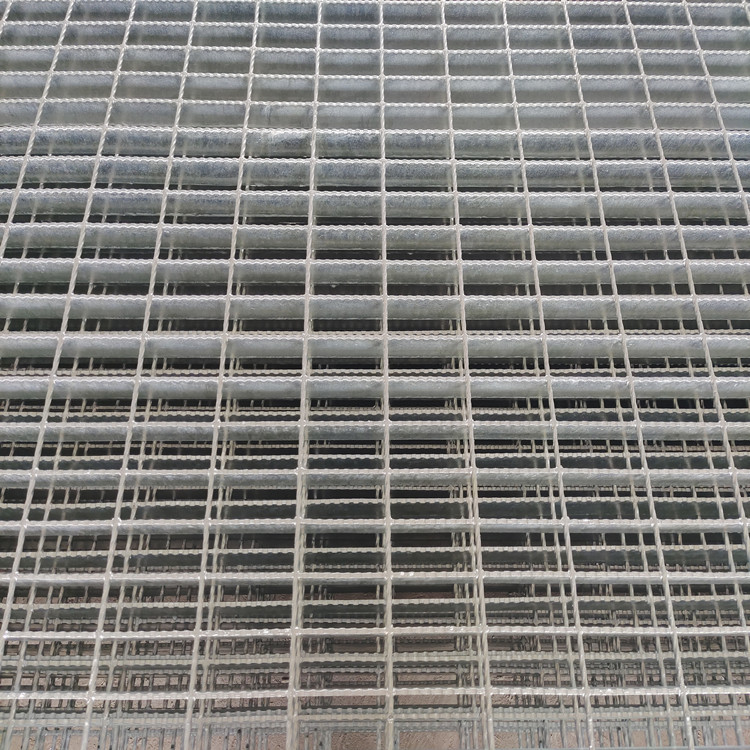

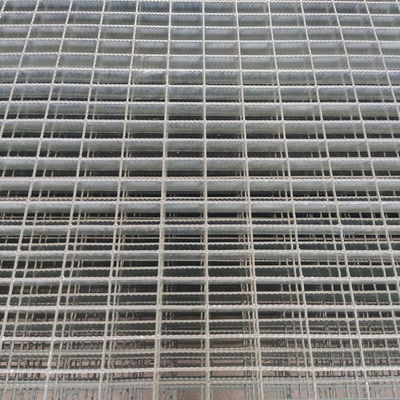

Hot Dipped Galvanized Metal Grating Serrated Bar Safety Walkway Steel Grating
Metal Building Materials Hot Dipped 32 x 5mm Galvanized Steel Grating
Material of steel driveway grates grating is usually low carbon steel ,stainless steel. the size is commonly standard or as required.
Packing:Naked or as the customers' request.
certificate is ISO 9001:2000.
Processes:
Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
Material:
Carbon steel, Stainless steel ,and so on .
Surface treatment:
Hot-dipped-galvanized ,electro galvanized or PVC coated
Size:
Standard size or OEM(Making as the customers' request).
Features
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.
Useage:
Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.
Packing:
Naked or packing as the customers' request
Naked or packing as the customers' request
Standard steel grating supplied is manufactured with a resistance-weld process using heat and pressure. Crossbars are fused to bearing bars to assure maximum strength.
|
No
|
Item
|
Data
|
|
1
|
Material
|
Low carbon steel, stainless steel or following customerrequirements
|
|
2
|
Bearing bar specifications (mm)
|
20 X 3 to 100 X 10;
25 X 5 X 3, 32 X 5 X 3, 38 X 5 X 3, 40 X 5 X 3, 50 X 5 X 3, 50 X 7 X 4, 55 X 7 X 4, 60 X 7 X 4, 65 X 7 X 4, 70 X 7 X 4, 75 X 7 X 4mm, or customerized |
|
3
|
Bearing bar pitch (center to center)
|
12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, or customerized
|
|
4
|
Cross bar pitch (center to center)
|
38, 50, 76, 100, 101.6mm etc, or customerized
|
|
5
|
Surface Treatment
|
Nature, hot DIP galvanizing, paint spraying or following customer requirements
|
|
6
|
Features
|
Anti-rust, durable, strong, safe, easy installation
|
|
7
|
Packing
|
Wrapped with film and straps, wooden pallet packing
|
|
8
|
Meeting steel grating standards
|
A) China: YB/T4001.1-2007
B) USA: ANSI/NAAMM(MBG531-88) C) UK: BS4592-1987 D) Australia: AS1657-1985 |
INSTALLATION OF STEEL GRATING
1. There are two ways of installation for grating. One way is by welding and other is by using installation fastener. The welding method is suitable for those parts which will be fixed forever,such as platforms for equipments,while the method by using installation fastener has the properties of easy to assemble and disassemble and of preventing destroying the zinc layer.
2. Installation fastener is suitable for all types of gratings. It is made of up-fastener,down-fastener and inside cylinder bolt M10.
3. Welding method is angle welding at the first bearing bar of every corners on the grating.Welding seam of which is not less than 20mm length and not less than 3mm height.
4. It at least needs four sets of installation fasteners on every grating to fix.You had better install more fasteners on the supportable construction when the span is larger.
5. We can supply stainless steel installation fastener to satisfy our customer’s requirements.
6. Please indicate clearly the type,quantity and material when you purchase installation fastener.
FAQ
Q: Are you a manufacture?
A: Yes, we have specialized in this field for more than 15 years.
Q:How do you look at your customers?
A:They are not only our customers, but also our partners, we will work together to develop, win-win cooperation.
Q:Do you sell products only?
A:We not only sell products, we also provide services, we have a comprehensive after-sales service system.
Q: Do you provide sample?
A: The samples are provided free, but the customer need to pay the postage.
After the customer place order, we will deduct the postage from the payment.
Q: How long would it take to produce a sample?
A: 3-5 days after receiving the postage or get the postage collect account.
Q: What information should i provide,if i want a lowest quotation?
A: The specification of products, such as size, color, package and quantity.
Q: What is the MOQ? How many sets can fit in one Container?
A: Minimum order quantity can be discussed. We calculate the number of products that a container can hold based on the data
Q: Do u know the deliver charge to my port or my country?
A: Yes, I have ship agent, will offer u the best vessel and charge.
