Welded Serrated Steel Bar Grating Floor Walkway Antislip

  • Welded Serrated Steel Bar Grating Floor Walkway Antislip
  • Welded Serrated Steel Bar Grating Floor Walkway Antislip
  • Welded Serrated Steel Bar Grating Floor Walkway Antislip
Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 325/30/100
Minimum Order Quantity 90 piece
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 13 work days
Payment Terms L/C, T/T
Supply Ability 1500 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Q235, Q235 Carbon Steel Surface Treatment Hot Dipped Galvanized, Painted, Galvanized, Black, Untreated
Type Plain Bar Grating, Serrated Bar Grating, Plain, Serrated Thickness 2mm-5mm
Color Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom Size Customized
Grade Q235 Q345, Low Carbon Steel And Stainless Steel Grating Specification 40/50, 30/100, 19-w-4, 15-w-2, 60/100 And All
High Light

welded serrated steel bar grating

,

antislip serrated steel bar grating

,

hdg serrated galvanized grating
Leave a Message
Product Description

Hot-dip galvanized welded floor walkway anti-slip Serrated Steel Grating



Metal Building Materials Hot Dipped 32 x 5mm Galvanized Steel Grating
Material of steel driveway grates grating is usually low carbon steel ,stainless steel. the size is commonly standard or as required.

Packing:Naked or as the customers' request.

certificate is ISO 9001:2000.


Processes:
Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

Material:
Carbon steel, Stainless steel ,and so on .

Surface treatment:
Hot-dipped-galvanized ,electro galvanized or PVC coated

Size:
Standard size or OEM(Making as the customers' request).

Features
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.



Useage:

Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.


Packing:
Naked or packing as the customers' request

Product Name
Steel grating
Material
Low carbon steel / Stainless steel
Grade
CN: Q235, Q345, USA: A36, UK: 43A
Standard
CN: YB/T4001-1998, USA: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification
CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size
20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch
20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type
Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size
5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch
40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size
3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,6400x1000, as request
Surface treatment
Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.

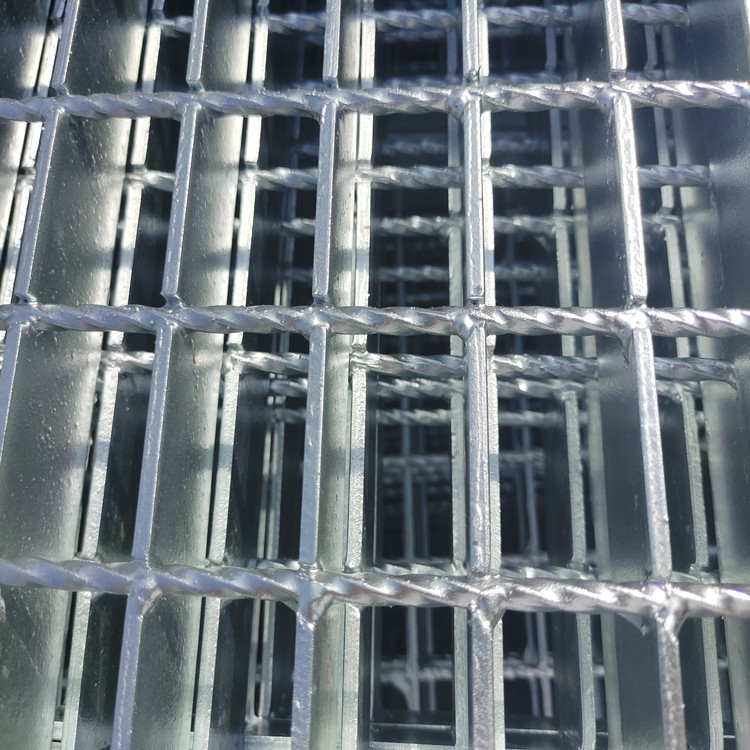

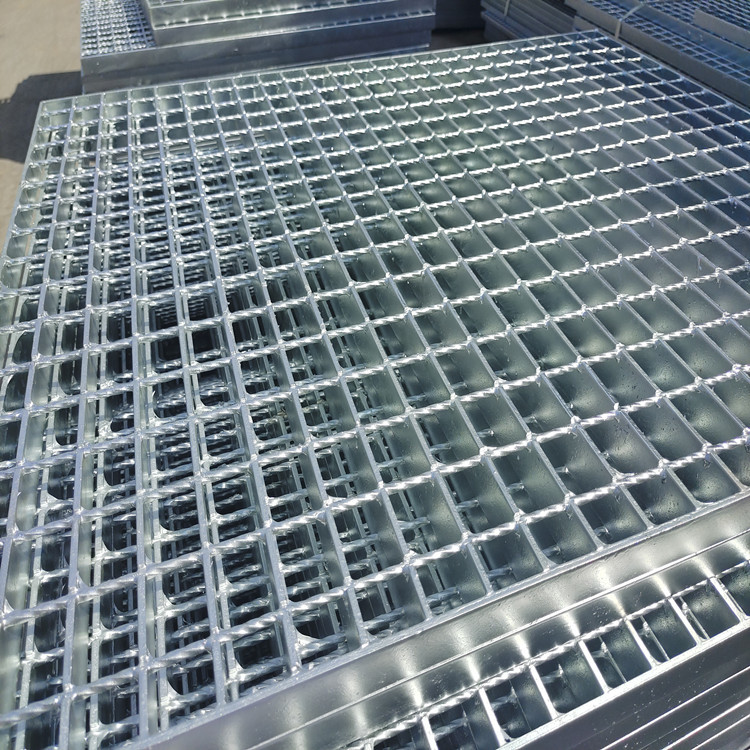

Welded Serrated Steel Bar Grating Floor Walkway Antislip 0Welded Serrated Steel Bar Grating Floor Walkway Antislip 1Welded Serrated Steel Bar Grating Floor Walkway Antislip 2

Product Features



1. Anti-rust, anti-corrosion.



2. Light weight, easy installation.



3. Good Permeability, linghting.



4. Economical, long service life.



5. High impact resistance.



6. Ventilation, heat dissipation.



7. Non-slip and explosion-proof.



FAQ

Q: Are you a manufacture?
A: Yes, we have specialized in this field for more than 15 years.

Q:How do you look at your customers?
A:They are not only our customers, but also our partners, we will work together to develop, win-win cooperation.

Q:Do you sell products only?
A:We not only sell products, we also provide services, we have a comprehensive after-sales service system.

Q: Do you provide sample?
A: The samples are provided free, but the customer need to pay the postage.
After the customer place order, we will deduct the postage from the payment.

Q: How long would it take to produce a sample?
A: 3-5 days after receiving the postage or get the postage collect account.

Q: What information should i provide,if i want a lowest quotation?
A: The specification of products, such as size, color, package and quantity.
