Q235 Road Trench Cover Serrated Metal Grating Mesh Grid Floor Bars

Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 303/45/100
Minimum Order Quantity 100 piece
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 15 work days
Payment Terms L/C, T/T
Supply Ability 1500 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Q235, Q235 Carbon Steel Type Plain Bar Grating, Serrated Bar Grating, Plain, Serrated
Thickness 2mm-6mm Color Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom
Size Customized Grating Specification 40/50, 30/100, 19-w-4, 15-w-2, 60/100 And All
Technique Welded Mesh, Knit
High Light

road trench cover serrated metal grating

,

q235 serrated metal grating

,

hdg serrated steel bar grating

Leave a Message
Product Description

Serrated Steel Grating for Road Trench Cover steel mesh grating grid floor bars



Introduction of hot dip galvanized steel grating



1>material:carbon steel or stainless steel

2>cross bar pitches:maybe 24-200mm,of which 50mm,76mm and 100mm are recommended.

3>Steel grating is made by the world first-class equipment,which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance.cross bar is pressed into the bearing bar by high tension resistance weldingring which is controlled by computer.so we can produce high quality gratings with firm welding,smooth surface and high strength.

4>Surface process of steel grating:Types:hot-dipped galvanized,electro-galvanized ,spraying brushing. 95% people choose hot-galvanized because its anti-acid and alkali corrosion capacity range is from PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.

5>Attractive appearance:Simple outline.silver colour and modern.

6>Optimum water draining:Water leakage area reaches 83.3%,which is more than two times larger than that of cast iron.

7>Hot-dip galvanizing:Good antirust performance,maintenance free and replacement free.

8>Design of preventing theft:The cover is connected with the frame by gemel,which ensures protection against theft,safety and convenient opening.


Processes:
Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

Material:
Carbon steel, Stainless steel ,and so on .

Surface treatment:
Hot-dipped-galvanized ,electro galvanized or PVC coated

Size:
Standard size or OEM(Making as the customers' request).

Features
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.



Useage:

Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.


Packing:
Naked or packing as the customers' request

Product Name
Steel grating
Material
Low carbon steel / Stainless steel
Grade
CN: Q235, Q345, USA: A36, UK: 43A
Standard
CN: YB/T4001-1998, USA: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification
CE, GOST, ISO9001, ISO14001, HSE
Bearing bar size
20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing bar pitch
20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type
Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size
5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch
40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size
3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,6400x1000, as request
Surface treatment
Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.

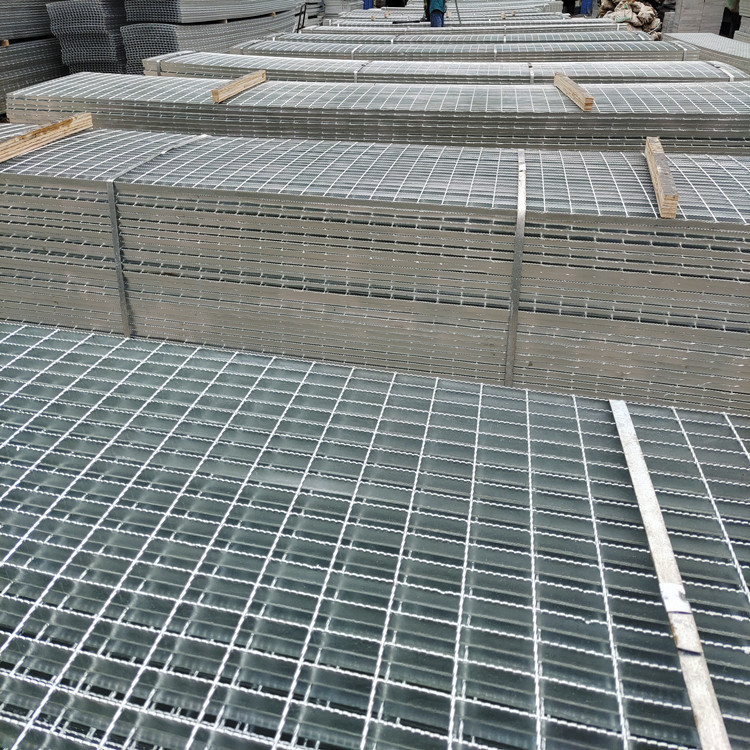

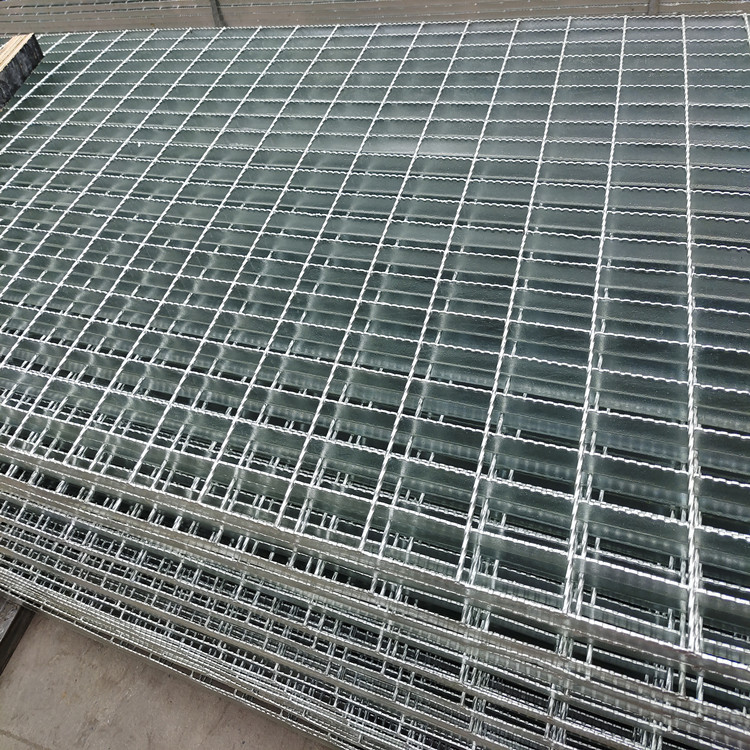

Q235 Road Trench Cover Serrated Metal Grating Mesh Grid Floor Bars 0Q235 Road Trench Cover Serrated Metal Grating Mesh Grid Floor Bars 1Q235 Road Trench Cover Serrated Metal Grating Mesh Grid Floor Bars 2

Product Features



1. Anti-rust, anti-corrosion.



2. Light weight, easy installation.



3. Good Permeability, linghting.



4. Economical, long service life.



5. High impact resistance.



6. Ventilation, heat dissipation.



7. Non-slip and explosion-proof.



FAQ

Q1: What is the material of the product?

low carbon steel, galvanized steel, stainless steel, aluminum, etc.

Q2: What about the packing?

Usually belt, pallet, wooden case.

Q3: How much abbot your annual production capacity?

Around 2500tons

Q4: Can i get sample?

Sure, we provide samples.

Q5: Do you offer a warranty on your products?

Yes , we have the strict quality inspection before delivery .

Q6: Do you have any certificate?

Yes,we have ISO9001

Q7: Do you have a separate quality departments?

Yes,we have QC department.Will make sure you receive the perfect product.

Q8: Do you have mutually agreed upon specifications with your suppliers?

Yes,we will make contract specify the specifications with the material suppliers
