35*4mm Plain Bar Heavy Duty Steel Grating 3mm Thickness
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Steel, Q235, SS316 | Surface Treatment | Hot Dipped Galvanized, Galvanized, Painting, Hot Dip Galvanized, Painted |
---|---|---|---|
Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated | Color | Silver, Silver Or As Your Requirement, Green, Black, White |
Length | Max 6000mm, 0.8m, Customer's Demand, 2m | Height | 25/30/32/35/40mm, Customized, 25~40mm |
High Light | plain bar heavy duty steel grating,3mm thickness heavy duty steel grating,35*4mm heavy duty welded steel grating |

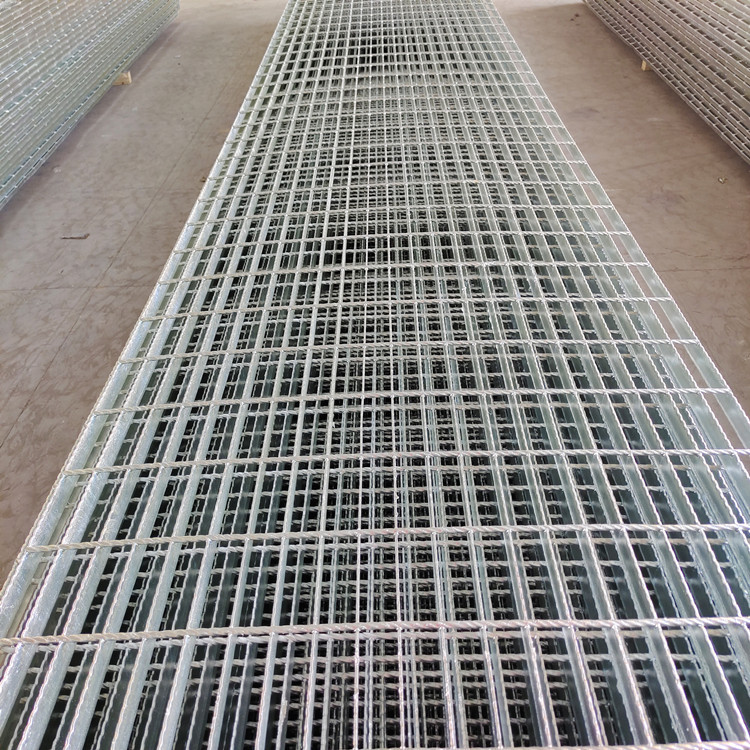

35*4mm Industrial Metal Plug Walkways Floor Walk Heavy Duty Steel Grating
Bearing bar:25mmx3mm,30mmx2mm,30mmx5mm,35mmx5mm
Cross rod:6mm-8mm twisted rod
Bearing bar pitch:30-40mm
Cross rod spacing:100mm
Panel size:100*100cm, 100*300cm,914mm width*5.8m long.
Surface:hot dip galvanized/ stainless steel/painting.
Material:Q235 iron steel.
Welded steel grating:
when selecting a bar grating product, consider Welded Steel Grating first. Usually our most economical products, they provide a comfortable walking surface with nearly 80 percent open area. This, combined with the positive welded cross bar/bearing bar intersection, make these products our most popular. Manufactured from ASTM A-1011 carbon steel, welded gratings are recommended for nearly all industrial flooring applications.
Pre-sale Service
1. We will try our best to find a lowest freight cost for customers reference.
2. We have full stock, and can deliver within short time. Many styles for you to choose.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question, please contact with us freely by E-mail or Telephone.
No. | Item |
Description
|
1 | Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
2 | Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
4 | Material Grade |
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
7 | Standard |
China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS |
Panel packing:
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical position
Fence post packing:
<1>plastic cap cover onto the post
<2>plastic film +metal pallet for fence pot
Accessories packing:
<1>stainless steel nuts and screws install with clips
<2>5 sets clips load into one plastic bag
<3>12 bags into one carton box
Q: Why to choose us? Any advantages?
A: The answer is Yes.
1) The most preferential price:Our offer will be reasonable, our price will be cheaper in the
same quality.
2) Customize: We can make the product as your request, specification,size and quality can meet
your request.
3) Mix order: We accept mix order, different specification and small quantity order.
4) Quality assurance:We have professional quality testing team.They will test the products before shipment.
5) After-sales service:Any question is welcome.
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.
