2mm Hot Dip Galvanized Steel Grating For Environmental Protection Equipment Platform
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time | Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated |
---|---|---|---|
Color | Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom | Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm |
Shape | Beams, Square, Various, As Your Request, Fish-eye | Material | Steel, Q235, SS316, Aluminum Mesh |
High Light | serrated hot dip galvanized steel grating,platform hot dip galvanized steel grating,serrated hot dip galvanized grating |

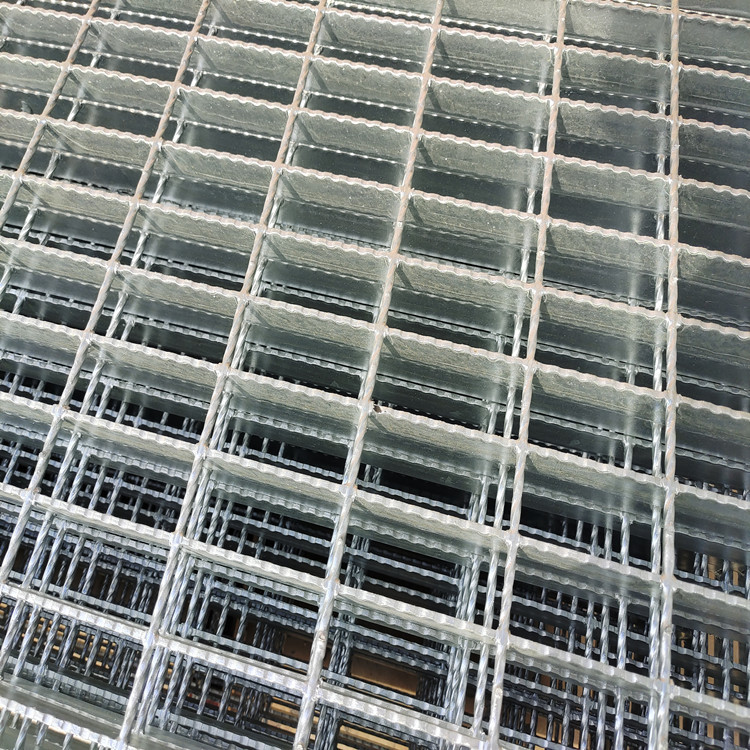

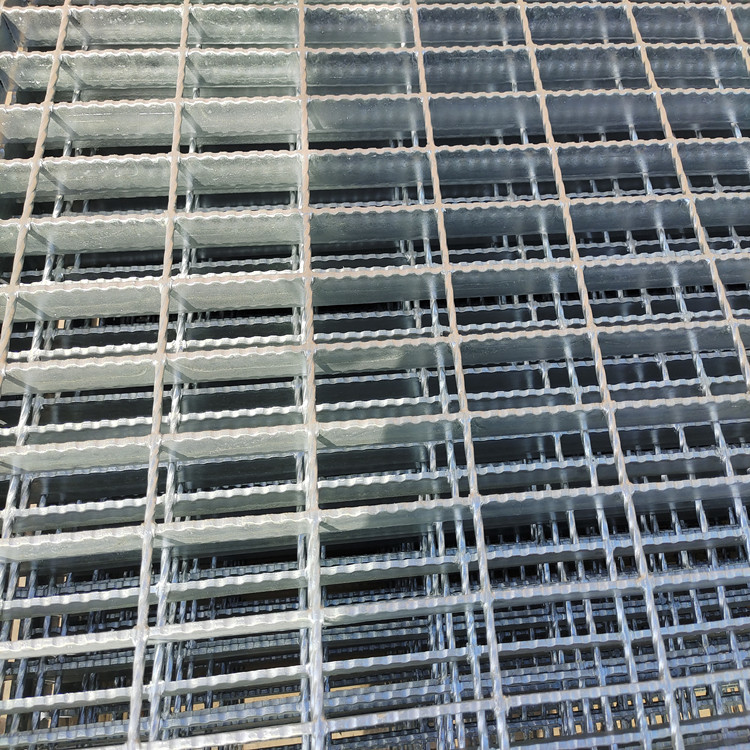

Environmental protection equipment platform steel tooth grate hot dip galvanized steel grate
The specifications of steel gratings: G325/30/100SG
a. Bearing bar size: 32x5mm;
b. Twisted cross bar size: 6x6mm;
c. Bearing bar pitch: 30mm
d. Corss bar pitch: 100mm
e. Surface treatment: Galvanized acc. ISO1461
f. Banded bar welded method: every 5th load bar.
Packaging:
1. Wrapped With Plastic Film Inside and outside with the woven bag.
2. Wrapped With Plastic Film Inside and outside with the hessian bag.
3. according to your requirements.
Shipping:
Samples will be shipped by express service - DHL, EMS, UPS, TNT or FedEx.
1, By carrier, like DHL, PUS, Fedex, dtc. Usual 5-7 days;
2, By air to the airport, usual 3-5 days arrives;
3, By sea to the seaport, usual 25-45 days.
Item
|
Description
|
Bearing Bar
|
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
Bearing Bar Pitch
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
Twisted Cross Bar Pitch
|
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
|
Material Grade
|
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,
Mild steel & Low carbon steel, etc |
Surface Treatment
|
Black, self colour, hot dip galvanized, painted, spray coating
|
Grating Style
|
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
|
Brand Name
|
XINBOYUAN/15X76mm Grating Heavy Duty Welding Hot Dipped Galvanized Grating Mesh High Load Heavy Duty Steel Grating for Trench Cover
|
Hot dipped galvanized steel grating/Steel grid grate application
Steel grating can be widely used in petrochemical, water plants, sewage treatment plants,
municipal engineering, environmental engineering and other fields of platforms, walkways, trestlebridge, ditch cover, covers, ladders, fences and railings etc.
Steel grating advantage
Light weight,great load-bearing capacity,non-slip and safe,easy installation,material-economic,sturdy and durable,ventilated,easy to clean and attractive appearance.
Hot dipped galvanized steel grating /Steel grid plate packaging details:
