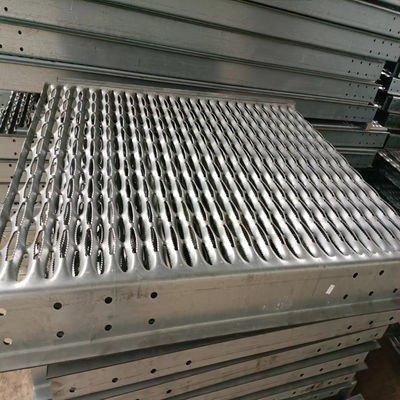

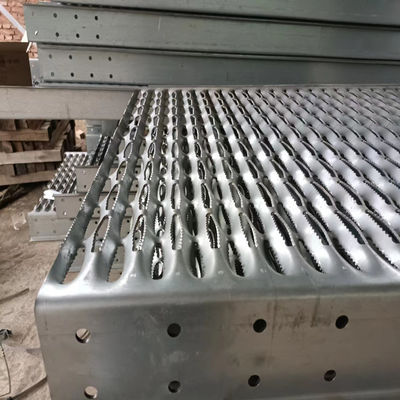

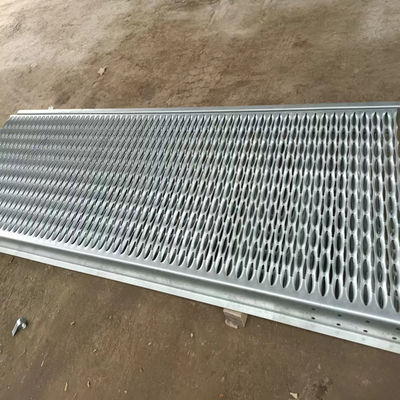

0.5mm Thick Heavy Duty Steel Grating 19-W-4 Hot Dipped Galvanized Walkway
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 325/30/100 |
| Minimum Order Quantity | 65 |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 11-15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1500 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Protecting Mesh, Filters, Screen, Decoration, Etc | Type | Perforated Mesh, Welded Mesh, Expanded Mesh |
|---|---|---|---|
| Material | Stainless Steel Wire, Aluminum, Galvanized Steel Wire, Nickel, Etc | Weave Style | Perforated, Plain Weave, Punch, 60 Degree |
| Color | Silver, Black, White, Golden, Gold | Thickness | 0.5mm, 0.6/0.8/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0, Or As Request., 0.1mm- 15mm, 3mm |
| High Light | 0.5mm thick heavy duty steel grating,hot dipped heavy duty steel grating,serrated bar heavy duty grating |
||
Product Description
19-W-4 Heavy Duty Steel Grating Factory Direct Hot Dipped Galvanized Walkway
Introduction:
Metal Bar Grating is the workhorse of the industrial flooring market and has served industry for decades. Strong and durable with an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration.
Manufactured by assembling a series of equally spaced metal bars to connecting cross members, bar grating is available in three popular materials; mild carbon steel, 6000 series aluminum and 300 series stainless steels.
Welded Grating
Economical design ideal for most industrial applications. Manufactured by welding the bearing bar/cross bar intersection, typically with automated forge welding equipment. Available in carbon steel and stainless steel.
Swage Locked Grating
Popular for the manufacture of aluminum, stainless steel and close mesh gratings. Cross bars are inserted into pre-punched holes in the bearing bars and then hydraulically deformed to lock the bars in place.
Dovetail Pressure Locked Grating
Assembled by inserting pre-punched bearing and cross bars into an "eggcrate" configuration and deforming the cross bars under intense hydraulic pressure. Available in all materials and ideal for many architectural and ornamental applications.
| Product name | *Steel grating |
| Material |
*Mild steel (Carbon steel) *stainless steel 304, SS316 |
| Material standard |
*USA:ASTM A36 *UK:BS4360 *Australia:AS3679 *China:Q235 |
| Bearing bar type |
*Smooth/flat bar *serrated/toothed bar *Smooth I bar *Serrated I bar |
| Bearing bar thickness | *2mm to 10mm, 3mm and 5mm recommended |
| Bearing bar pitch | *12.5-30mm/40mm/50mm/60mm/80mm/90up,30and40mm recommended |
| Bearing bar specification |
*flat bar and serrated bar 20*3,20*5,25*3,25*5,30*3,30*4,30*5,32*3,32*5,35*3,35*5,40*3,40*5, 45*5,50*3,50*5,55*5,60*5,65*5,70*6,75*6,75*8,80*8,90*8,100*8, 120*8,130*8,150*8 *I-section bar 25*5*3,32*5*3,38*5*3,44*5*3,50*5*3,50*7*4,55*7*4,60*7*4, 65*7*4,75*7*4 |
| Cross bar | *5*5mm,6*6mm,8*8mm |
| Cross bar pitch | *30mm,38mm,50mm,76mm,100mm,50mm and 100mm recommended |
| Surface treatment |
*Hot dipped galvanized *Untreated(self-color) *Painted |
| HDG standard |
*ASTM A123 *BS729 *AS1650 |
| Grating Standard |
*AS1657-2013 *BS4592-2006 *ANSI/NAAMM(MBG531-88) |
Hebei Zhuote Wire Mesh Products Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products. Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities. As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, Australia, Africa countries. We do custom manufacture and can supply a high quality OEM service for clients.
FAQ
1. Q: Are you a manufacturer or just a trading company?
A: We are a direct factory with 20 years of R & D and production experience.
2. Q: Where is your factory?
A: We have 2 factories, one factory is located in Anping County, Hengshui City, Hebei Province, other factory in Changsha City, Hunan Province. 3. Q: Can you provide sample for us to test the quality? Is there a charge?
A: Yes, sample is available but you may have to pay the freight cost. After placed normal order, the sample fee will be returned to you.
4. Q: How do you make our business long-term and in good relationship?
A: 1. We make products with good quality and competitive price to ensure our customers benefit;
2. We respect every customer and sincerely do business and make friends with them, no matter where they come from.
