Hot Dip Steel Grating Galvanized Platform Load Bearing Machine Pressure Welded
Product Details
| Material | Steel, Q235, SS316 | Surface Treatment | Hot Dipped Galvanized, Galvanized, Painting, Hot Dip Galvanized, Painted |
|---|---|---|---|
| Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated | Color | Silver, Silver Or As Your Requirement, Green, Black, White |
| Length | Max 6000mm, 0.8m, Customer's Demand, 2m | Height | 25/30/32/35/40mm, Customized, 25~40mm |
| Highlight | hot dip steel grating galvanized,pressure welded steel grating galvanized,serrated bar steel grid walkway |
||
Product Description
Hot Dip Steel Grating Galvanized Platform Load Bearing Machine Pressure Welded
Product Description

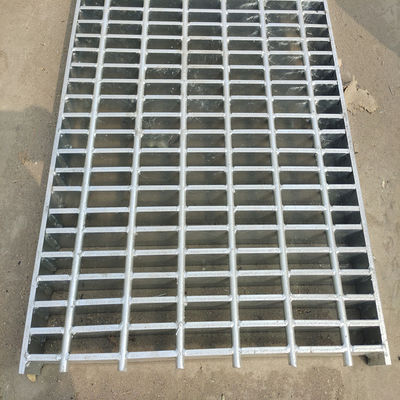

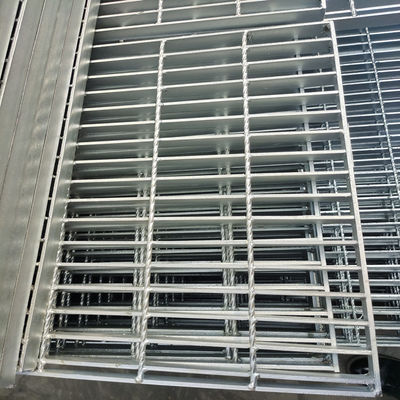

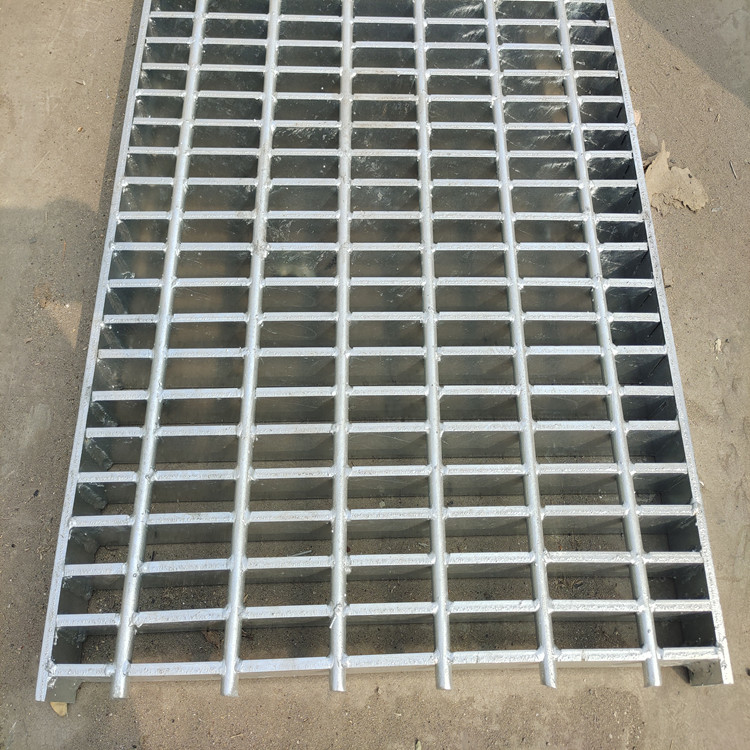

Heavy duty hot dip galvanized platform load-bearing machine pressure welded steel grating
- Bearing bar: 25mmx3mm, 30mmx2mm, 30mmx5mm, 35mmx5mm
- Cross rod: 6mm-8mm twisted rod
- Bearing bar pitch: 30-40mm
- Cross rod spacing: 100mm
- Panel size: 100*100cm, 100*300cm, 914mm width*5.8m long
- Surface: hot dip galvanized/stainless steel/painting
- Material: Q235 iron steel
Welded Steel Grating Features
When selecting bar grating products, welded steel grating offers the most economical solution with a comfortable walking surface featuring nearly 80% open area. The positive welded cross bar/bearing bar intersection makes these our most popular products.
Manufactured from ASTM A-1011 carbon steel, welded gratings are recommended for nearly all industrial flooring applications.
Product Specifications
| No. | Item | Description |
|---|---|---|
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| 2 | Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| 4 | Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS |
Packaging Details
Panel packing:
- Plastic film at the bottom to protect panels
- 4 metal corners to ensure panel strength and uniformity
- Wood plate at the top of pallet to protect under panels
- Pallet tube size: 40*80mm tubes at the bottom vertical position
Fence post packing:
- Plastic cap cover onto the post
- Plastic film + metal pallet for fence post
Accessories packing:
- Stainless steel nuts and screws installed with clips
- 5 sets clips loaded into one plastic bag
- 12 bags into one carton box
Our Services
Pre-sale Service:
- Lowest freight cost options
- Full stock availability with quick delivery
- Quality products at factory prices with reliable service
- Professional manufacturing and foreign trade team
After order confirmation:
- Immediate shipping cost calculation and invoicing
- Quality re-check before shipment within 1-2 working days
- Tracking number provided and shipment monitoring
After-sale service:
- Open to customer suggestions for product and pricing
- Prompt response to any inquiries via email or telephone
Why Choose Us
- Competitive price guarantees
- Fast delivery within 15 days after deposit
- Comprehensive product selection
- Orders of all sizes accepted
- Reliable and professional customer service
- Supplies to all major industries
- Quality manufacturing with rigorous testing
FAQ
Who are we?
Based in Hebei, China since 2018, we serve global markets including Western Europe (14%), Southeast Asia (9%), Mid East (9%), Southern Europe (9%), Eastern Europe (8%), Eastern Asia (8%), Northern Europe (8%), South Asia (8%), Domestic Market (7%), North America (5%), Africa (5%), South America (4%), Oceania (3%), and Central America (3%). Our team consists of 5-10 professionals.
How do we guarantee quality?
- Pre-production samples before mass production
- Final inspection before shipment
