Anti Corrosion Plain Bar Galvanized Steel Floor Grates 353/30/100

Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 353/30/100
Minimum Order Quantity 55 piece
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 10 work days
Payment Terms L/C, T/T
Supply Ability 1380 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Galvanized Sheet, Aluminium Product Name Steel Grating, Hot-dip Galvanized Heavy Duty Steel Grating For Water Well Cover, Hot Dip Galvanized Mild Steel Bar Grating And Metal Grid Weight
Type Plain Bar Grating, Steel Plate, 19-w-4, I Type Or Serrated Thickness 3mm, 2mm-5mm, 2mm /2.5mm / 3mm
Shape As Required, Various, As Your Request, Fish-eye Surface Hot Galvanized, Bright, Smooth, Silver, Galvanized Or Painted Or Black Steel
High Light

anti corrosion galvanized steel floor grates

,

plain bar galvanized steel floor grates

,

353/30/100 industrial floor grates

Leave a Message
Product Description

Pedestrian step channel grille pedal chemical plant steel grating floor



Steel Grating made by welding with flat steel and cross/round bars with certain distances. Our Galvanized Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.
1)Raw material :Low carbon steel, stainless steel, aluminum alloy

2)Types of Steel Grating:Plain/smooth type, I type Serrated/teeth type.
3)Open-end type and closed-end type


Processes:
Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

Material:
Carbon steel, Stainless steel ,and so on .

Surface treatment:
Hot-dipped-galvanized ,electro galvanized or PVC coated

Size:
Standard size or OEM(Making as the customers' request).

Features
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.



Useage:

Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.


Packing:
Naked or packing as the customers' request.

Item Description
Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade

ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,

Mild steel & Low carbon steel, etc

Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Standard

China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987, Australia: AS1657-1985,

Germany: DIN24537-1-2006, Japan :JIS

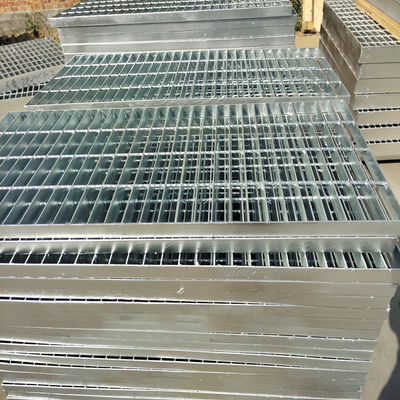

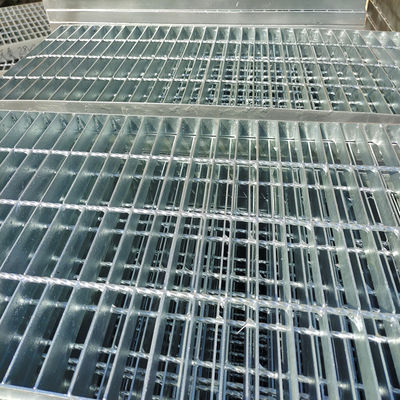

Anti Corrosion Plain Bar Galvanized Steel Floor Grates 353/30/100 0Anti Corrosion Plain Bar Galvanized Steel Floor Grates 353/30/100 1Anti Corrosion Plain Bar Galvanized Steel Floor Grates 353/30/100 2



Company Profile
Hebei Zhuote Wire Mesh Products Co., Ltd is a manufacturer, who is specializing in producing and exporting a complete series of steel grating and other wire mesh products.
Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities.
As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, Australia, Africa countries.
We do custom manufacture and can supply high quality OEM service for clients.
