Leak Proof Heavy Steel Grating Galvanized Grille Panels For Pedestrian Passages

Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 303/30/100
Minimum Order Quantity 90 piece
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 8-11 work days
Payment Terms L/C, T/T
Supply Ability 1650 Square meters/day
Product Details
Material Steel, Galvanized Sheet, Aluminium Product Name Steel Grating, Hot-dip Galvanized Heavy Duty Steel Grating For Water Well Cover, Hot Dip Galvanized Mild Steel Bar Grating And Metal Grid Weight
Type Plain Bar Grating, Steel Plate, 19-w-4, I Type Or Serrated Thickness 3mm, 2mm-5mm, 2mm /2.5mm / 3mm
Shape As Required, Various, As Your Request, Fish-eye Surface Hot Galvanized, Bright, Smooth, Silver, Galvanized Or Painted Or Black Steel
Name Steel Grating, Shengchang, Steel Floor Decking Width 1000mm, According To Your Size, 50-500MM
High Light

leak proof heavy steel grating

,

galvanized grille panels heavy steel grating

,

pedestrian passages industrial floor grates

Leave a Message
Product Description

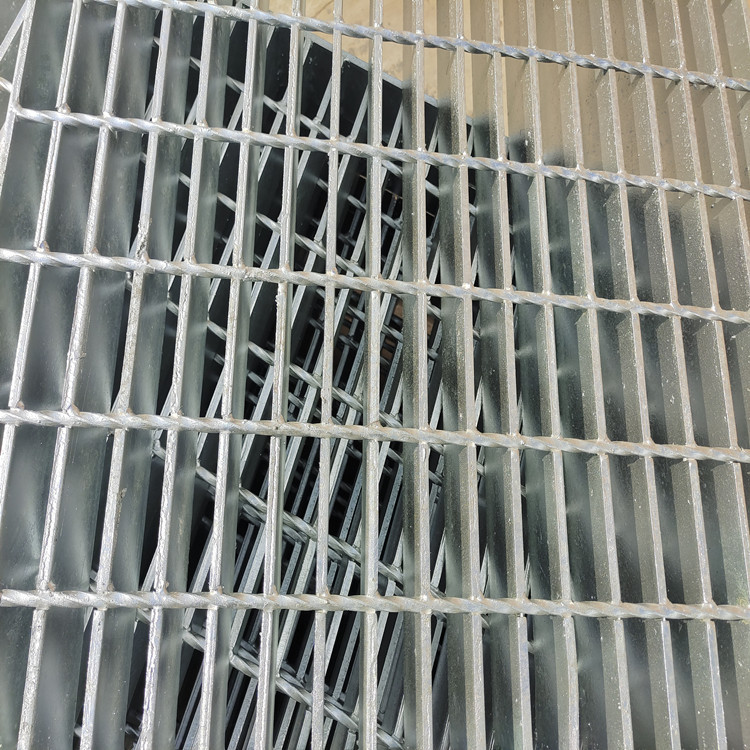

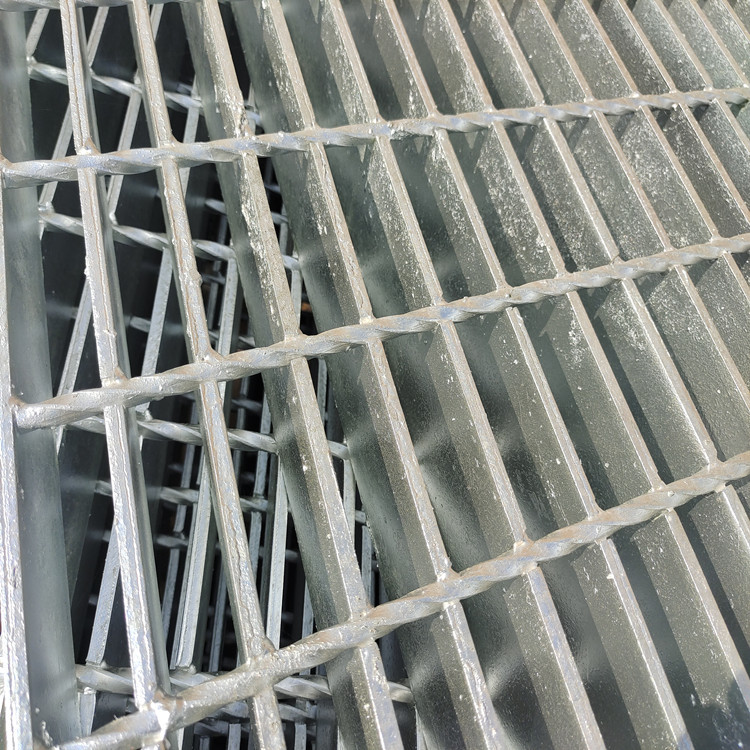

Factory equipment is mounted with leak-proof galvanized grille panels for pedestrian passages



Steel Grating Mesh is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes.

Description

(1) Structure: Welding with flat steel and cross/round bars with certain distances.

(2) Features: High strength, light structure, high bearing.

(3) Surface: The hot dipped zinc coating gives the product excellent anti-corrosion.



Processes:
Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

Material:
Carbon steel, Stainless steel ,and so on .

Surface treatment:
Hot-dipped-galvanized ,electro galvanized or PVC coated.

Size:
Standard size or OEM(Making as the customers' request).

Features:
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.



Useage:

Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.


Packing:
Naked or packing as the customers' request.


Steel grating's advantages:

1. Steel grating is environment friendly

2. Lower cost and maintenance

3. Long using time up to 15 years

4. Galvanized steel grating resistances up to 9 grade

5. Fast construction, time saving and labor saving

6. Good appearance


Span: Total span.
Width: Panel width.
Bearing Bars: Load carrying main element.
Bearing Bars Spacing: Measure from center-to-center of the bearing bars in 1/16″ increments. Standard spacing for industrial flooring is 19/16″(1-3/16″) on center. Other popular spacings are 15/16″, 11/16″, 1/2″, and 7/16″ on center.
Bearing Bars Depth: Ranges from 3/4″ to 7″ depending on anticipated loads.
Bearing Bars Thickness: Ranges from 1/8″ to 1/2″ depending on anticipated loads.
Cross Bars: Used to Secure the position of bearing bars.
Cross Bar Spacing: Measured from center-to-center of cross bars in 1″ increments. Standard spacing is 4″ or 2″ on center.





Leak Proof Heavy Steel Grating Galvanized Grille Panels For Pedestrian Passages 0Leak Proof Heavy Steel Grating Galvanized Grille Panels For Pedestrian Passages 1Leak Proof Heavy Steel Grating Galvanized Grille Panels For Pedestrian Passages 2



Company Profile
Hebei Zhuote Wire Mesh Products Co., Ltd is a manufacturer, who is specializing in producing and exporting a complete series of steel grating and other wire mesh products.
Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities.
As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, Australia, Africa countries.
We do custom manufacture and can supply high quality OEM service for clients.

FAQ
1:Why choose us?
A: Direct factory,competitive factory price, quality assurance,local stock,fast delivery.

2: How about the payment terms?
A:We usually use the T/T,L/C order.

3: How about the delivery time?
A:Usually within 15- 20 days, customized order may need longer time.

4:Can you offer free sample?
A:Yes, It is our pleasure to provide sample,but usually the customer need to pay the freight,
We'll send back the courier charge if you make an order.

5: what is your advantage?
A: We are direct factory and we have been in providing professional products and serving the market for more than 20 years.
