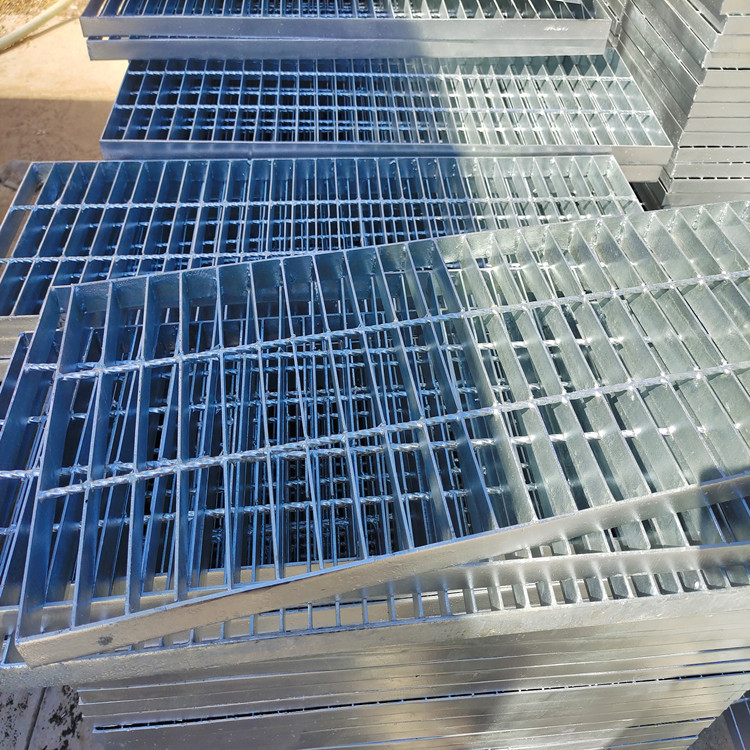

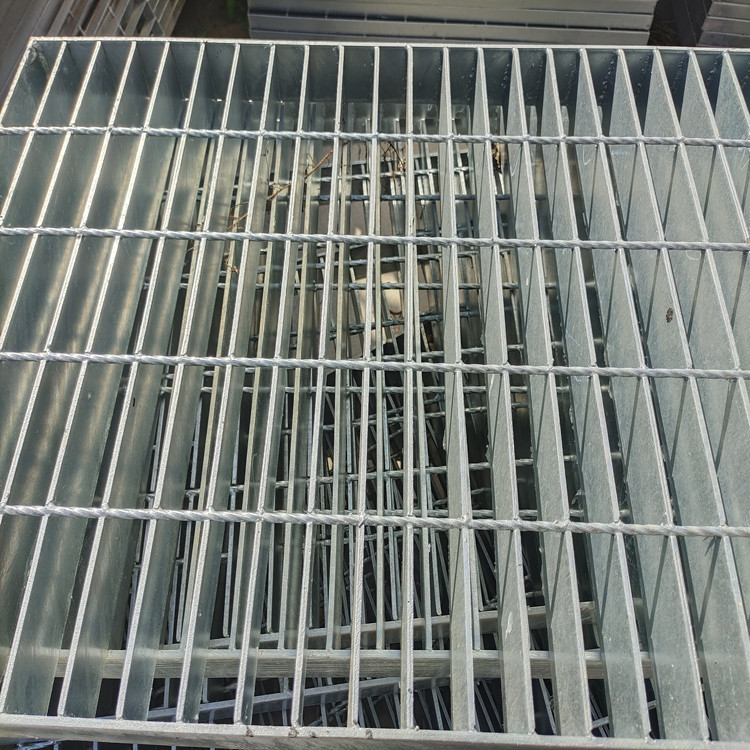

Drain Rust Proof Hdg Steel Grating Leak Proof Foot Pedal

  • Drain Rust Proof Hdg Steel Grating Leak Proof Foot Pedal
  • Drain Rust Proof Hdg Steel Grating Leak Proof Foot Pedal
  • Drain Rust Proof Hdg Steel Grating Leak Proof Foot Pedal
Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 323/30/100
Minimum Order Quantity 100 piece
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 12 work days
Payment Terms L/C, T/T
Supply Ability 1250 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Galvanized Sheet, Aluminum, Low Carbon Steel Product Name Steel Grating, Steel Stair Tread Weight, Electric Glavanized Steel Stair Tread Grating, Ladder Trends
Type Plain, Plain Bar Grating Application Floor, Walkway, Platform, Stair Tread, Bridge
Color Silver, Black, Silver Or As Your Requirement, Name Steel Grating
Shape Round Hole Or Crocodile Mouths, Square, Ect, Circle, Anomaly Usage Public Drain Area, Bathroom, Garge, Concrete Construction Support, Balcony Ect
High Light

drain hdg steel grating

,

rust proof hdg steel grating

,

leak proof floor steel grating
Leave a Message
Product Description

Drain drain rust proof steel grating leak proof foot pedal



welded steel bar grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation, Universally used in most general industrial plants as well as commercial buildings,it has wide applications as walkways, platforms, safety barriers, drainage covers and ventilation grates.


bearing bar pitch
- the distance center to center of the two bearing bars.
Cross bar
- the connecting bars , made from twisted bar ,round bar or flat bar, which extend across the bearing bars
Cross bar pitch
- the distance center to center of the two adjacent cross bars.
Length
(span)- the maximum dimension of a grating panel ,measured parallel to the bearing bar ,and in the same direction as the bearing bars .
Width
- the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.


Remarks: Special Material, High Zinc Coating and New Style can be Customized.
Material Standard
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,
Mild steel & Low carbon steel, etc
Bearing Bar
(Width x Thickness)
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc
Bearing Bar Pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Grating Style
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing
(1) Bandage and Paperboard: Generally applies to neat steel plate;
(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
(3) Steel Pallet: Traditional export packing.
Payment Term
T/T, L/C, Western Union, Credit Card, Alibaba Trade Assurance



Panel packing:
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical position

Fence post packing:
<1>plastic cap cover onto the post
<2>plastic film +metal pallet for fence pot
Drain Rust Proof Hdg Steel Grating Leak Proof Foot Pedal 0

Our Company
• KEME dedicated to help you find drainage solutions.
• KEME is a designer and manufacturer of premium quality stainless steel
drain and grates.
• KEME abtained Watermark certification
• Factory Area: 5000㎡

FAQ
1.How much about your annual production capacity?
More than 3000tons.
2.Can you provide free sample?
Yes,we can provide the sample of 20cm*20cm.
3. What is your terms of payment?
30% TT in advance and the balance paid before shipment, L/C at sight, you also can pay by West Union
4. What isthe delivery time?
Usually within 10days, customized order may need longer time.
5. Is there quality control on all production lines?
Yes,all production line have adequate quality control.
6. How do you make our business long-term and good relationship?
(1)We keep good quality and competitive price to ensure our customers benefit;
(2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
