Hot Dip Galvanized Industrial Steel Grating Platform Road Floor Plug In Grid
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 304/20/100 |
| Minimum Order Quantity | 60 piece |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 11 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1400 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel, Q235, Q235 Carbon Steel | Surface Treatment | Hot Dipped Galvanized, Painted, Galvanized, Black, Untreated |
|---|---|---|---|
| Product Name | Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating | Type | Plain Bar Grating, Serrated Bar Grating |
| Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm | Standard | ISO9001, BS4592-1987, YB/T 4001.1-2007, USA |
| Usage | Public Drain Area, Bathroom, Garge, Concrete Construction Support, Balcony Ect. | Factory | Yes, Since 1990 |
| High Light | hot dip galvanized industrial steel grating,road industrial steel grating,hot dip galvanized industrial floor grates |
||
Product Description

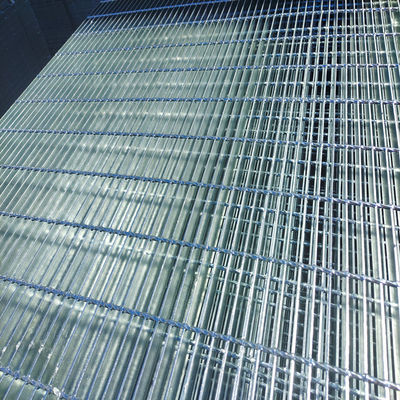

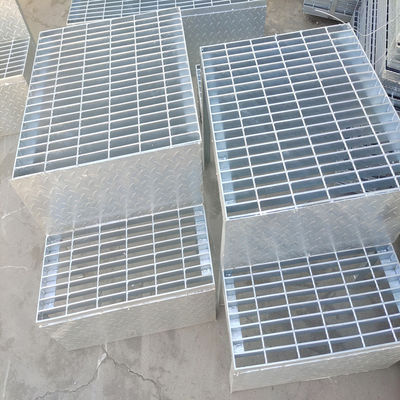

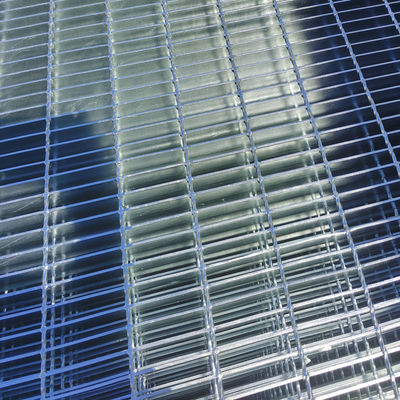

Hot Dip Galvanized Industrial Platform Road Floor Plug in Steel Grid Grating
Description:
Zhuote Metal Mild Steel Grating is manufactured using an electro-forge welding process that applies pressure and heat to fuse square twisted crossroads to load-bearing bars of various thicknesses and depths from 20mm x 3mm up to 75mm x 6mm (larger sizes available upon request).
Mild Steel Grating is commonly used in walkway infrastructure projects and is a very flexible, cost-effective solution to provide safe walking surfaces and a variety of applications.
Features of hot dip galvanized grating metal grills for was steel floor gratings:
1) High strength and light structure
2) Powerful anti-corrosion, durable and long working life
3) Beautiful appearance, bright surface
4) No dirt-rain-snow deposit, automatic cleaning, easy maintenance.
5) Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion
6) Easy installation
2) Powerful anti-corrosion, durable and long working life
3) Beautiful appearance, bright surface
4) No dirt-rain-snow deposit, automatic cleaning, easy maintenance.
5) Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion
6) Easy installation
All Zhuote Metal grating/flooring products are designed and manufactured to comply with the requirements of AS1657. Slip-resistant top surfaces such as serrated edge flat bar or quartz grit are available across the range and allow for slip resistance ratings of P4 and beyond.
Surface treatments available in ranges from Hot Dipped Galvanised (AS4680) for mild steel, Anodized for aluminium and Passivated for stainless steel. FRP Grating is available in a range of colours including yellow, green and dark grey. FRP Grating also comes standard with a slip-resistant top surface. Bitumen coated mild steel is also available upon request.
Zhuote Metal grating profiles cover an expansive range that covers requirements of the coal and iron ore industries, wine and beverage manufacturing, plant access walkways and heel-safe pedestrian access walkways to the current standards.
Standard profiles are available ex-stock in standard panel sizes however, Zhuote Metal are able to manufacture and fabricate a range of profiles in Australia to suit your needs. If you have a requirement outside of standard profile, contact our team today to discuss what we can offer you.
Our principle is "taking users as cone, considering high quality as foundation, taking users' satisfaction as target". We win customers' reliance with favorable prices, advanced equipment and perfect after-sales services. We hope to wholeheartedly cooperate and communicate with old and new customers.
|
Products name
|
hot dip galvanized grating metal grills for was steel floor gratings
|
|||
|
Type of steel grating
|
W-pressure welded grating; L- pressure locked grating; C- socket welding grating
|
|||
|
Surface treatment
|
G- hot dip galvanizing (G is usually omitted); P-painting; U-untreated
|
|||
|
Spacing of bearing bars
|
30-60mm
|
|||
|
Sizes of bearing bar
|
20*3-60*5
|
|||
|
Spacing of cross bars
|
50-100mm
|
|||
|
Shape of bearing bar
|
F-plain surface (F is usually can be omitted); S-serrated surface; I-the section is of "I" type.
|
|||
|
Packing
|
1) LCL(less than one container load): packed with plastic film then on the pallet
2) FCL(full container load): nude packing 3) Other special package :according to customers' requirements. |
|||
|
MOQ
|
Min trial order 25 ton each thickness, 1x20' per delivery.
|
|||
|
Payment
|
30% despoit in advance,70% after recepit of B/L copy.100% L/C is available.
|
|||
|
Remarks: Other sizes also can be customized according to customers’ requirement.
|
||||
FAQ
Q: Are you trading company or manufacturer?
A: We are factory. Welcome to visit us at any time.
Q: How long is the delivery time?
A: 5 days for stock items, 25-30 days for customized ones.
Q: Do you provide samples? Is it free?
A: Yes, we always pleased to provide free sample but you need to bear the freight charge.
Q: What is your payment term?
A: T/T, L/C at sight and western union.
Q: How long is the delivery time?
A: 5 days for stock items, 25-30 days for customized ones.
Q: Do you provide samples? Is it free?
A: Yes, we always pleased to provide free sample but you need to bear the freight charge.
Q: What is your payment term?
A: T/T, L/C at sight and western union.
