1m X 6m Industrial Steel Grating Platform Maintenance Channel Galvanized
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 303/20/100 |
| Minimum Order Quantity | 100 piece |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 13 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1250 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel, Q235, Q235 Carbon Steel | Product Name | Steel Grating, Industrial Platform Metal Building Material Steel Grating Weight, Industrial Floor Steel Grating With Long Time, Construction Steel Floor Decking/Industrial GI Steel Grating, Deck Grating |
|---|---|---|---|
| Type | Plain Bar Grating, Serrated Bar Grating | Thickness | 2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm |
| Factory | Yes, Since 1990 | Shape | As Required, Various, As Your Request |
| Size | Customized | Color | Silver, Black, Silver Or As Your Requirement, Yellow |
| High Light | 1m x 6m industrial steel grating,platform maintenance channel industrial steel grating,carbon steel industrial floor grates |
||
Product Description

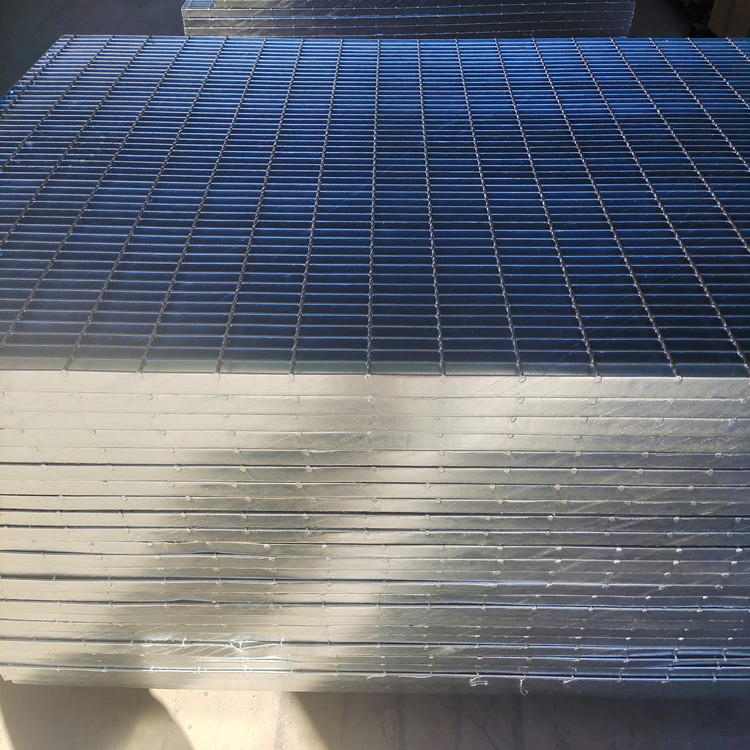

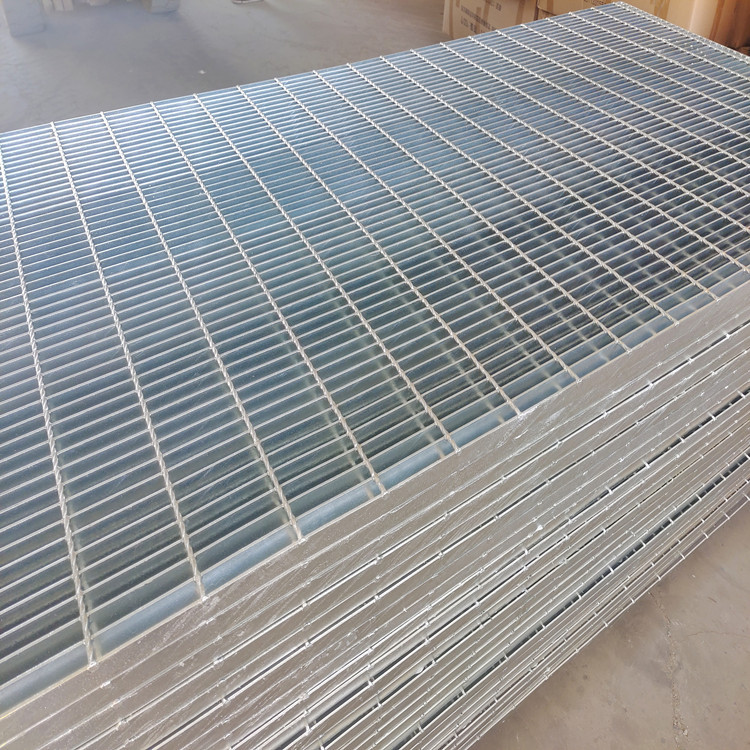

1m*6m industrial platform maintenance channel galvanized steel grating
Product Information
(1) Structure: Welding with flat steel and cross/round bars with certain distances.
(2) Features: High strength, light structure, high bearing.
(3) Surface: The hot dipped zinc coating gives the product excellent anti-corrosion.
(2) Features: High strength, light structure, high bearing.
(3) Surface: The hot dipped zinc coating gives the product excellent anti-corrosion.
Features of hot dip galvanized grating metal grills for was steel floor gratings:
1) High strength and light structure
2) Powerful anti-corrosion, durable and long working life
3) Beautiful appearance, bright surface
4) No dirt-rain-snow deposit, automatic cleaning, easy maintenance.
5) Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion
6) Easy installation
2) Powerful anti-corrosion, durable and long working life
3) Beautiful appearance, bright surface
4) No dirt-rain-snow deposit, automatic cleaning, easy maintenance.
5) Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion
6) Easy installation
Surface Treatment:
A. Hot dipped galvanized after welded
B. Painting: according to the clients’ requirement.
C. No surface treatment.
Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.
Installation of hot dip galvanized steel grating
1>The shape of bearing bar: Plain type (may be omitted in the symbol of steel grating), Serrated type and I-Shape type.
2>Bearing bar pitches:12.5, 15, 20, 30, 30.16, 32.5, 34.3, 40, 60mm, of which 30mm & 40mmare recommended.
3>Cross bar pitches:38, 50, 60,100mm, of which 50mm & 100mm are recommended.
All Zhuote Metal grating/flooring products are designed and manufactured to comply with the requirements of AS1657. Slip-resistant top surfaces such as serrated edge flat bar or quartz grit are available across the range and allow for slip resistance ratings of P4 and beyond.
Surface treatments available in ranges from Hot Dipped Galvanised (AS4680) for mild steel, Anodized for aluminium and Passivated for stainless steel. FRP Grating is available in a range of colours including yellow, green and dark grey. FRP Grating also comes standard with a slip-resistant top surface. Bitumen coated mild steel is also available upon request.
Zhuote Metal grating profiles cover an expansive range that covers requirements of the coal and iron ore industries, wine and beverage manufacturing, plant access walkways and heel-safe pedestrian access walkways to the current standards.
Standard profiles are available ex-stock in standard panel sizes however, Zhuote Metal are able to manufacture and fabricate a range of profiles in Australia to suit your needs. If you have a requirement outside of standard profile, contact our team today to discuss what we can offer you.
Our principle is "taking users as cone, considering high quality as foundation, taking users' satisfaction as target". We win customers' reliance with favorable prices, advanced equipment and perfect after-sales services. We hope to wholeheartedly cooperate and communicate with old and new customers.
|
Common Specification of Steel Grating
|
|
|
Material Standard
|
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,
Mild steel & Low carbon steel, etc |
|
Bearing Bar
(Width x Thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
|
Bearing Bar Pitch
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
|
Twisted Cross Bar Pitch
|
38.1, 50, 60, 76, 80, 100, 101.6, 120mm
|
|
Surface Treatment
|
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
|
|
Grating Style
|
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
|
|
Packing
|
(1) Bandage and Paperboard: Generally applies to neat steel plate;
(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
Service
1> 24 hours online service.
2> Best pre-sale and after-sale service.
3> 15 days after receiving the deposit shipment.
4> We will choose the shipping company with good service and low price for you.
5> Loading the goods: We will track all the way, to ensure product safety, quick to arrive at the designated port.
6> Arrival of the goods: We will provide installation instructions and subsequent technical guidance.
7> Company for products and accessories, for a long time to be able to provide various products accessories at cost to the customer at any time.
