Hot Dip Galvanized Steel Driveway Grating Heavy Duty Metal Bearing Rebar 10mm Thickness

Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 907/30/100
Minimum Order Quantity 55 prices
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 11 work days
Payment Terms L/C, T/T
Supply Ability 1100 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Application Protecting Mesh, Filters, Screen, Decoration, Etc Type Perforated Mesh, Welded Mesh, Expanded Mesh
Material Stainless Steel Wire, Aluminum, Galvanized Steel Wire, Nickel, Etc Color Silver, Black, White, Golden, Gold
Thickness 10MM Name Steel Grating, Heavy Duty Steel Grating
High Light

hot dip galvanized steel driveway grating


10mm thickness steel driveway grating


driveway drainage heavy duty steel grating

Leave a Message
Product Description

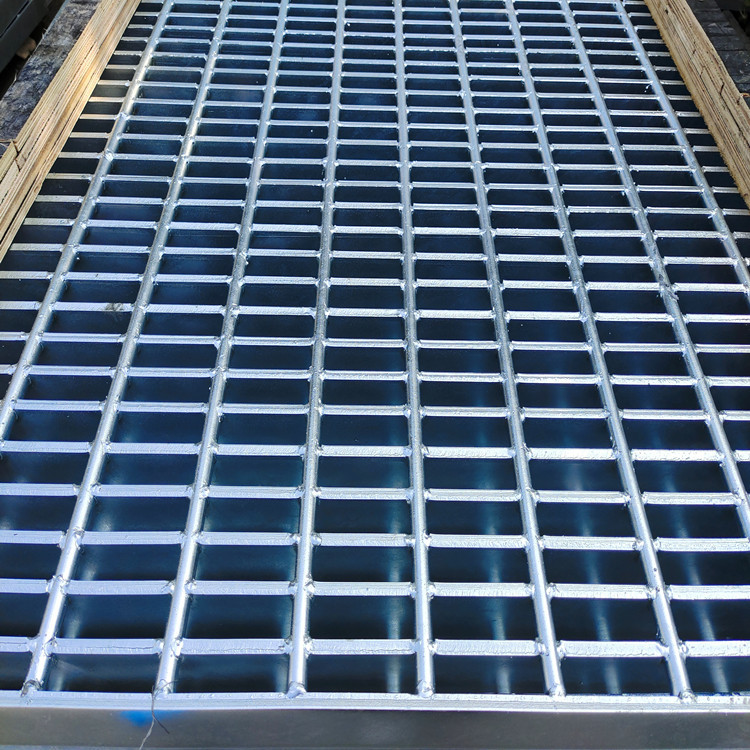

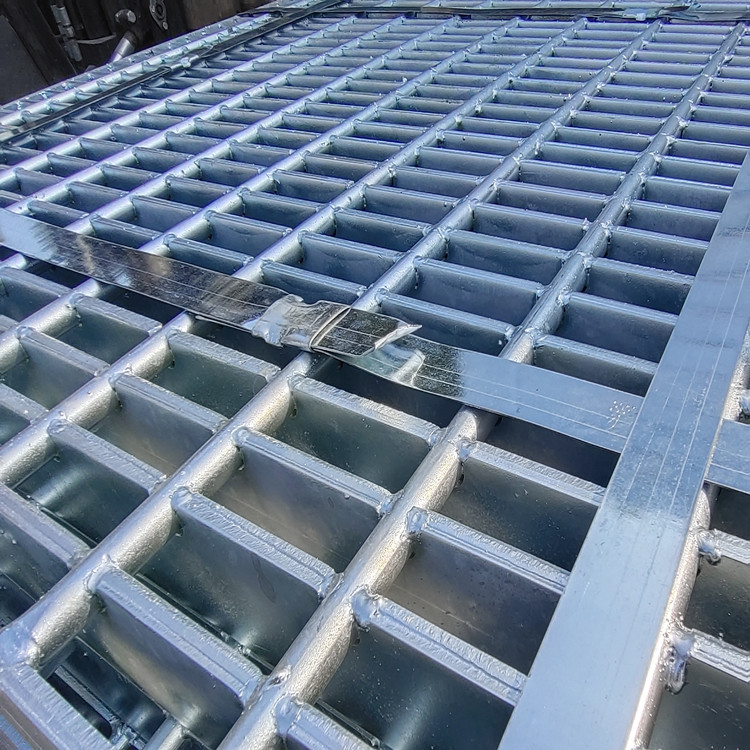

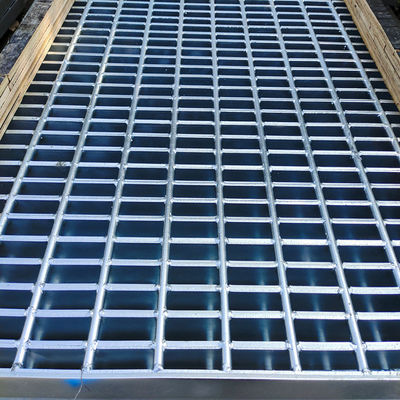

Hot dip galvanized steel driveway grating heavy duty metal bearing rebar grating

Product Parameters

1 Bearing bar: 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, ...75x10mm
2 Bear bar pitch: 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
3 Cross bar pitch :38, 50, 76, 100, 101.6mm
4 Material :Q235, A36, SS304
5 Surface treatment :Black, hot dipped galvanizing, paint

Welded Grating
Economical design ideal for most industrial applications. Manufactured by welding the bearing bar/cross bar intersection, typically with automated forge welding equipment. Available in carbon steel and stainless steel.

Application of Steel Floor Grating

1) It can be used in urben construction as drainage trench cover to drain water and keep ground dry.

2) The serrated steel gratings will be used in the port, parking lot, farmland and other places to be walk platform for pedestrian and vehicles access and passing.

3) Forge-Welding gratings also will be used for industry platform, power plant, water treatment industry, tower platform, etc.

4) Serrated steel gratings also be guardrail for garden, villa, balcony, highway, etc.


Features of Hot dip galvanised HDG Heavy Duty Steel Bar Grating:

1) High strength and light structure
2) Powerful anti-corrosion, durable and long working life
3) Beautiful appearance, bright surface
4) No dirt-rain-snow deposit, automatic cleaning, easy maintenance.
5) Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion
6) Easy installation


Products name
Hot dip galvanised HDG Heavy Duty Steel Bar Grating
Type of steel grating
W-pressure welded grating; L- pressure locked grating; C- socket welding grating
Surface treatment
G- hot dip galvanizing (G is usually omitted); P-painting; U-untreated
Pitch of bearing bars
15-30mm, 40mm, 60mm, 80mm, 90mm etc. with 30, 40mm recommended.
Pitch of cross bars
30, 38, 50, 76, 100mm etc. with 50, 100mm recommended.
shape of bearing bar
F-plain surface (F is usually can be omitted); S-serrated surface; I-the section is of "I" type.
1) LCL(less than one container load): packed with plastic film then on the pallet
2) FCL(full container load): nude packing
3) Other special package :according to customers' requirements.
Min trial order 25 ton each thickness, 1x20' per delivery.
30% despoit in advance,70% after recepit of B/L copy.100% L/C is available.
Remarks: Other sizes also can be customized according to customers’ requirement.

Hot Dip Galvanized Steel Driveway Grating Heavy Duty Metal Bearing Rebar 10mm Thickness 0Hot Dip Galvanized Steel Driveway Grating Heavy Duty Metal Bearing Rebar 10mm Thickness 1


Hebei Zhuote Wire Mesh Products Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products. Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities. As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, Australia, Africa countries. We do custom manufacture and can supply a high quality OEM service for clients.



1. Quick response
We will reply our customer's inquiry ASAP within 24 hours.

2. Sample
Free sample is available if our customer are willing to undertake the courier fee.

3. Layout drawing or shop drawing
We can provide the layout drawing or shop drawings for our customers' project solution.

4. Inspection
Our factory supports all our customers or nominated third party to our factory for inspection.
In addition, we can provide the instant photos during the production.

5. Strong package
We will do our best to offer strong package to keep the goods safe and sound when our customer receive them.

6. Timely delivery
Our strong supply capacity can help us to deliver the goods in time.

7. After-sale service
We will track the goods' use condition. Not only providing the tech support, but the solution of goods' quality
