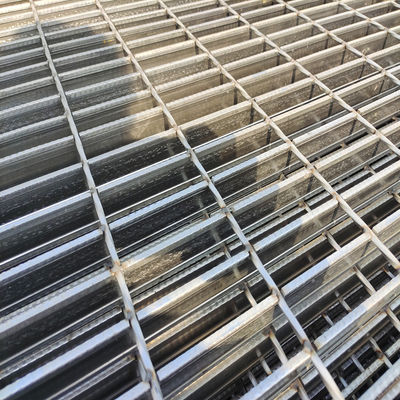

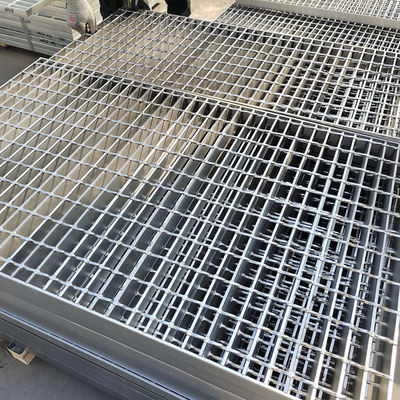

30*5 Steel Bar Grating Customized Diversiform Stainless Steel Floor Drain Grating

Place of Origin ANPING , CHINA
Brand Name TT
Certification ISO9001-2015
Model Number TT-5
Minimum Order Quantity 1tons
Price lower
Packaging Details wooden pallet or steel strip
Delivery Time 8-10 work days
Payment Terms L/C T/T
Supply Ability 1800tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel Galvanized Stee Packing Pallet, 1PC/BOX, Wooden Box
Color Silver, Available To Any Colors, Black, Stainless Steel, Customized Size Customized
Factory Yes, Since 1990 Usage Public Drain Area, Bathroom, Garge, Concrete Construction Support, Balcony Ect.
Surface Hot Galvanized, Bright, Smooth, Silver, Galvanized Or Painted Or Black Steel Shape As Required, Various, As Your Request, Fish-eye
Type Plain, Plain Bar Grating, I-shape, Serrated Bar Grating, Serrated
High Light

Diversiform steel bar grating

,

Diversiform Floor Drain Grating

,

steel bar grating Customized

Leave a Message
Product Description

                  30*5 steel bar grating Customized Diversiform Industrial Stainless Steel Floor Drain Grating

Product Description
Steel Grating

1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

2) Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40,60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >

3) Material:
Mild Steel (Low Carbon Steel) Aluminum or Stainless Steel

4) Surface Treatment:
Untreated, Painting or Hot Dipped Galvanizing

5) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS



Product name
Steel Grating
Grating Style
Plain type, Serrated type, I Type and Serrated I type steel gratings
Surface Treatment
Black/Untreated (U), Hot dip galvanizing (G), Painting (P)
Usage
industry of Power plant, Oil Refineries,Petrochemistry, Chemical Plant, Water and Waste treatment plant, Ship-building, offshore
projects and civil construction (like roads, park) ., etc.
Bearing bar (width * thickness)
25*3mm,25*4mm,25*5mm,30*3mm,30*4mm,30*5mm,32*3mm,32*5mm,40*3mm,40*4mm,40*5mm,50*3mm,50*4mm,50*5mm Etc.
Bearing bar pitch (mm)
12.5, 15, 20, 25, 30, 34.3, 35.3, 40,41.25, 50, 60...(30, 40,50 mm are recommended ),also can do the size as customer's request
Cross bar pitch (mm)
38.1, 50, 76.2, 100, 101.6 . Etc.(30, 50, 100 ,150 mm are recommended ),also can do the size as customer's request
Material:
Mild steelQ235, Stainless steel

Types of Metal Bar Grating : We produce three kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc.



Surface process of Metal Bar Grating : there are three types:hot-dipped galvanized ,electro-galvanized and spraying brushing and soaking.anti-acid and alkali corrosion capacity the range PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.

Feature of Metal Bar Grating : high strength, light structure with firm grids pressure welded structure and high bearing property, easy suspending installation, beautiful appearance ,durability with hot galvanized finish, good anti-corrosive property, and bright surface, good ventilation, lighting. cooling and anti-explosion. and deposit-proof.

Packaging & Shipping



The packing of hot dip galvanized steel grating



normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.there are four or six pieces of M10 long bolt penetrading the gratings and screwing together.it is suitable for loading and unloading by fork-lift and crane.
