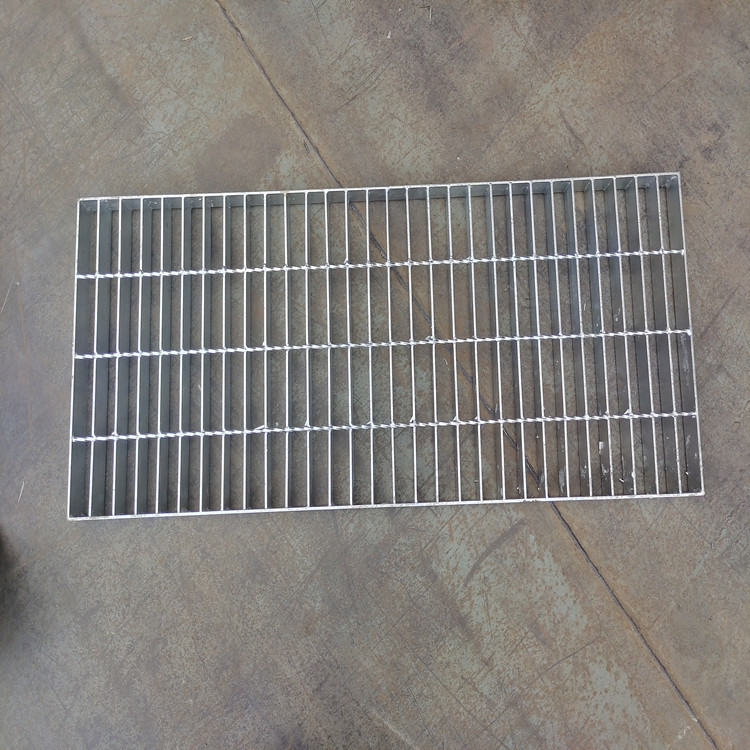

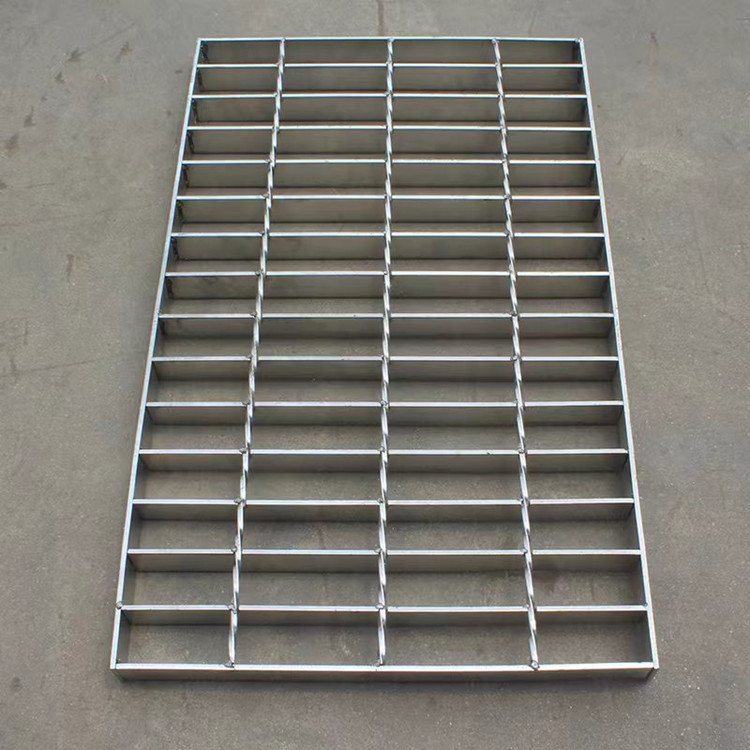

Customizable Galvanized Steel Sidewalk Drain Covers Footway Grate Drains

Place of Origin ANPING , CHINA
Brand Name TT
Certification ISO9001-2015
Model Number TT-6
Minimum Order Quantity 1tons
Price lower
Packaging Details wooden pallet or steel strip .
Delivery Time 8-10 work days
Payment Terms L/C T/T
Supply Ability 1600tons/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Q235, Q235 Carbon Steel, Low Carbon Steel, Stainless Steel Galvanized Stee Cross Bar Pitch 24-200mm
Width And Length According To Customer Requirement Bearing Bar Pitch 25, 30mm, On Request., 30, 34.3
Packing Pallet, 1PC/BOX, Wooden Box Process Pressure-locked, Welded, Swage Locked, Casting. Deburring .Drilling .threading
Color Silver, Black, Silver Or As Your Requirement, Yellow, Ect Or Custom Size Customized
High Light

Customizable Sidewalk Drain Covers

,

Customizable sidewalk drain grate

,

Footway Sidewalk Drain Covers

Leave a Message
Product Description

                        Road Sidegalvanized Steel Industrial Grating Non-Standard Mesh Steel Grating

Product Description

Stainless steel grating is flat steel bar according to a certain distance and cross arranged and welded into the middle of a square lattice with an iron and steel products ,stainless steel grating generally use stainless steel production, appearance of hot dip galvanized, can serve to prevent the role of oxidation.

Cross bar pitches:maybe 24-200mm,of which 50mm,76mm and 100mm are recommended.



  • Versatile and high quality
Steel grating has been widely used in all walks of life all over the world. Steel grating is mainly used as platform plate, ditch cover, stair tread and building ceiling.
Steel grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and
other processes. The products enjoy the features of high strength, light structure, high bearing, convenience for loading and
other properties. The hot dipped zinc coating gives the product excellent anti-corrosion resistance.
Product
Non steel grating
Brand Name
grating
Model Number
16
Method of welding
Automatic pressure resistance welding
Grating Style
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Bearing Bar (Width x Thickness)
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3,
32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1
1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4,
19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Dimension of cross bar
5*5.6*6,8*8,10*10,12 * 12Mm, etc. .
Application
Steel grating is widely used in parking lot,walkways, platforms, stairs, fences for mining industry, power plants, Petrochemical
industry, machinery, light industry, railways, bridges, docks, schools, water plants, sewage treatment plants, etc.
Packing
(1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture
of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing.
Surface Treatment
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Function
1. Extremely high temperature resistance;
2. Corrosion resistance, alkaline resistance.
3. Rust resistance.
4. Skid resistance.
5.Very hard surface can withstand severe wear.”
Features
High strength, low price, corrosion resistance
