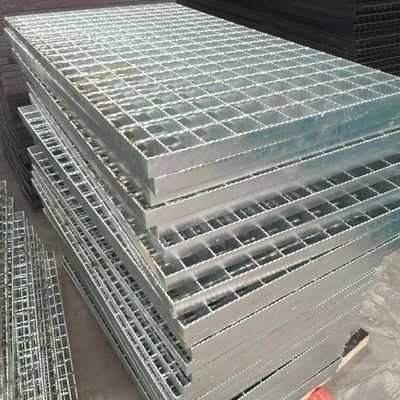

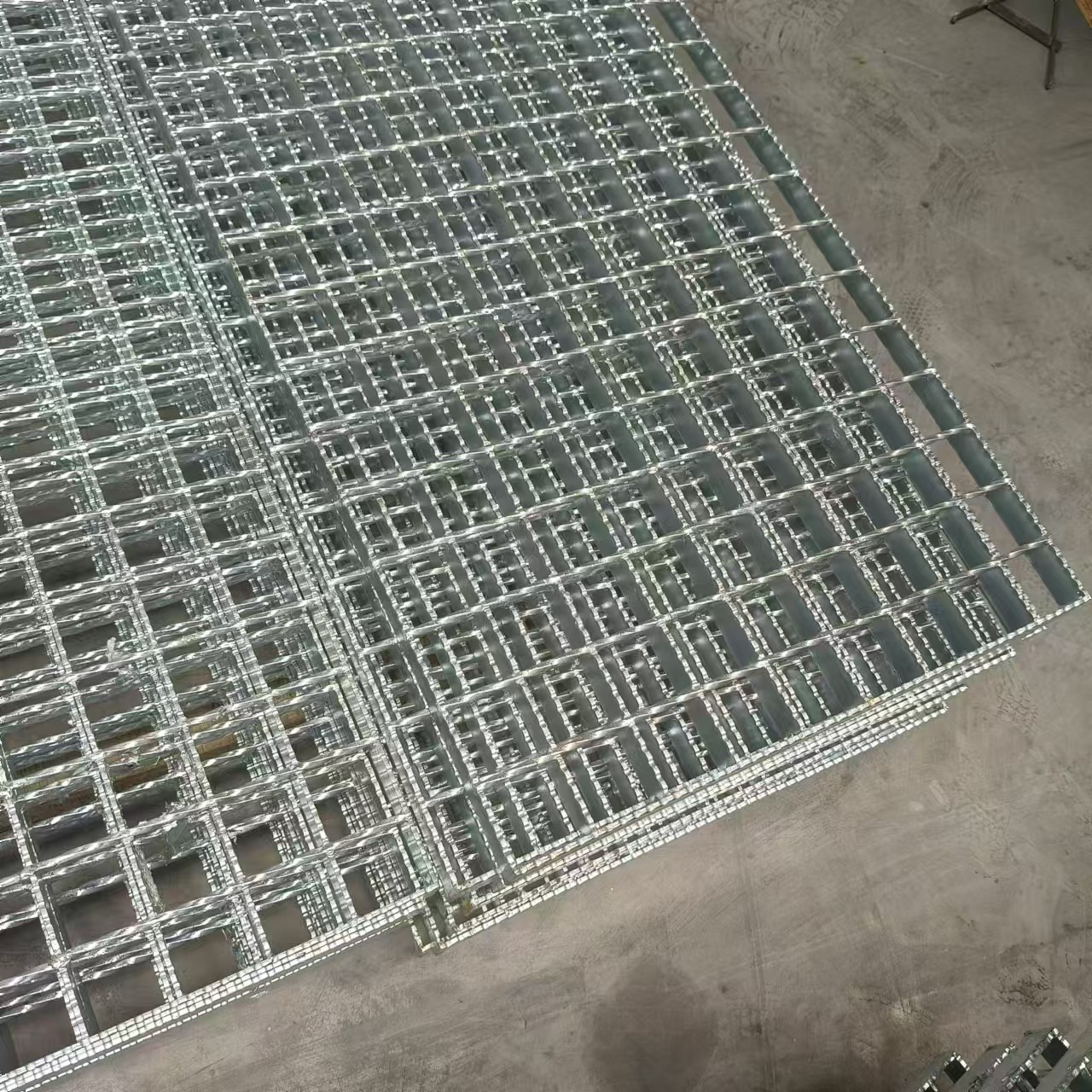

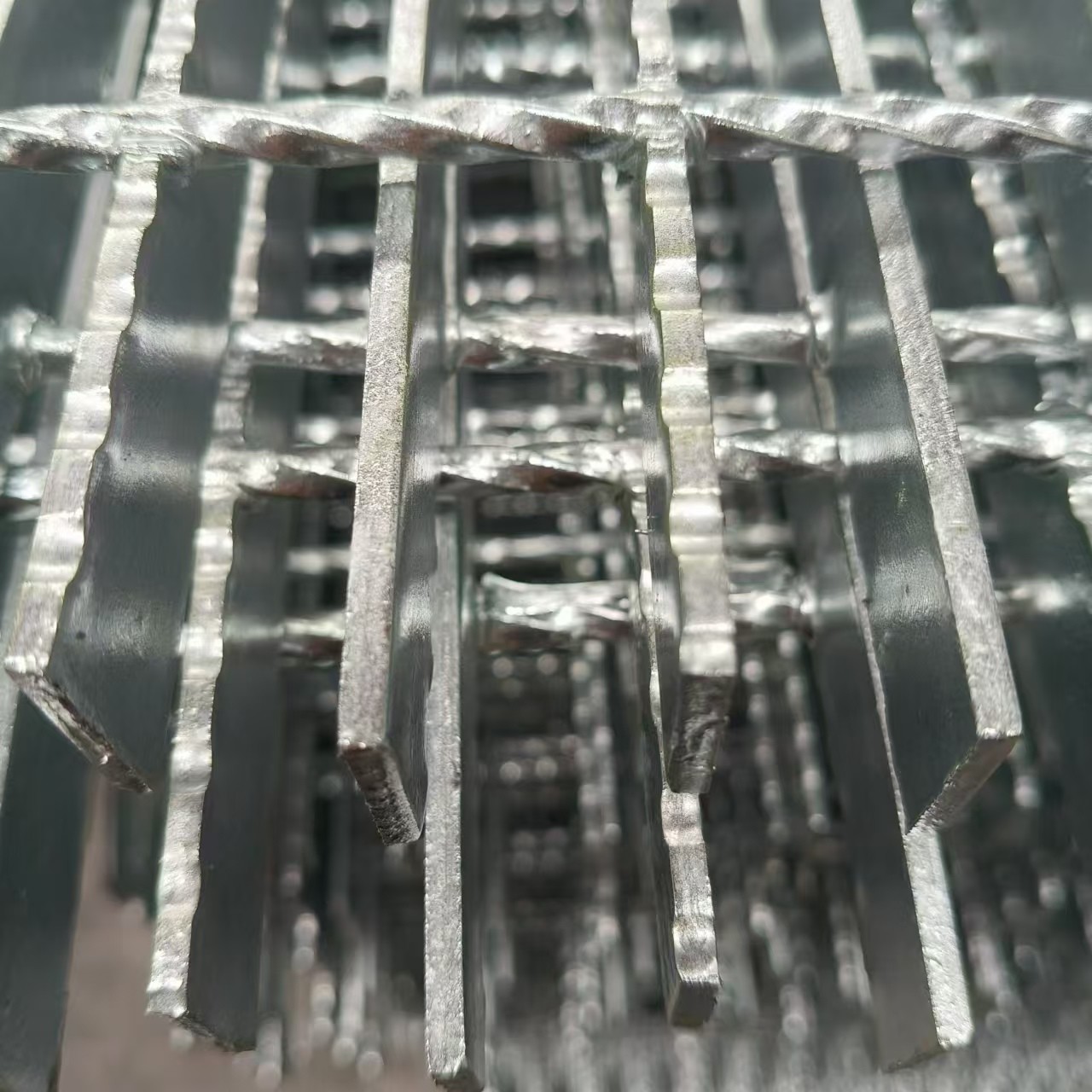

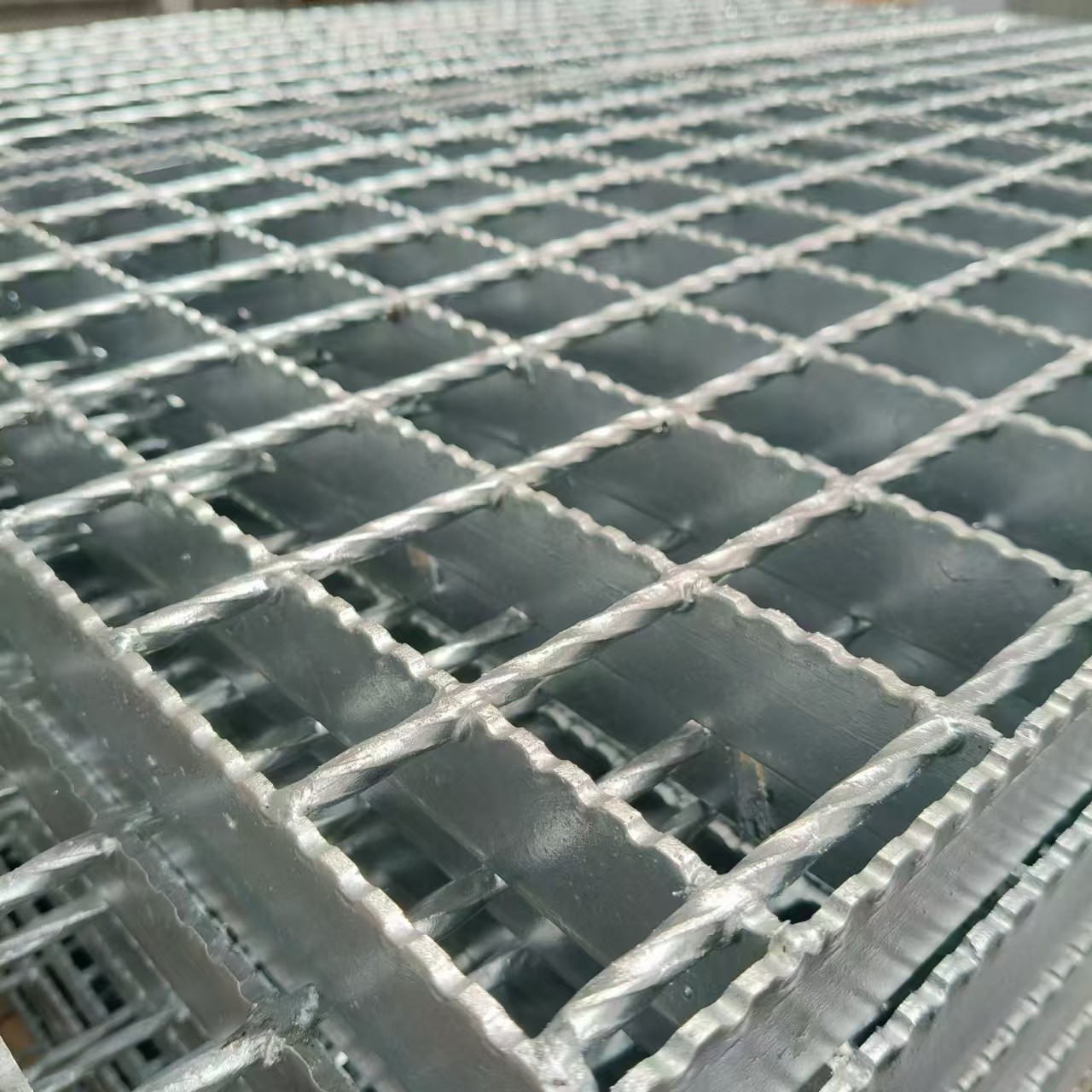

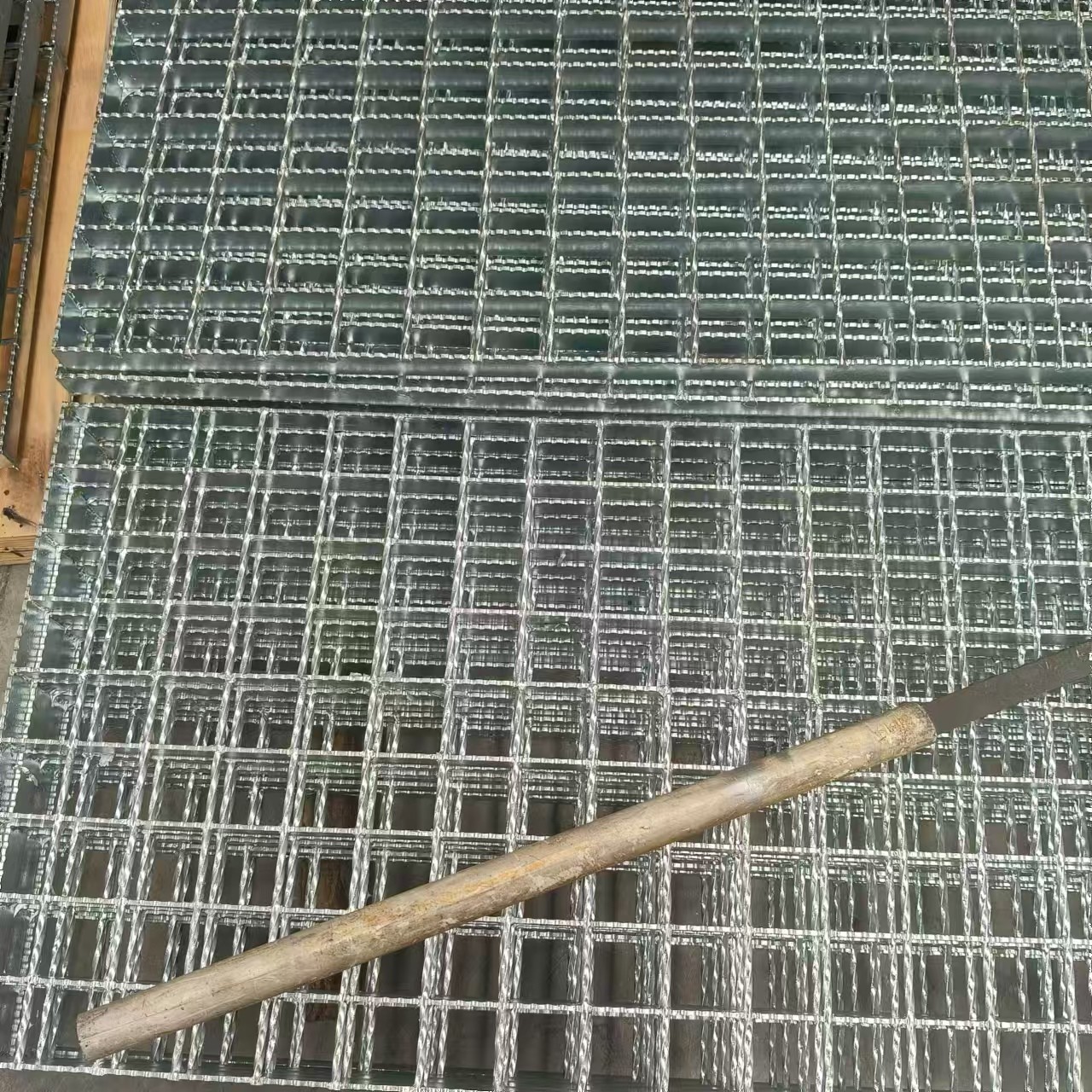

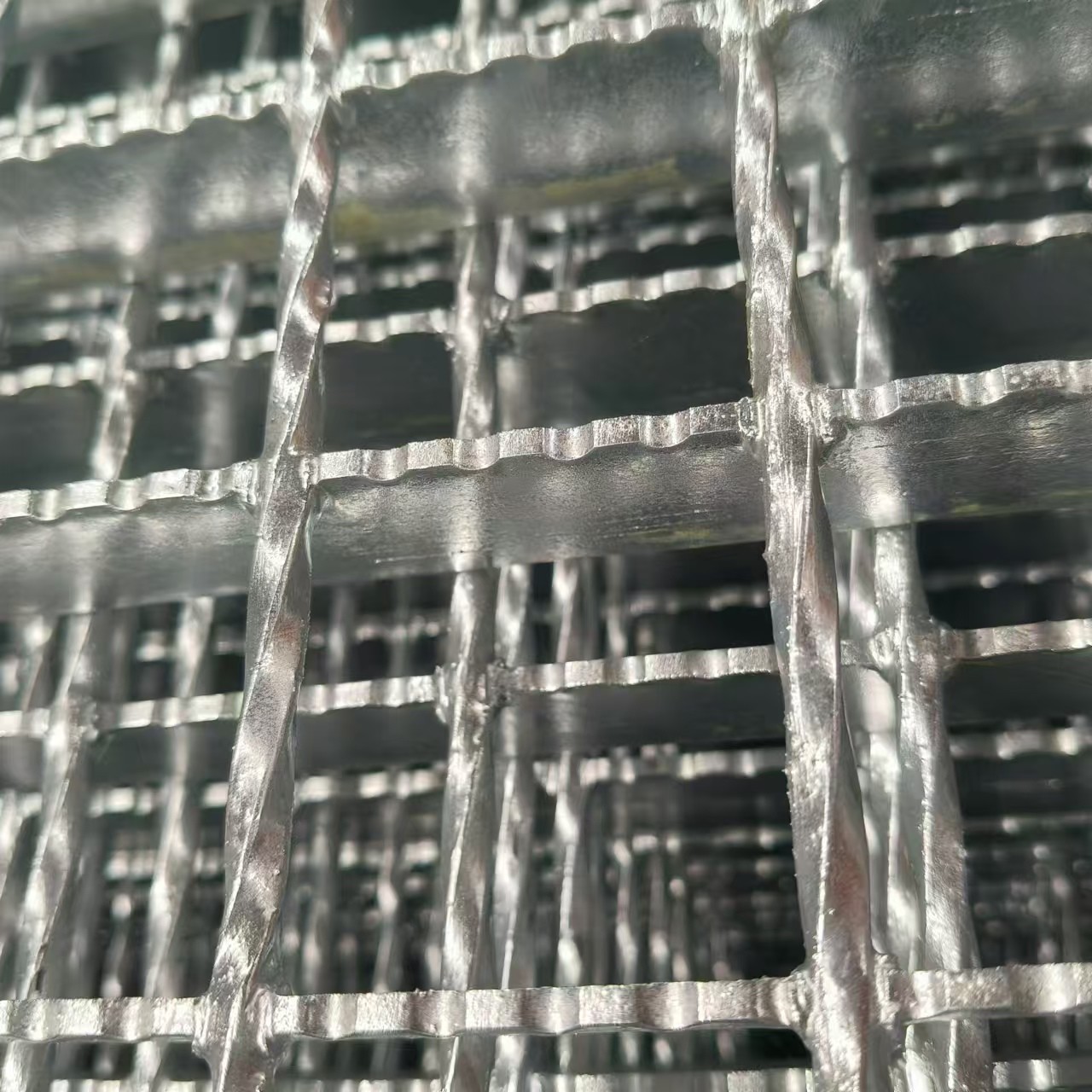

High-Performance Industrial Steel Grating for Heavy-Duty Applications
| Place of Origin | Hebei |
|---|---|
| Brand Name | ZHUOTE |
| Certification | ISO9001 |
| Model Number | Flat steel grating |
| Minimum Order Quantity | 100 |
| Price | USD10-50 |
| Packaging Details | Wooden pallet packing |
| Delivery Time | 7-10days |
| Payment Terms | TT |
| Supply Ability | 100sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Anti-corrosion | Feature | Bright On Surface,modern |
|---|---|---|---|
| Bearing Bar Spacing | 30mm | Keyword | Steel Floor Decking Grating |
| Port | Tianjin | Cross Bar Thickness | 3mm |
| Grating Standard | YB/T4001.1-2007 | Welding Technology | Machine Pressure Welding |
| Factory | Yes, Since 1990 | Texture | Stainless Steel |
| Mesh Shape | Round | Product Name | Industrial Steel Grating |
| Temperature | Strong Tolerance | Surface Treatment | Hot-dip Galvanized, Painted, Untreated |
| Shape | As Your Request | Panel Size | 1x1m, 1x2m, 1.2x1.2m, 1.2x2.4m, 1.5x3m, 2x4m |
| Surface Treatment Thickness | 2-5mm | Thinkness | 3-10mm |
| Bearing Bar Size | 25x3mm | Production | Weld By Machine |
| Length | Customer's Demand | Surface Treatment Standard | ASTM A123, EN ISO 1461 |
| Product Capacity | 10 Tons Per Day | Type | Industrial |
| Bearing Bar | 25*2，30*3，35*4，40*5，45*5mm | Surfacetreatment | Galvanized |
| Load Capacity Standard | ANSI/NAAMM (MBG531), BS4592-1987, AS1657-1985 | Bearing | Product Attribute |
| Warranty | 2 Year | Color | Silver Or As Your Requirement |
| Panel Width | 1m, 1.2m, 1.5m, 2m | Grating Size | 1000x1000mm |
| Bear Bar Thickness | 5mm | Application | Industrial |
| Cross Bar Pitch | 50mm,As Customers' Requirement Or 40 | Width | 600-1250mm,70-600mm |
| Cross Pitch | 20-100mm | Width And Length | According To Customer Requirement |
| Type Bar | Flat Or Serrated Steel | Product Process | Welding |
| Thickness | 6mm, 3mm, 3, 5, 4 | Cross Bar Size | 6mm |
Product Description
| main categories Classification according to the shape of flat steel: flat steel grid plate, tooth flat steel grid plate, I flat steel grid plate, etc. According to the form of the bar classification: twisted square steel bar steel grid plate, round steel bar steel grid plate, flat steel bar steel grid plate. Classified by surface treatment: hot-dip galvanized steel grid, cold galvanized steel grid, spray painted steel grid, etc. Hot-dip galvanized steel grid plate has strong impact resistance and corrosion resistance. The cost of cold galvanized steel grid is relatively low, but the rust prevention ability is medium; The color of the painted steel grid is diverse, but the anti-rust ability is weak and afraid of wear. Classification by use: platform steel grid plate, ditch cover plate steel grid plate, stair step plate steel grid plate, etc. These steel grids are designed according to specific application scenarios to meet different load bearing, anti-slip, drainage and other requirements. According to the welding method and other categories: pressure welding type, insert type, lock type and weld type. In addition, there are stainless steel grid plate and carbon steel grid plate, according to the different material, its corrosion resistance, strength and other properties are also different. Technical Parameters
|
