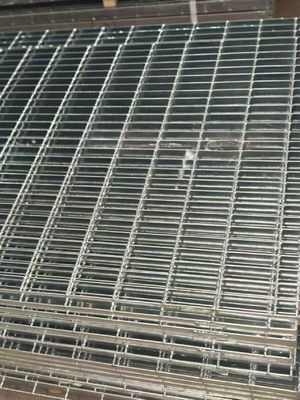

Municipal engineering laying road wind and high temperature steel grating
| Place of Origin | Anping China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001:2015 |
| Model Number | TT-2 |
| Minimum Order Quantity | 50m2 |
| Price | Negotiable |
| Packaging Details | Packing Suitable For Export,Also Depend On Customar Decide |
| Delivery Time | 3-5Days,Also Depend On the Quantity |
| Payment Terms | L/C, T/T |
| Supply Ability | 500M2 Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Industrial | Bearing Bar Pitch | 30mm, 40mm, 50mm, Etc |
|---|---|---|---|
| Grating Standard | YB/T4001.1-2007 | Product Category | Industrial Steel Grating |
| Bearing Bar Type | Serrated | Product Name | Customized Thickness And Bar Spacing Industrial Steel Grating |
| Load Bearing Capacity | Heavy Duty | Texture | Stainless Steel |
Product Description
| Name | Steel Grating |
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS |
product brief introduction
Steel grid plate is a metal sheet made of steel, commonly used materials are ordinary carbon steel, stainless steel and aluminum alloy.
Ordinary carbon steel refers to carbon steel materials containing less alloying elements, and its main components are iron and carbon. Ordinary carbon steel has good mechanical properties, high strength, good toughness, wear resistance, suitable for use in the general environment.
Stainless steel is a steel with better corrosion resistance, and its main components are iron, chromium, nickel and other alloying elements. Stainless steel has good corrosion resistance and oxidation resistance, and can be used for a long time in harsh environments such as humidity, acid and alkali.
Aluminum alloy is the material of alloying aluminum with other metals, common aluminum-manganese alloy, aluminum-copper alloy and aluminum-magnesium alloy. Aluminum alloy has the advantages of light weight, high strength and good corrosion resistance, and is widely used in aerospace and construction fields.
properties of products
Steel grid has a variety of excellent properties, including strong load-bearing capacity, good anti-slip, ventilation, heat dissipation, corrosion resistance and explosion proof. These characteristics make it widely used in many fields, such as stairs, platforms, stairs, Bridges and other structures in construction engineering, as well as in the fields of transportation, industrial manufacturing and municipal facilities.
