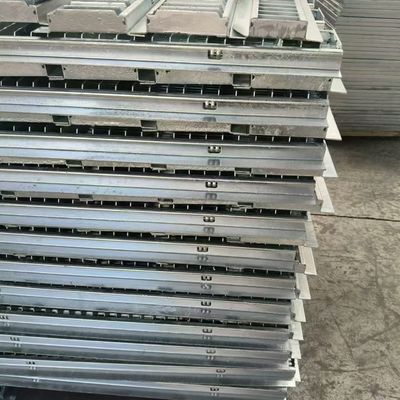

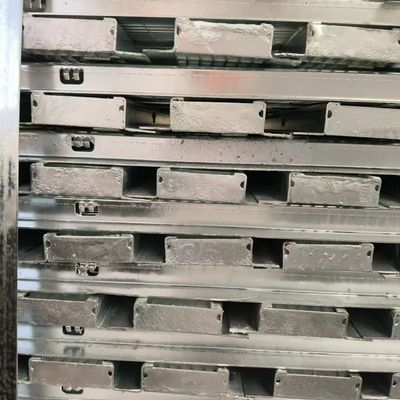

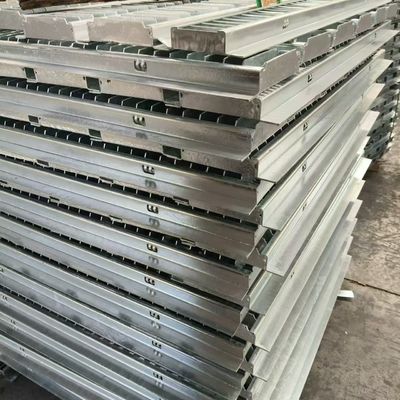

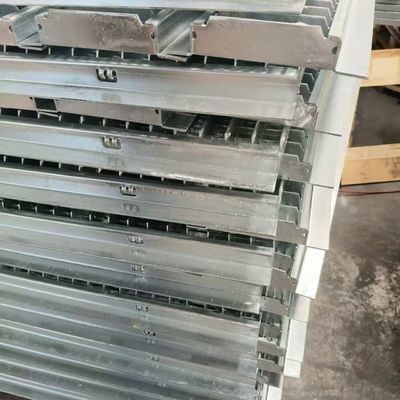

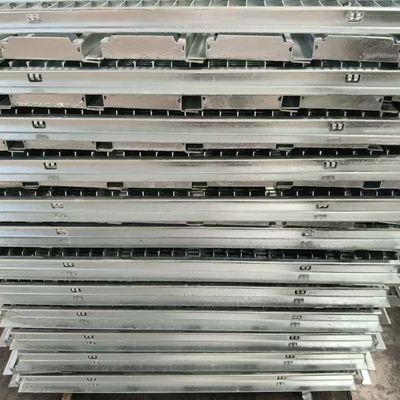

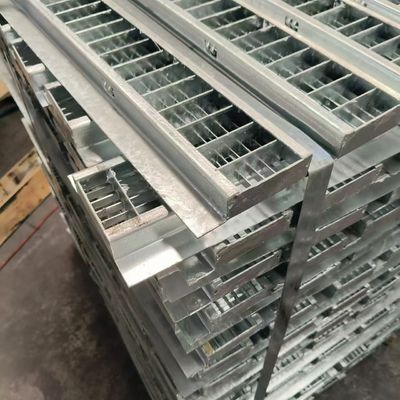

Anti Slip Grating for Stair Step Plate with Customized Size and Thickness
| Place of Origin | CHINA Hebei |
|---|---|
| Brand Name | ZHUOTE |
| Certification | ISO9001: 2008 |
| Model Number | yfgd-g-01 |
| Minimum Order Quantity | MOQ 10M |
| Price | 10dollars per meter |
| Packaging Details | Single package size:50X50X50 cm Single gross weight:15.000 kg |
| Delivery Time | 25work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 2-10meters+25days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 5-10kg | Chemical Composition | Fe |
|---|---|---|---|
| Alloy Or Not | Is Alloy | Surface | Powder Coating/EG/HDG |
| Size | Customized Size | MOQ | 10m |
| Package | Wooden Pallet | Feature | High Strength |
| Single Package Size | 50X50X50 Cm | Single Gross Weight | 15.000 Kg |
| Highlight | Customized Size Anti Slip Grating,Stair Step Plate Anti Slip Grating,Customized Thickness Anti Slip Grating |
||
Product Description
Technical Parameters
| Transport Package | Packaged By Steel Belt With Pallet |
| Size | As Per Drawing,commoned 32*5 |
| Features | Anti-slip, Drainage, Ventilation |
| Thickness | 2mm-5mm,5mm |
| Bearing Bar Pitch | 30mm, 40mm, 50mm, Etc |
| Load Bearing Capacity | Heavy Duty |
| OEM | Available |
| Grating Standard | YB/T4001-2007 |
| Bearing Bar Type | Serrated |
main categories
Classification according to the shape of flat steel: flat steel grid plate, tooth flat steel grid plate, I flat steel grid plate, etc.
According to the form of the bar classification: twisted square steel bar steel grid plate, round steel bar steel grid plate, flat steel bar steel grid plate.
Classified by surface treatment: hot-dip galvanized steel grid, cold galvanized steel grid, spray painted steel grid, etc. Hot-dip galvanized steel grid plate has strong impact resistance and corrosion resistance. The cost of cold galvanized steel grid is relatively low, but the rust prevention ability is medium; The color of the painted steel grid is diverse, but the anti-rust ability is weak and afraid of wear.
Classification by use: platform steel grid plate, ditch cover plate steel grid plate, stair step plate steel grid plate, etc. These steel grids are designed according to specific application scenarios to meet different load bearing, anti-slip, drainage and other requirements.
According to the welding method and other categories: pressure welding type, insert type, lock type and weld type. In addition, there are stainless steel grid plate and carbon steel grid plate, according to the different material, its corrosion resistance, strength and other properties are also different.
service aim
Carefully produce every piece of steel grid plate, emphasizing the principle of integrity first. For the needs of customers to do their best to meet, to ensure that everyone buy the rest of the peace of mind.Carefully select raw materials, for each processing procedure of the product are strictly checked to ensure that the products sent to the hands of customers are durable and beautiful appearance so that more people choose our products
