Utility model processing technology Silver steel grating with hot dip galvanized surface
| Place of Origin | Anping China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001:2015 |
| Model Number | TT-2 |
| Minimum Order Quantity | 50m2 |
| Price | Negotiable |
| Packaging Details | Packing Suitable For Export,Also Depend On Customar Decide |
| Delivery Time | 3-5Days,Also Depend On the Quantity |
| Payment Terms | L/C, T/T |
| Supply Ability | 500M2 Per Day |
Product Details
| Application | Industrial | Bearing Bar Pitch | 30mm, 40mm, 50mm, Etc |
|---|---|---|---|
| Grating Standard | YB/T4001.1-2007 | Product Category | Industrial Steel Grating |
| Bearing Bar Type | Serrated | Product Name | Customized Thickness And Bar Spacing Industrial Steel Grating |
| Load Bearing Capacity | Heavy Duty | Texture | Stainless Steel |
| Highlight | hot dip galvanized steel grating,industrial silver steel grating,utility model steel grating |
||
Product Description

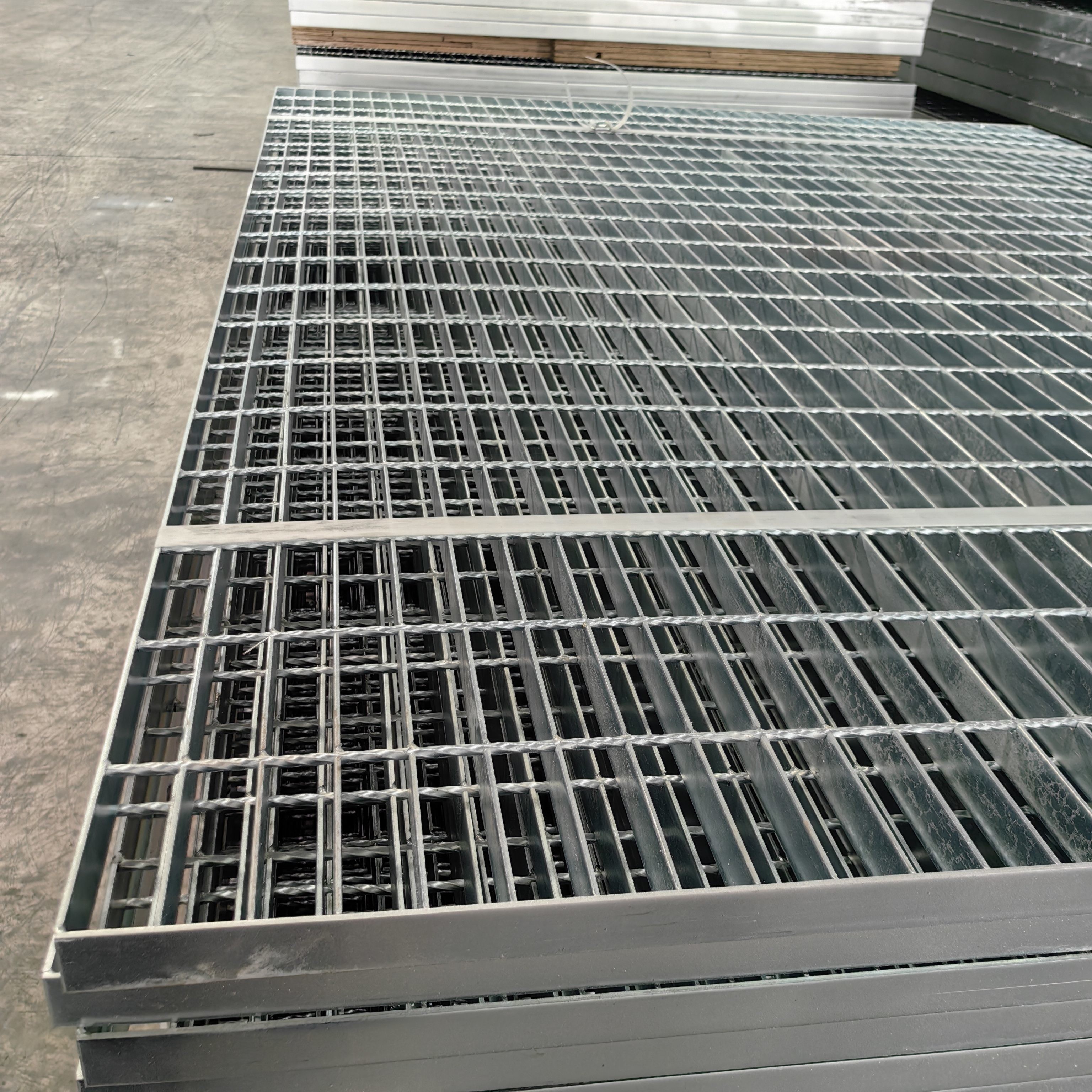

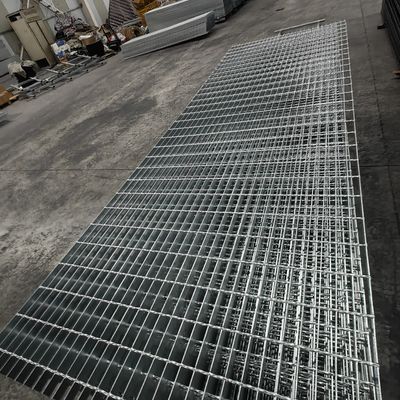

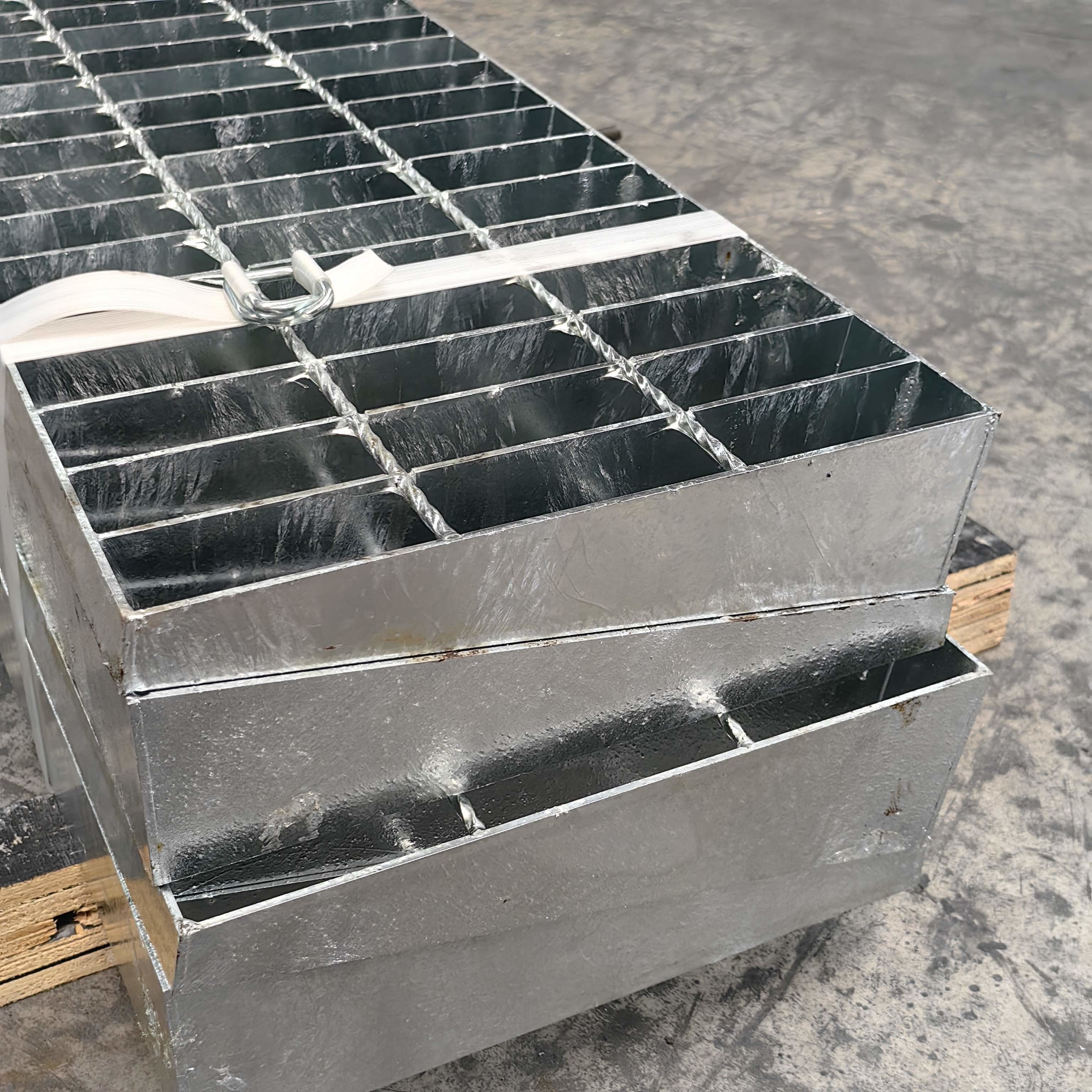

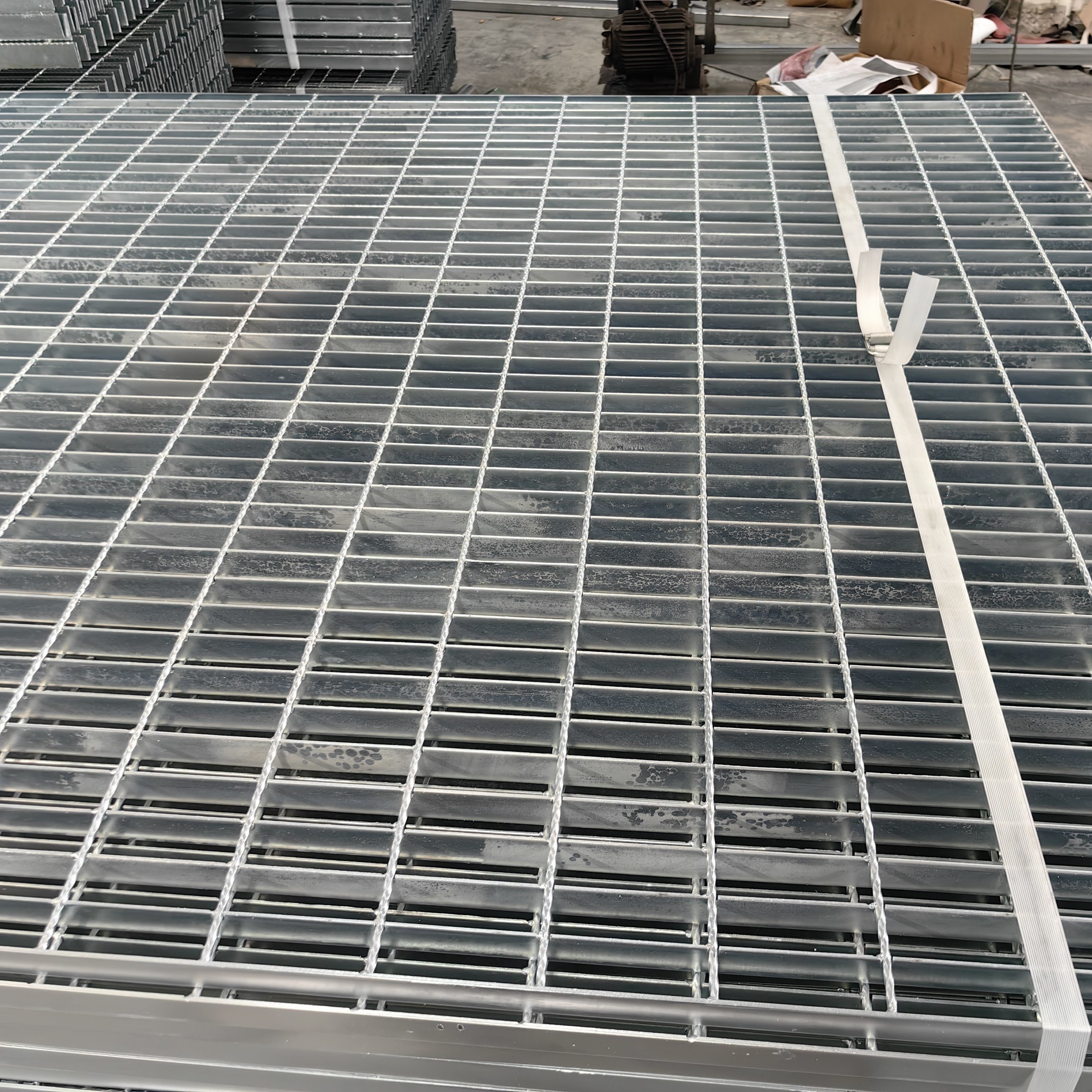

Utility Model Processing Technology Silver Steel Grating with Hot Dip Galvanized Surface
Product Description

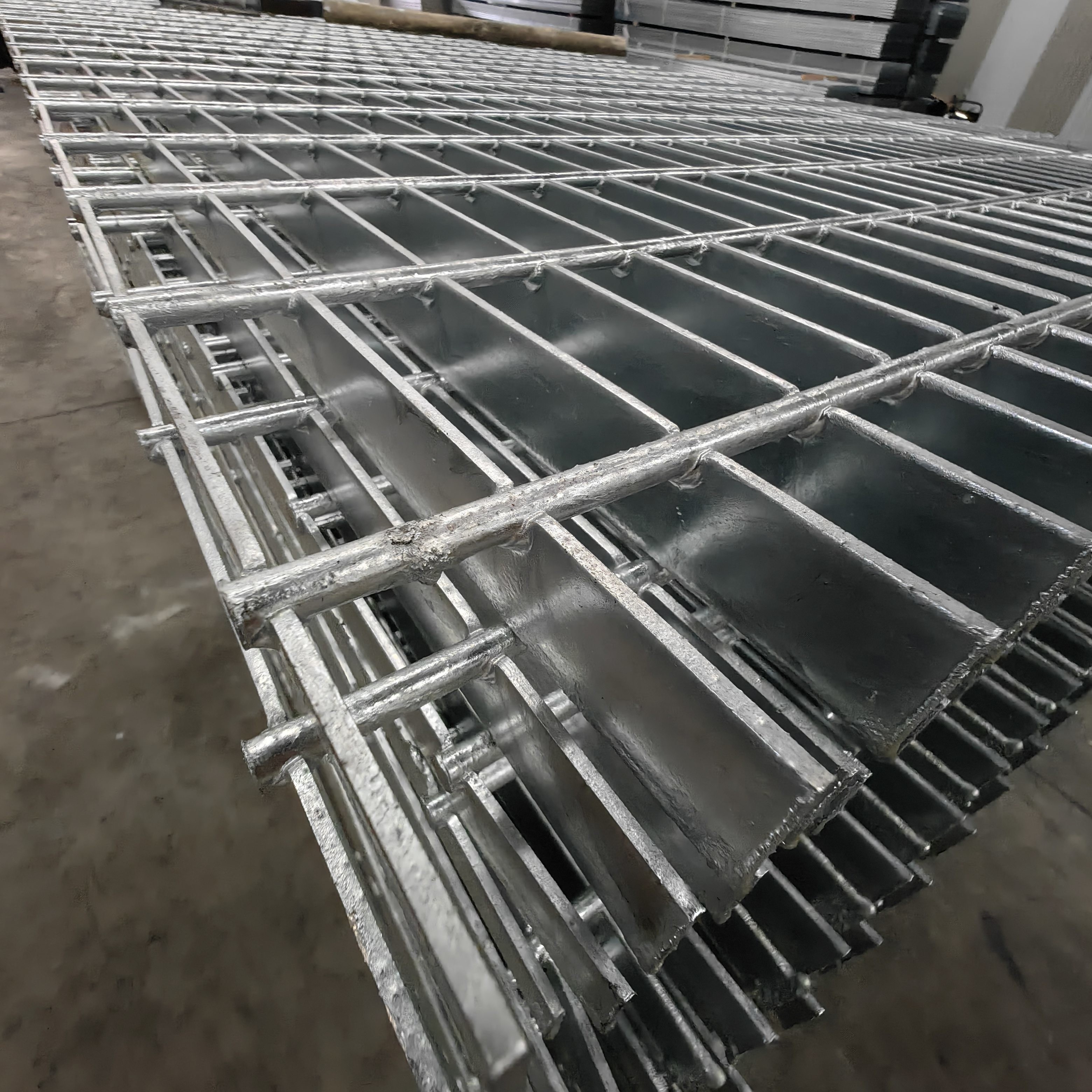

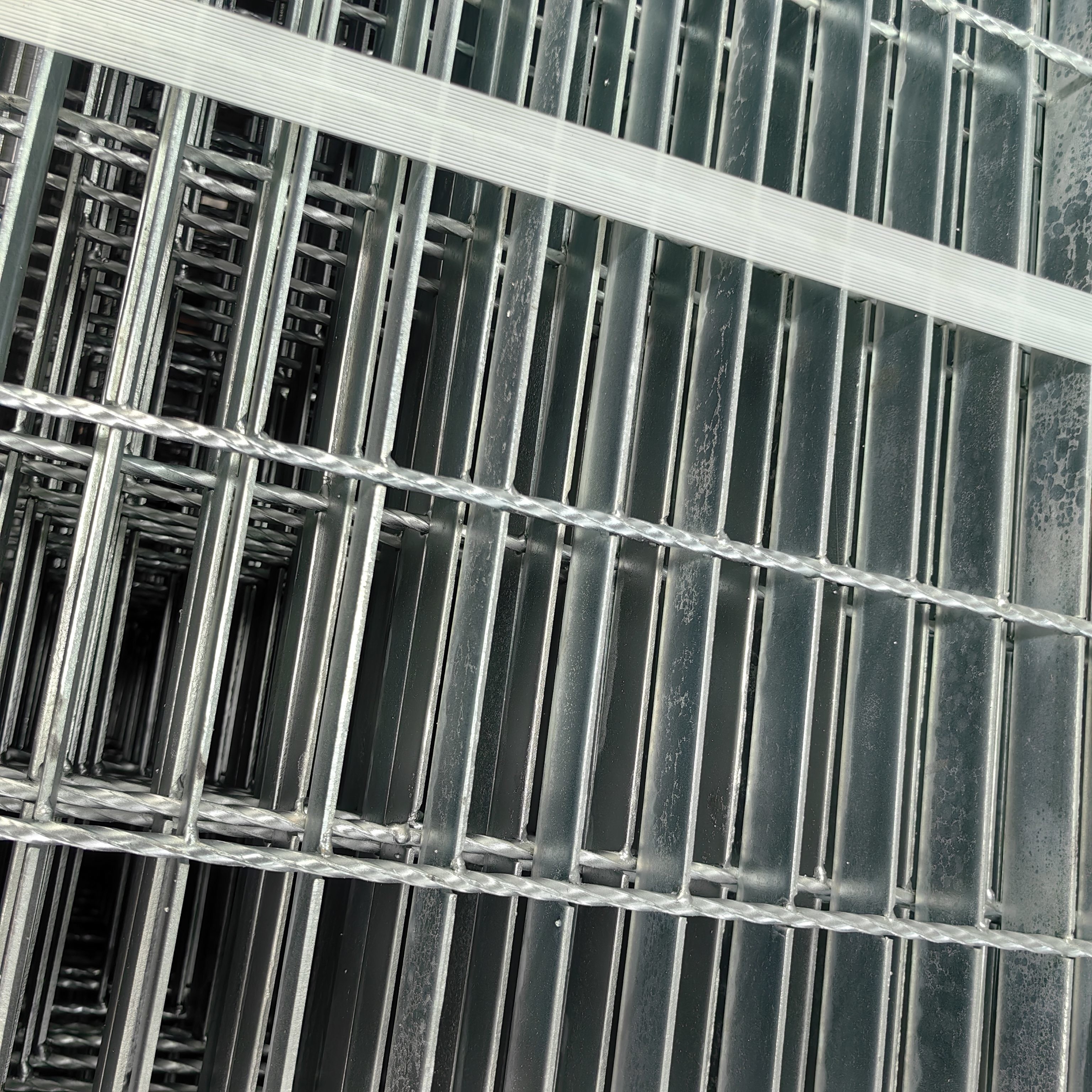

The steel grid plate is an open steel member composed of bearing flat steel and cross bars arranged at specific intervals, fixed by welding or pressure lock. The transverse bars are typically made of twisted square steel, round steel, or flat steel, available in carbon steel and stainless steel materials.
Materials
- Flat steel
- Twist steel
- Pattern plate
Production Method
Pressure welded steel grid plates are manufactured using 200-ton hydraulic resistance welding automatic equipment, where load-bearing flat steel and cross bars are arranged in specific longitude and latitude spacing to create the original plate, followed by cutting, opening, and packaging processes.
Standard Spacing
- Load flat steel spacing: 30mm, 40mm (center distance between adjacent bars)
- Cross bar spacing: 50mm, 100mm (center distance between adjacent bars)
Technical Parameters
| Parameter | Specification |
|---|---|
| Transport Package | Packaged By Steel Belt With Pallet |
| Size | As Per Drawing, commonly 32*5 |
| Features | Anti-slip, Drainage, Ventilation |
| Thickness | 2mm-5mm, 5mm |
| Bearing Bar Pitch | 30mm, 40mm, 50mm, etc. |
| Load Bearing Capacity | Heavy Duty |
| OEM | Available |
| Grating Standard | YB/T4001-2007 |
Dimensions & Specifications
Material thickness: 2mm, 3mm, 4mm, 5mm (different thicknesses provide varying load capacities for different applications)
Width: 100mm, 150mm, 200mm, 250mm, 300mm (custom lengths available from 1m to 6m)
Grid plate spacing: 25mm, 30mm, 40mm (affects load capacity and anti-slip performance)
Load grade: A15, B125, C250 (selected based on application requirements)
