Premium Quality Steel Gratings: Built to Last and Exceed Your Expectations
| Place of Origin | Anping China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001:2015 |
| Model Number | TT-2 |
| Minimum Order Quantity | 50m2 |
| Price | Negotiable |
| Packaging Details | Packing Suitable For Export,Also Depend On Customar Decide |
| Delivery Time | 3-5Days,Also Depend On the Quantity |
| Payment Terms | L/C, T/T |
| Supply Ability | 500M2 Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Aluminum Alloy Properties | Light Weight, High Strength And Good Corrosion Resistance, Widely Used In Aerospace And Construction Fields | Product Description | Steel Grid Has A Variety Of Excellent Properties, Including Strong Load-bearing Capacity, Good Anti-slip, Ventilation, Heat Dissipation, Corrosion Resistance And Explosion Proof. These Characteristics Make It Widely Used In Many Fields, Such As Stairs, Pla |
|---|---|---|---|
| Raw Materials | Flat Steel, Twist Steel, Pattern Plate | Explosion Proof | Yes |
| Ventilation | Good | Anti-Slip | Good |
| Load-Bearing Capacity | Strong | Transport Package | Steel Belt With Pallet |
Product Description
Technical Parameters:
| Product Name: | Weather-Proof Steel Gratings: Durable in All Climatic Conditions |
| Product Material Diversity: | Flat Steel, Twist Steel, Pattern Plate |
| Raw Materials: | Flat Steel, Twist Steel, Pattern Plate |
| Material Types: | Carbon Steel and Stainless Steel |
| Thickness: | 2mm-5mm, 5mm |
| Load Flat Steel Spacing: | 30MM, 40MM |
| Bar Spacing: | 50MM, 100MM |
| Transverse Bar Material: | Twisted Square Steel, Round Steel or Flat Steel |
| Transverse Bar Material Types: | Twisted Square Steel, Round Steel or Flat Steel |
| Application: | Suitable For Harsh Environments |
product material Raw materials of steel grid plate are: flat steel, twist steel, pattern plate.

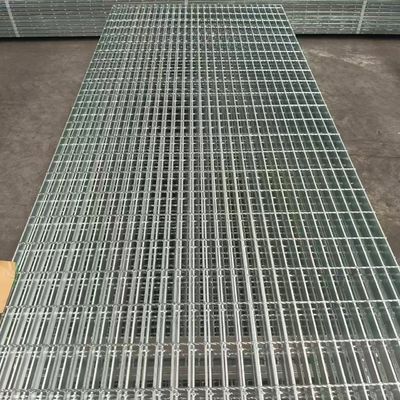

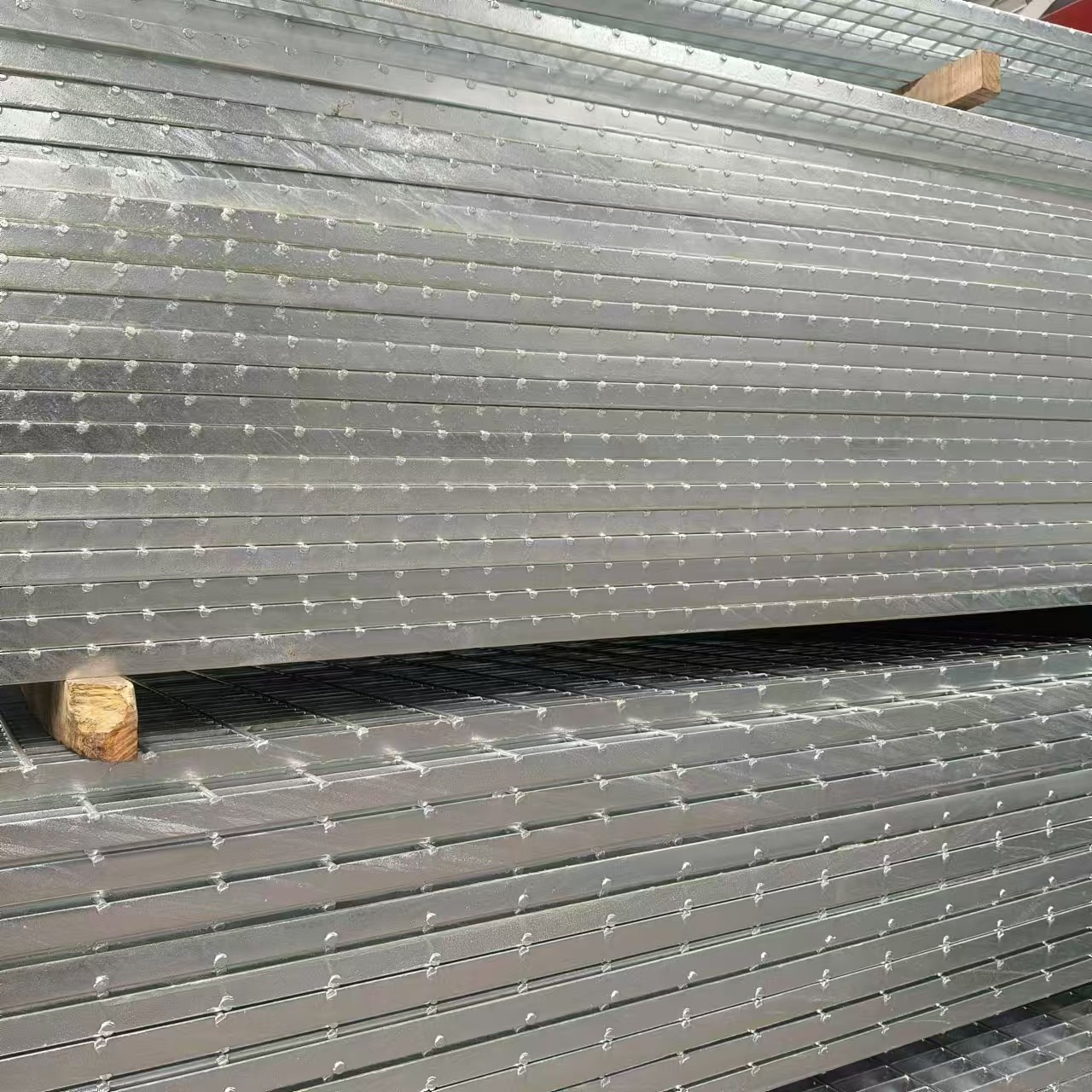

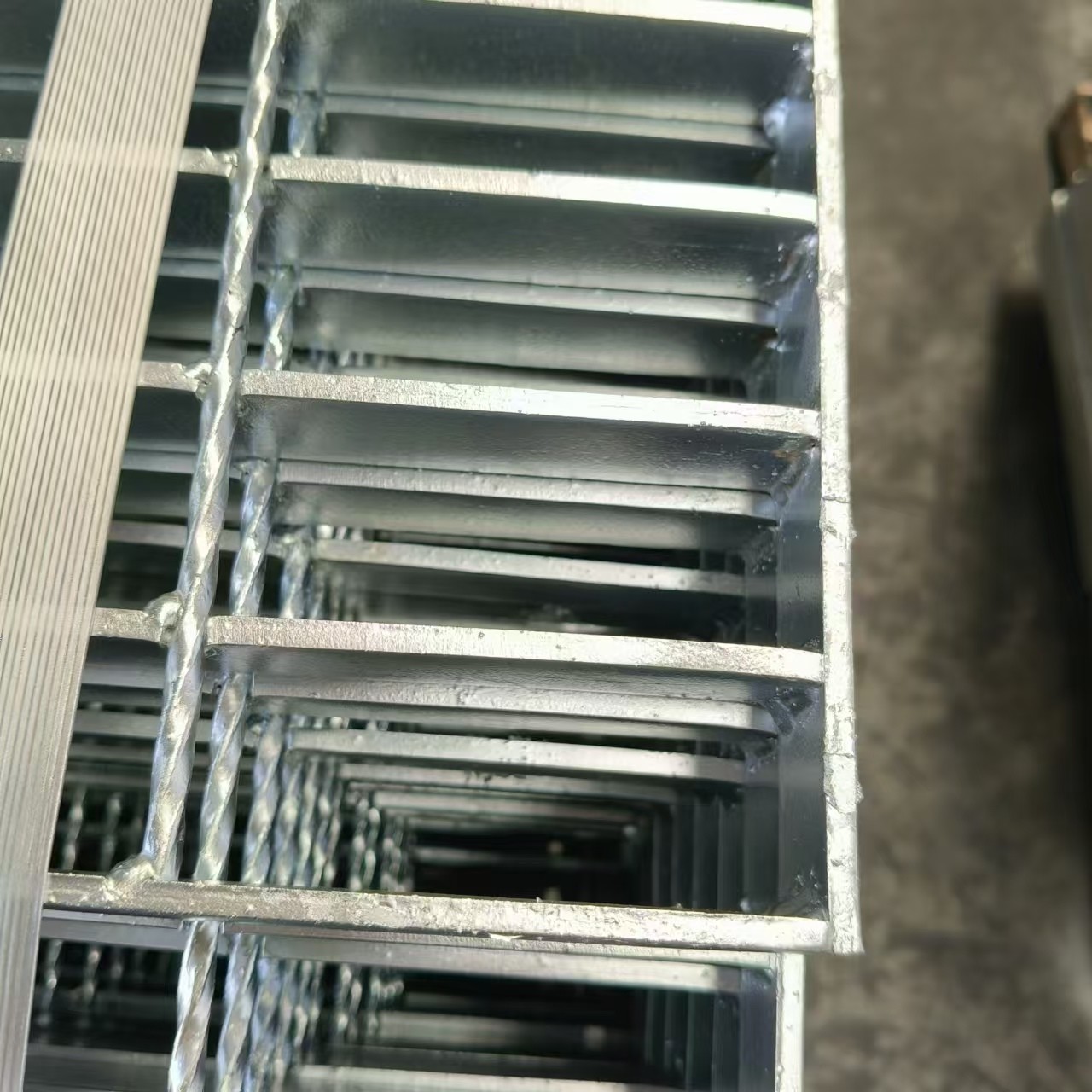

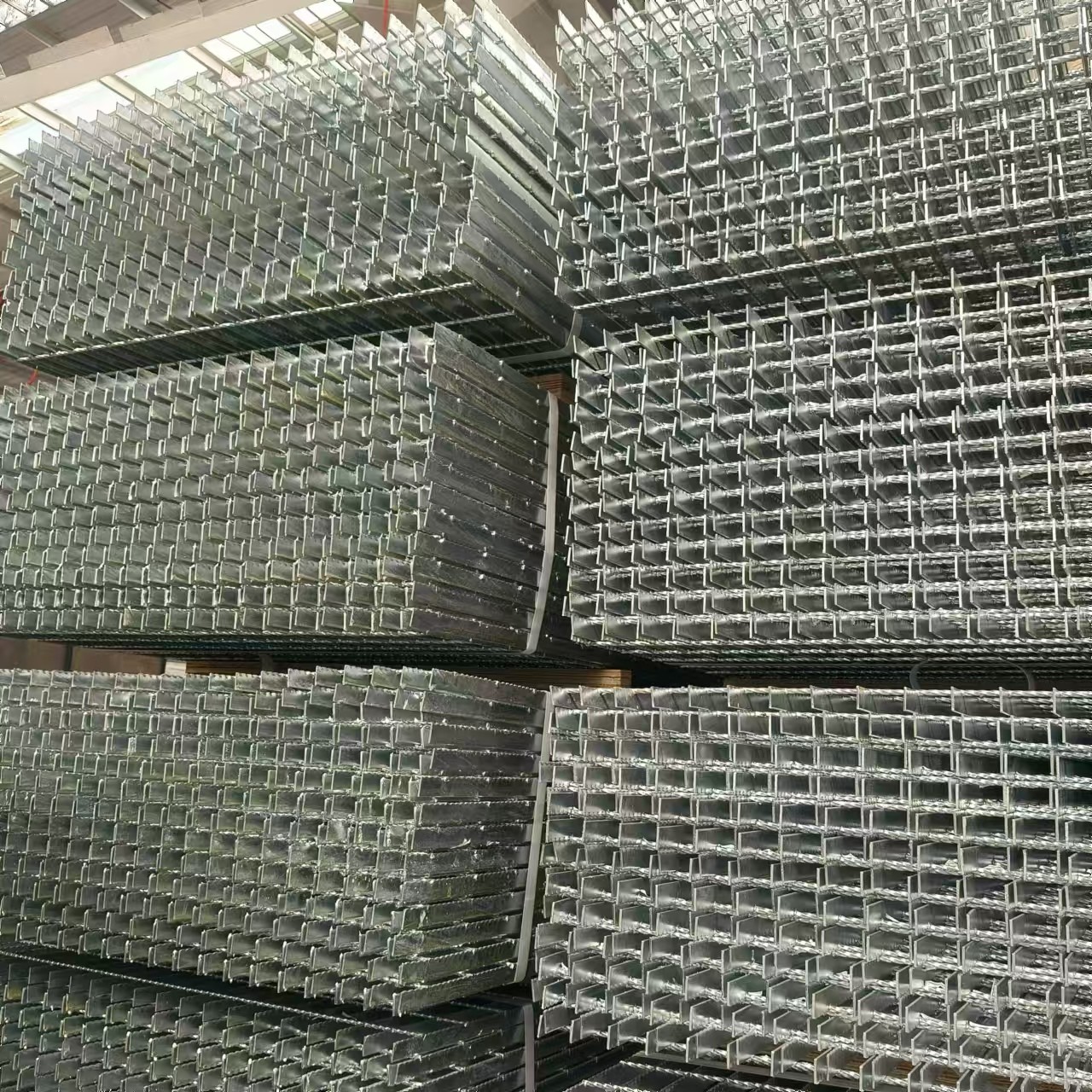

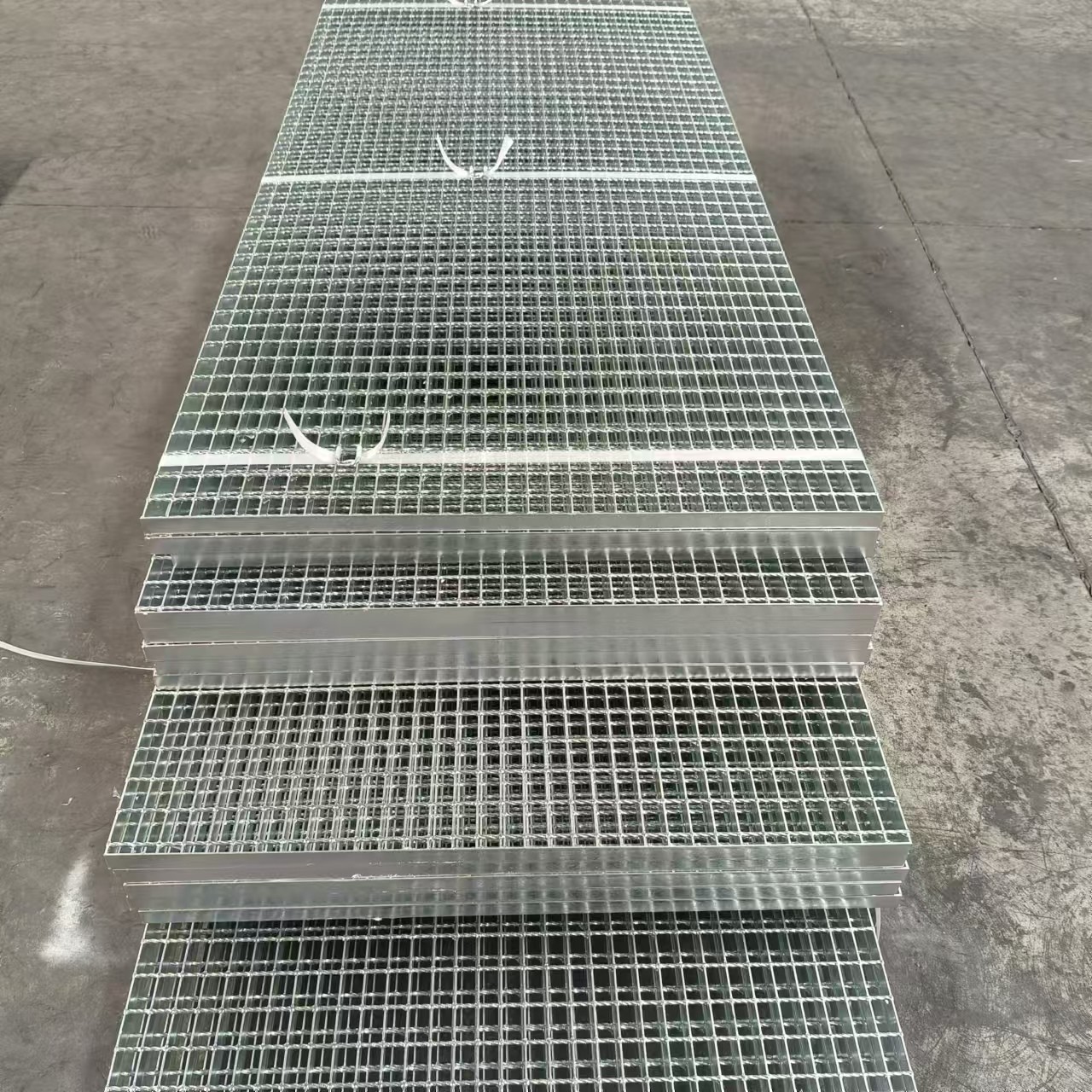

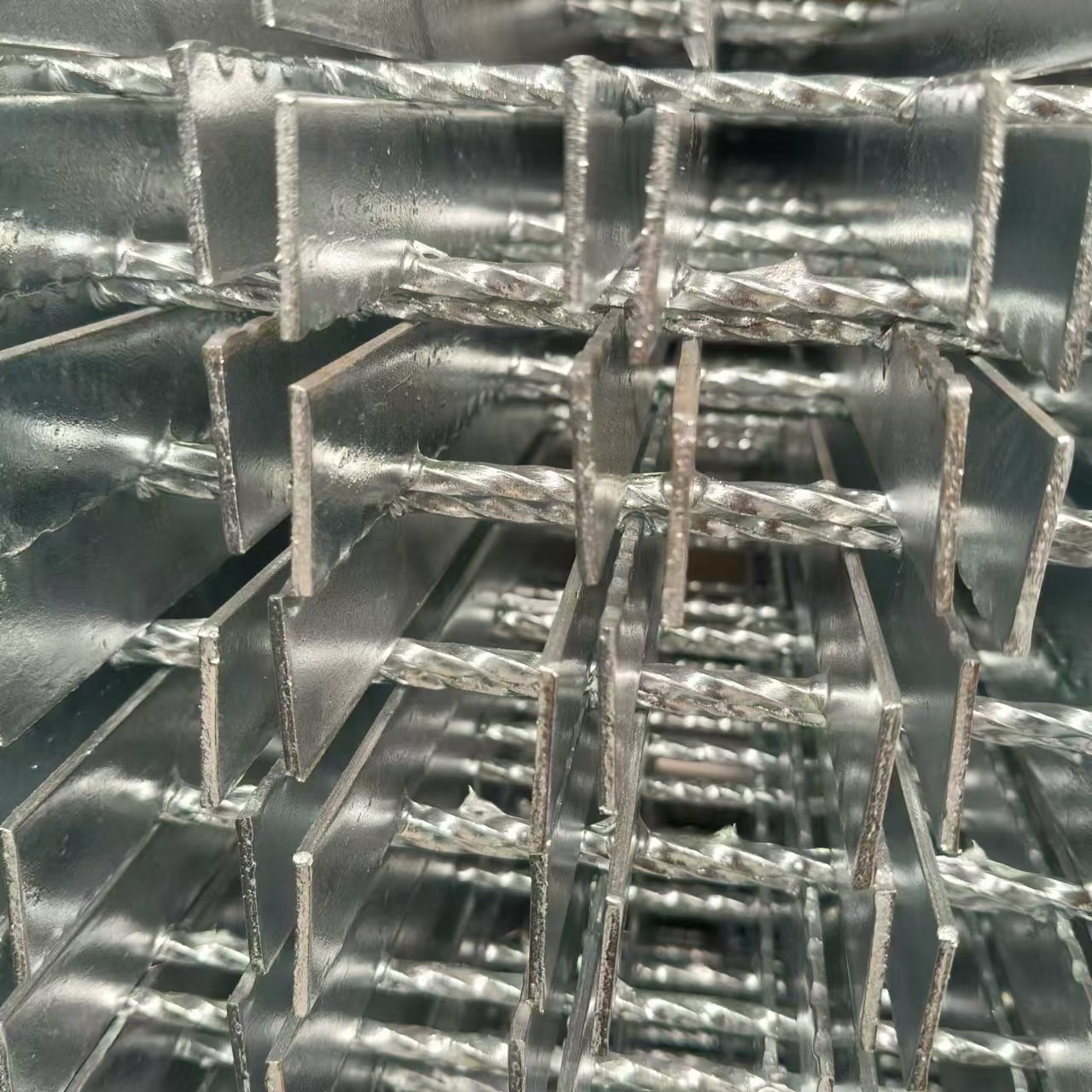

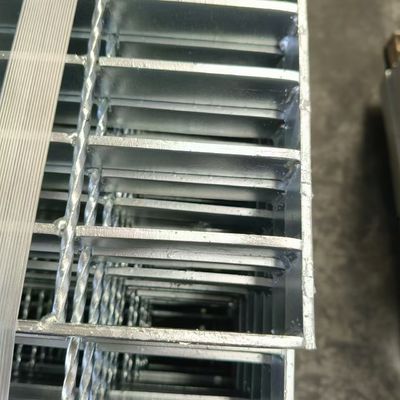

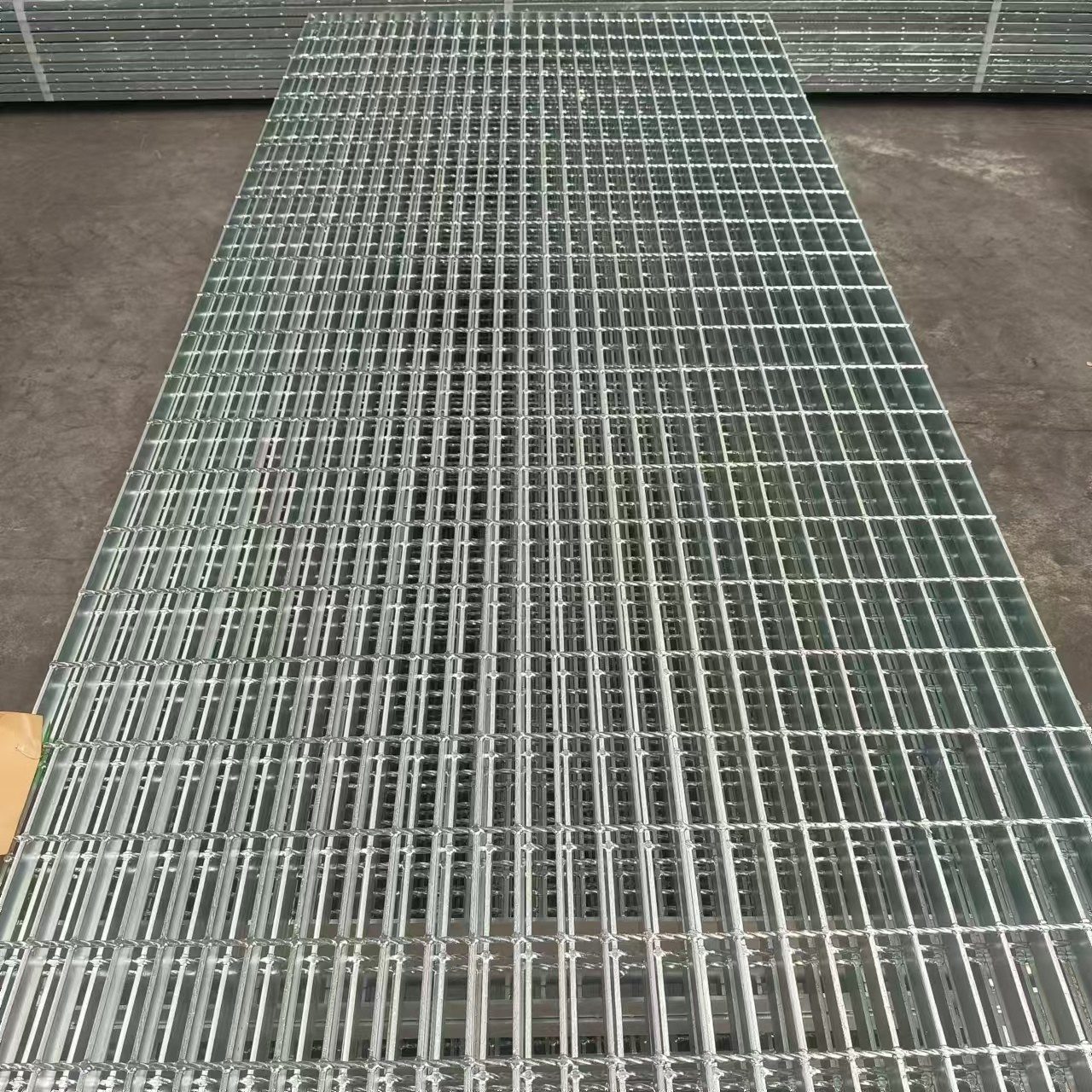

The steel grid plate is an open steel member which is composed of bearing flat steel and cross bar according to certain spacing and fixed by welding or pressure lock. The transverse bar is generally made of twisted square steel, round steel or flat steel, and the material is divided into carbon steel and stainless steel.
Production method of steel grid plate:
The pressure welded steel grid plate is made of load flat steel and cross bar arranged according to certain spacing longitude and latitude, using 200 tons of hydraulic resistance welding automatic equipment to weld into the original plate, through cutting, opening, packaging and other processes.
Load flat steel spacing: the center distance between two adjacent load flat steel, commonly used 30MM, 40MM two.
Bar spacing: The center spacing of two adjacent bars is usually 50MM and 100MM.
