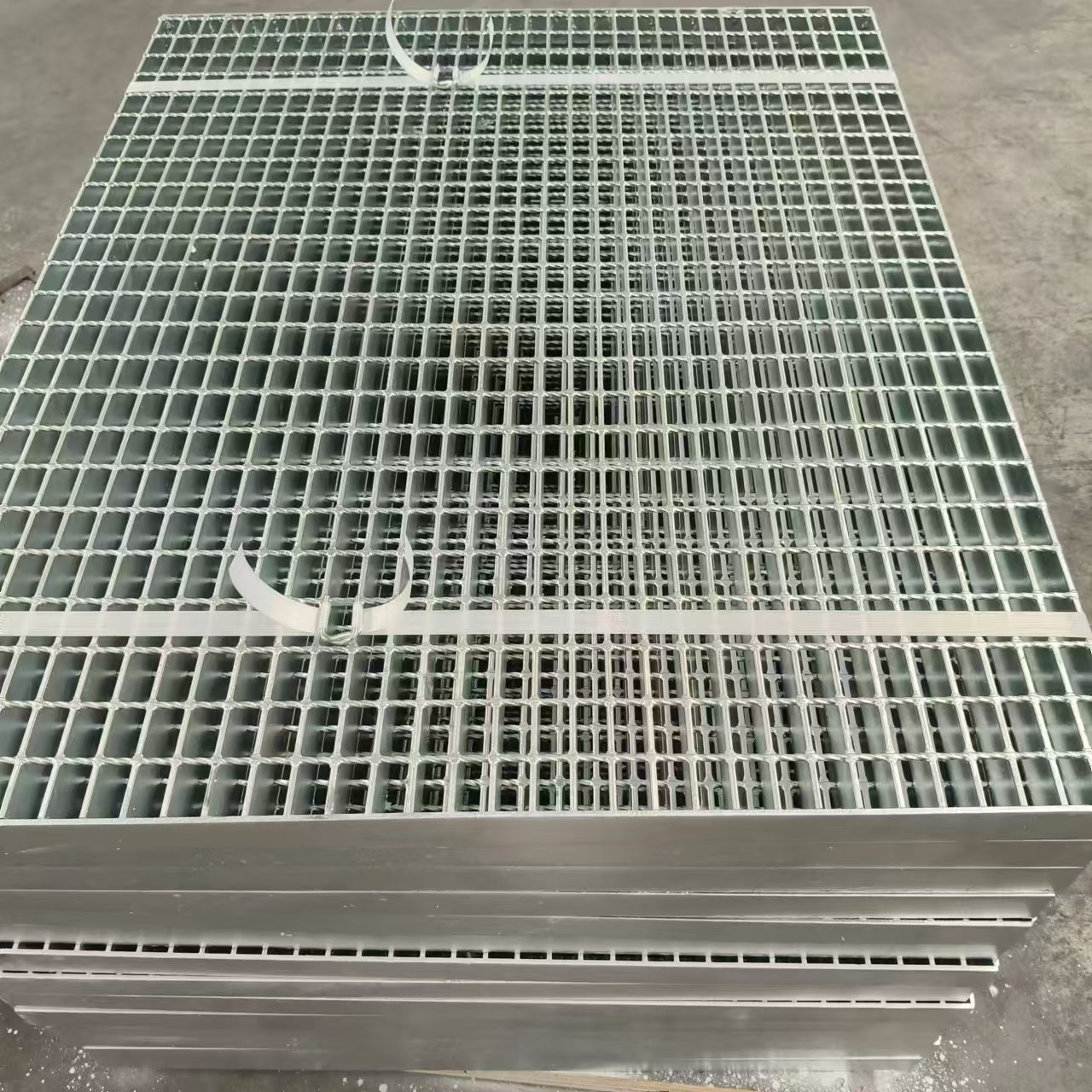

Modular Industrial Steel Grating For Flexible Layouts Adapting To Your Changing Needs
| Place of Origin | Anping China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001:2015 |
| Model Number | TT-2 |
| Minimum Order Quantity | 50m2 |
| Price | Negotiable |

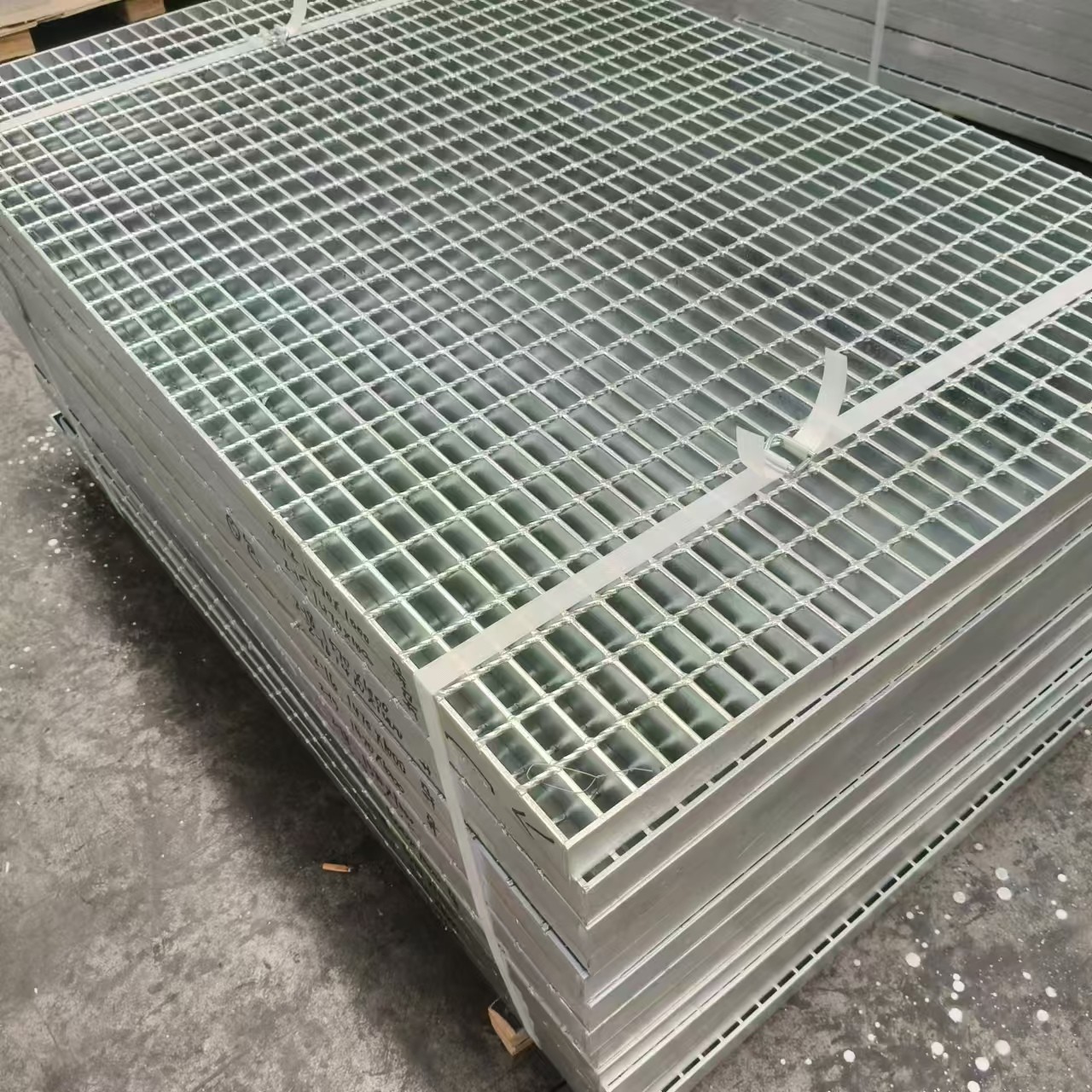

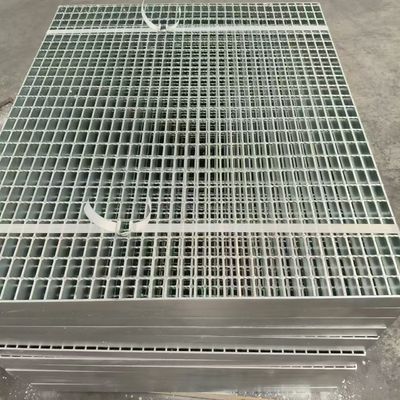

| Packaging Details | Packing Suitable For Export,Also Depend On Customar Decide |
| Delivery Time | 3-5Days,Also Depend On the Quantity |
| Payment Terms | L/C, T/T |
| Supply Ability | 500M2 Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Industrial | Bearing Bar Pitch | 30mm, 40mm, 50mm, Etc |
|---|---|---|---|
| Grating Standard | YB/T4001.1-2007 | Product Category | Industrial Steel Grating |
| Bearing Bar Type | Serrated | Product Name | Customized Thickness And Bar Spacing Industrial Steel Grating |
| Load Bearing Capacity | Heavy Duty | Texture | Stainless Steel |
Product Description
product material Raw materials of steel grid plate are: flat steel, twist steel, pattern plate.

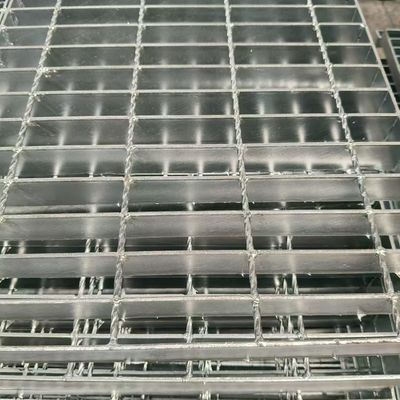

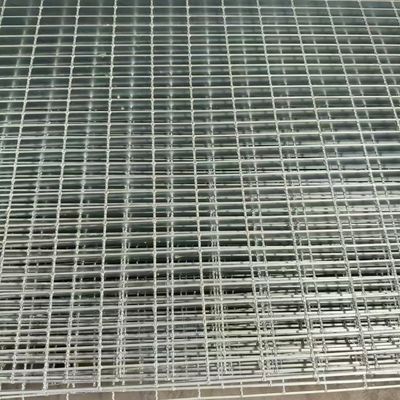

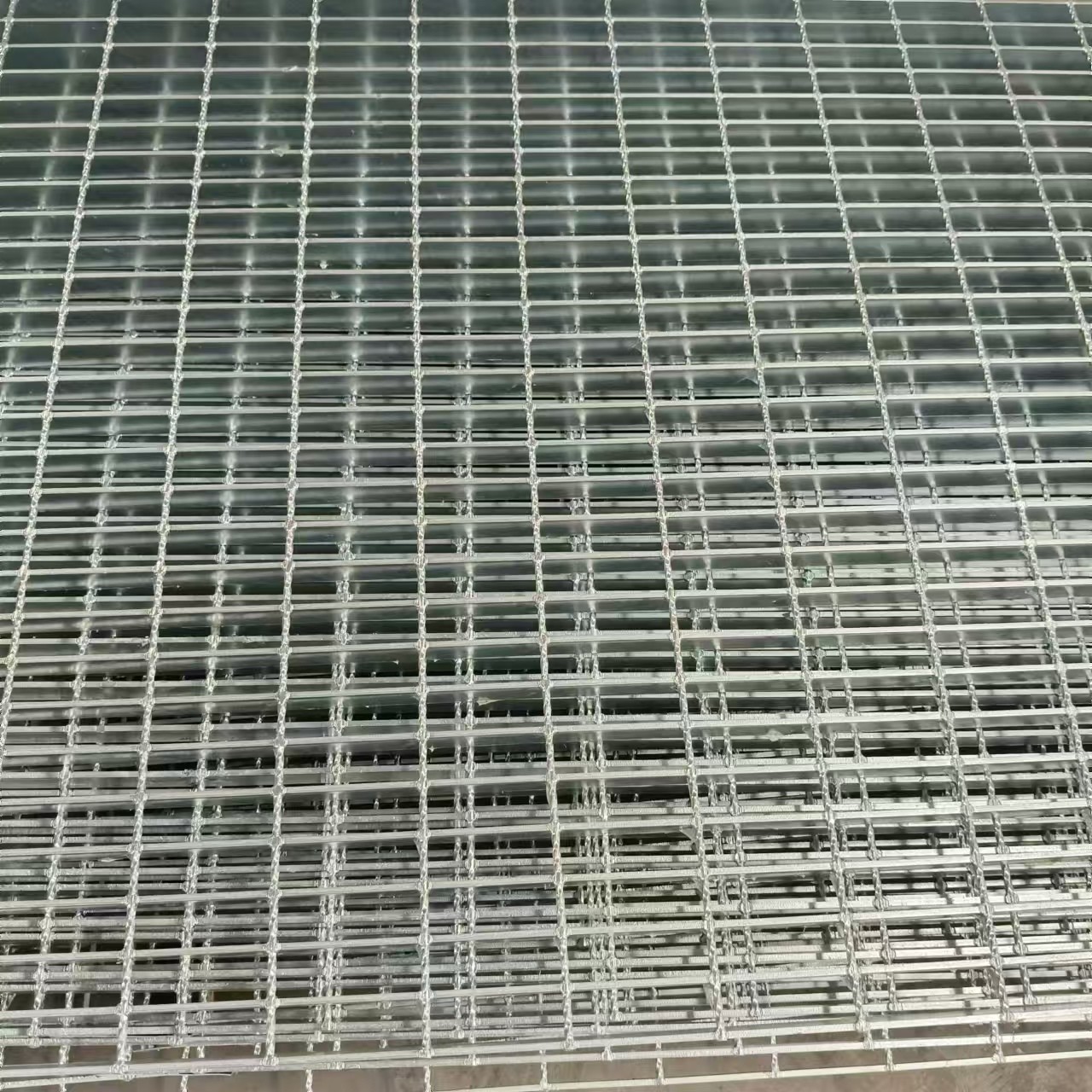

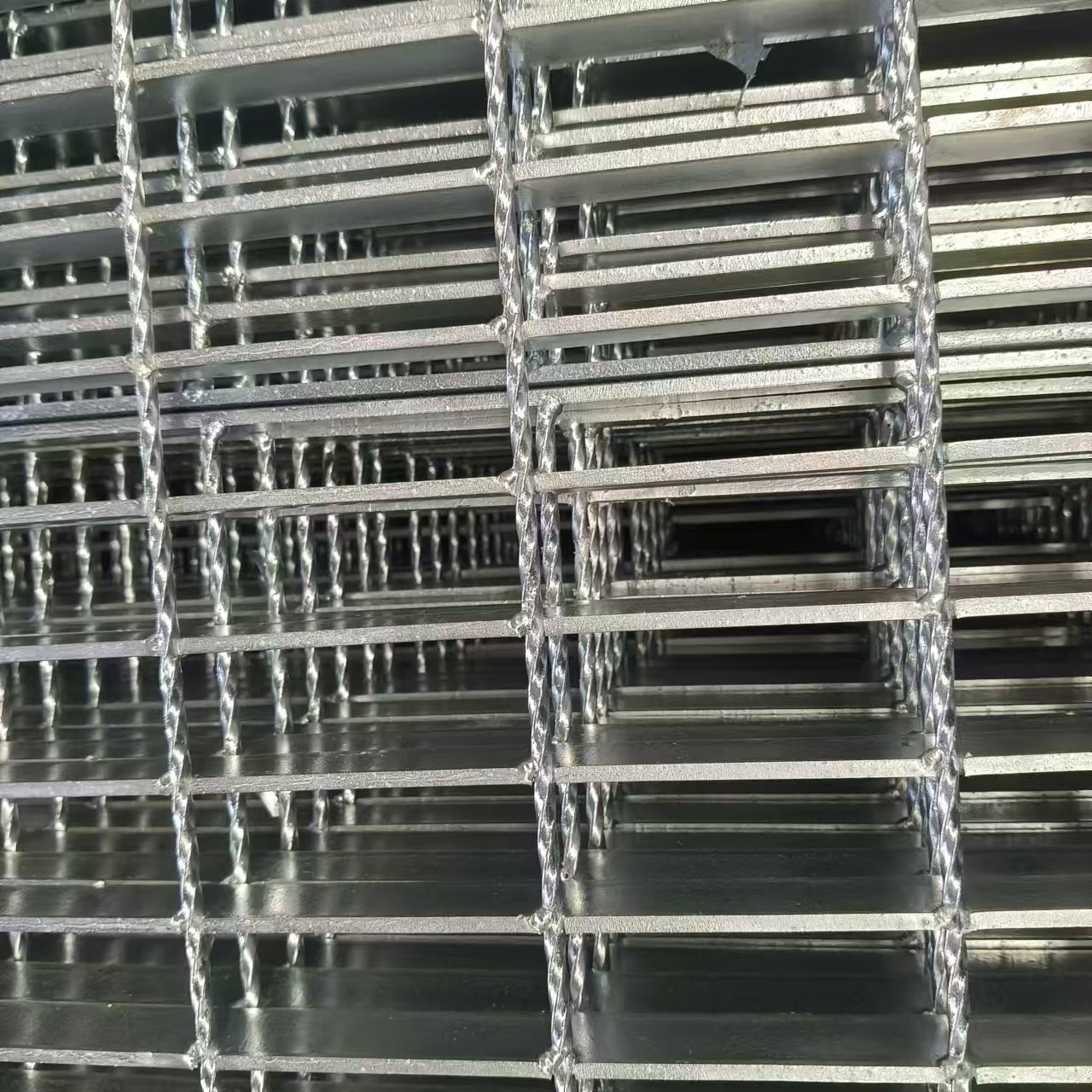

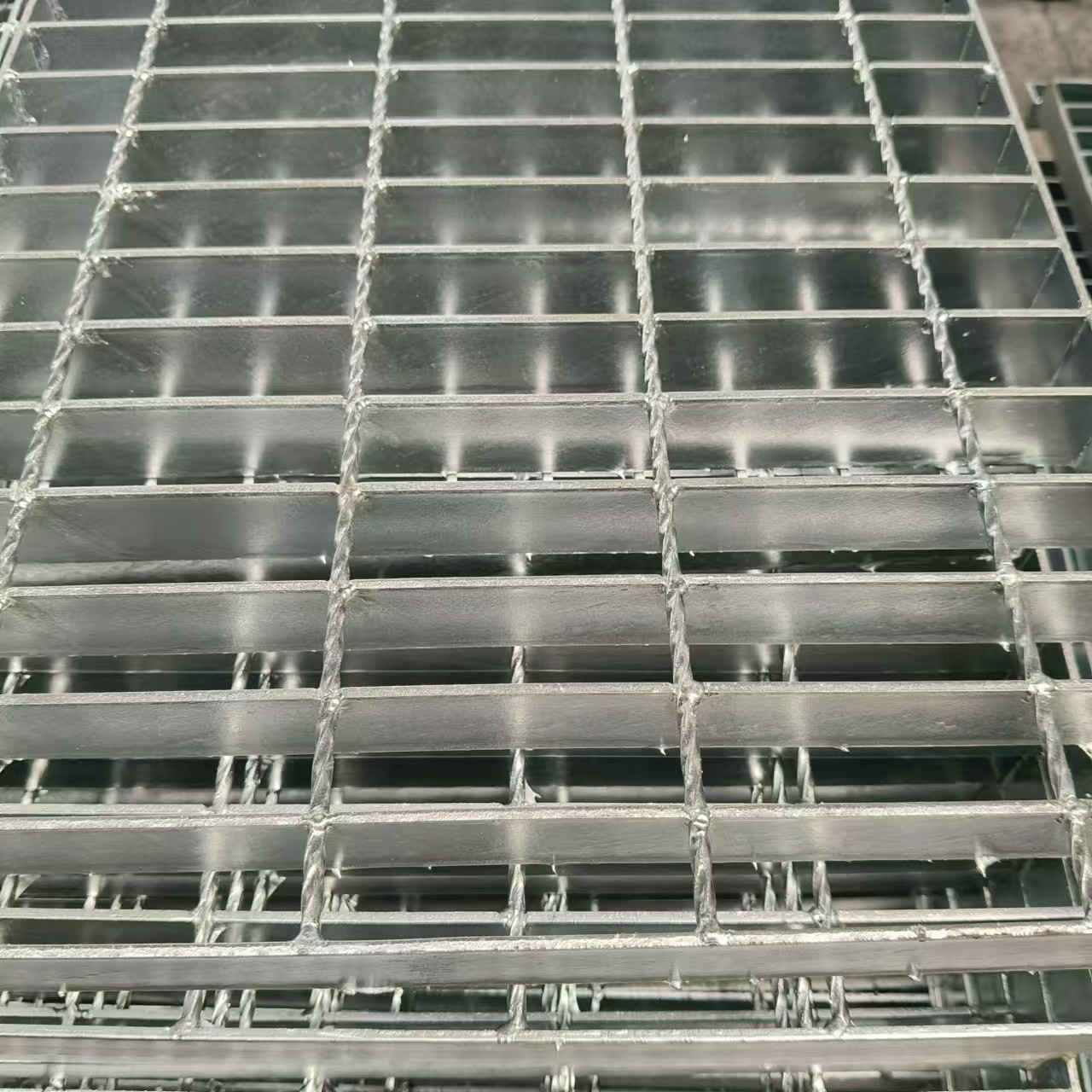

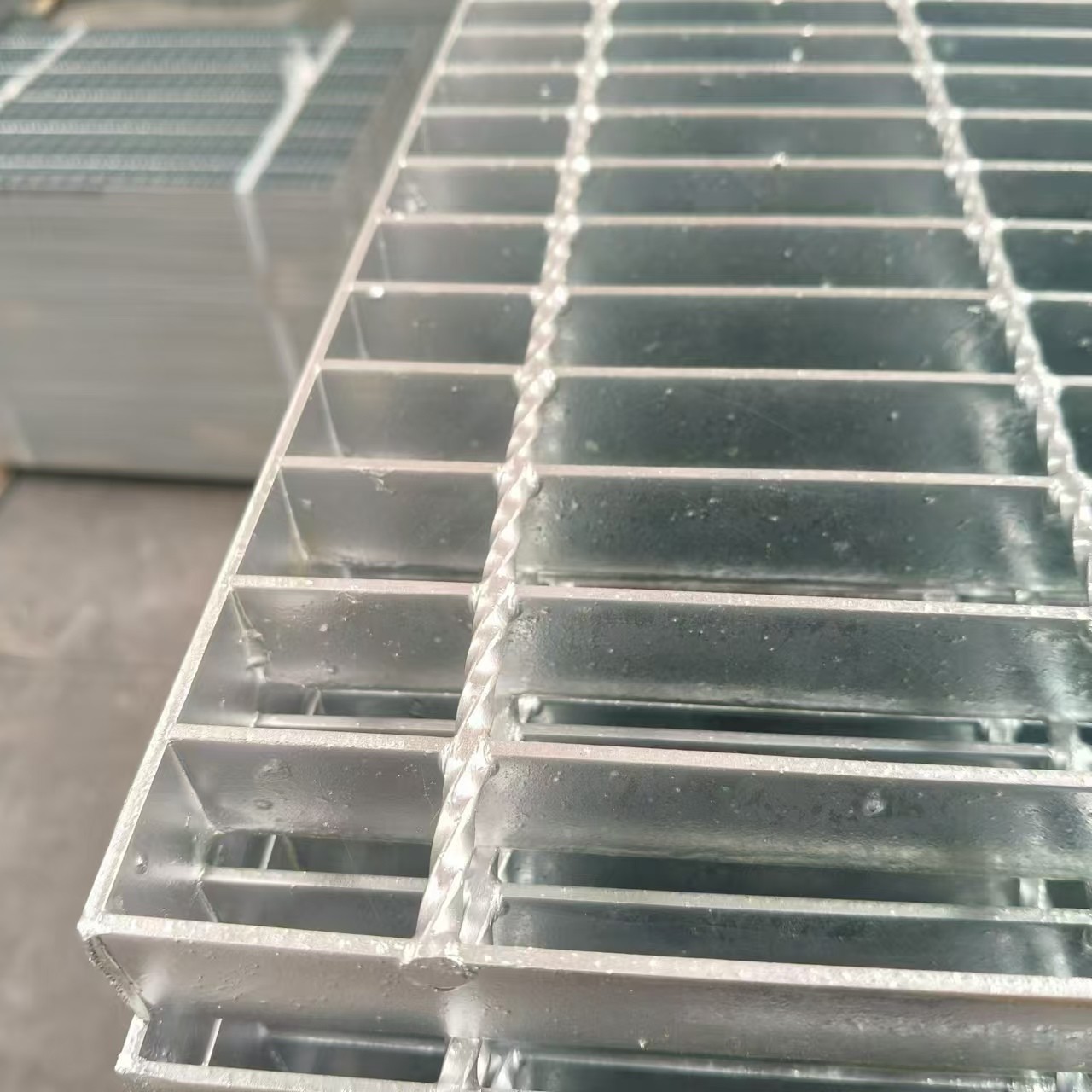

The steel grid plate is an open steel member which is composed of bearing flat steel and cross bar according to certain spacing and fixed by welding or pressure lock. The transverse bar is generally made of twisted square steel, round steel or flat steel, and the material is divided into carbon steel and stainless steel.
Production method of steel grid plate:
The pressure welded steel grid plate is made of load flat steel and cross bar arranged according to certain spacing longitude and latitude, using 200 tons of hydraulic resistance welding automatic equipment to weld into the original plate, through cutting, opening, packaging and other processes.
Load flat steel spacing: the center distance between two adjacent load flat steel, commonly used 30MM, 40MM two.
Bar spacing: The center spacing of two adjacent bars is usually 50MM and 100MM.
| Material | stainless steel grating sheet plate :SS304 SS316 /Galvanized grating steel |
| Bearing bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc |
| Bearing bar pitch | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. |
| Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement. |
| Surface treatment | Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requ irement. |
| Grating Type | Plain/Smooth, Serrated/teeth/bar, serrated/bar |
| Steel Grating Standards | A) USA: ANSI / NAAMM (MBG531-88) B) UK: BS4592-1987 C) Australia: AS1657-1985 |
Dimensions
Material thickness: Common thickness of 2mm, 3mm, 4mm, 5mm and so on. Different thicknesses of steel grids have different bearing capacities and are suitable for different application scenarios.
Size: Width is common 100mm, 150mm, 200mm, 250mm, 300mm, etc. The length is made according to customer requirements, and the general length is between 1 meter and 6 meters. The dimensions of steel grids must be determined according to the actual application scenario.
Grid plate spacing: usually millimeters (mm) as a unit, such as 25mm, 30mm, 40mm and so on. The spacing affects the bearing capacity and anti-skid performance of the steel grid.
Load grade: According to the carrying capacity is divided into different grades, such as A15, B125, C250, etc., representing different carrying capacity. The selection must be based on the load requirements of actual applications.
| Drainage steel grating cover Drainage ditch material |
Steel,Low carbon steel,stainless steel&Q235,A36,SS304,SS316L, S235JR |
| Surface treatment | Black, hot dipped galvanized, paint |
| Bearing bar width*thickness | 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
| Bearing bar pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
| Bearing bar shape |
Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. |
| Drainage steel grating cover drainage ditch standard |
China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JJS. |
| Cross bar shape | round,twisted,bar shape |
| Cross bar pitch | 38,50,76,100,101.6mm |
| Galvanizing standard | US: ASTM (A123), CN: GB/T13912, UK: BS729 |
| Market distribution | America45%,Europe26%,Middle east38%,Other place27% |
