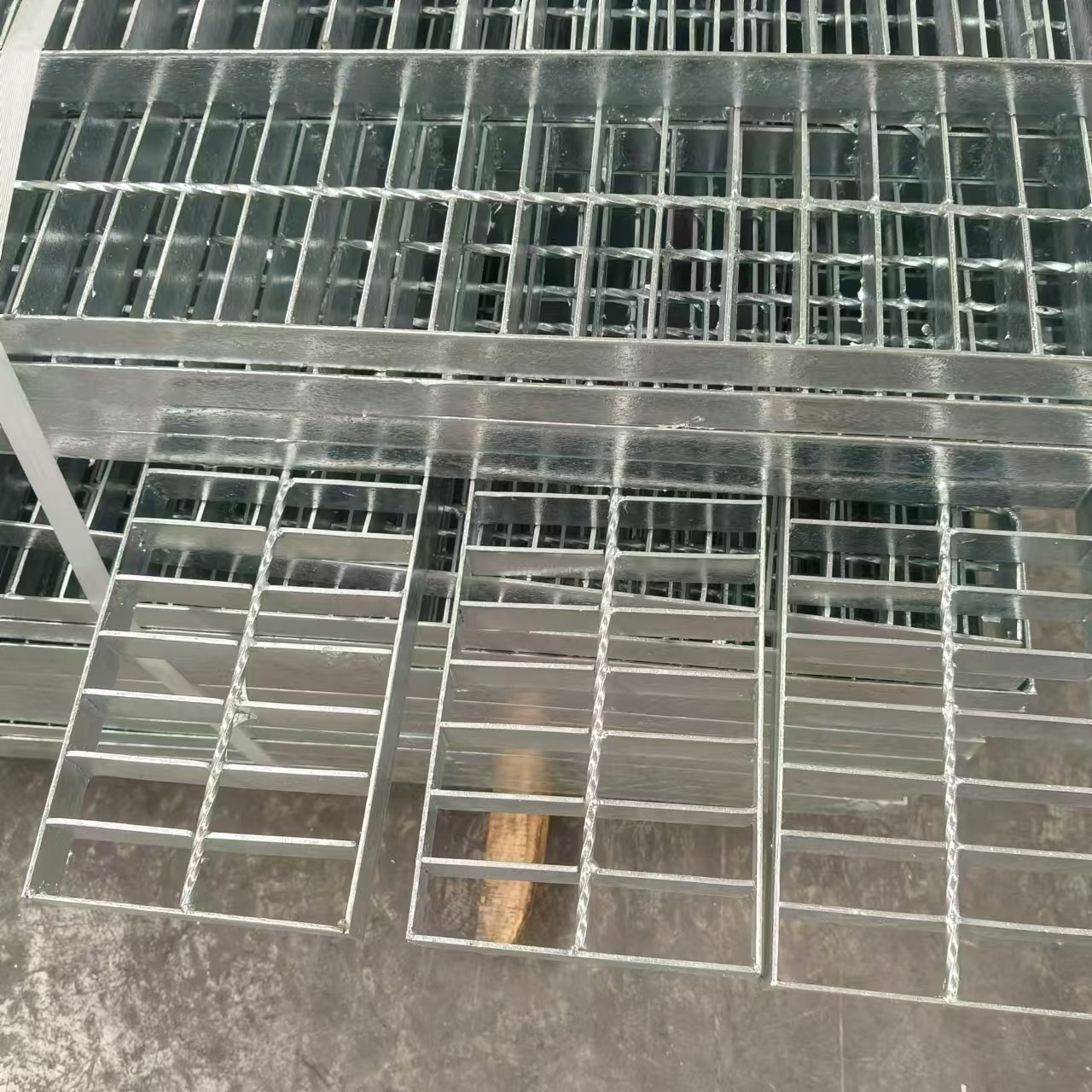

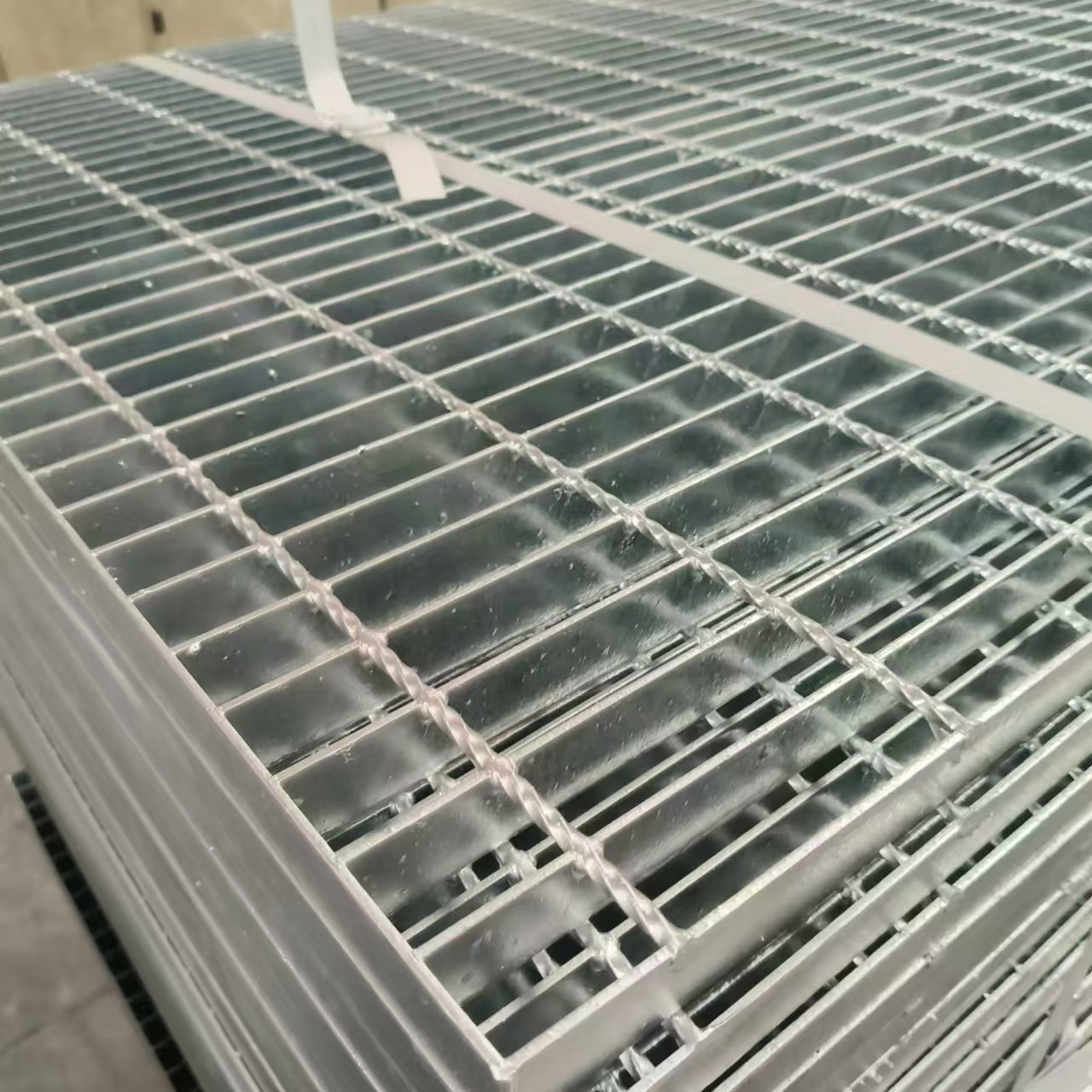

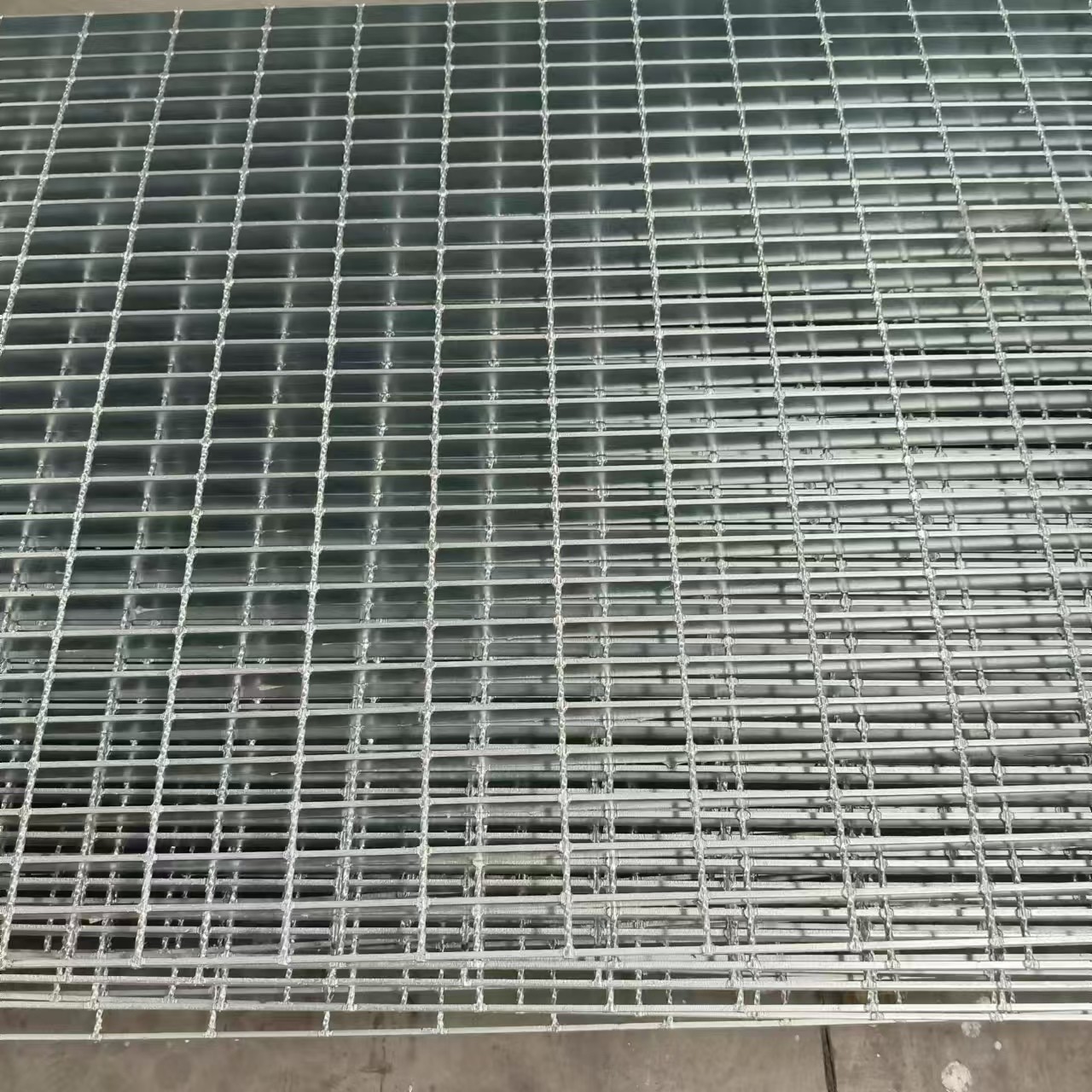

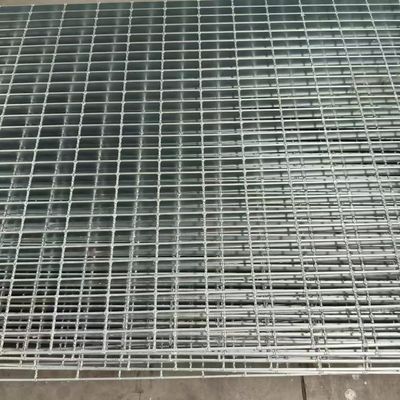

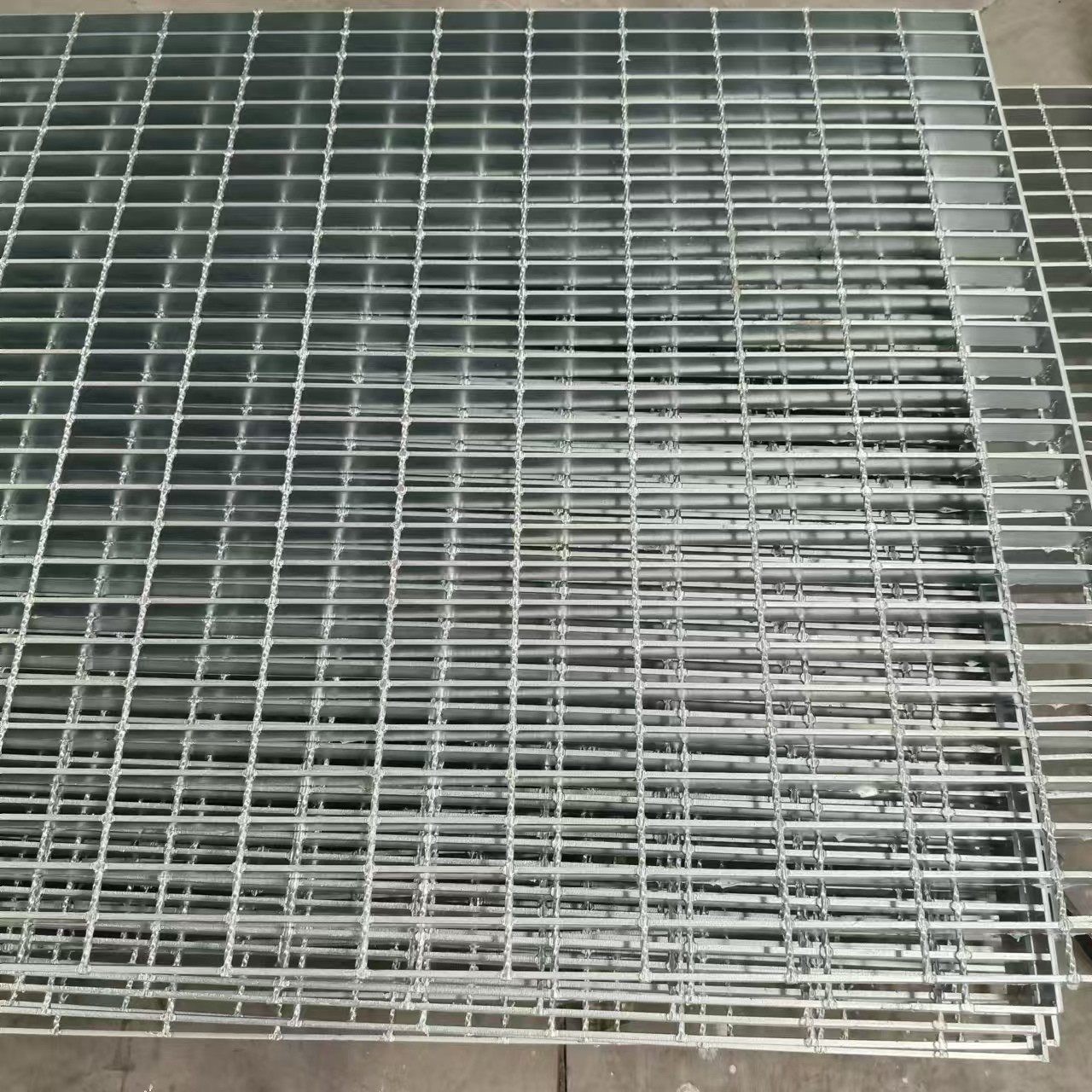

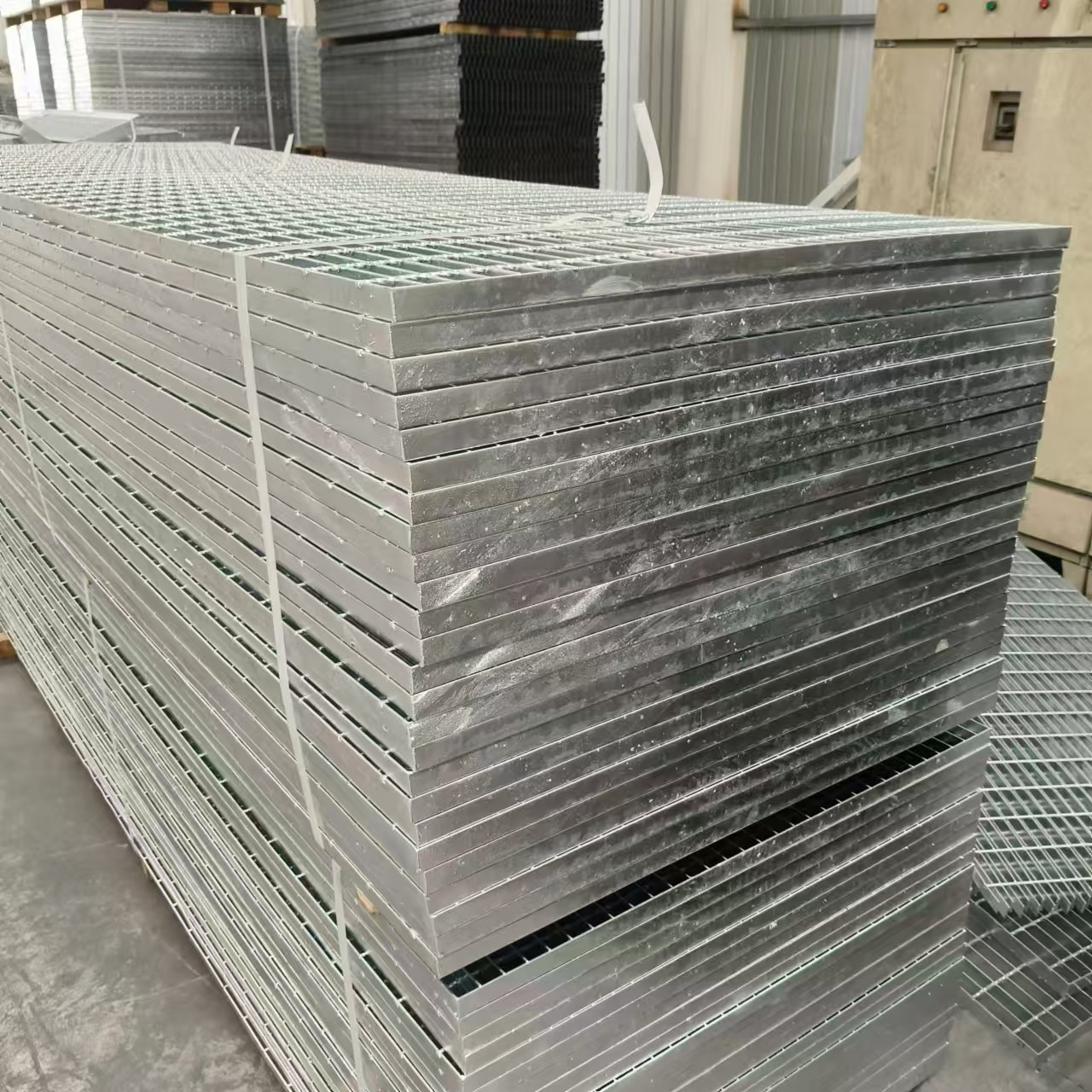

Durable Steel Grating For Outdoor Walkways Withstanding Weather And Foot Traffic
| Place of Origin | Anping China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001:2015 |
| Model Number | TT-2 |
| Minimum Order Quantity | 50m2 |
| Price | Negotiable |
| Packaging Details | Packing Suitable For Export,Also Depend On Customar Decide |
| Delivery Time | 3-5Days,Also Depend On the Quantity |
| Payment Terms | L/C, T/T |
| Supply Ability | 500M2 Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Industrial | Bearing Bar Pitch | 30mm, 40mm, 50mm, Etc |
|---|---|---|---|
| Grating Standard | YB/T4001.1-2007 | Product Category | Industrial Steel Grating |
| Bearing Bar Type | Serrated | Product Name | Customized Thickness And Bar Spacing Industrial Steel Grating |
| Load Bearing Capacity | Heavy Duty | Texture | Stainless Steel |
Product Description
| Common Specification of Steel Grating | |
|
Bearing Bar (Width x Thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 11/2''x1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Surface Treatment | Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement. |
| Grating Style | Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar |
| Packing | (1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
| Payment Term | T/T, L/C, Western Union, Credit Card, Alibaba Trade Assurance |
| We can supply according to your specification (OEM & ODM) | |
product technology
The production of steel grid plate mainly has two kinds of machine pressure welding and manual production. Machine pressure welding using high voltage resistance pressure welding machine, through strong electric welding power and liquid pressure to press the transverse rod into the flat steel, to ensure that the solder joint is strong, stable and strong. Handmade, on the other hand, is relatively flexible and suitable for various special needs.product diversity
Steel grid plate, also known as grid plate or grid plate, is a plate made of steel with a mesh structure. It is mainly composed of flat steel and horizontal rods (such as twisted square steel, round steel, etc.) arranged and welded at a certain distance. Steel grid plate is usually made of carbon steel, the surface of hot-dip galvanized treatment to prevent oxidation, but also can be made of stainless steel to meet different environmental needs.
| Material | low carbon steel, stainless steel |
| Shape of bearing steel | flat steel, serrated steel |
| Shape of cross bar | twist steel, flat steel, round steel, square steel |
|
Welding methods |
1. Hand-operated welding PS: proper to small amount of order |
|
2. Machine welding PS: proper to large amount of order |
|
| Surface treatment |
hot-dipped galvanization, cold galvanization, painting, anti-rust oil |
|
Features |
ventilation, transmittance, skid resistance, reinforced bearing, cooling, explosive proof, tough, simple installment |
|
Applications |
NF-SGG; Foot pedal in steel-constructed platform & steel stairway; Industrial platform; Stairs; Hand rail; Floor; Railway pavements; Scaffolding in high altitude; Gutter cover, well cover; PS: widely used in metallurgy, building material, boiler, shipbuilding, chemical industry, workshop, construction work
|
