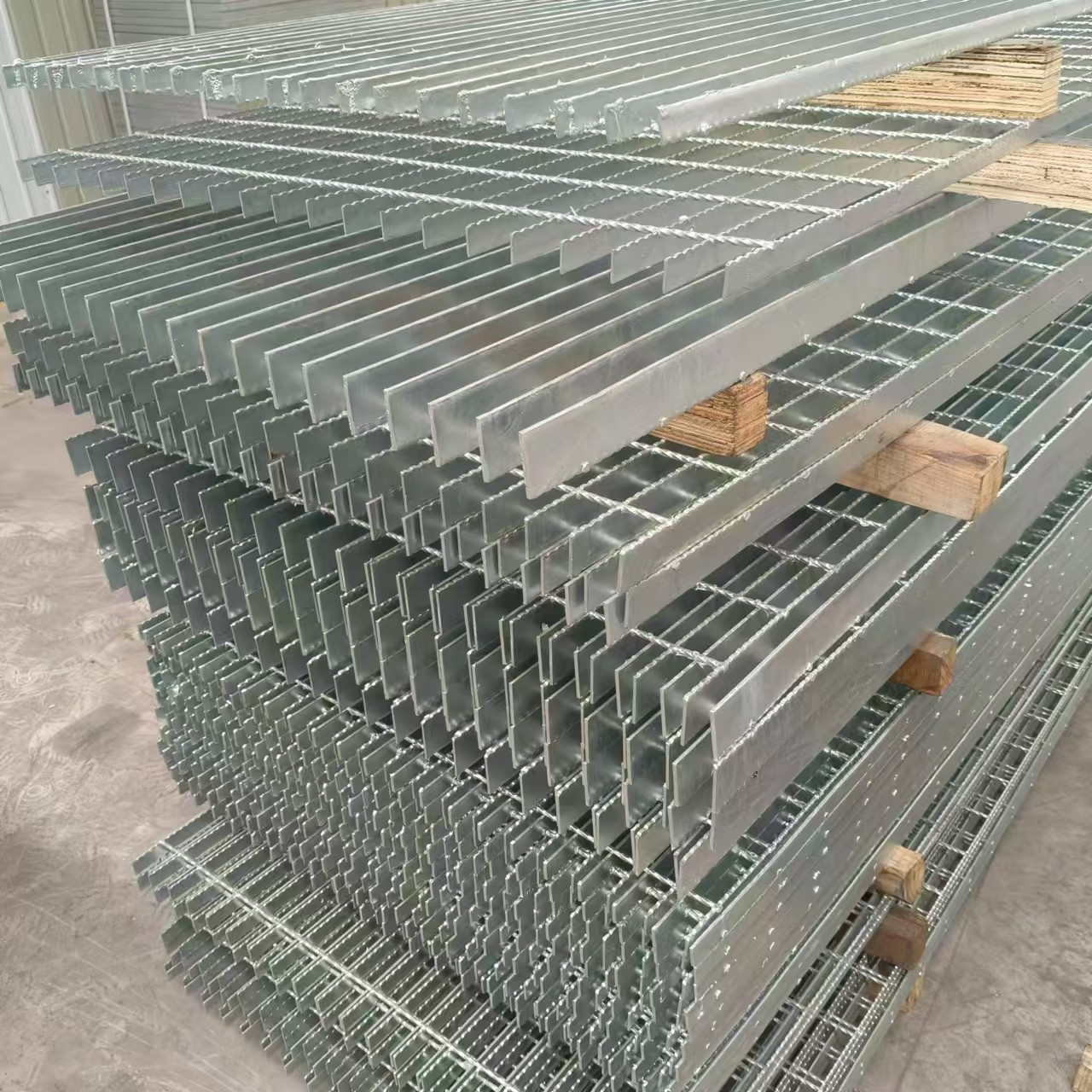

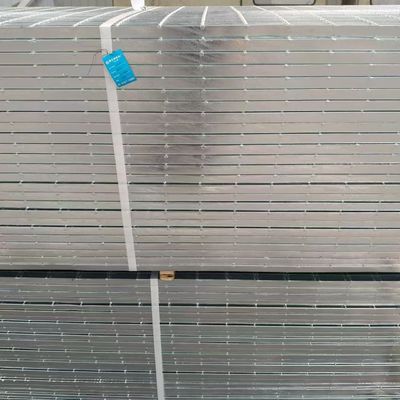

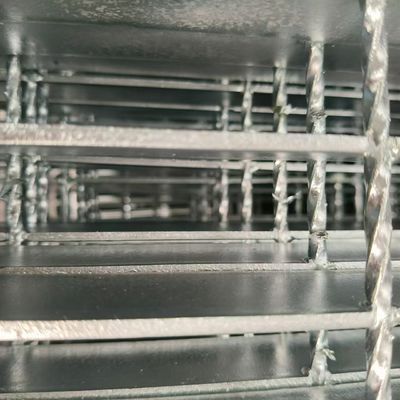

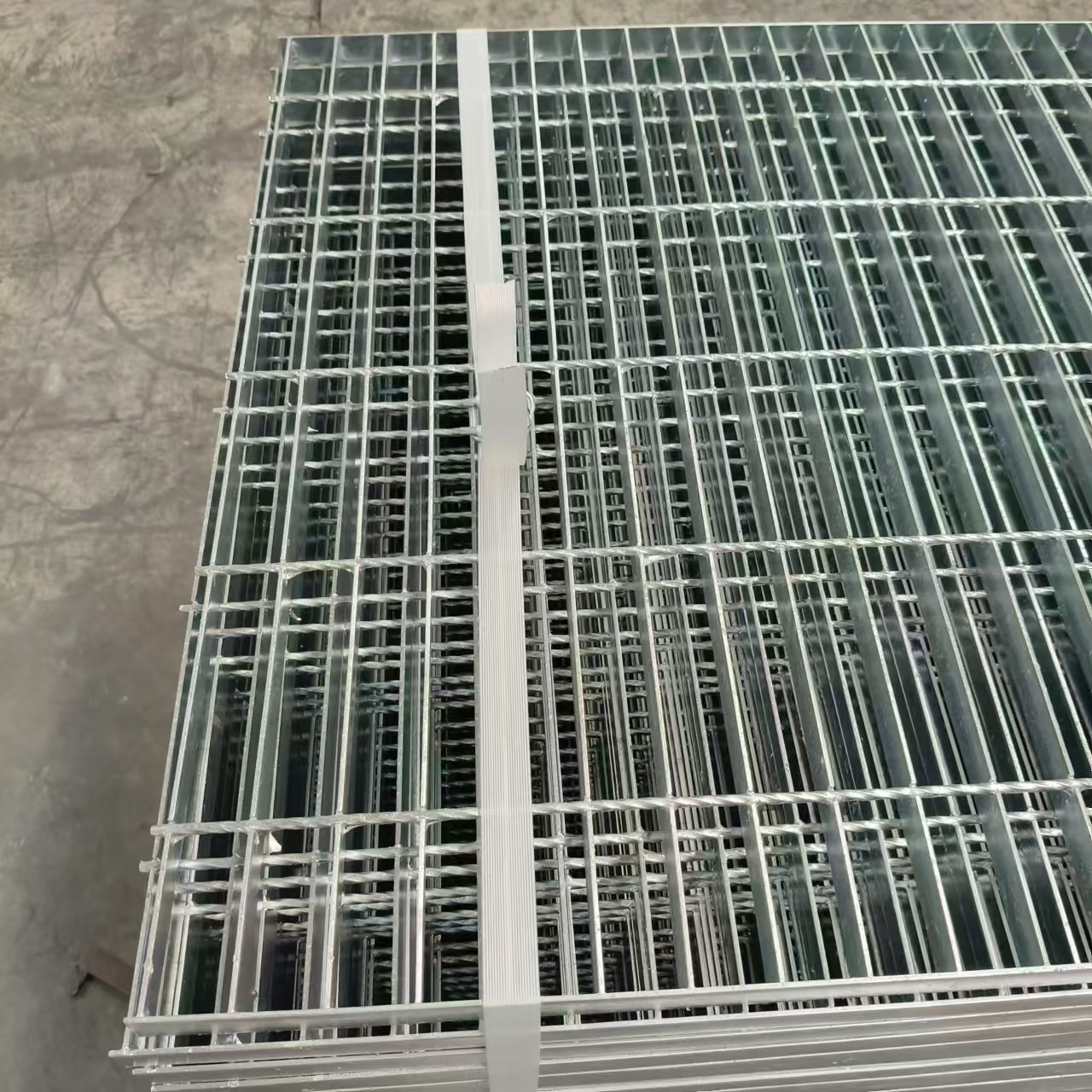

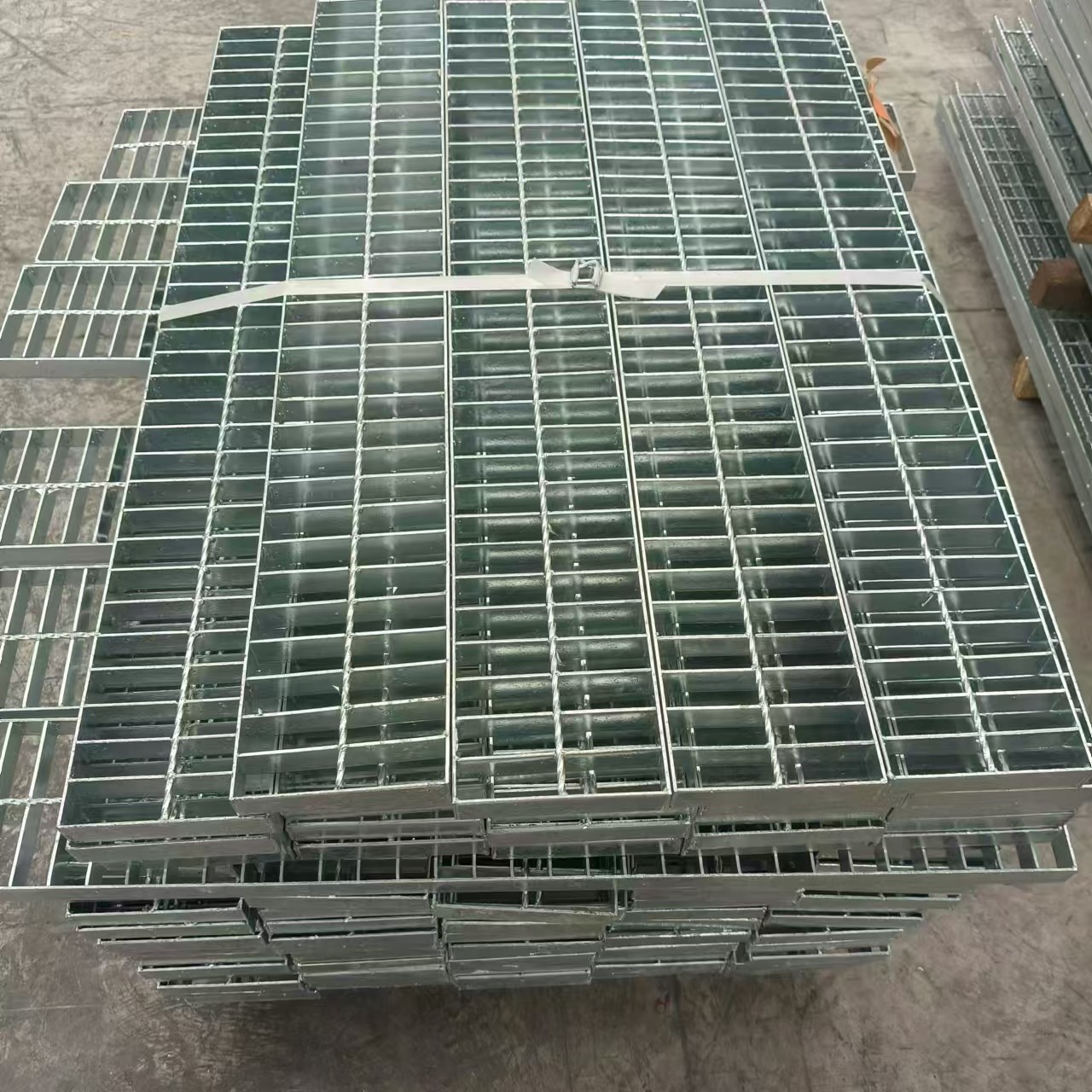

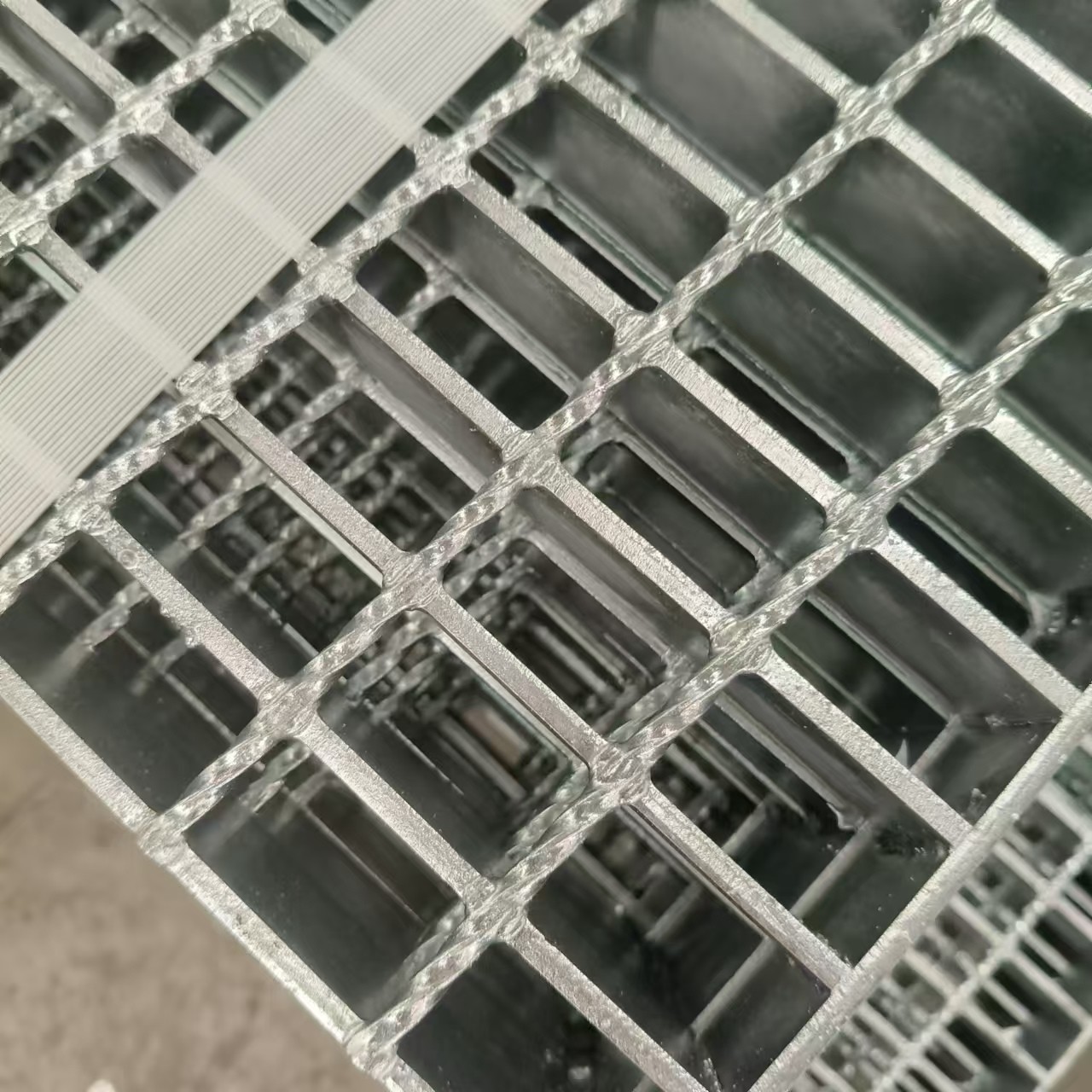

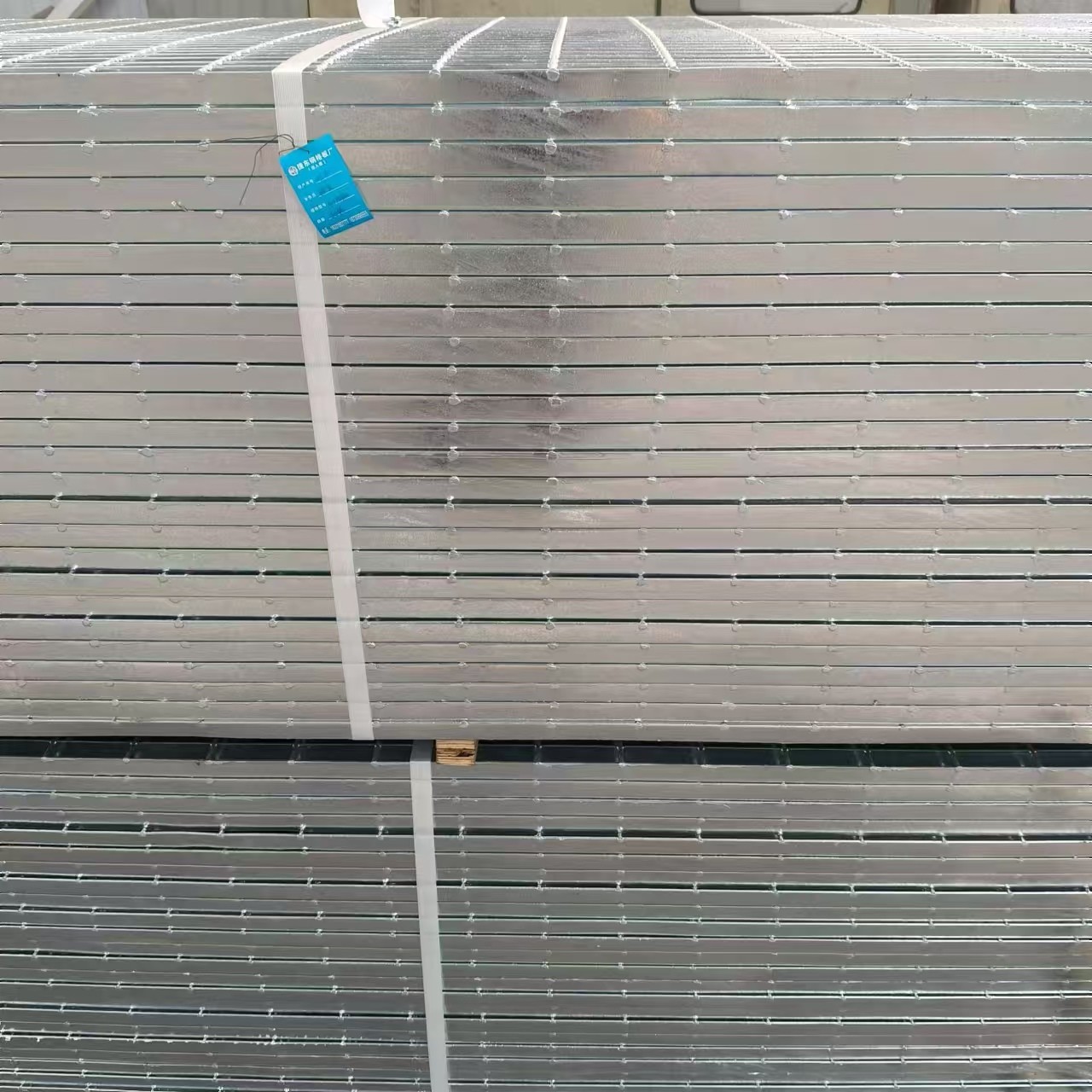

Aesthetic Catwalk Steel Grating Platform 316 Stainless
| Place of Origin | Anping China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001:2015 |
| Model Number | TT-2 |
| Minimum Order Quantity | 50m2 |
| Price | Negotiable |
| Packaging Details | Packing Suitable For Export,Also Depend On Customar Decide |
| Delivery Time | 3-5Days,Also Depend On the Quantity |
| Payment Terms | L/C, T/T |
| Supply Ability | 500M2 Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Industrial | Bearing Bar Pitch | 30mm, 40mm, 50mm, Etc |
|---|---|---|---|
| Grating Standard | YB/T4001.1-2007 | Product Category | Industrial Steel Grating |
| Bearing Bar Type | Serrated | Product Name | Customized Thickness And Bar Spacing Industrial Steel Grating |
| Load Bearing Capacity | Heavy Duty | Texture | Stainless Steel |
| Highlight | 316 Stainless Steel Grating Platform,Aesthetic Steel Grating Platform,Catwalk Steel Grating Platform |
||
Product Description
| Name | Steel Grating |
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS |
understand the product
Steel grid is a kind of gridded metal products made of steel, usually made of flat steel, twisted steel and ring steel and other materials through pressure welding, spot welding, hand weaving and other production processes. The commonly used steel grid plate is low carbon steel, stainless steel, aluminum alloy and copper and other metal materials. Among them, mild steel is the most common. Steel grids of different materials have different characteristics and application scenarios. Steel grid plate has the characteristics of high strength, anti-slip, anti-corrosion and beautiful appearance. As a new type of engineering material, steel grid plate is mainly used as industrial platform, trestle, bridge, highway guardrail, ditch cover plate, fence and other facilities in metallurgy, energy, shipbuilding, municipal, petrochemical, transportation, building materials, national defense and other fields. At present, China's annual demand for steel grid plate is about 270,000 tons, so the market prospect of steel grid plate is very broad.service aim
Carefully produce every piece of steel grid plate, emphasizing the principle of integrity first. For the needs of customers to do their best to meet, to ensure that everyone buy the rest of the peace of mind.Carefully select raw materials, for each processing procedure of the product are strictly checked to ensure that the products sent to the hands of customers are durable and beautiful appearance so that more people choose our products
product diversity
Steel grid plate, also known as grid plate or grid plate, is a plate made of steel with a mesh structure. It is mainly composed of flat steel and horizontal rods (such as twisted square steel, round steel, etc.) arranged and welded at a certain distance. Steel grid plate is usually made of carbon steel, the surface of hot-dip galvanized treatment to prevent oxidation, but also can be made of stainless steel to meet different environmental needs.
