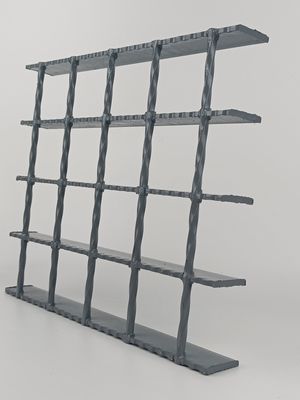

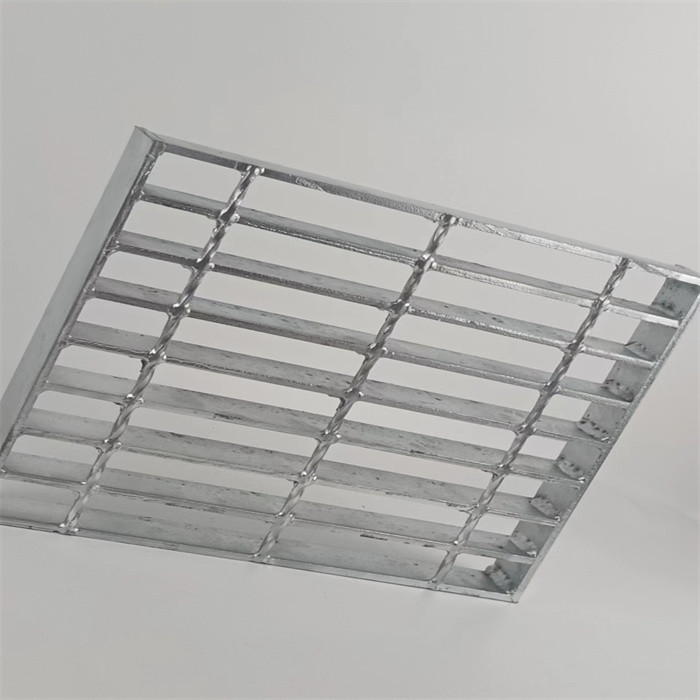

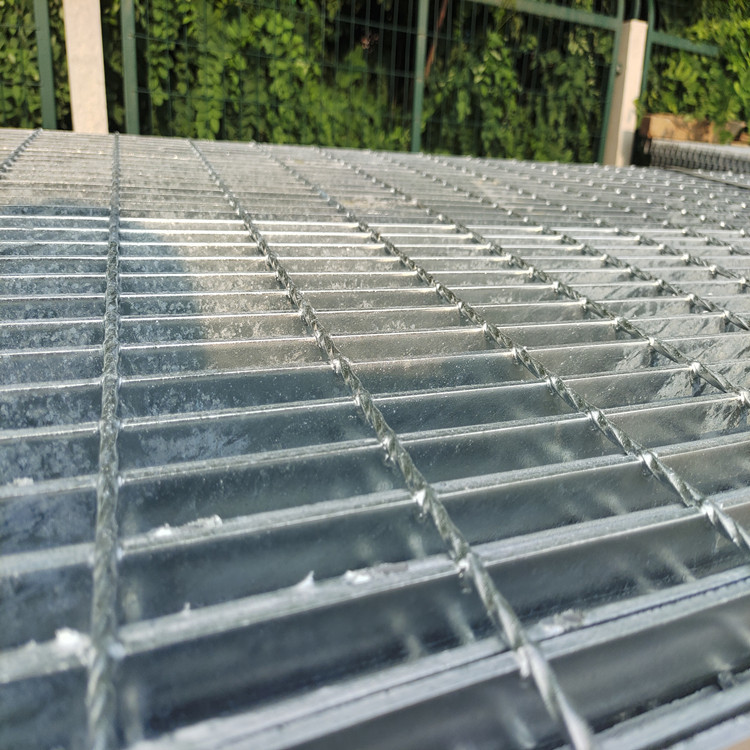

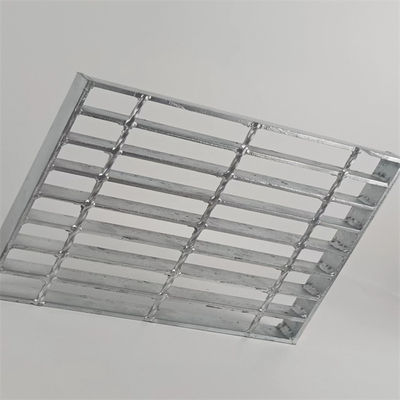

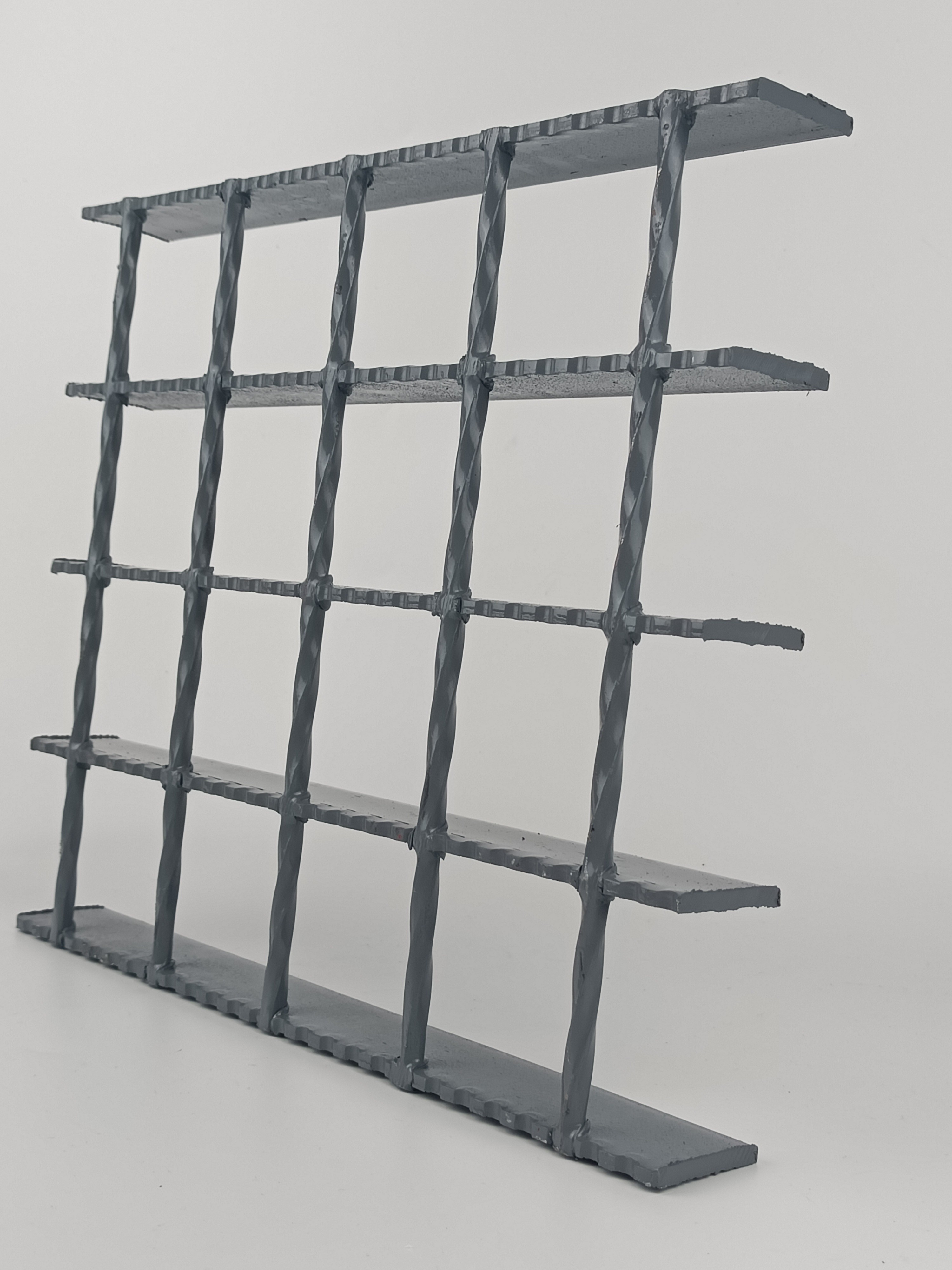

Customizable Construction Sites serrated steel bar grating Resistant Corrosion
| Place of Origin | Anping China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001:2015 |
| Model Number | TT-2 |
| Minimum Order Quantity | 50m2 |
| Price | Negotiable |
| Packaging Details | Packing Suitable For Export,Also Depend On Customar Decide |
| Delivery Time | 3-5Days,Also Depend On the Quantity |
| Payment Terms | L/C, T/T |
| Supply Ability | 500M2 Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Industrial | Bearing Bar Pitch | 30mm, 40mm, 50mm, Etc |
|---|---|---|---|
| Grating Standard | YB/T4001.1-2007 | Product Category | Industrial Steel Grating |
| Bearing Bar Type | Serrated | Product Name | Customized Thickness And Bar Spacing Industrial Steel Grating |
| Load Bearing Capacity | Heavy Duty | Texture | Stainless Steel |
| Highlight | Resistant Corrosion serrated steel bar grating,Customizable serrated steel bar grating,Construction Sites serrated steel bar grating |
||
Product Description
product technology
The production of steel grid plate mainly has two kinds of machine pressure welding and manual production. Machine pressure welding using high voltage resistance pressure welding machine, through strong electric welding power and liquid pressure to press the transverse rod into the flat steel, to ensure that the solder joint is strong, stable and strong. Handmade, on the other hand, is relatively flexible and suitable for various special needs.
| Name | Steel Grating |
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |

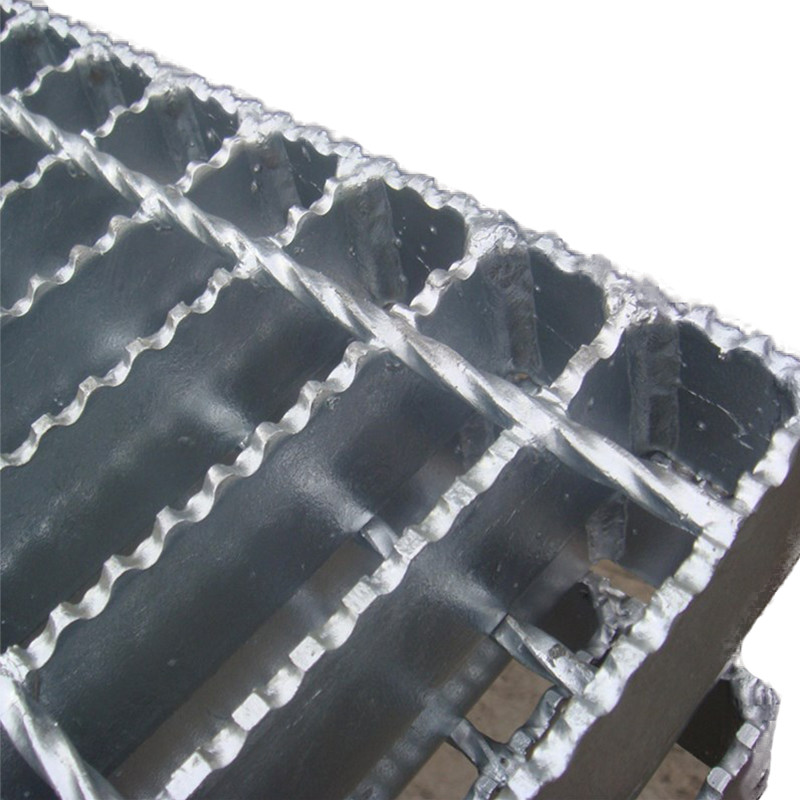

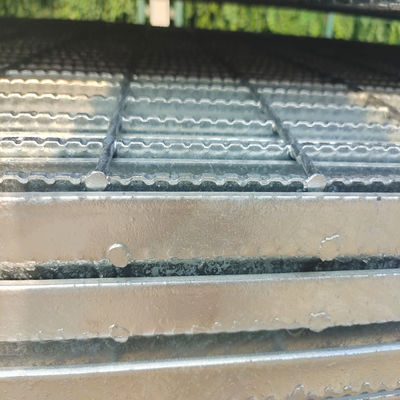

| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JI |
| item | Galvanized Stainless Fence Drainage Channel Serrated Steel Bar Steel Grating |
| Warranty | More than 5 years |
| Surface | galvanized |
| Style | Plain sheet,Serrated sheet,I type sheet |
| Usage | Industrial platform, Corridor laying, Ditch cover plate, Fence, etc |
| Bearing bar pitch | Custom:12.5-90mm Routine use:20mm 30mm 40mm |
| Cross bar pitch | Custom:22-100mm Routine use:50mm 100mm |
| Thickness | Custom:3-10mm Routine use:3mm 4mm 5mm |
| Weld way | Automatic pressure resistance welding |
Dimensions

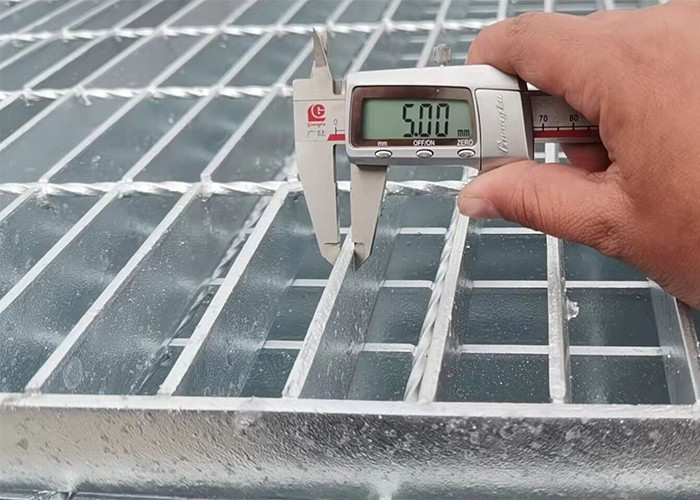

Material thickness: Common thickness of 2mm, 3mm, 4mm, 5mm and so on. Different thicknesses of steel grids have different bearing capacities and are suitable for different application scenarios.
Size: Width is common 100mm, 150mm, 200mm, 250mm, 300mm, etc. The length is made according to customer requirements, and the general length is between 1 meter and 6 meters. The dimensions of steel grids must be determined according to the actual application scenario.
Grid plate spacing: usually millimeters (mm) as a unit, such as 25mm, 30mm, 40mm and so on. The spacing affects the bearing capacity and anti-skid performance of the steel grid.
Load grade: According to the carrying capacity is divided into different grades, such as A15, B125, C250, etc., representing different carrying capacity. The selection must be based on the load requirements of actual applications.
