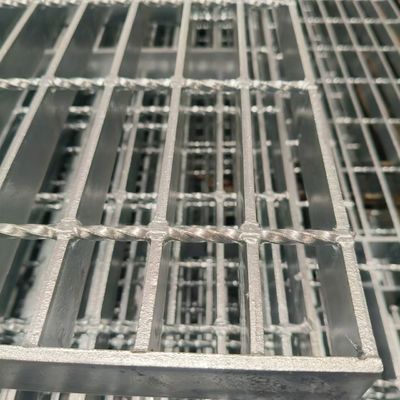

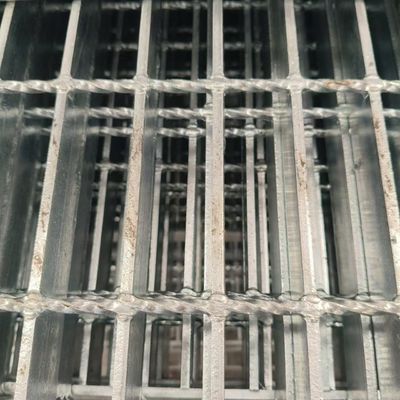

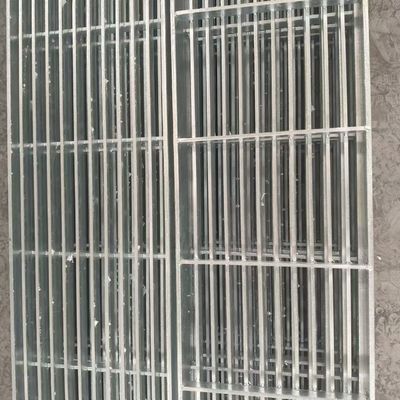

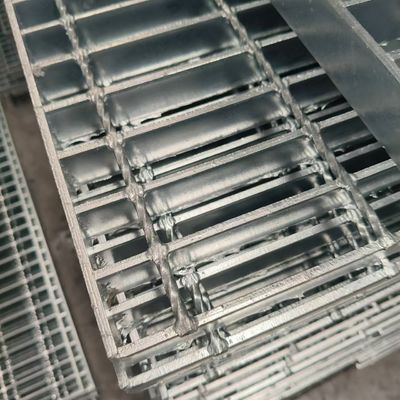

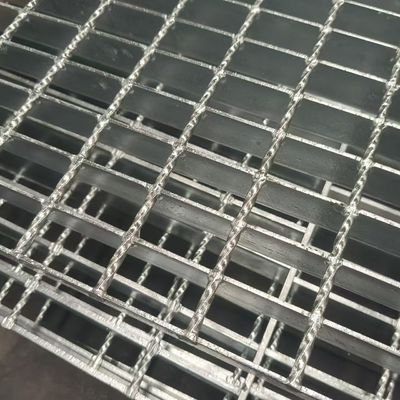

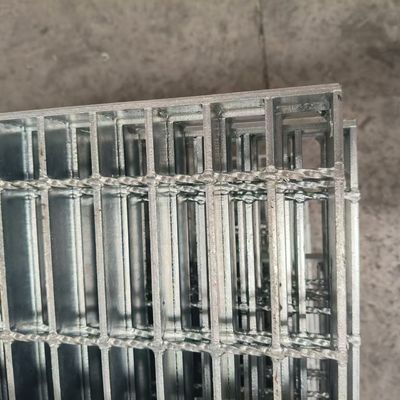

Strong Cold Resistance stainless steel grating Reasonable Frame Good Anti Slip For Cold Areas
| Place of Origin | Anping China |
|---|---|
| Brand Name | TT |
| Certification | ISO9001:2015 |
| Model Number | TT-2 |
| Minimum Order Quantity | 50m2 |
| Price | Negotiable |
| Packaging Details | Packing Suitable For Export,Also Depend On Customar Decide |
| Delivery Time | 3-5Days,Also Depend On the Quantity |
| Payment Terms | L/C, T/T |
| Supply Ability | 500M2 Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Industrial | Bearing Bar Pitch | 30mm, 40mm, 50mm, Etc |
|---|---|---|---|
| Grating Standard | YB/T4001.1-2007 | Product Category | Industrial Steel Grating |
| Bearing Bar Type | Serrated | Product Name | Customized Thickness And Bar Spacing Industrial Steel Grating |
| Load Bearing Capacity | Heavy Duty | Texture | Stainless Steel |
| Highlight | Reasonable Frame stainless steel grating,Anti Slip stainless steel grating,Cold Resistance stainless steel grating |
||
Product Description
| Drainage steel grating cover Drainage ditch material |
Steel,Low carbon steel,stainless steel&Q235,A36,SS304,SS316L, S235JR |
| Surface treatment | Black, hot dipped galvanized, paint |
| Bearing bar width*thickness | 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
| Bearing bar pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
| Bearing bar shape |
Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. |
| Drainage steel grating cover drainage ditch standard |
China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JJS. |
| Cross bar shape | round,twisted,bar shape |
| Cross bar pitch | 38,50,76,100,101.6mm |
| Galvanizing standard | US: ASTM (A123), CN: GB/T13912, UK: BS729 |
| Market distribution | America45%,Europe26%,Middle east38%,Other place27% |
product technology
The production of steel grid plate mainly has two kinds of machine pressure welding and manual production. Machine pressure welding using high voltage resistance pressure welding machine, through strong electric welding power and liquid pressure to press the transverse rod into the flat steel, to ensure that the solder joint is strong, stable and strong. Handmade, on the other hand, is relatively flexible and suitable for various special needs.
| Name | Steel Grating |
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JI |
service aim
Carefully produce every piece of steel grid plate, emphasizing the principle of integrity first. For the needs of customers to do their best to meet, to ensure that everyone buy the rest of the peace of mind.Carefully select raw materials, for each processing procedure of the product are strictly checked to ensure that the products sent to the hands of customers are durable and beautiful appearance so that more people choose our products
