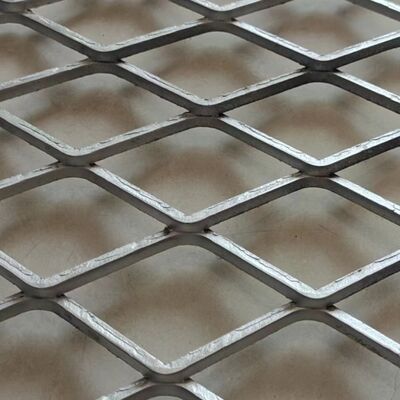

An Customizable and Durable Expanded Metal Mesh with Multi-Material Options, Color Variations and Multi-Industry Applications

1. Product Features

1.1 Specifications

• Mesh Size: Common mesh sizes range from 3mm×6mm to 50mm×100mm (long way × short way). The mesh opening can be adjusted according to actual requirements, with smaller meshes for filtering and larger meshes for ventilation and protection.
• Sheet Thickness: The thickness of the base metal sheet is 0.3mm to 6.0mm. Thinner sheets are suitable for light-duty scenarios such as decoration, while thicker sheets are used for heavy-duty protection and load-bearing purposes.
• Mesh Width & Length: Standard width is 1000mm to 2000mm, and standard length is 2000mm to 6000mm. Customized width and length can be provided according to customer orders.

1.2 Material

• Mild Steel (Q235): The most commonly used material, featuring high strength, good ductility, and low cost. Suitable for general industrial and architectural scenarios such as fencing, platforms, and walkways.
• Stainless Steel (304/316): Corrosion-resistant, rust-proof, and high-temperature resistant. Ideal for harsh environments such as chemical plants, food processing, coastal areas, and medical equipment.
• Aluminum Alloy: Lightweight, corrosion-resistant, and easy to process. Suitable for decorative purposes, aerospace, and automotive industries where weight reduction is required.
• Galvanized Steel: Mild steel with hot-dip galvanizing or electro-galvanizing treatment, which enhances corrosion resistance and extends service life. Widely used in outdoor fencing, agricultural greenhouses, and transportation facilities.

1.3 Color

• Natural Color: The original color of the base material, such as the silver color of stainless steel, the gray color of mild steel, and the light silver color of aluminum alloy.
• Galvanized Color: Silver-gray after hot-dip galvanizing, which has a uniform and bright surface.
• Powder Coated Color: Customizable colors such as black, white, gray, blue, red, and green. The powder coating is wear-resistant, scratch-resistant, and has strong adhesion, suitable for decorative and outdoor applications.

2. Applications

• Architectural Field: Facade decoration, ceiling panels, partition walls, stair railings, window screens, and floor gratings. It can enhance the aesthetic sense of buildings while ensuring ventilation and light transmission.
• Industrial Field: Machine guards, equipment protection nets, filter screens, sound insulation panels, and conveyor belts. It can effectively protect equipment and operators, and realize filtration and sound insulation functions.
• Security Field: Fencing for residential areas, factories, highways, railways, and airports; anti-theft nets for windows and doors. It has strong anti-climbing and anti-damage performance, ensuring safety.
• Agricultural Field: Greenhouse shelves, animal breeding nets, and crop protection nets. It is corrosion-resistant and durable, adapting to outdoor agricultural environments.
• Daily Life: Decorative crafts, furniture accessories, kitchen filters, and ventilation grilles. It combines practicality and aesthetics, enriching daily life.
