Precision Perforated Metal Plate Custom Size Adjustable Open Ratio

Place of Origin	China
Brand Name	TT
Certification	ISO9001
Model Number	Customization according to drawings is supported
Minimum Order Quantity	100pcs
Price	USD3-10 /SET
Packaging Details	Pallets in containers or as per request
Delivery Time	5-8work days
Payment Terms	L/C, D/A, D/P, T/T, Western Union
Supply Ability	1000sq.m per days

Product Details

Sound Absorption	Excellent	Technique	Perforated,Welded Mesh
Surface Treatment	Aluminum	Manufacturing Process	Punching / Laser Cutting / CNC
Application	Filtration, Decoration, Soundproofing, Ventilation	Productname	Perforated Metal Plate
Feature	Bright On Surface,modern	Weight	Varies By Material And Thickness
Highlight	custom perforated metal plate , adjustable open ratio metal plate , precision perforated metal sheet

Leave a Message

Product Description

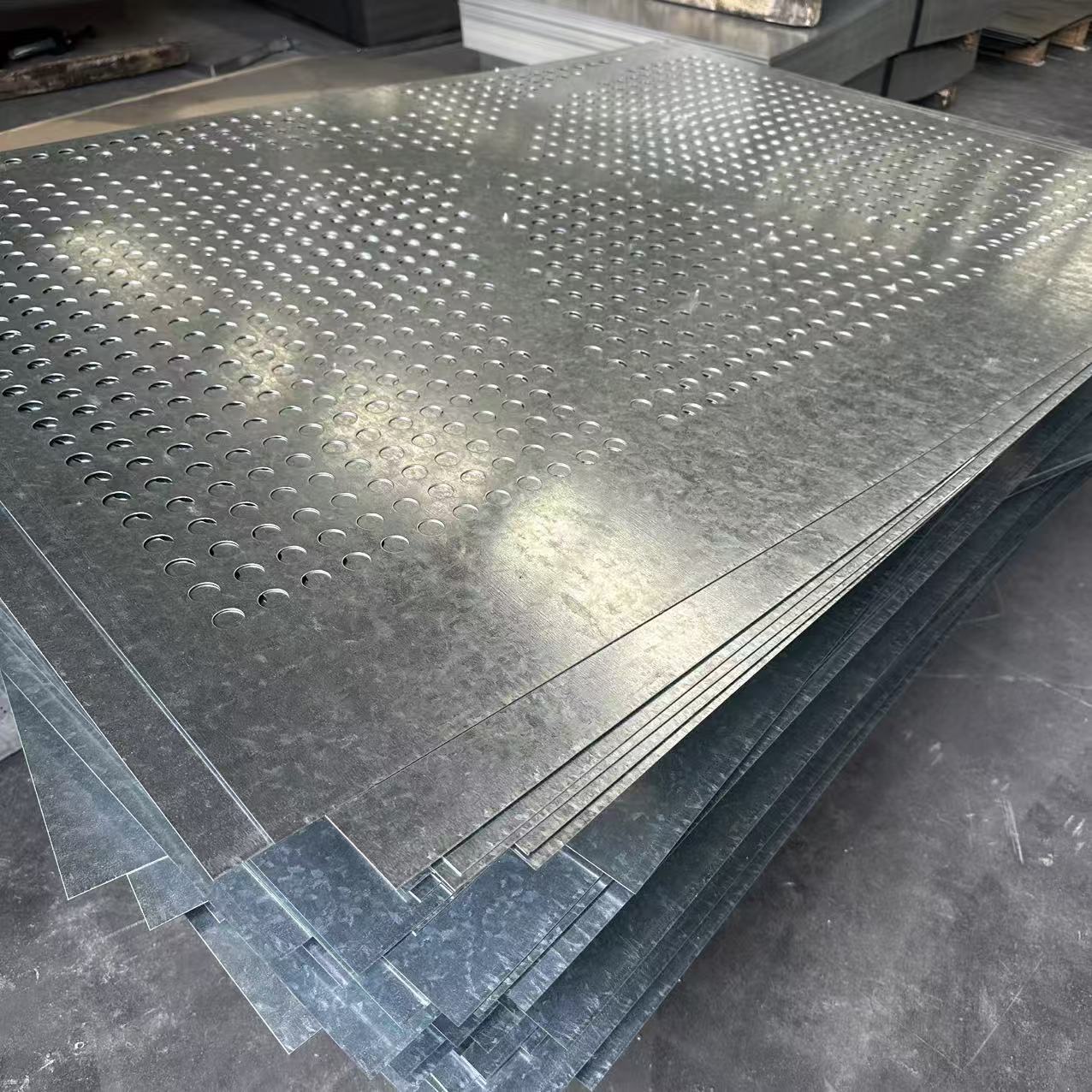

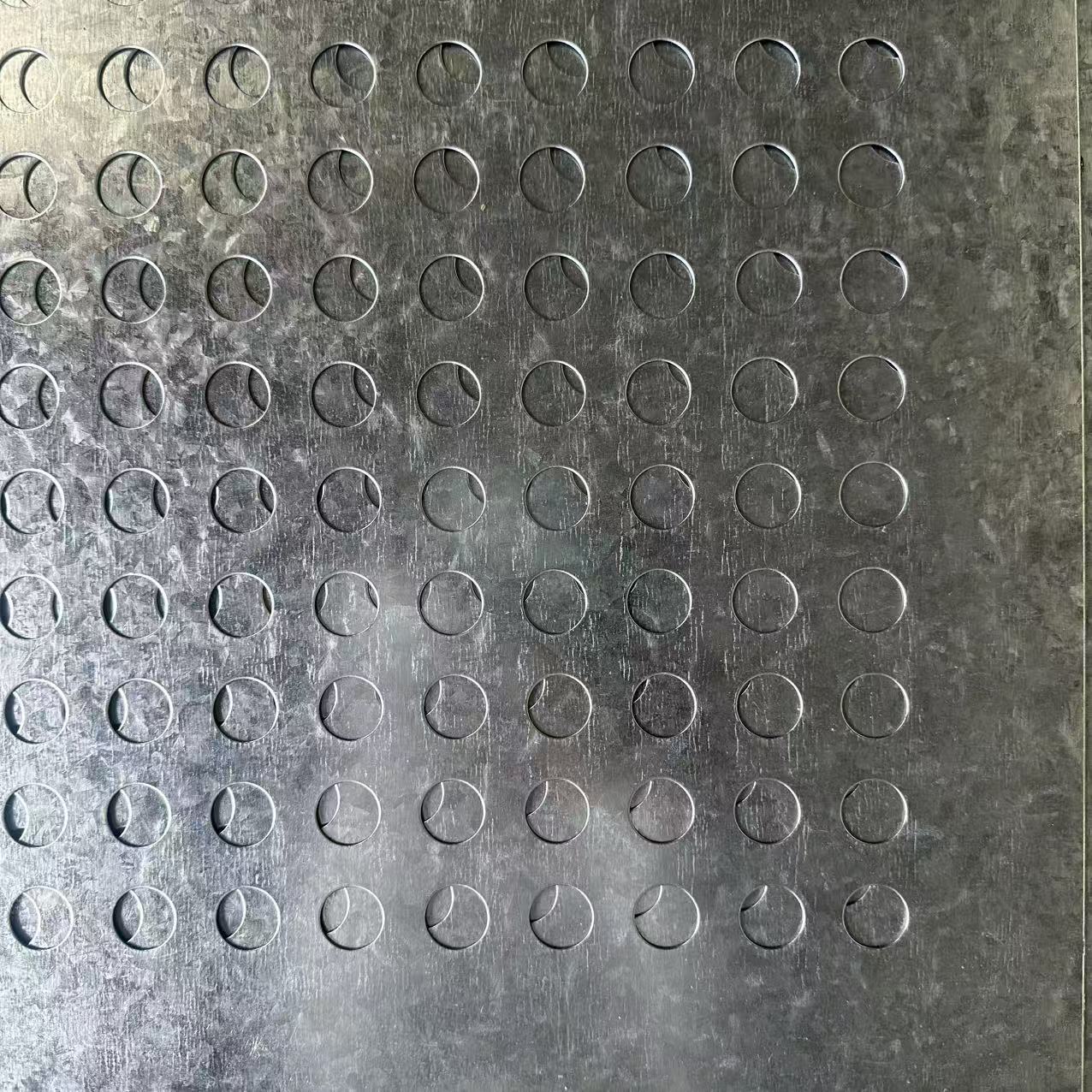

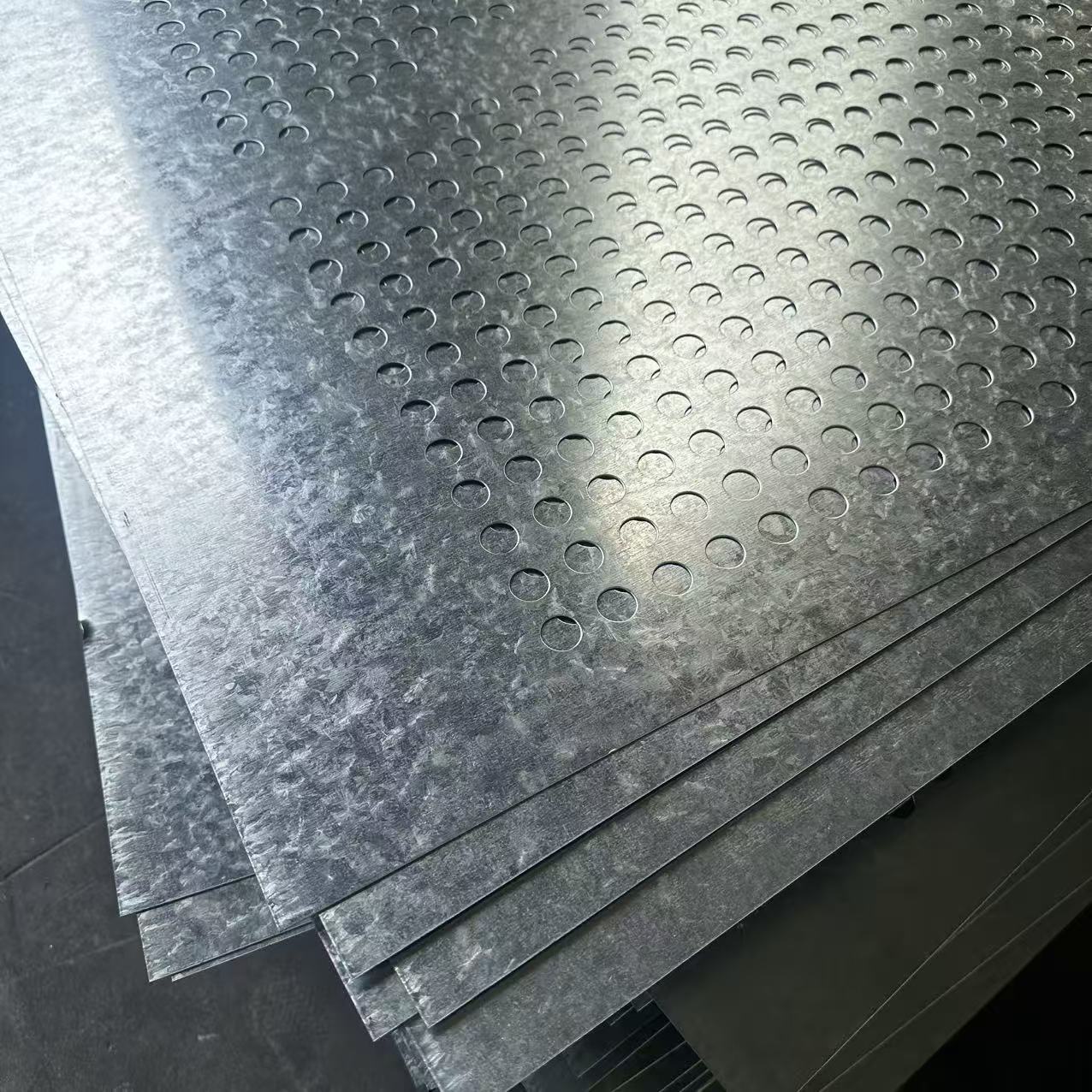

Precision Perforated Metal Plate Custom Size Adjustable Open Ratio

Also called perforated sheet or perforated metal mesh, this premium metal product is crafted via high-precision stamping to create regular/irregular holes on metal panels. It perfectly balances structural strength and versatile functionality, making it a top choice for diverse industrial and commercial projects. Full customization is supported—from materials and dimensions to hole designs and finishes—to fit your unique application needs.

Key Advantages

Robust Structure: One-piece stamping ensures holes won’t compromise overall rigidity. Exceptional compression/tensile resistance, anti-deformation, and long service life.

All-in-One Functionality: Integrates ventilation, daylighting, filtration, sound insulation, anti-slip, and decoration. Adjust hole specs to tailor performance.

High Customization: Customize material, hole size/shape/pitch, panel dimensions, color, and open area ratio (5%-60%) for personalized demands.

Easy & Cost-Effective: Lightweight design enables on-site cutting, splicing, and quick installation. Smooth surface requires minimal maintenance and easy cleaning.

Technical Specifications

Category	Details
Panel Size	Thickness: 0.3mm–12mm (common: 0.5mm–5mm); Width: 300mm–1500mm; Length: 1000mm–6000mm (custom cuts available)
Hole Specifications	Diameter: 0.5mm–100mm (conventional: 1mm–20mm); Center pitch: 1mm–150mm; Arrangements: Straight/staggered/diagonal rows
Hole Shapes	Regular: Round (most popular), square, rectangular, slotted, hexagonal; Custom: Diamond, plum blossom, star, irregular designs
Tolerance	Thickness: ±0.05mm–±0.2mm; Hole diameter: ±0.03mm–±0.1mm; Overall dimension: ±1mm–±3mm (high-precision upgrade optional)

Material Options

Choose based on corrosion resistance, temperature, and load-bearing needs:

Stainless Steel (304/316/316L): Top choice for outdoor/humid/acid-alkali environments (chemical, marine, food industries) – rust-proof, high-temperature resistant.
Carbon Steel (Q235): Cost-effective, high mechanical strength – ideal for indoor dry, non-load-bearing scenarios (surface treatment optional for corrosion resistance).
Galvanized Steel: Hot-dip/electro-galvanized – enhanced rust protection for outdoor fences, municipal facilities.
Aluminum Sheet: Lightweight, ductile, aesthetic –eet**: Lightweight, ductile, aesthetic – perfect for decoration, aerospace, automotive industries.
Copper Sheet: Excellent conductivity/thermal resistance – suitable for electronics, high-end decoration, chemical engineering.

Surface Finishes & Colors

Standard Finishes: Silver (raw material color), galvanized gray, powder-coated black/white/grayish blue/red.
Custom Finishes: Powder coating, anodizing, spraying – match Pantone codes or color samples for building facades, interior design, and branded projects.

Wide Applications

Construction: Building facades, ceilings, partitions, sunshades, sound insulation walls, stair railings – boosts aesthetics and functionality.
Industry: Machine guards, filter plates, ventilation grilles, noise reduction equipment – serves chemical, pharmaceutical, food, metallurgy sectors.
Decoration: Indoor wall/ceiling decor, furniture accessories, exhibition displays, advertising signs – creates unique visual effects.
Environmental & Municipal: Sewage filters, waste screening, road sound barriers, public facility decor.
Others: Automotive parts, aerospace components, electrical enclosures, household appliance filters.

Why Choose Us?

Compared to ordinary metal plates, woven mesh, or plastic mesh, our perforated metal plate offers:

Superior structural strength + multi-function integration
Unmatched customization flexibility
Easier installation & lower long-term maintenance costs
Wider material/finish options for harsh environments
Longer service life with corrosion/high-temperature resistance

Precision Perforated Metal Plate Custom Size Adjustable Open Ratio 0

|Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: How long is your delivery time?

A: Generally 5-10 days for in-stock items, or 15-20 days for out-of-stock items depending on quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we offer samples but customers must cover the cost and freight.

Q: What are your payment terms?

A: For orders ≤1000USD, 100% in advance. For orders ≥1000USD, 50% T/T in advance with balance before shipment.

For additional questions, please feel free to contact us.
