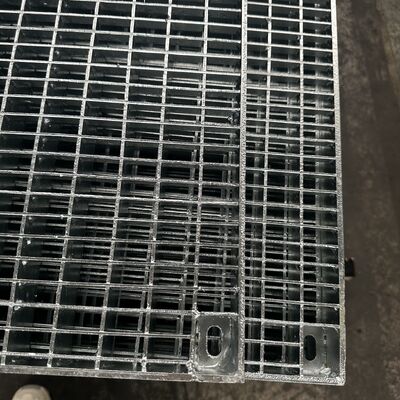

Industrial Steel Grating With Standard Spacing And Load Bearing

1. Specifications

• Load-bearing Bar Specifications: Common sizes include 20×3mm, 25×3mm, 30×3mm, 32×5mm, 40×5mm, 50×5mm, etc. (thickness × width). The spacing between load-bearing bars typically ranges from 20mm to 100mm, with 30mm and 40mm being the industry standards for general-purpose use.
• Cross Bar Specifications: Twisted square steel is the preferred cross bar material, available in sizes like 6×6mm, 8×8mm, and 10×10mm. Cross bar spacing varies from 50mm to 200mm, with 100mm spacing balancing load capacity and cost-efficiency for most flooring and platform applications.
• Sheet Size: Standard panels range from 1m to 1.2m in width and 2m to 6m in length, but custom dimensions (e.g., wider panels for large-scale platforms or shorter lengths for stair treads) are readily available to match project blueprints.

2. Materials

• Carbon Steel: Made from Q235 or Q355 steel, carbon steel grating is the most economical option, offering excellent mechanical strength. It requires surface treatment (e.g., galvanization) to resist corrosion and is ideal for indoor, dry, or low-humidity settings such as warehouses and indoor platforms.
• Stainless Steel: Available in grades 304, 316, and 316L, stainless steel grating excels in corrosion resistance. 304 grade is perfect for outdoor or mild chemical environments, while 316/316L grades withstand saltwater, acids, and harsh chemicals—making them essential for marine facilities, food processing plants, and chemical factories.
• Aluminum Alloy: Lightweight (approximately one-third the weight of steel) and naturally corrosion-resistant, aluminum alloy grating is suited for weight-sensitive projects like aerospace facilities, pedestrian bridges, and coastal structures where reduced load is critical.

3. Color Options

• Hot-Dip Galvanized (HDG): The most popular treatment, delivering a silver-gray finish with a zinc coating thickness of ≥85μm. It provides long-lasting corrosion resistance (15-20 years in outdoor environments) and is widely used in industrial plants, bridges, and municipal infrastructure.
• Powder Coating: Offers customizable colors (red, blue, green, yellow, gray, etc.) with a wear-resistant, UV-protective finish. Ideal for commercial buildings, parks, and decorative applications where visual appeal matters.
• Painting: Provides flexible color matching but lower durability than galvanization or powder coating. Suitable for indoor, low-wear spaces where color coordination is a priority.
• Stainless Steel Natural Finish: A sleek, metallic silver appearance with inherent corrosion resistance, requiring no additional coating—perfect for modern architectural designs and hygienic environments.

4. Applications

• Industrial Sector: Factory platforms, walkways, stair treads, mezzanines, conveyor supports, and oil rig platforms. Its high load-bearing capacity (up to 25 kN/m² for light vehicle traffic) and slip-resistant surface ensure worker safety in heavy-duty settings.
• Infrastructure & Municipal Engineering: Bridge decking, drainage grates, sidewalk grates, subway stations, and sewage treatment plants. The open-grid design allows water, debris, and air to circulate, preventing accumulation and reducing maintenance.
• Commercial & Civil Buildings: Shopping mall atriums, parking garages, pedestrian bridges, rooftop terraces, and balcony flooring. It blends durability with modern aesthetics, enhancing both functionality and design appeal.
• Special Environments: Marine vessels, offshore platforms (stainless steel or galvanized), food processing plants (316 stainless steel), chemical facilities (corrosion-resistant materials), and fire escape routes (serrated slip-resistant surfaces).

5. Key Parameters

• Load-Bearing Capacity: Measured by maximum safe load (kN/m²) or bending strength (MPa). For example, 30×5mm load-bearing bars with 30mm spacing support 5-10 kN/m² (pedestrian use), while 50×5mm bars with 40mm spacing handle 15-25 kN/m² (light vehicles).
• Slip Resistance: Serrated load-bearing bars or raised patterns achieve a slip resistance coefficient of ≥0.5 on wet surfaces, complying with international standards (OSHA, EN 14411) for workplace safety.
• Corrosion Resistance: Dependent on material and treatment—hot-dip galvanized carbon steel resists rust, 304 stainless steel withstands mild chemicals, and 316/316L resists saltwater and harsh reagents.
• Weight: Carbon steel grating weighs 20-50 kg/m², stainless steel 25-60 kg/m², and aluminum alloy 8-15 kg/m², influencing transportation, installation, and structural load considerations.
• Structural Integrity: Welded steel grating features weld joints with shear strength ≥3.6 kN (EN standard), while locked grating uses mechanical locking systems for easy disassembly and reuse.
