Mild Steel Material No Finish Perforated Mesh Plate 12.7mm Staggered Centers
Place of Origin | HeBei,China |
---|---|
Brand Name | TT |
Certification | ISO9001,CE |
Model Number | 01 |
Minimum Order Quantity | 100piece/pieces |
Packaging Details | Wooden Pallet/Steel Pallet Or As The Customar require |
Delivery Time | 5-8days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 25000piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Stainless Steel Wire,Aluminum,Galvanized Steel Wire,etc | Application | Protecting Mesh,Filters,Screen,Decoration |
---|---|---|---|
Packing | Pallet,wooden Box And Pallet,free-fumigaton Wooden Box | Size | Requirement,Customized |
Width | 0.5-2m / Customer Request | Feature | Corrosion Resistance,High Temperature Resistance,anti-skidded,Heat-resistance |
High Light | no finish perforated mesh plate,12.7mm perforated mesh plate,staggered centers perforated floor plate |

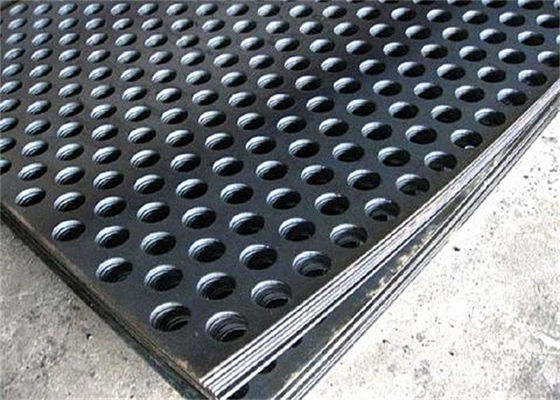

Mild Steel Material No Finish 12.7mm Staggered Centers Perforated Metal Plate
Product Description
Mild steel perforated mesh is a perforated plate mesh product made of low carbon steel plate as raw material through CNC punching processing. The so-called low carbon steel, also known as soft steel, with a carbon content between 0.1% - 0.3%, its strength, and hardness are low, plasticity and toughness are good, not easy to break, easy to accept a variety of processing. Such as forging, welding, and cutting.
Product Specification&Model
Size | Gauge | Opening Area | Hole Diameter | Staggered Centre |
48*96 | 20 | 37 | .045 | .066 |
48*96 | 22 | 41 | 1/16 | 3/32 |
48*96 | 20 | 23 | 1/16 | 1/8 |
48*96 | 22 | 35 | 5/64 | 1/8 |
48*96 | 18 | 35 | 5/64 | 1/8 |
48*96 | 16 | 38 | .081 | 1/8 |
Unfinished End Pattern is standard:
Staggered Perforations, both round and square – direction of the stagger will normally be the short dimension of the perforated sheet metal, as illustrated below. A straight row of holes is normally parallel to a long dimension of the sheet.
Slotted Perforations – the long dimension of the slots can be furnished parallel with either the width or length of the sheet in most cases.
Margins
Perforated Stock Size Sheets -the long sides of the sheet will be supplied with minimum margins. The short sides of the sheet will have either minimum margins or no margins (See illustration above).
Sheets Re-sheared After Perforating -special margins are available to specifications but they must carry a tolerance within the limits of the perforating tool
Definitions:
QUANTITY | State the number of perforated pieces, blanks, full sheets, or lineal feet of coil required. |
PATTERN OF PERFORATION | Specify “staggered” or “straight line”. Normally the straight row of a staggered pattern will run the long dimension of the sheet. |
THICKNESS |
Specify in gauge numbers or in decimal inches. |
MATERIAL | State kind of metal or plastic required. |
WIDTH & LENGTH | Unless otherwise specified, the length will be the long dimension of the sheet. |
SIZE OF HOLE | Specify the size in inches. |
Details specific introduction:
Typical applications :
It is often used in Natural Resources, Agricultural, and Manufacturing sectors for filtration and ventilation purposes, yet more and more it is being specced’d by interior designers and architects as a material for many residential and commercial construction projects.
1 | Storage tanks |
2 | Food processing equipment |
3 | Chemical containers |
4 | Heat exchangers |
