13 Gauge 5/8/10 Diamond Plank Grating 36'' Width Aluminum
| Place of Origin | CN |
|---|---|
| Brand Name | TT |
| Certification | ISO |
| Model Number | ZT |
| Minimum Order Quantity | 100 Pcs |
| Price | USD 3-15/pcs |
| Packaging Details | steel pallet, steel belt, wood carton |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, D/A, T/T, MoneyGram |
| Supply Ability | 500 Pcs per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q235,stainless Steel Galvanized Steel,aluminum | Standard | ISO9001 |
|---|---|---|---|
| The Number Of Holes | 2-hole,3-hole,5-hole,6-hole,10-hole,13-hole,16-hole | Name | Anti-Skid Diamond Plank Grating |
| Size | Customized Requirement | Feature | Anti-slip |
| Usage | Public Drain Area,bathroom,Concrete Construction Support | Application | Stair,walkway Platform,drain |
| Thickness | 2.0mm-5.0mm | Length | ≤5800mm |
| High Light | 13 gauge diamond plank grating,36'' width diamond plank grating,aluminum grip strut safety grating |
||
Product Description
13 Guage different size Anti-Skid Safety Plank Grating Outdoor Flooring And Stair Walkway
Product Description

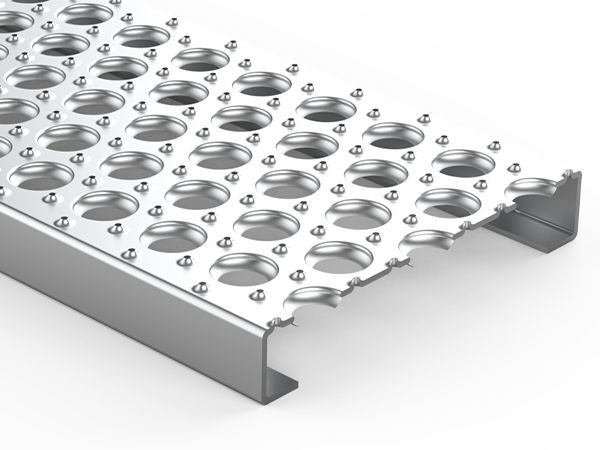

Perf-O Grip safety grating is a one-piece metal plank grating manufactured into the shape of a channel by a cold forming process. The web of the channel is the walking surface and has large debossed holes, surrounded by smaller embossed traction buttons. Perf-O Grip safety grating is used to create non-slip commercial and industrial metal walkways and stairways. The stair tread surface has a high load capacity, long life and high strength-to weight performance. Perf-O Grip metal stair treads are manufactured with welded end carrier plates and are pre-punched with holes, which allow the treads to be bolted to the stair stringers. Simple and economical installation, asmetal grating planks are self-framing.
Specification
| Material: hot-rolled, cold-rolled, galvanized sheet, aluminum, stainless steel sheet and so on. |
| Thickness: 2.0mm-5.0mm |
| Width: ≤1000mm Length: ≤4000mm |
| Surface treatment: electro-galvanized, hot-dip galvanized, polishing and so on. |

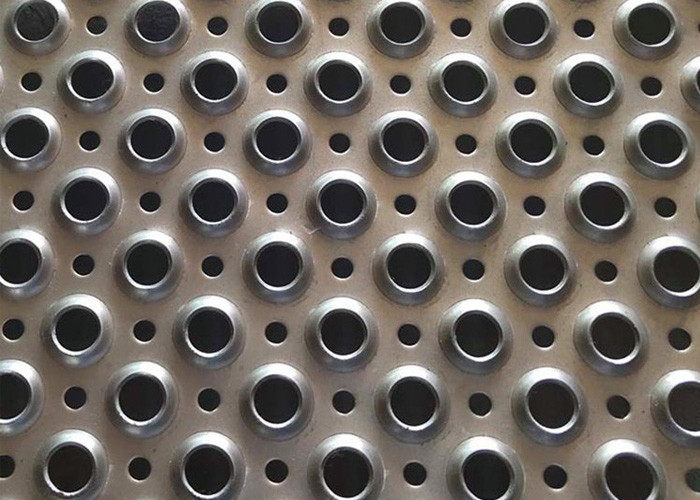

| Holes: crocodile moth type, round convex type, tear- type, bridge-type hole |

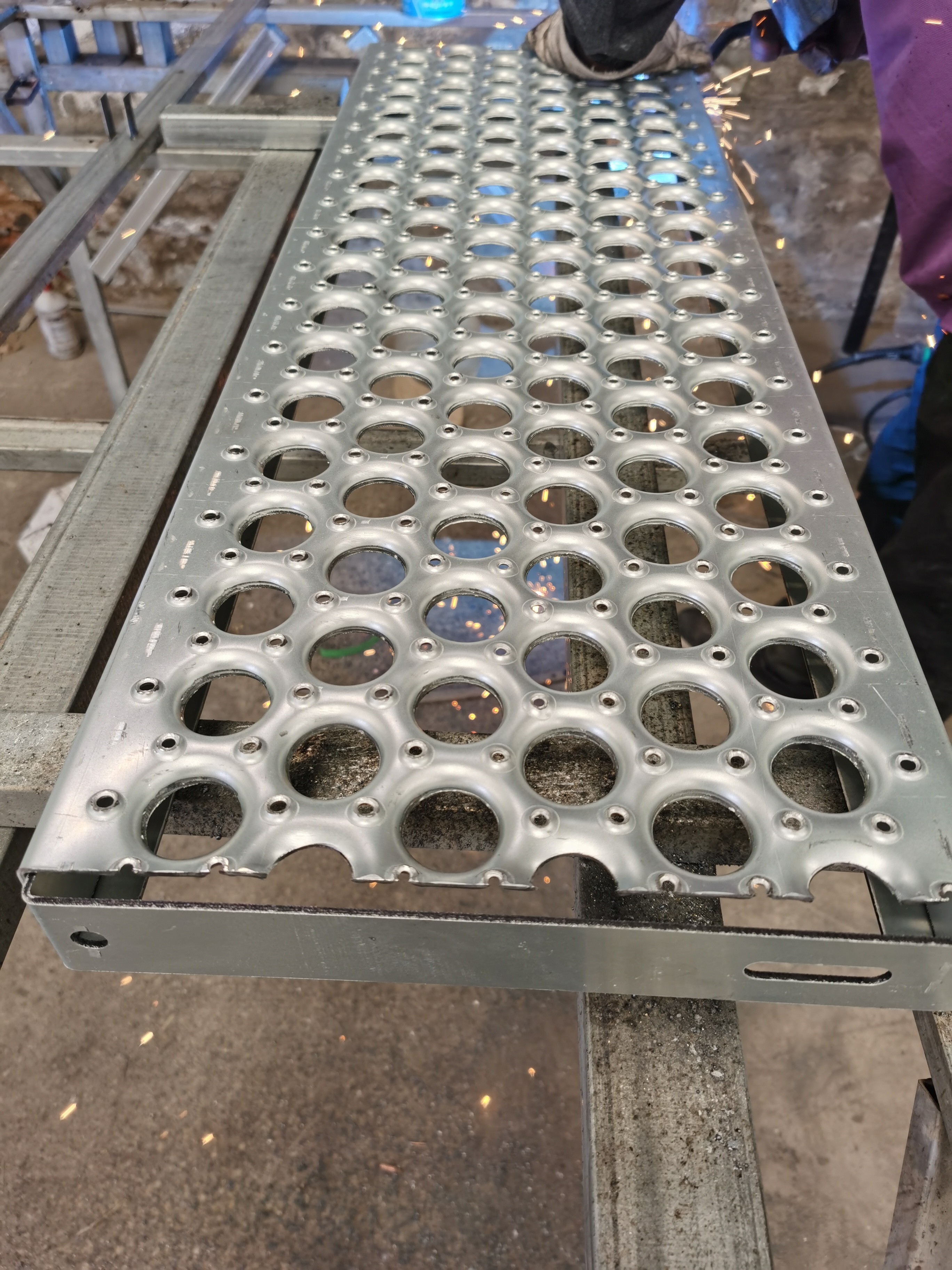

| Processing procedure: raw materials- CNC molding -bending-welding-forming-packaging. |
Features of o-grip safety grating
- High strength and high bearing capacity.
- Non-slip.
- Do not accumulate rain, snow and dust.
- wear-resisting, not easy to deform.
- Durable and the lifespan is long.
- Lightweight, easy to install and disassemble
Material: The raw material usually is stainless steel carbon plate, galvanized plate and cold rolled coil, etc.
Perf-O Grip safety grating is a one-piece metal plank grating manufactured into the shape of a channel by a cold forming process. The web of the channel is the walking surface and has large debossed holes, surrounded by smaller embossed traction buttons. Perf-O Grip safety grating is used to create non-slip commercial and industrial metal walkways and stairways. The stair tread surface has a high load capacity, long life and high strength-to weight performance.

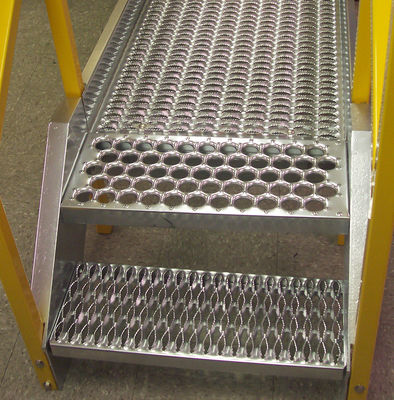

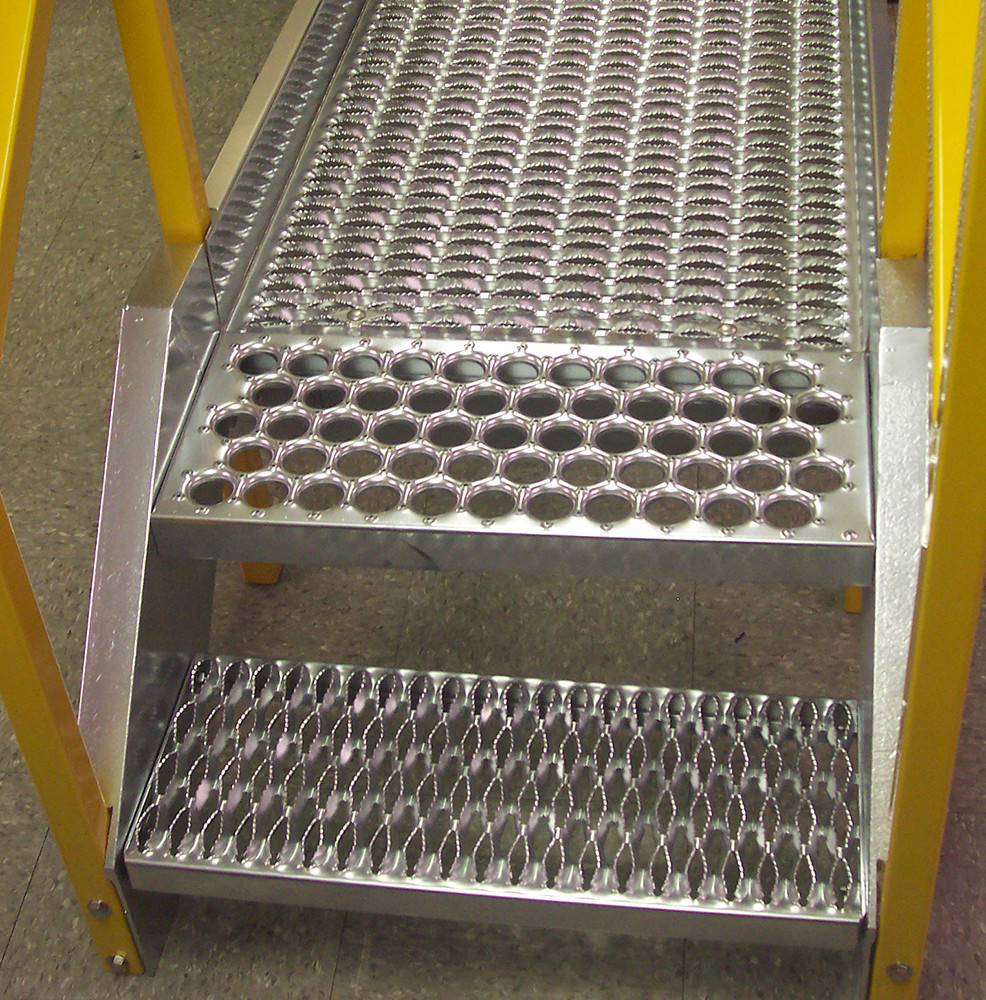

Application of the O-grip strut
Perf O-grip safety grating are widely used for underfoot security in gas based power plants, shipbuilding, boiler, automobile, tractor, railway carriage, architecture, large buildings, bridges, mining and construction industries.
Work platforms.
- Industrial flooring
- Catwalks.
- Ramps.
- Walkway.
- Step treads.
- Running boards.
- Ladder rungs.
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.How can I know how my order is being done?
A:We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
4.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
5.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
6.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
7.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
